| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3477 | NGC3162 | 153.3816878 | 22.7375202 | 3.4989 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3477 | NGC3162 | 153.3816878 | 22.7375202 | 3.4989 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3162 | SER | 3.43 | 22.190 | 167.72 | 0.321 | 104.967 | 24.30 | 0.265 | 77.882 | 96.751 | 118.320 | 33.286 | 31.315 | 29.764 |

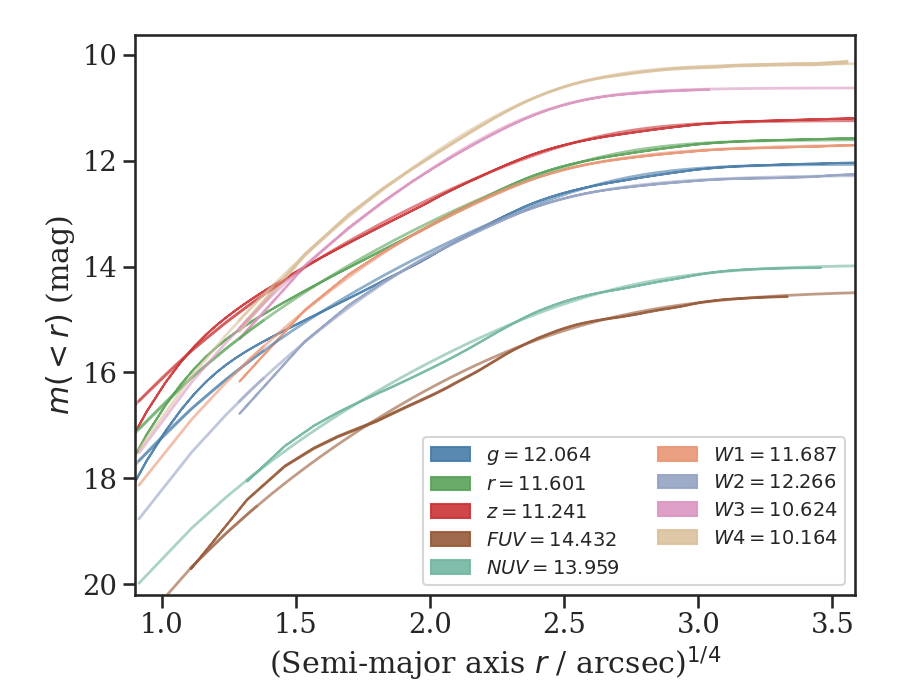

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

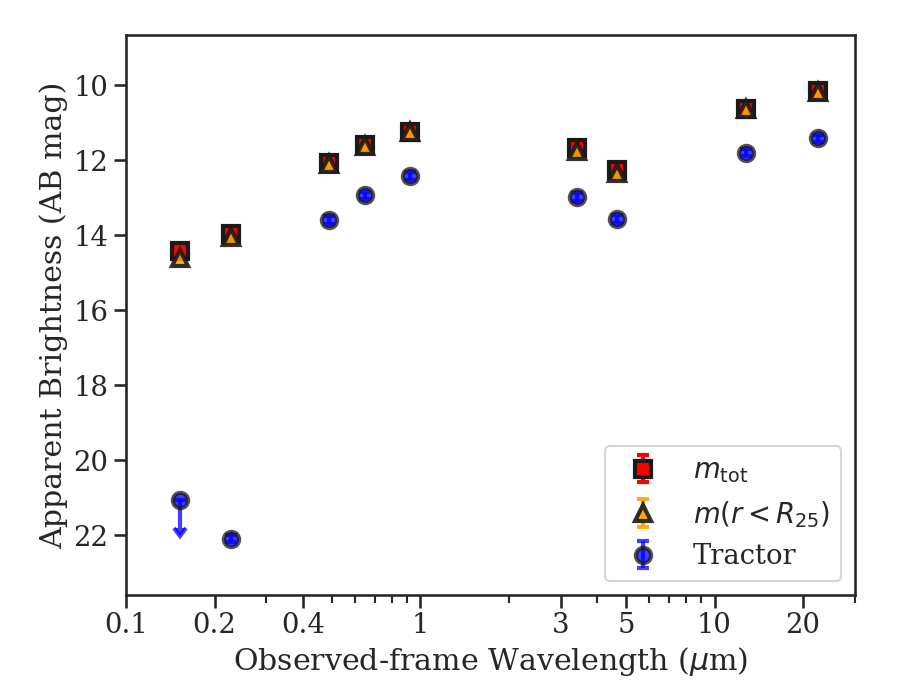

| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3162 | >21.059 | 22.088 | 13.591 | 12.938 | 12.416 | 12.979 | 13.561 | 11.796 | 11.416 | 14.432 | 13.959 | 12.064 | 11.601 | 11.241 | 11.687 | 12.266 | 10.624 | 10.164 |
 |
 |
 |
 |
 |
 |
