| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3612 | NGC3177 | 154.1421885 | 21.1229565 | 1.9374 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3612 | NGC3177 | 154.1421885 | 21.1229565 | 1.9374 |

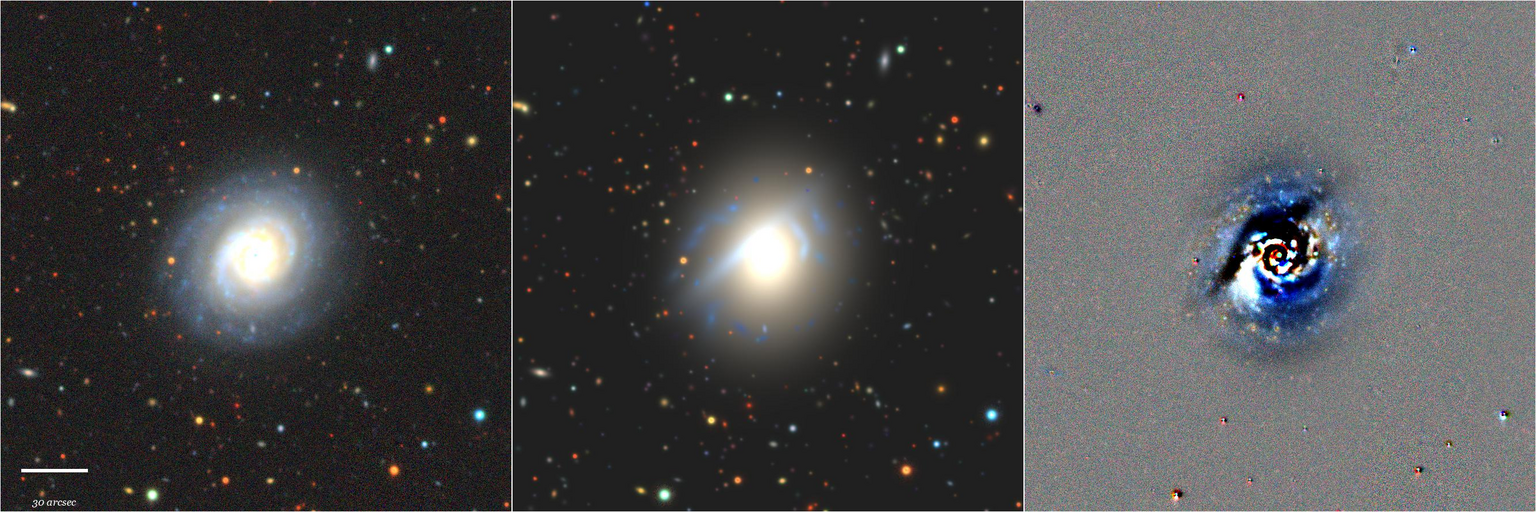

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3177 | SER | 2.46 | 10.436 | 166.92 | 0.165 | 46.694 | 139.59 | 0.157 | 41.724 | 50.670 | 61.424 | 11.652 | 10.616 | 11.060 |

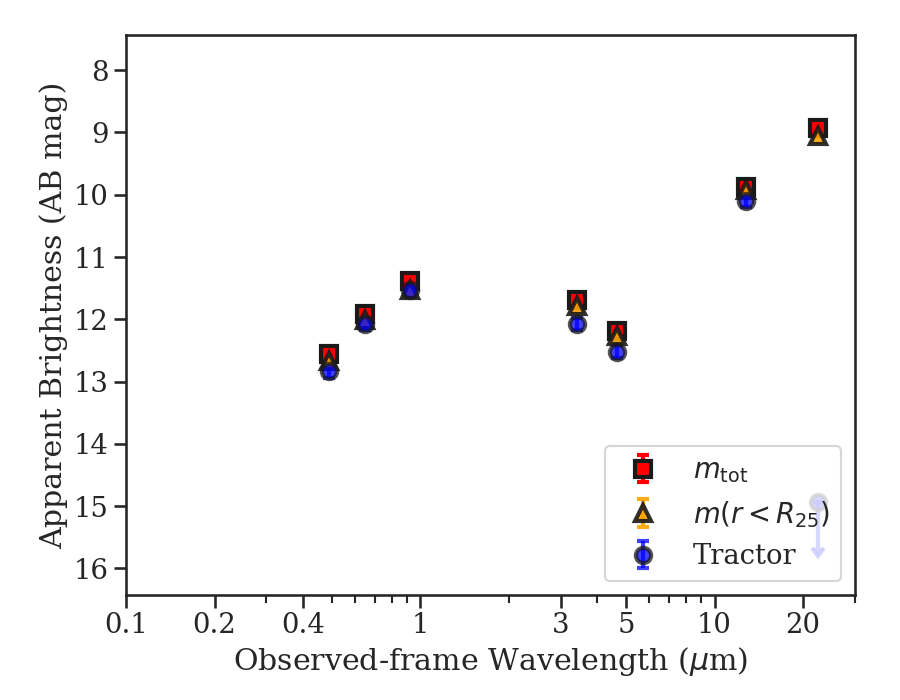

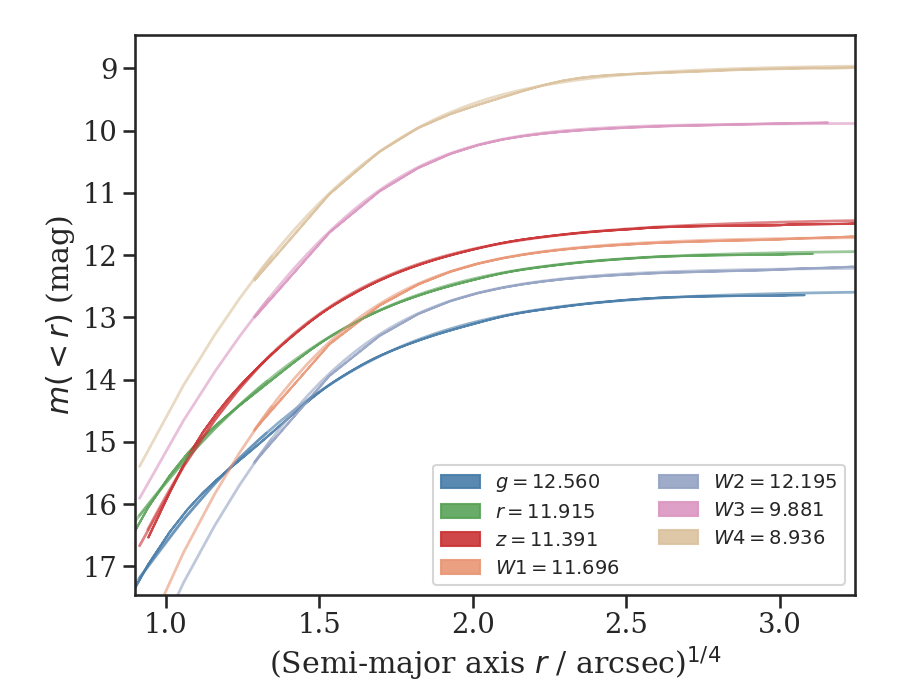

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3177 | ... | ... | 12.837 | 12.075 | 11.525 | 12.072 | 12.519 | 10.099 | >14.926 | ... | ... | 12.560 | 11.915 | 11.391 | 11.696 | 12.195 | 9.881 | 8.936 |
 |
 |
 |
 |
 |
 |
