| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5980 | UGC05551_GROUP | 154.2939059 | 4.3372702 | 3.0809 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5980 | UGC05551 | 154.2988117 | 4.3310621 | 1.0662 |
| 5977 | PGC213680 | 154.2878214 | 4.3449701 | 0.8597 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC05551 | EXP | 1.00 | 16.939 | 128.80 | 0.358 | 29.865 | 98.09 | 0.183 | 17.070 | 25.809 | 35.617 | 16.480 | 17.080 | 18.744 |
| PGC213680 | REX | 1.00 | 13.636 | 0.00 | 0.000 | 25.888 | 112.86 | 0.432 | 12.240 | 19.540 | 30.560 | 17.286 | 18.486 | 19.452 |

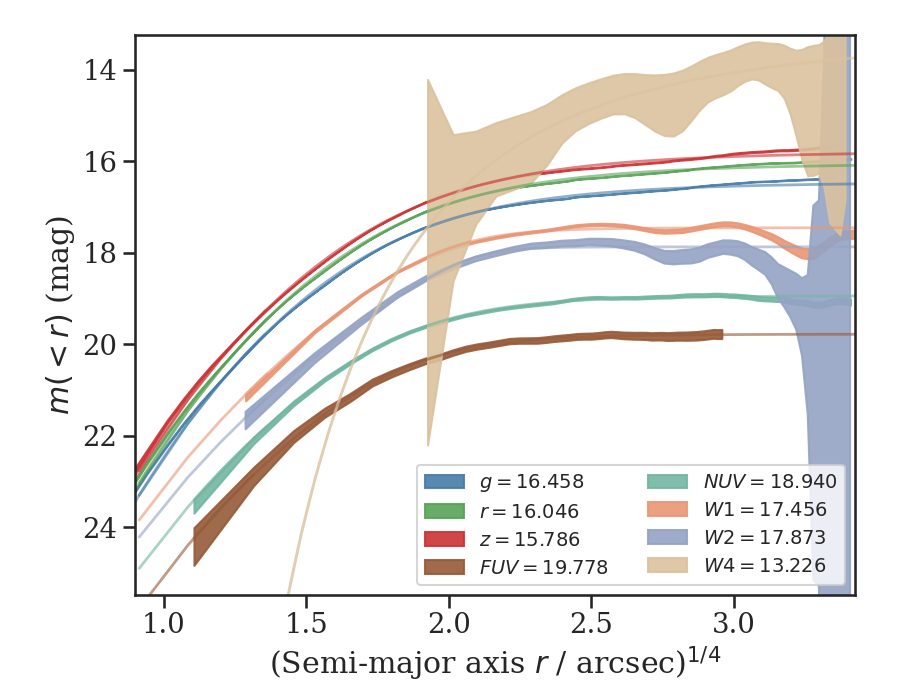

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC05551 | 23.587 | 18.925 | 15.641 | 15.376 | 15.217 | 16.625 | 17.174 | >17.225 | 12.574 | 17.994 | 17.399 | 15.516 | 15.186 | 14.910 | 15.935 | 16.043 | ... | 13.994 |
| PGC213680 | >23.188 | >23.235 | 16.176 | 15.866 | 15.607 | 17.483 | 17.817 | >17.230 | 13.400 | 19.778 | 18.940 | 16.458 | 16.046 | 15.786 | 17.456 | 17.873 | ... | 13.226 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
