| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 1069 | UGC05676 | 157.2696424 | 54.7164363 | 2.2837 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 1069 | UGC05676 | 157.2696424 | 54.7164363 | 2.2837 |

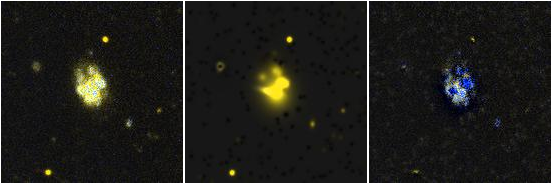

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

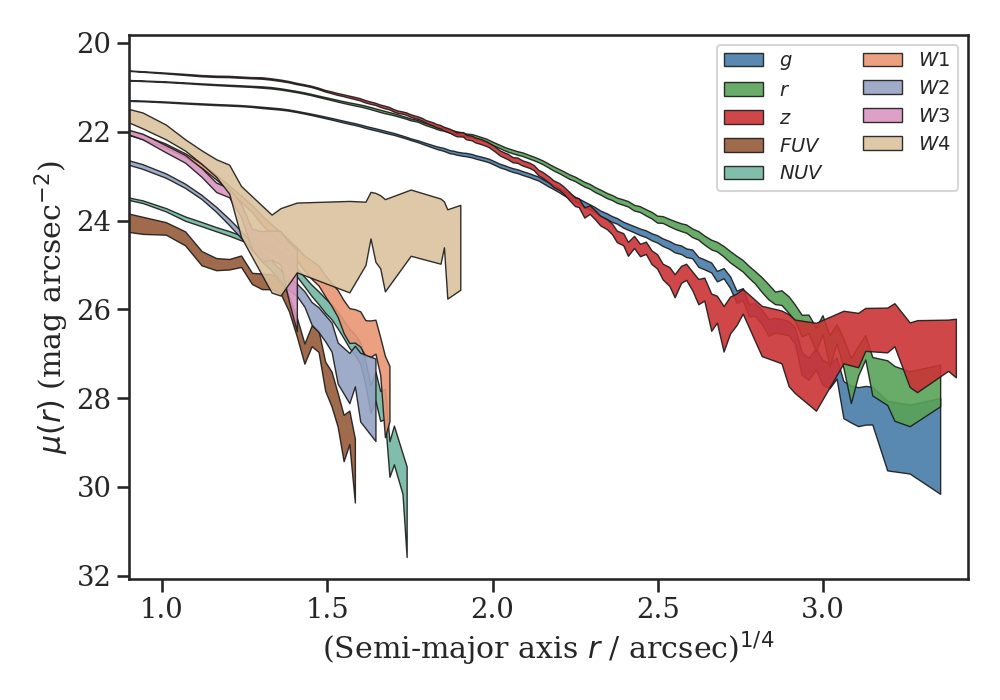

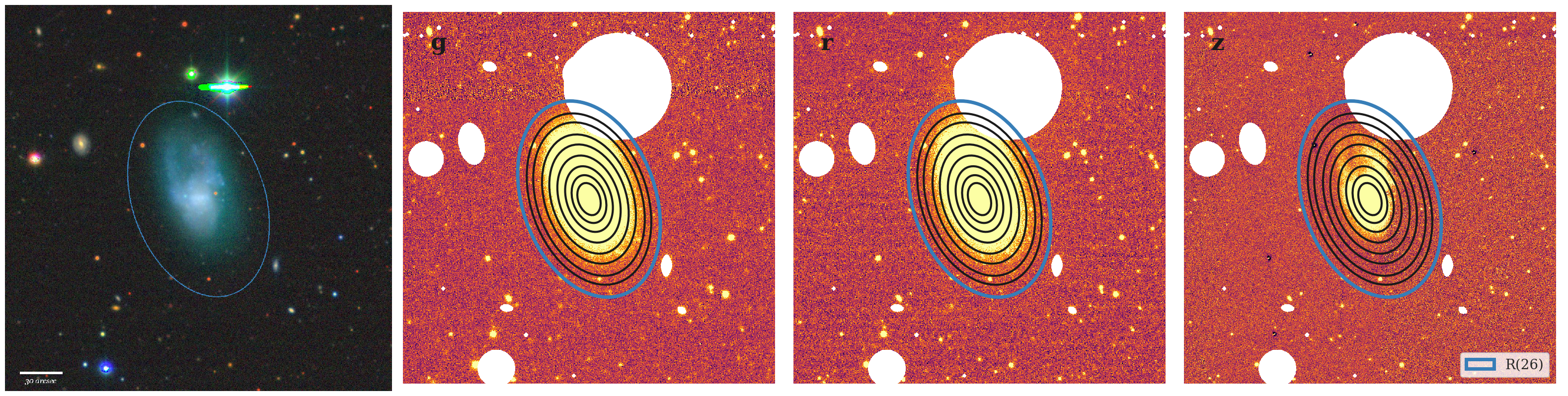

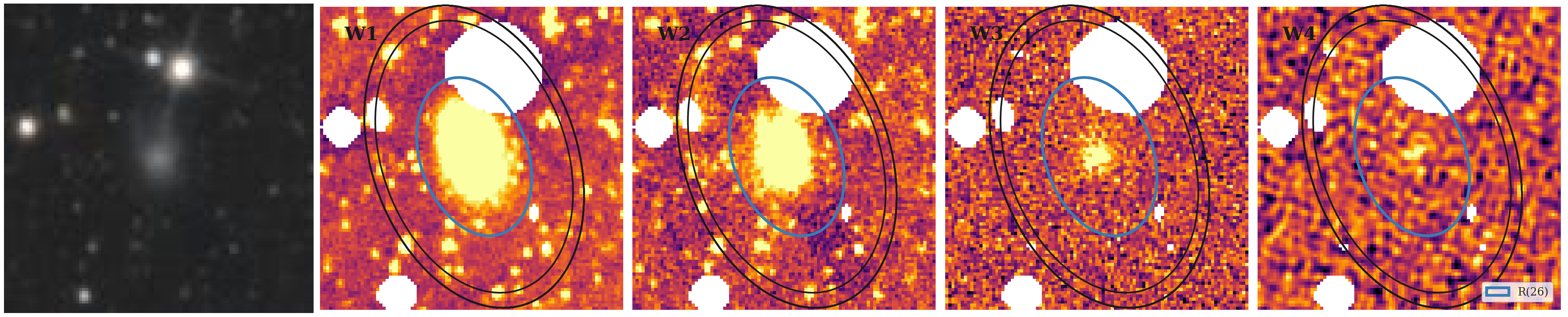

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC05676 | SER | 1.02 | 16.321 | 19.77 | 0.194 | 68.511 | 19.52 | 0.344 | 39.650 | 56.036 | 71.985 | 23.349 | 24.665 | 16.018 |

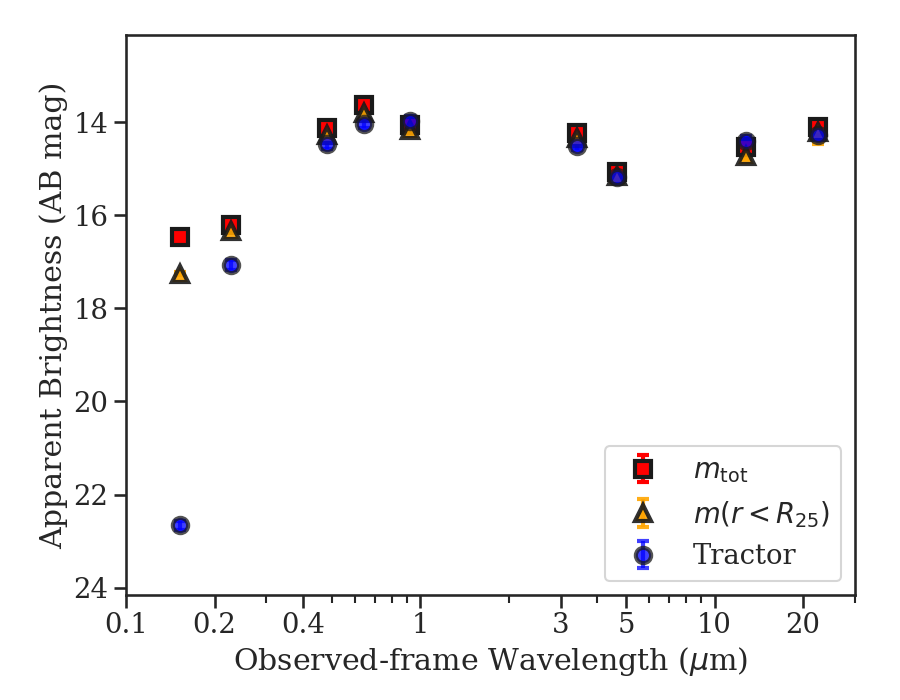

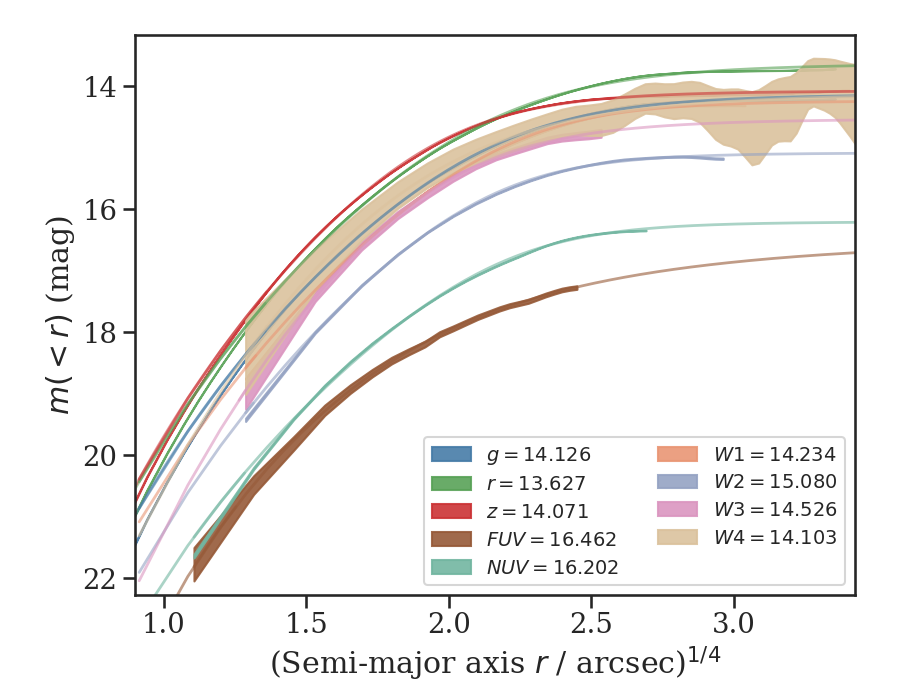

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC05676 | 22.657 | 17.069 | 14.478 | 14.029 | 13.967 | 14.502 | 15.179 | 14.401 | 14.269 | 16.462 | 16.202 | 14.126 | 13.627 | 14.071 | 14.234 | 15.080 | 14.526 | 14.103 |
 |
 |
 |
 |
 |
 |
