| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2794 | UGC05764 | 159.1810725 | 31.5469297 | 2.3113 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2794 | UGC05764 | 159.1810725 | 31.5469297 | 2.3113 |

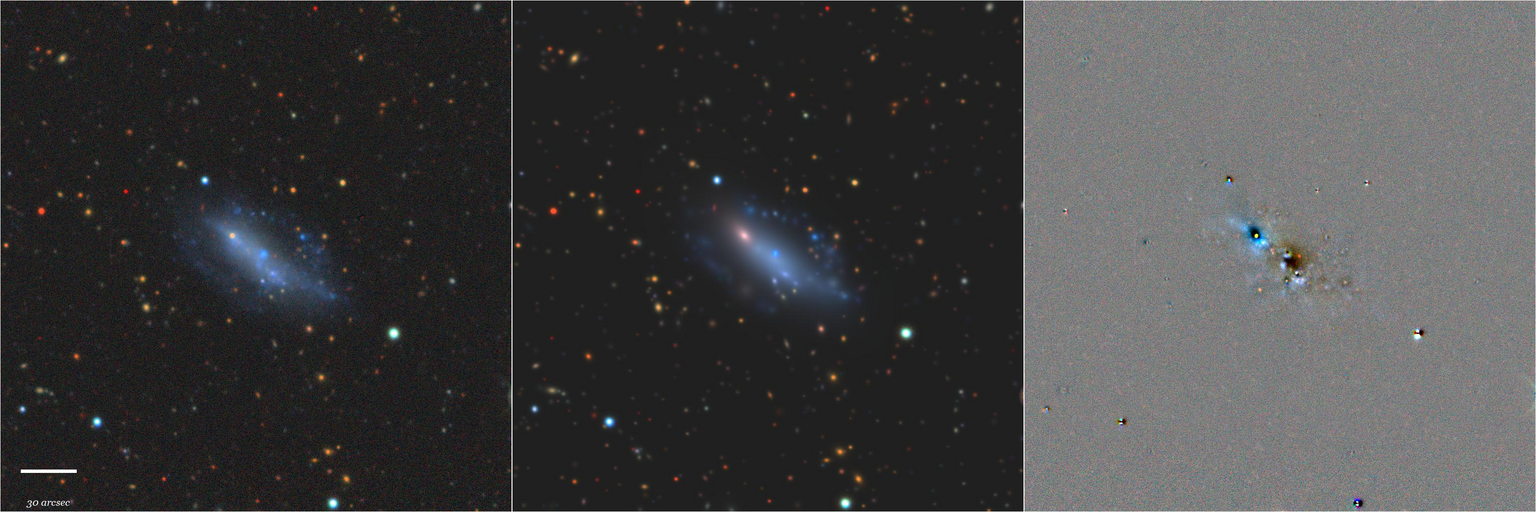

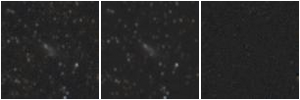

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

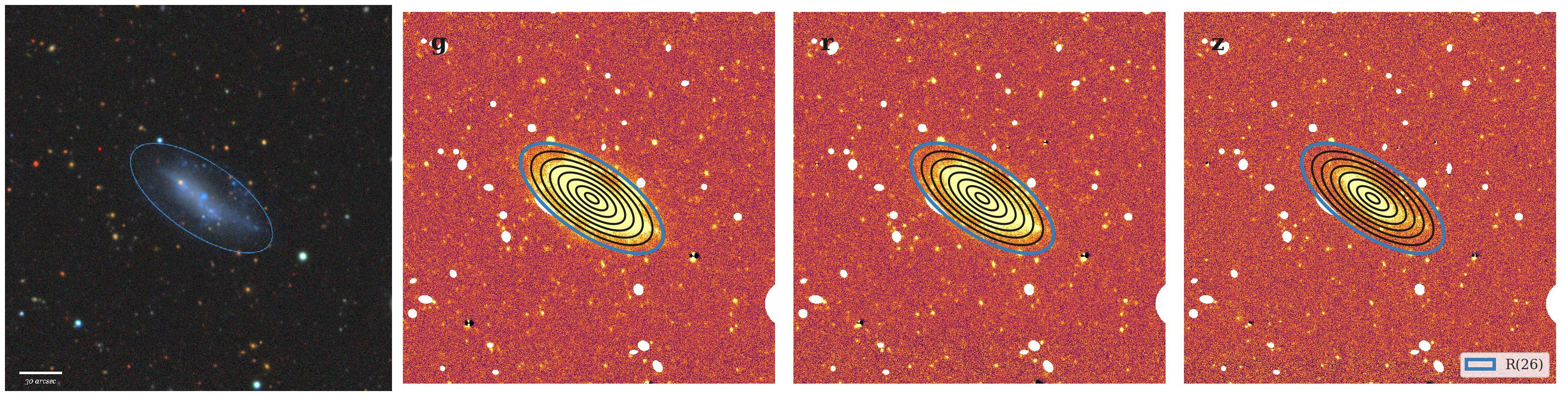

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC05764 | EXP | 1.00 | 17.379 | 52.63 | 0.519 | 51.163 | 55.81 | 0.566 | 27.388 | 42.684 | 59.382 | 29.330 | 27.640 | 26.318 |

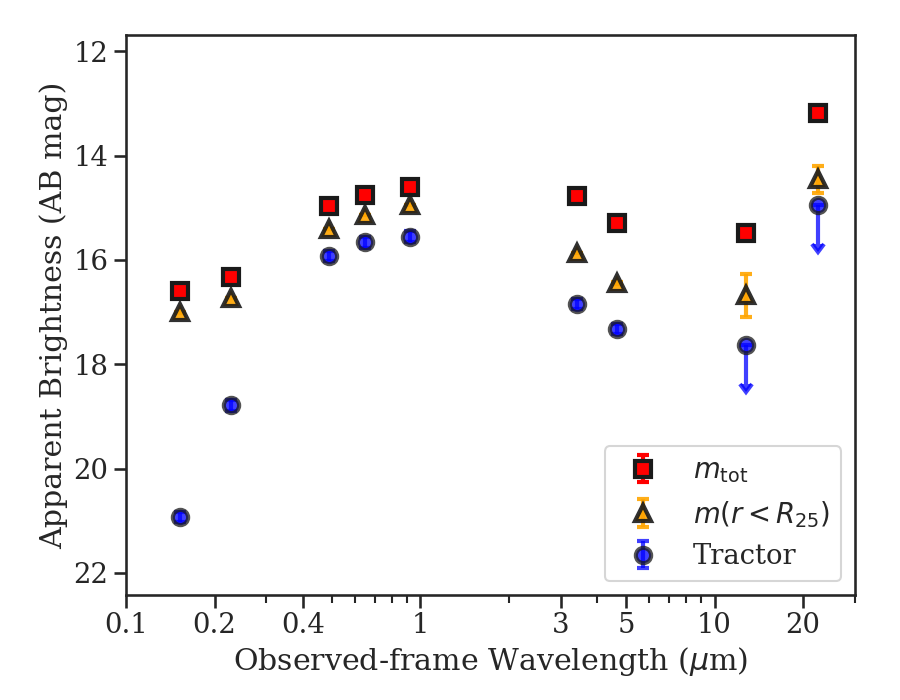

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC05764 | 20.923 | 18.788 | 15.924 | 15.665 | 15.553 | 16.846 | 17.325 | >17.636 | >14.941 | 16.604 | 16.330 | 14.957 | 14.747 | 14.601 | 14.779 | 15.287 | 15.477 | 13.188 |
 |
 |
 |
 |
 |
 |
