| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4326 | NGC3377A | 161.8428635 | 14.0703603 | 2.4767 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4326 | NGC3377A | 161.8428635 | 14.0703603 | 2.4767 |

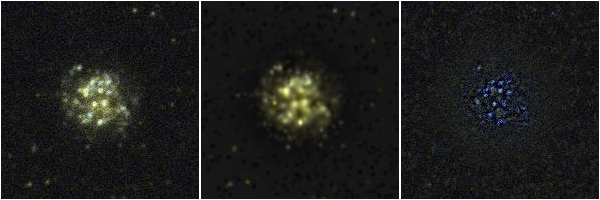

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3377A | REX | 1.00 | 31.280 | 0.00 | 0.000 | 74.300 | 39.86 | 0.101 | 43.365 | 63.012 | 80.344 | 37.116 | 38.360 | 39.262 |

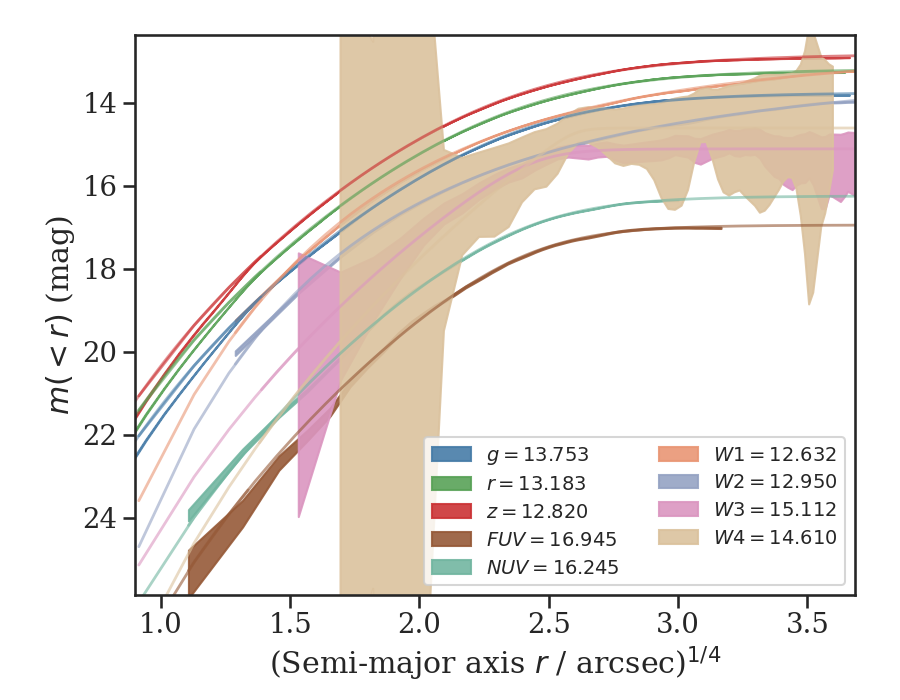

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3377A | >22.109 | >22.372 | 15.193 | 14.590 | 14.246 | 15.067 | >19.995 | >16.870 | >14.359 | 16.945 | 16.245 | 13.753 | 13.183 | 12.820 | 12.632 | 12.950 | 15.112 | 14.610 |
 |
 |
 |
 |
 |
 |
