| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 3863 | NGC3507 | 165.8561456 | 18.1353768 | 3.7792 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 3863 | NGC3507 | 165.8561456 | 18.1353768 | 3.7792 |

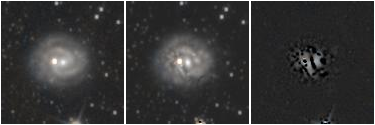

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3507 | SER | 1.50 | 8.927 | 16.83 | 0.522 | 113.375 | 0.00 | 0.000 | 89.780 | 107.048 | 123.688 | 1789.382 | 4040.553 | 49.040 |

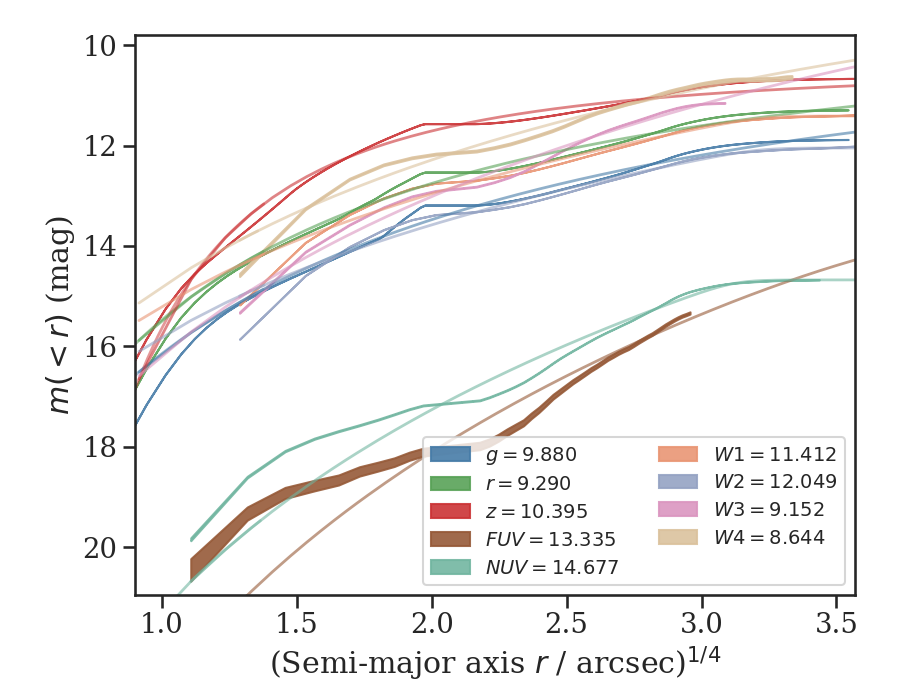

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3507 | >22.526 | 17.894 | 13.985 | 13.194 | 12.630 | 12.804 | 13.402 | 13.440 | >15.102 | 13.335 | 14.677 | 9.880 | 9.290 | 10.395 | 11.412 | 12.049 | 9.152 | 8.644 |
 |
 |
 |
 |
 |
 |
