| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 6645 | NGC3521 | 166.4540046 | -0.0351577 | 8.7675 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 6645 | NGC3521 | 166.4540046 | -0.0351577 | 8.7675 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3521 | SER | 2.57 | 56.617 | 161.92 | 0.479 | 263.025 | 158.09 | 0.325 | 224.742 | 263.609 | 302.048 | 81.908 | ... | 95.516 |

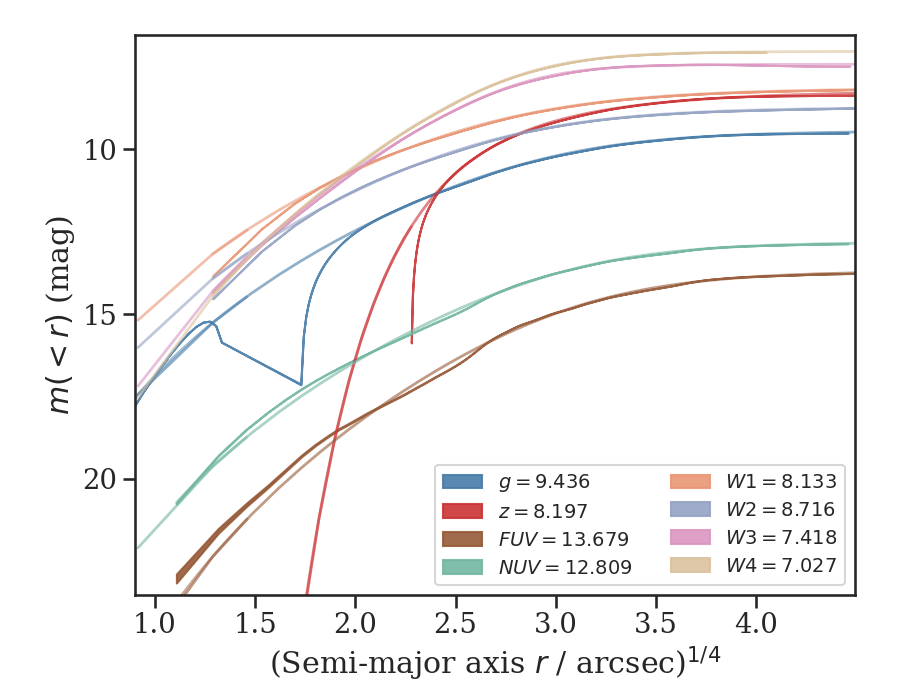

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3521 | 16.918 | 14.605 | 10.124 | 9.303 | 8.599 | 8.681 | 9.279 | 8.542 | 8.283 | 13.679 | 12.809 | 9.436 | ... | 8.197 | 8.133 | 8.716 | 7.418 | 7.027 |
 |
 |
 |
 |
 |
 |
