| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2945 | NGC3687_GROUP | 172.0054831 | 29.5109706 | 5.1176 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2945 | NGC3687 | 172.0025269 | 29.5110454 | 2.4044 |
| 2946 | PGC213835 | 172.0174009 | 29.5106656 | 0.5955 |

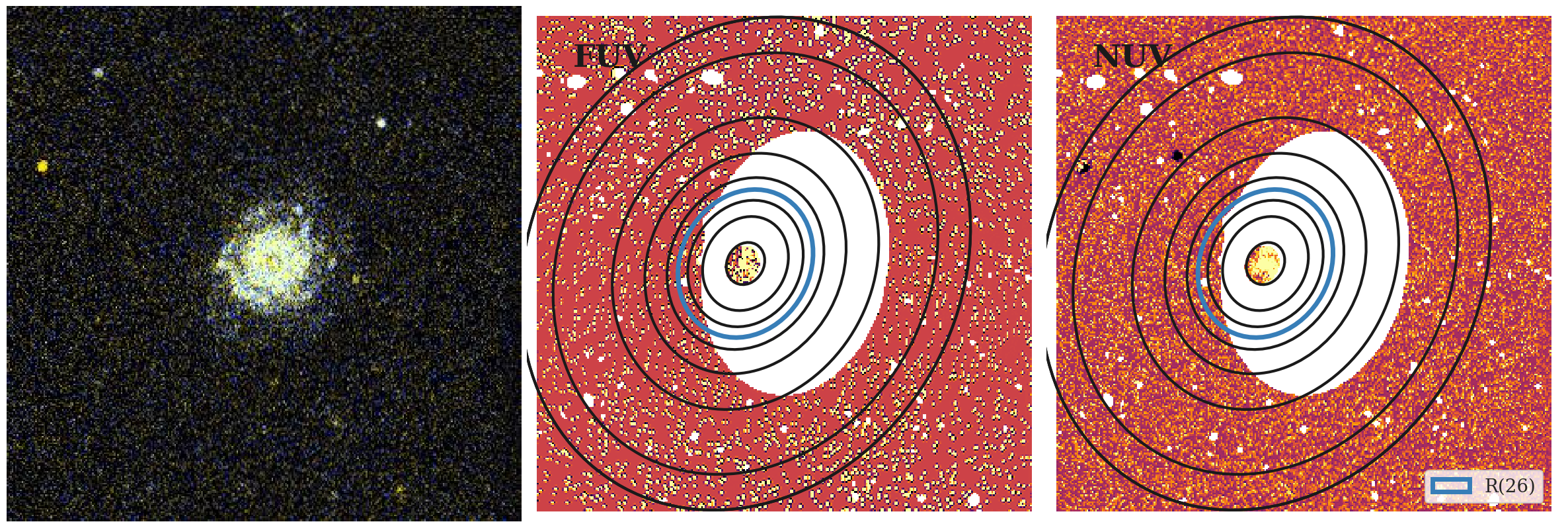

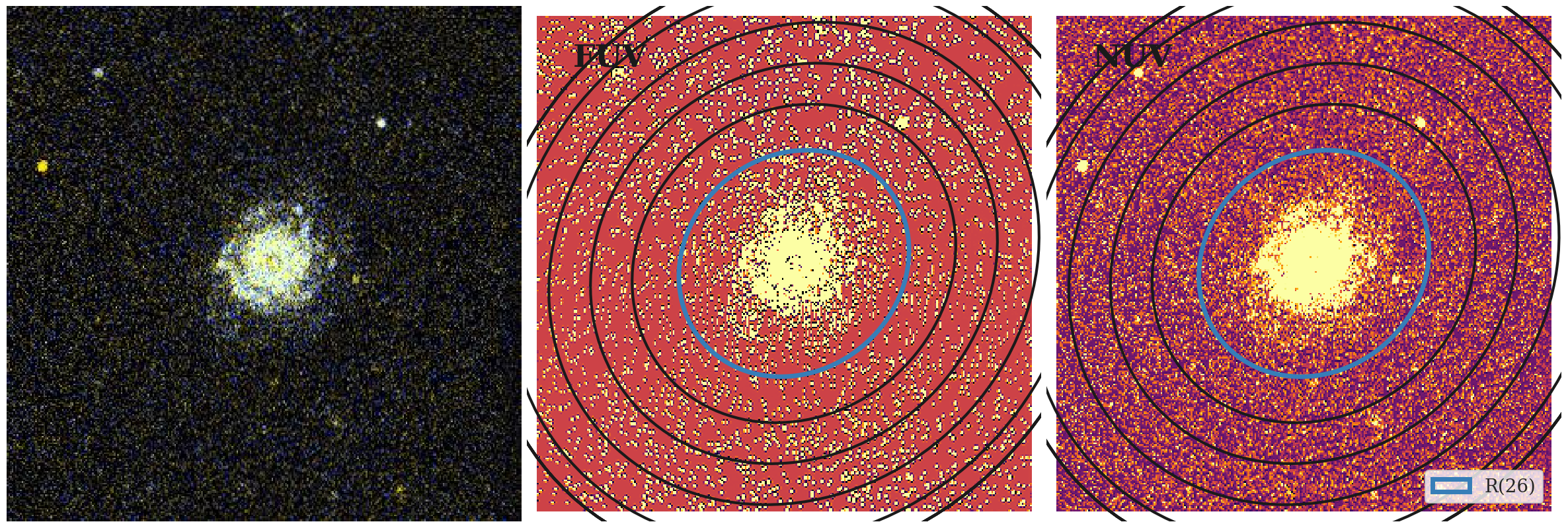

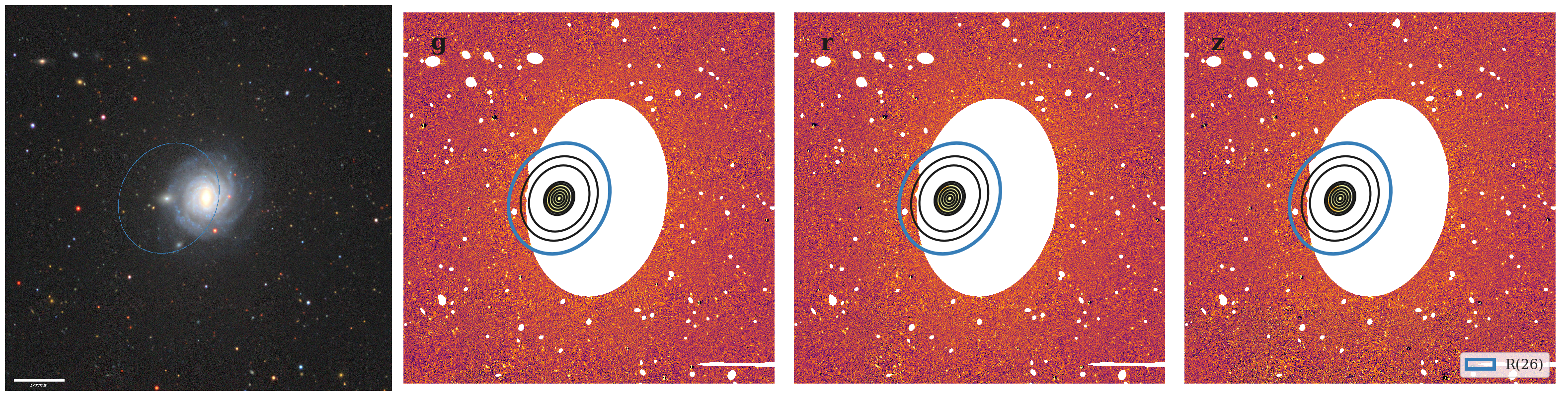

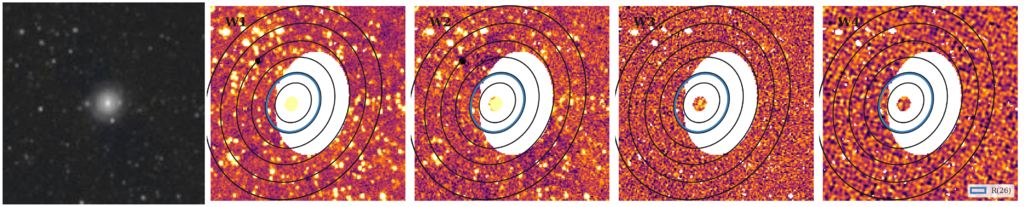

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC3687 | SER | 4.64 | 27.665 | 170.77 | 0.304 | 73.544 | 130.74 | 0.108 | 54.531 | 73.331 | 107.717 | 26.292 | 25.943 | 28.664 |
| PGC213835 | DEV | 4.00 | 6.851 | 102.49 | 0.215 | 26.012 | 151.22 | 0.156 | 17.879 | 34.358 | 68.467 | 15.417 | 17.655 | 18.530 |

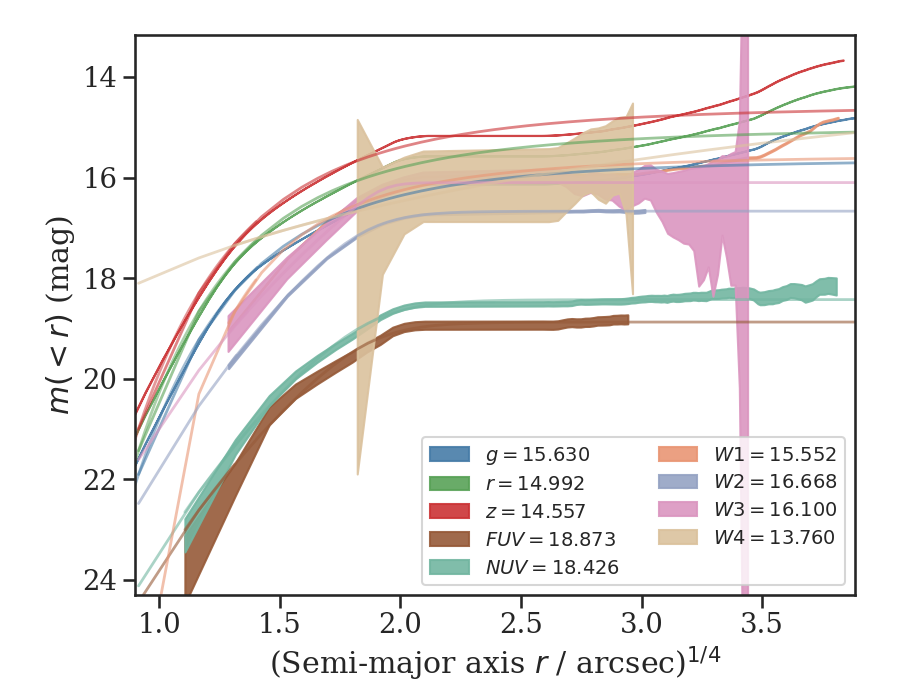

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC3687 | >21.812 | >21.024 | 13.138 | 12.378 | 11.796 | 12.319 | 12.942 | 13.471 | 12.614 | 15.431 | 15.080 | 12.544 | 11.904 | 11.331 | 12.078 | 12.741 | 11.972 | 11.943 |
| PGC213835 | >22.775 | 21.145 | 16.772 | 16.198 | 15.884 | 16.344 | 16.935 | 16.209 | 16.155 | 18.873 | 18.426 | 15.630 | 14.992 | 14.557 | 15.552 | 16.668 | 16.100 | 13.760 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
