| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 711 | NGC3690_GROUP | 172.1307511 | 58.5650174 | 5.8278 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 712 | IC0694 | 172.1333064 | 58.5629892 | 2.7683 |
| 711 | NGC3690 | 172.1333064 | 58.5629892 | 2.7683 |
| 709 | PGC035325 | 172.1137723 | 58.5784944 | 0.8332 |

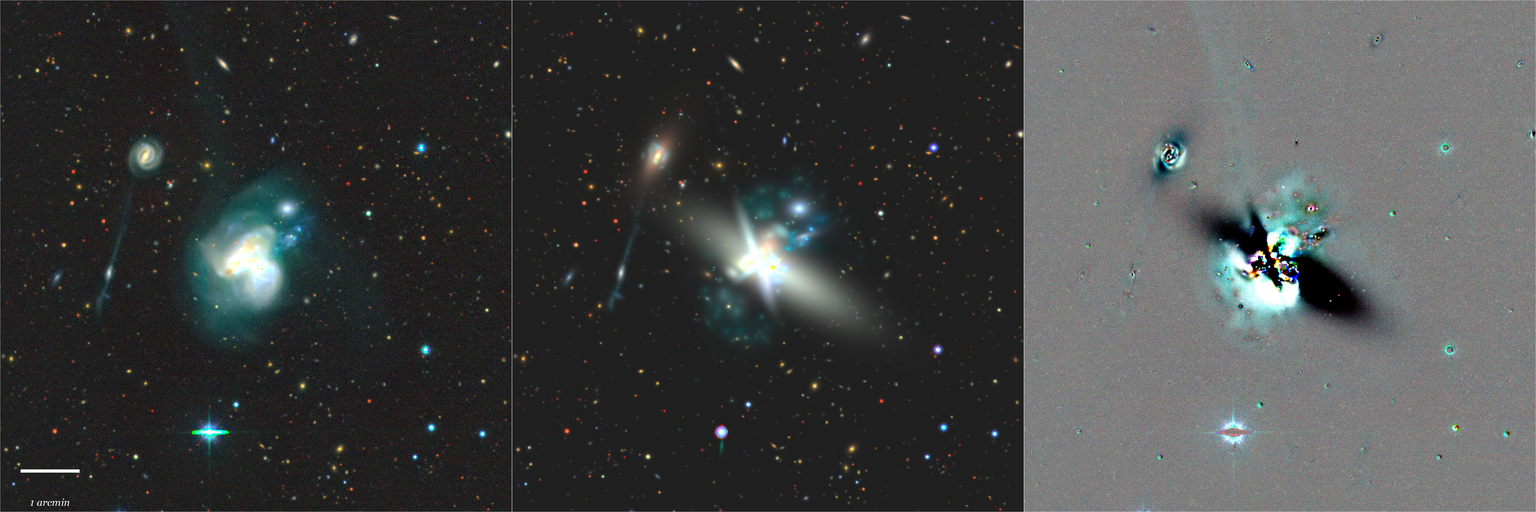

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| IC0694 | EXP | 1.00 | 43.540 | 59.13 | 0.719 | 83.049 | 32.04 | 0.185 | 67.252 | 85.114 | 100.100 | 24.854 | ... | 32.303 |
| NGC3690 | SER | 1.25 | 16.735 | 18.68 | 0.838 | 83.049 | 32.04 | 0.185 | 64.653 | 79.817 | 98.719 | 25.086 | 12.267 | ... |
| PGC035325 | SER | 2.06 | 6.136 | 93.43 | 0.183 | 29.095 | 86.86 | 0.118 | 19.271 | 32.182 | 50.976 | 26.746 | 36.969 | 4.990 |

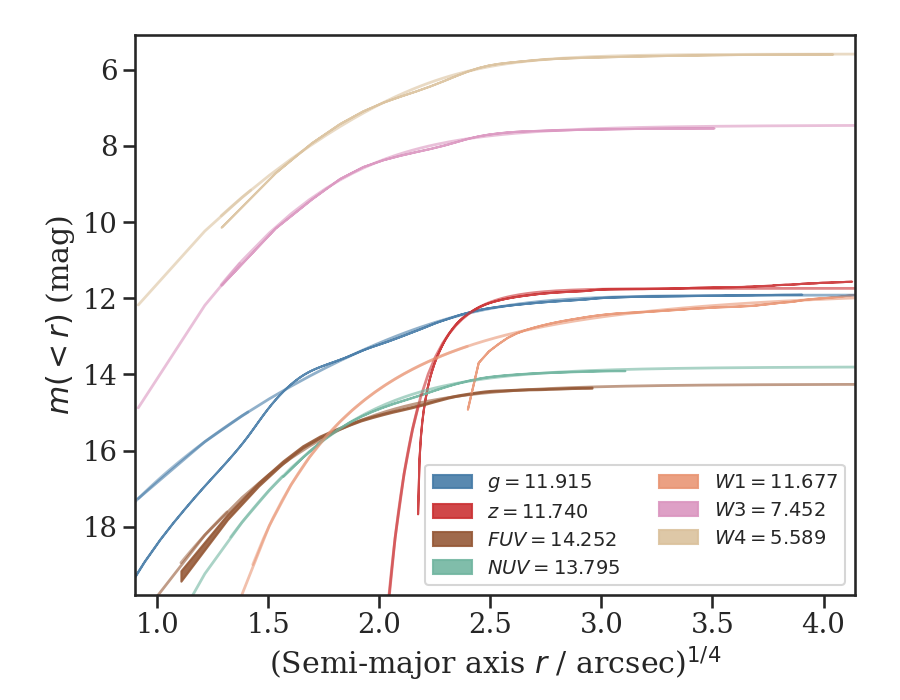

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| IC0694 | >21.054 | >20.724 | 12.947 | 12.248 | 11.854 | 14.528 | 15.070 | >17.258 | 13.178 | 14.252 | 13.795 | 11.915 | ... | 11.740 | 11.677 | ... | 7.452 | 5.589 |
| NGC3690 | 22.841 | 17.717 | 13.978 | 13.373 | 13.133 | 13.866 | 14.188 | 13.803 | >15.273 | 14.567 | 14.054 | 11.934 | 12.415 | ... | 12.263 | 13.361 | 7.568 | 5.633 |
| PGC035325 | >22.973 | 20.028 | 15.638 | 15.189 | 14.987 | 15.582 | 16.224 | >18.408 | 13.027 | 19.260 | 18.216 | 14.750 | 14.122 | 15.126 | 11.211 | 12.015 | 11.427 | 6.638 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
