| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5548 | NGC4309_GROUP | 185.5526813 | 7.1467999 | 8.7436 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5548 | NGC4309 | 185.5515891 | 7.1442639 | 4.2063 |
| 5545 | PGC040059 | 185.5614159 | 7.1671291 | 0.5247 |

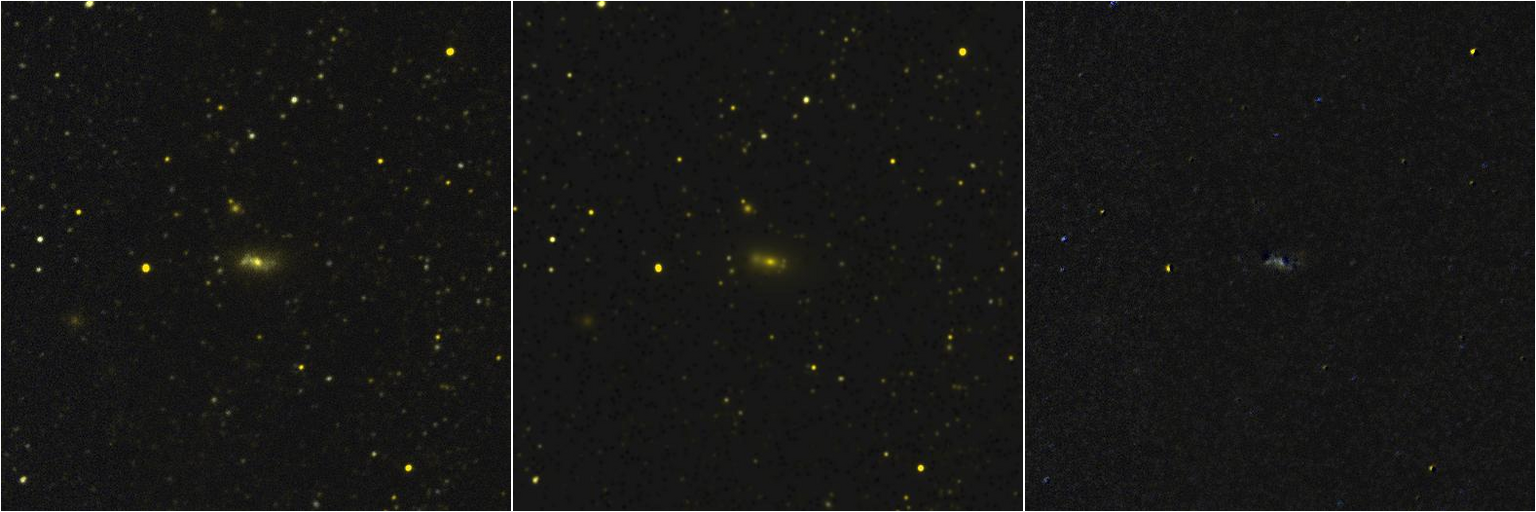

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4309 | SER | 2.63 | 40.408 | 80.95 | 0.462 | 81.849 | 92.68 | 0.524 | 91.559 | 122.491 | 165.195 | 37.577 | 37.705 | 40.832 |
| PGC040059 | SER | 2.06 | 4.788 | 59.38 | 0.085 | 17.456 | 40.17 | 0.217 | 14.281 | 18.904 | 34.158 | 7.321 | 7.954 | 8.172 |

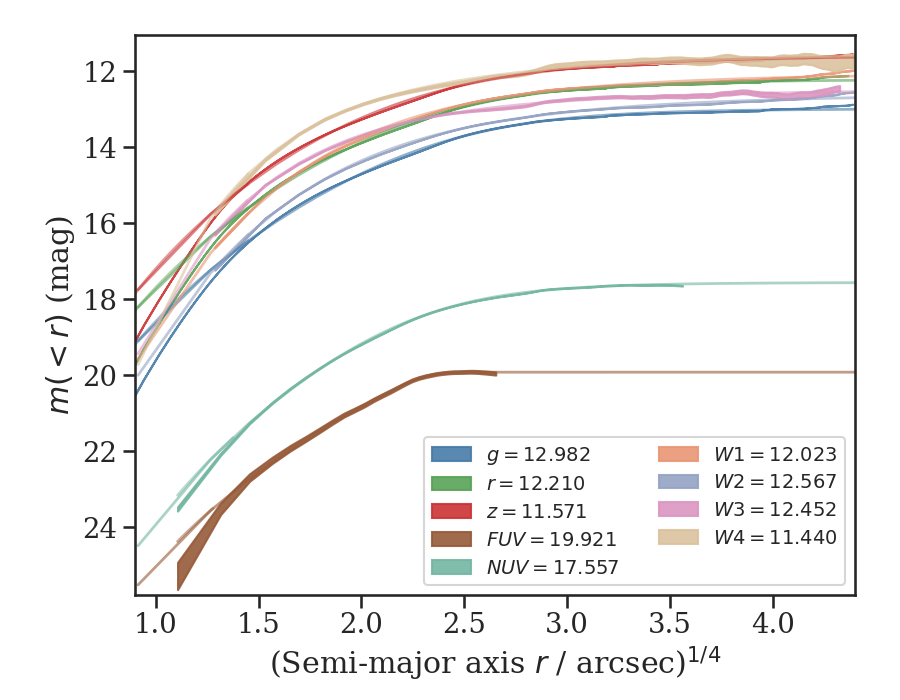

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4309 | >23.159 | 17.759 | 12.992 | 12.206 | 11.585 | 12.179 | 12.657 | 11.496 | 10.191 | 19.921 | 17.557 | 12.982 | 12.210 | 11.571 | 12.023 | 12.567 | 12.452 | 11.440 |
| PGC040059 | >24.956 | 19.921 | 15.875 | 15.206 | 14.756 | 15.523 | 16.179 | 21.083 | >15.329 | 23.435 | 20.577 | 15.614 | 14.886 | 14.429 | 11.102 | 11.543 | 11.685 | ... |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
