| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5494 | IC3322 | 186.4757180 | 7.5549638 | 4.7059 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5494 | IC3322 | 186.4757180 | 7.5549638 | 4.7059 |

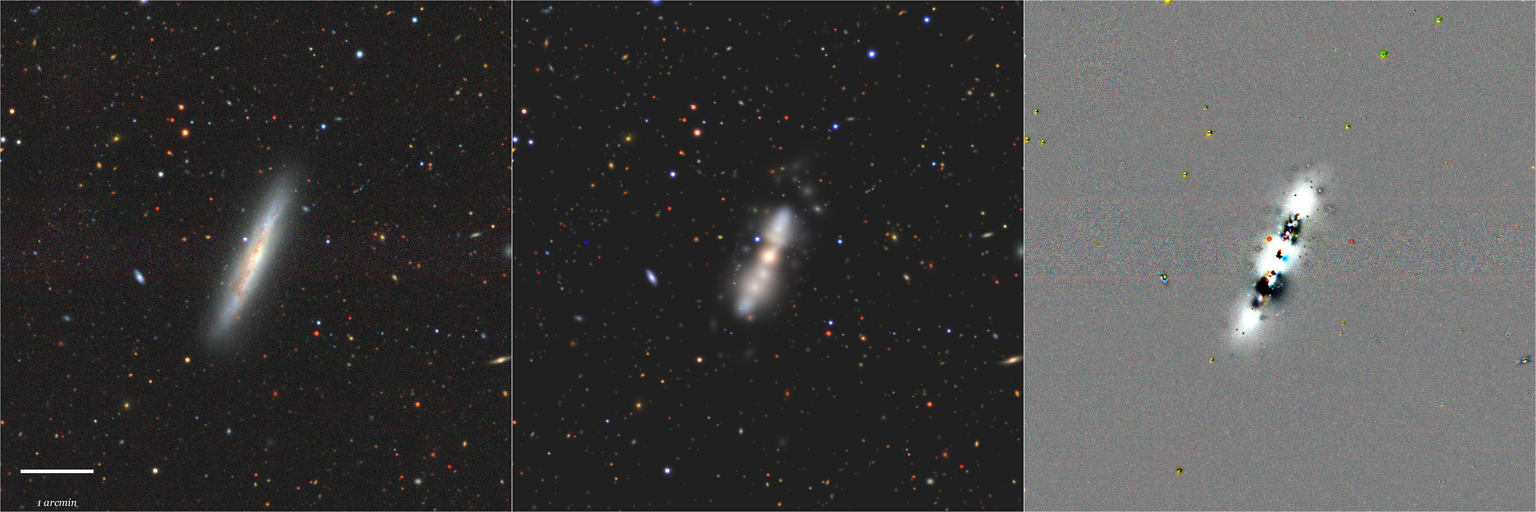

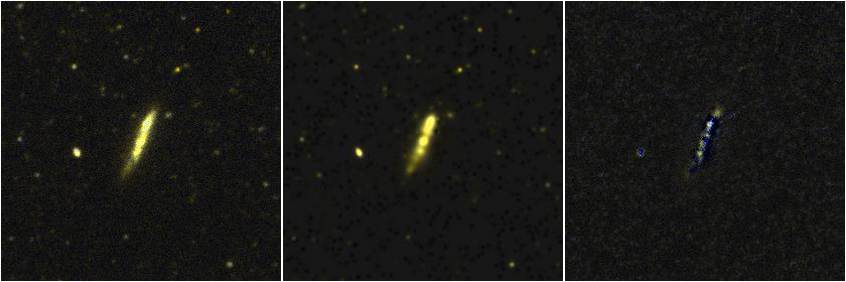

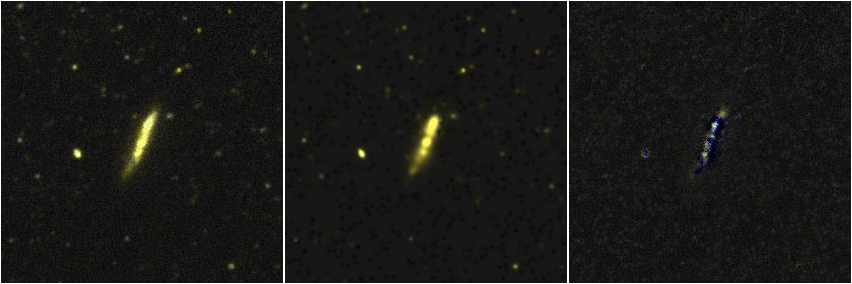

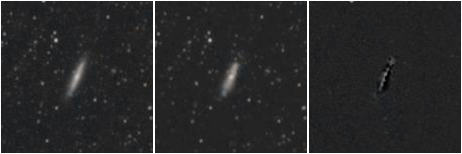

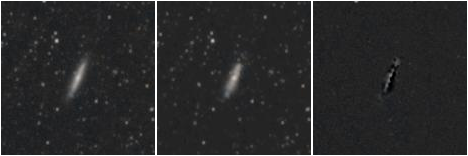

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| IC3322 | REX | 1.00 | 4.220 | 0.00 | 0.000 | 82.046 | 156.59 | 0.750 | 66.689 | 112.471 | 174.145 | 36.514 | 35.778 | 34.722 |
| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| IC3322 | 20.416 | 19.009 | 16.325 | 15.550 | 14.870 | 14.886 | 15.352 | 13.370 | 12.768 | 18.210 | 16.839 | 13.690 | 13.029 | 12.524 | 12.946 | 13.581 | 12.245 | 12.072 |
 |
 |
 |
 |
 |
 |
