| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4597 | IC3388 | 187.1168875 | 12.8236723 | 1.5316 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4597 | IC3388 | 187.1168875 | 12.8236723 | 1.5316 |

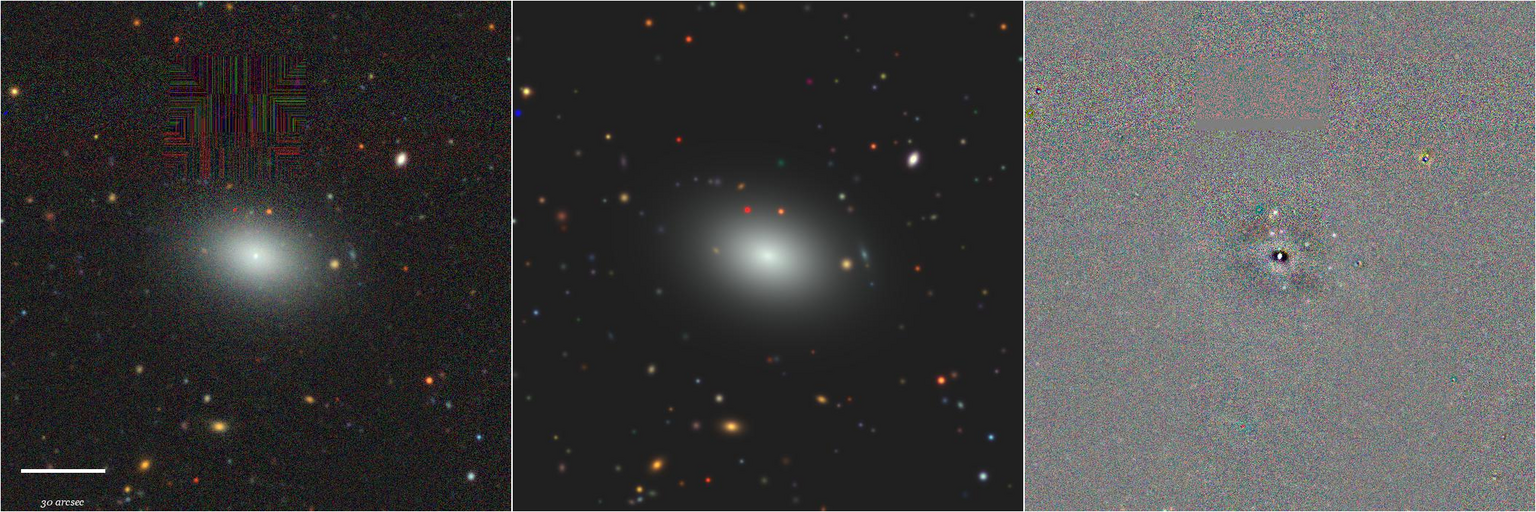

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| IC3388 | SER | 1.18 | 13.132 | 74.14 | 0.305 | 31.592 | 75.17 | 0.353 | 25.224 | 34.622 | 45.996 | 15.608 | 15.693 | 16.045 |

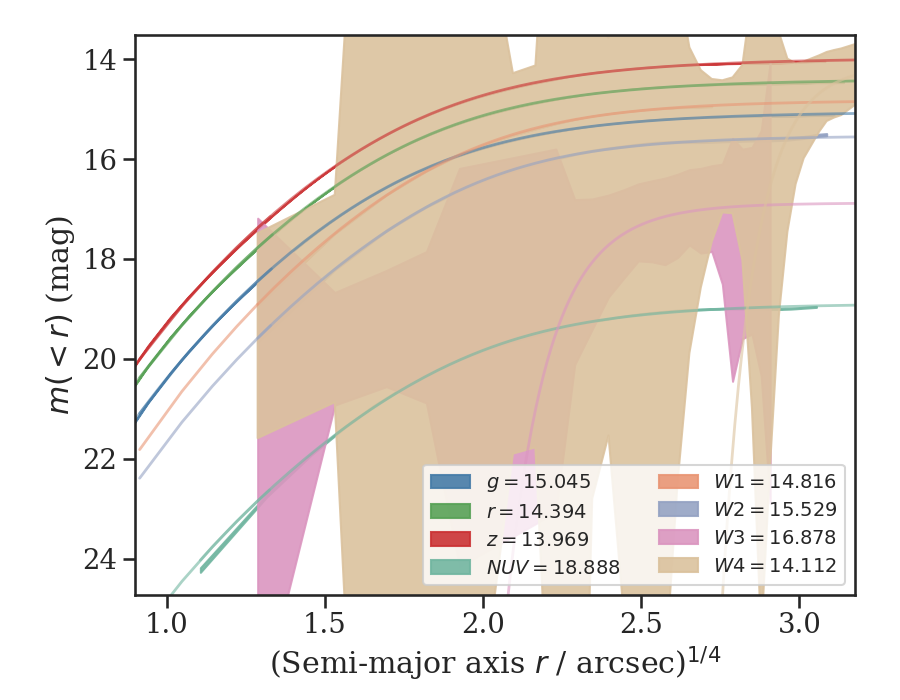

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| IC3388 | >24.454 | 19.152 | 15.207 | 14.563 | 14.155 | 14.978 | 15.650 | 22.401 | >15.064 | ... | 18.888 | 15.045 | 14.394 | 13.969 | 14.816 | 15.529 | 16.878 | 14.112 |
 |
 |
 |
 |
 |
 |
