| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 4447 | NGC4506 | 188.0437159 | 13.4194928 | 2.9336 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 4447 | NGC4506 | 188.0437159 | 13.4194928 | 2.9336 |

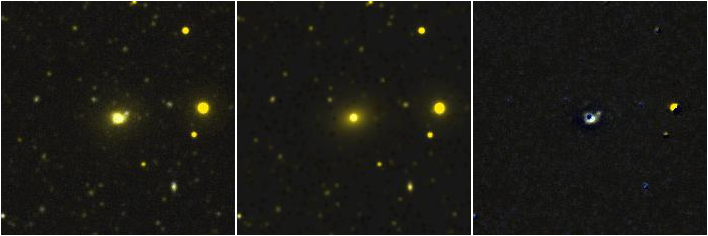

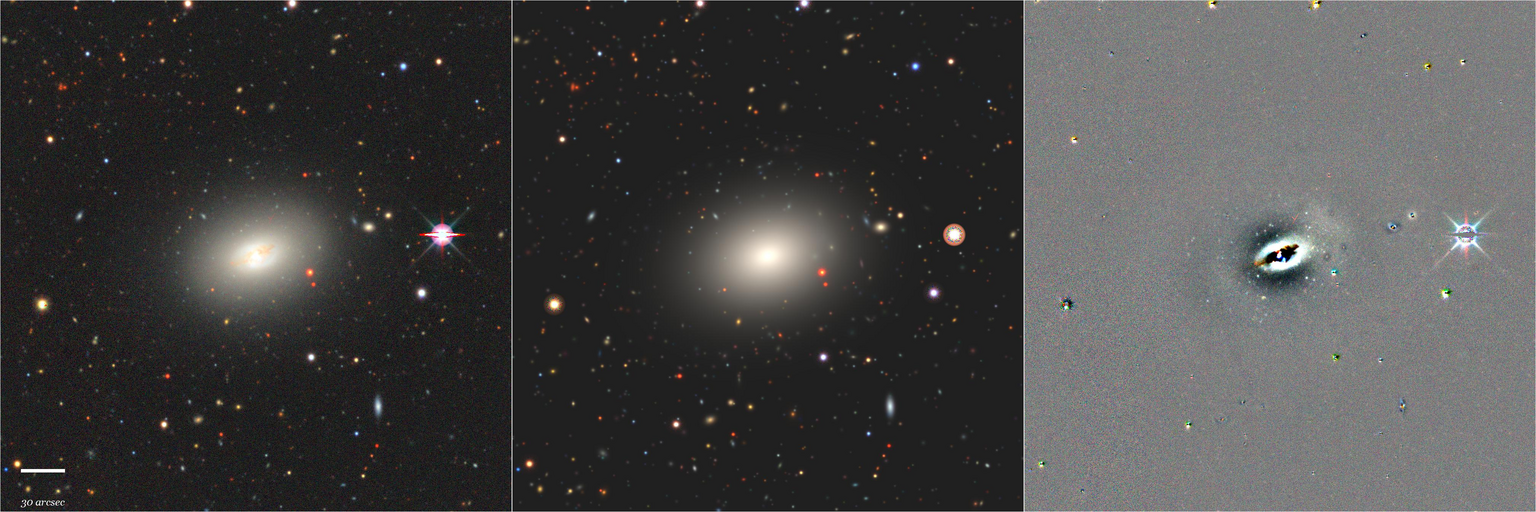

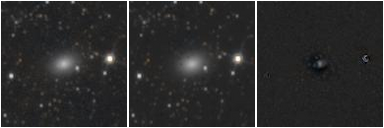

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC4506 | SER | 1.33 | 23.567 | 105.13 | 0.274 | 62.378 | 104.06 | 0.280 | 52.644 | 69.152 | 86.965 | 26.295 | 26.991 | 26.727 |

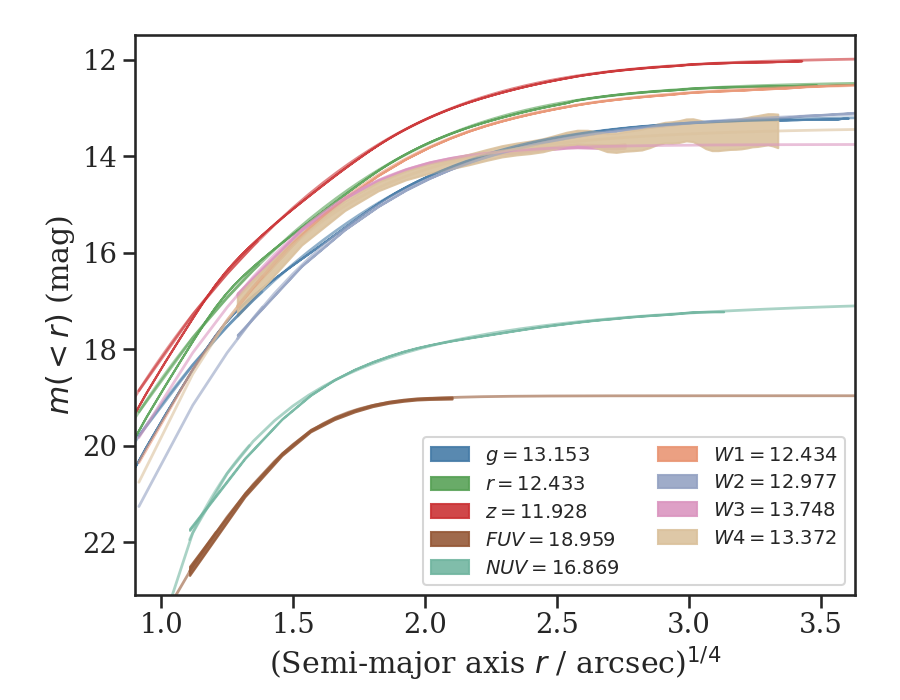

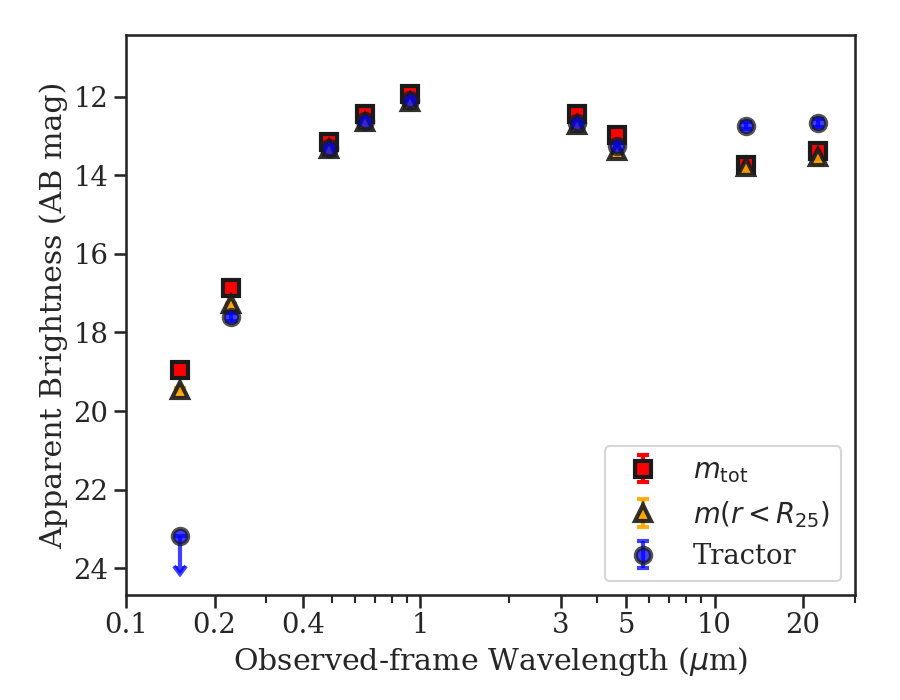

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC4506 | >23.183 | 17.611 | 13.316 | 12.613 | 12.078 | 12.659 | 13.245 | 12.733 | 12.677 | 18.959 | 16.869 | 13.153 | 12.433 | 11.928 | 12.434 | 12.977 | 13.748 | 13.372 |
 |
 |
 |
 |
 |
 |
