| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 686 | UGC08040_GROUP | 193.7102127 | 58.7814578 | 7.3421 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 686 | UGC08040 | 193.6811802 | 58.7764667 | 2.7198 |
| 683 | UGC08046 | 193.7667775 | 58.7911799 | 1.3956 |

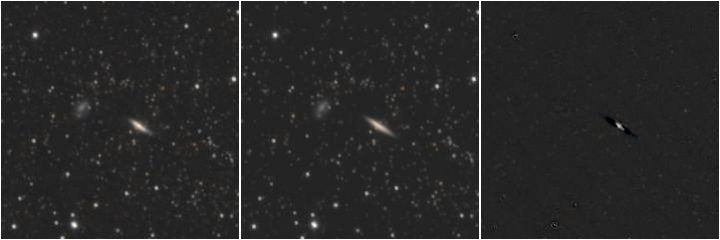

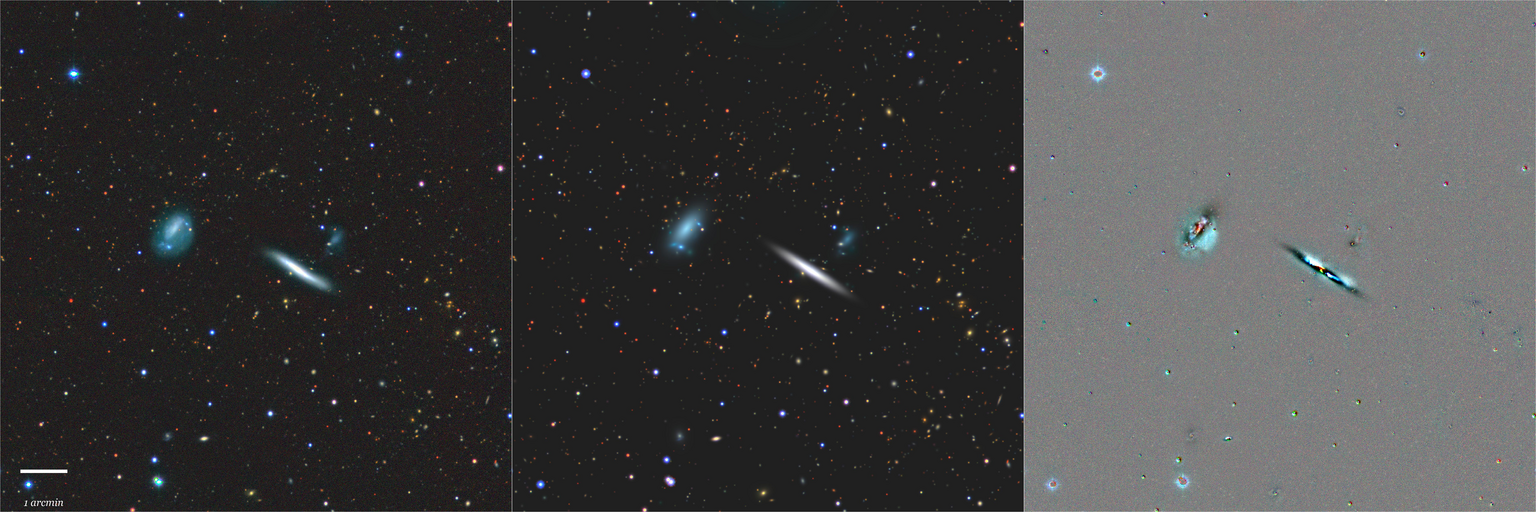

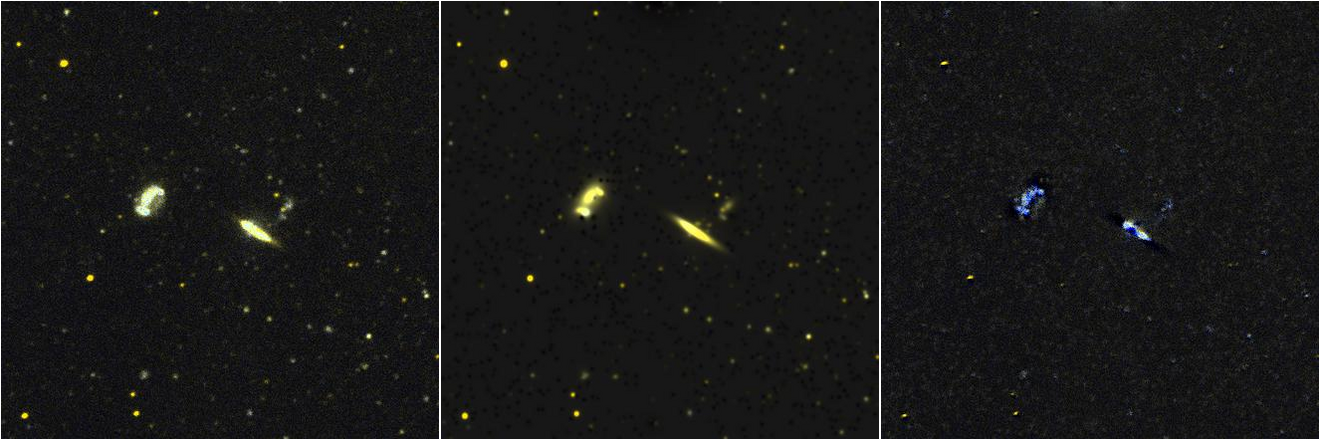

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC08040 | SER | 0.96 | 19.125 | 57.67 | 0.855 | 58.389 | 58.14 | 0.804 | 48.631 | 70.951 | 109.394 | 18.722 | 18.193 | 15.993 |
| UGC08046 | SER | 0.98 | 15.404 | 141.44 | 0.516 | 41.867 | 141.61 | 0.267 | 26.901 | 37.073 | 45.987 | 19.245 | 20.472 | 18.012 |

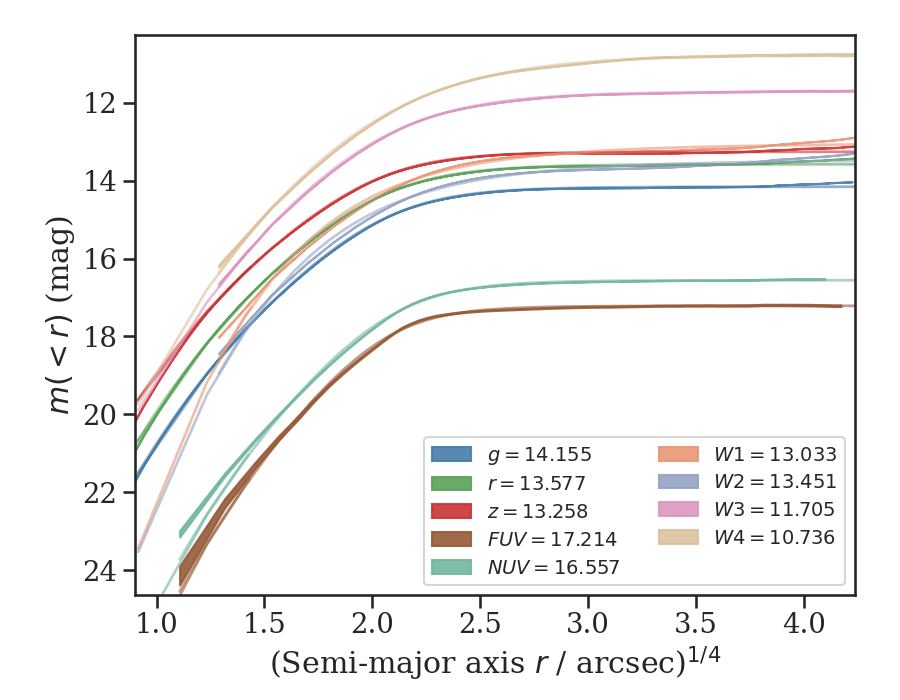

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC08040 | 19.193 | 17.226 | 14.339 | 13.759 | 13.296 | 13.625 | 14.007 | 11.796 | 11.079 | 17.214 | 16.557 | 14.155 | 13.577 | 13.258 | 13.033 | 13.451 | 11.705 | 10.736 |
| UGC08046 | 18.802 | 17.415 | 15.188 | 14.749 | 14.736 | 15.211 | 15.780 | 15.032 | 14.432 | 17.320 | 16.767 | 14.702 | 14.207 | 14.451 | 10.968 | 11.376 | 11.252 | 9.789 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
