| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2394 | UGC08314 | 198.5042938 | 36.3187263 | 1.0678 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2394 | UGC08314 | 198.5042938 | 36.3187263 | 1.0678 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

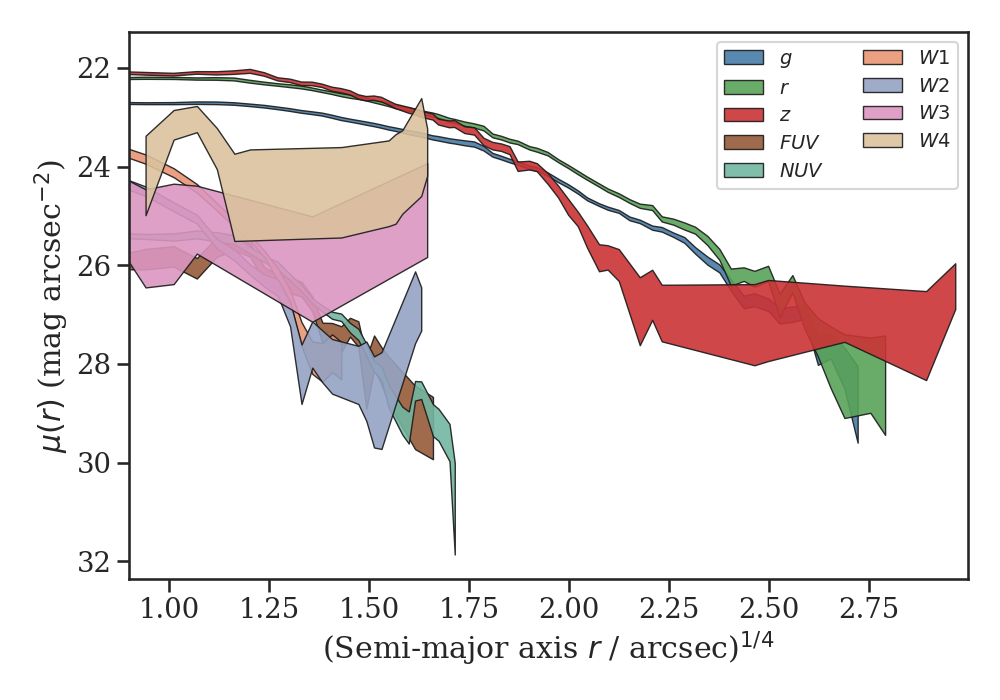

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC08314 | SER | 0.83 | 7.668 | 156.98 | 0.266 | 29.922 | 83.31 | 0.126 | 15.446 | 24.422 | 34.320 | 18.341 | 18.405 | 10.219 |

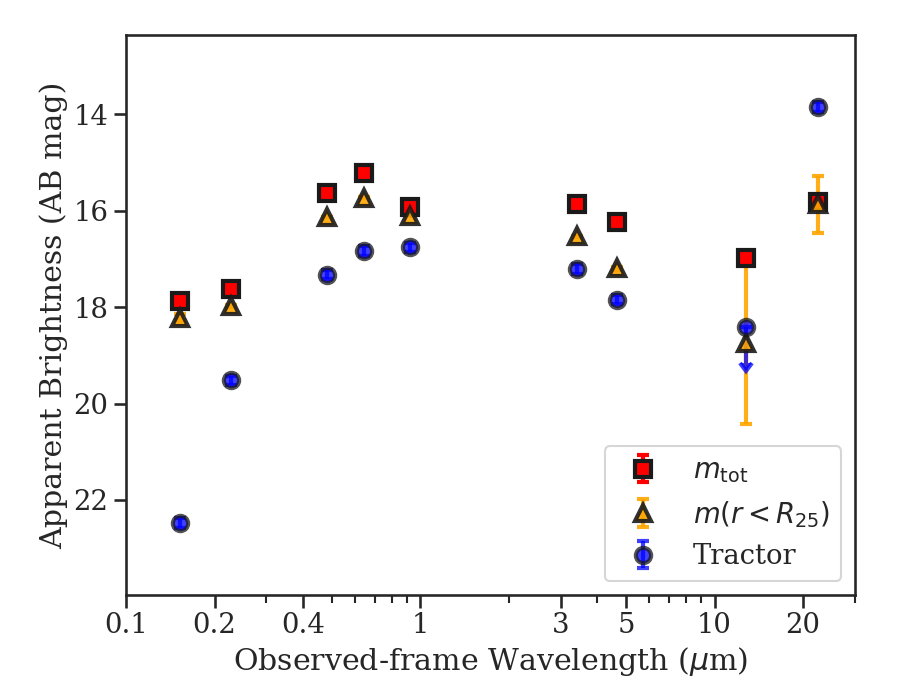

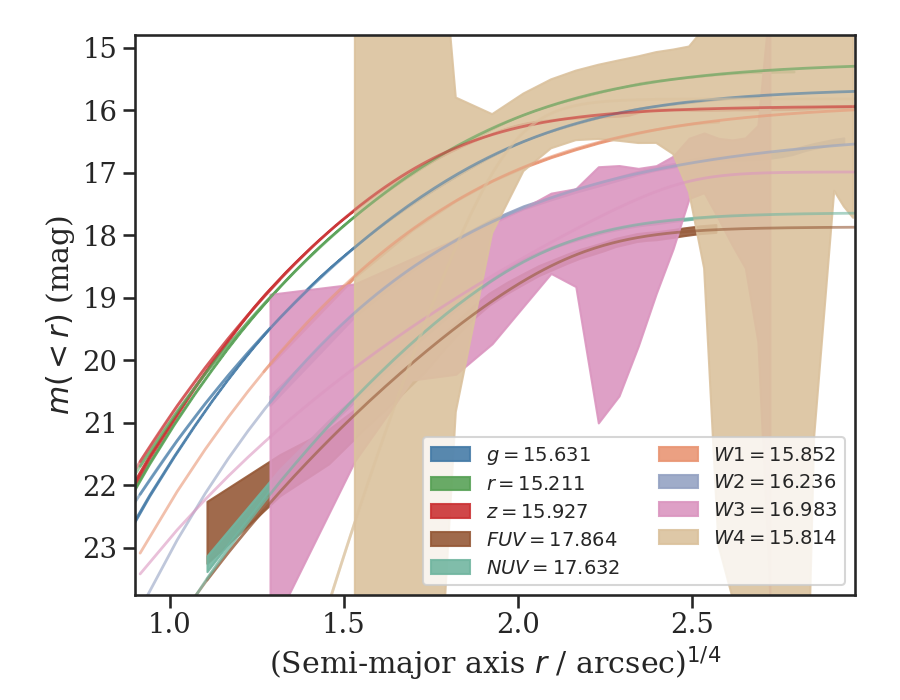

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC08314 | 22.472 | 19.520 | 17.322 | 16.828 | 16.761 | 17.202 | 17.843 | >18.405 | 13.852 | 17.864 | 17.632 | 15.631 | 15.211 | 15.927 | 15.852 | 16.236 | 16.983 | 15.814 |
 |
 |
 |
 |
 |
 |
