| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 2509 | UGC08412 | 200.7177827 | 35.1548618 | 1.8857 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 2509 | UGC08412 | 200.7177827 | 35.1548618 | 1.8857 |

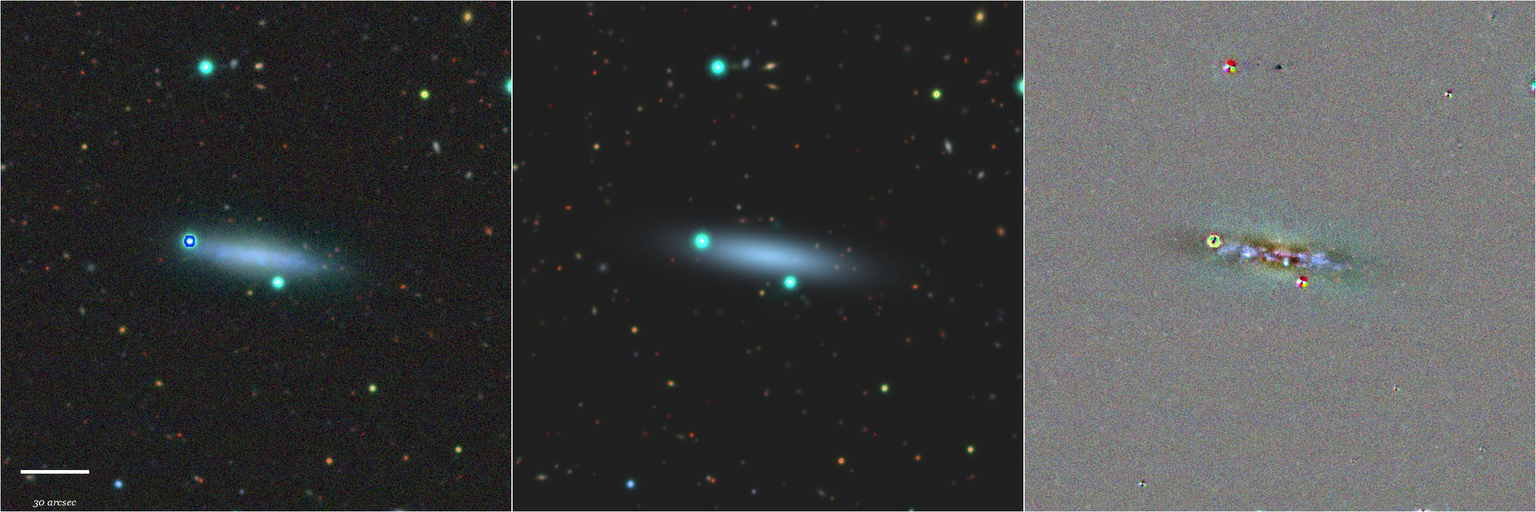

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC08412 | SER | 0.80 | 19.886 | 81.60 | 0.757 | 56.571 | 81.62 | 0.752 | 36.608 | 48.079 | 61.775 | 19.137 | 20.313 | 17.428 |

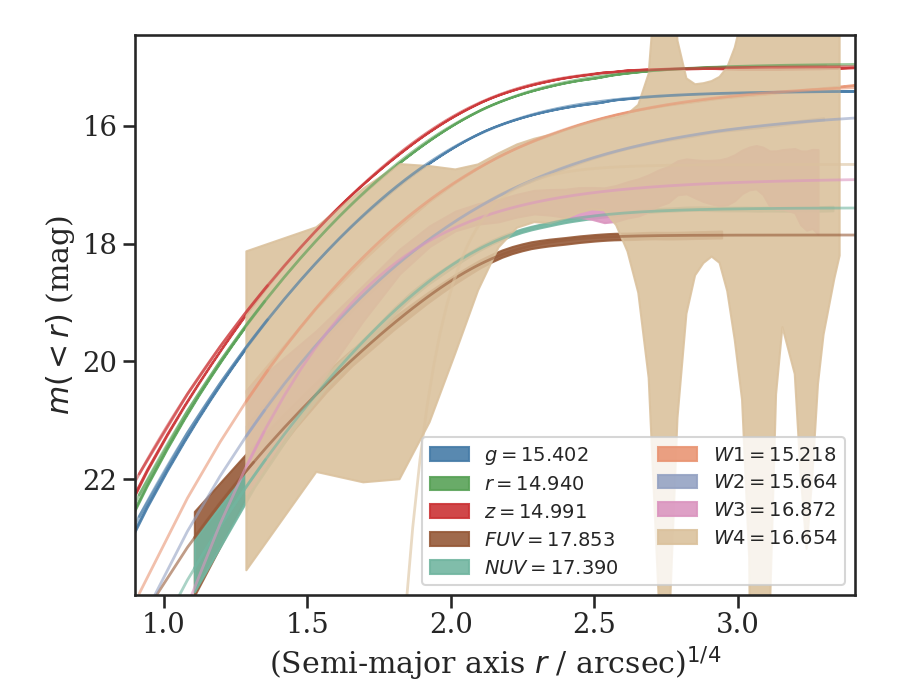

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC08412 | 23.286 | 18.084 | 15.359 | 14.945 | 14.851 | 15.566 | 16.174 | 16.293 | 16.327 | 17.853 | 17.390 | 15.402 | 14.940 | 14.991 | 15.218 | 15.664 | 16.872 | 16.654 |
 |
 |
 |
 |
 |
 |
