| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 505 | UGC08714 | 206.6232776 | 60.3710669 | 1.8881 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 505 | UGC08714 | 206.6232776 | 60.3710669 | 1.8881 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC08714 | REX | 1.00 | 13.291 | 0.00 | 0.000 | 55.346 | 148.91 | 0.247 | 32.840 | 48.973 | 63.615 | 31.767 | 34.011 | 18.657 |

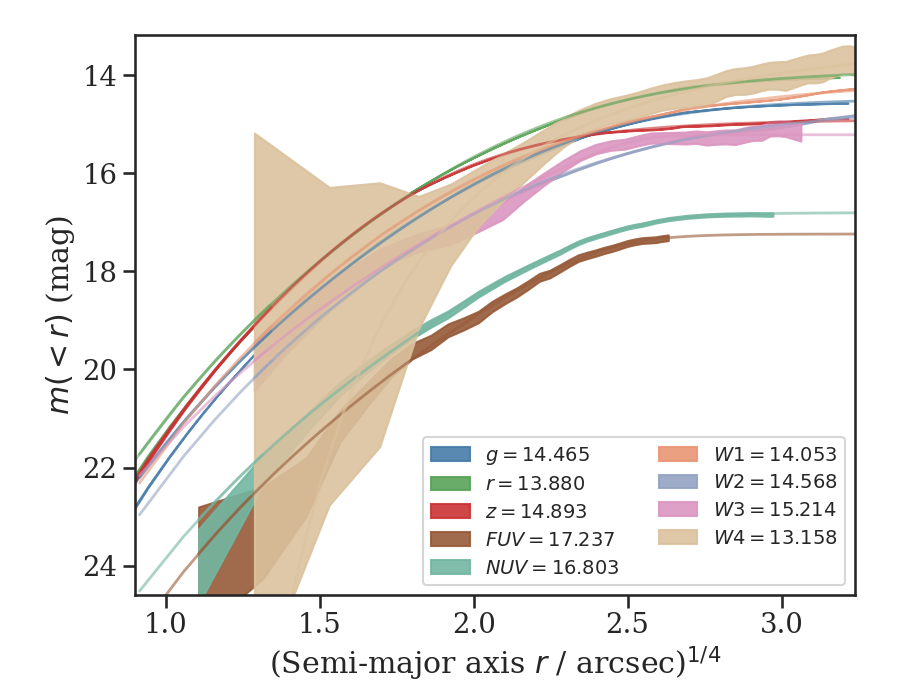

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC08714 | >22.098 | >21.661 | 16.050 | 15.460 | 15.429 | 15.664 | 16.399 | >18.017 | 14.920 | 17.237 | 16.803 | 14.465 | 13.880 | 14.893 | 14.053 | 14.568 | 15.214 | 13.158 |
 |
 |
 |
 |
 |
 |
