| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 1292 | NGC5481_GROUP | 211.6336838 | 50.7241326 | 9.9403 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 1292 | NGC5481 | 211.6719497 | 50.7232794 | 3.5157 |
| 1291 | NGC5480 | 211.5901030 | 50.7251044 | 3.0870 |

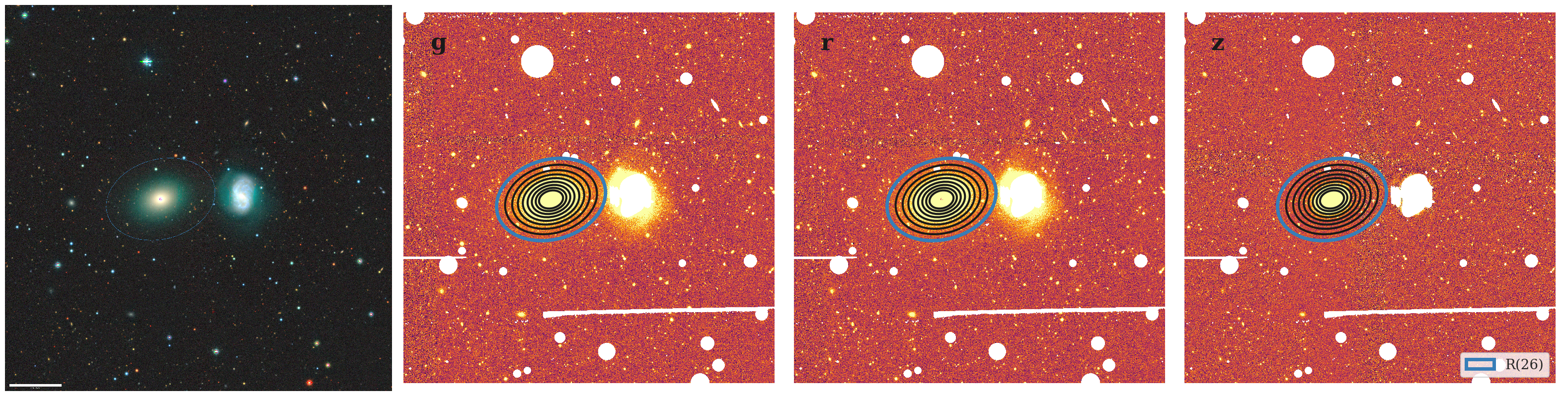

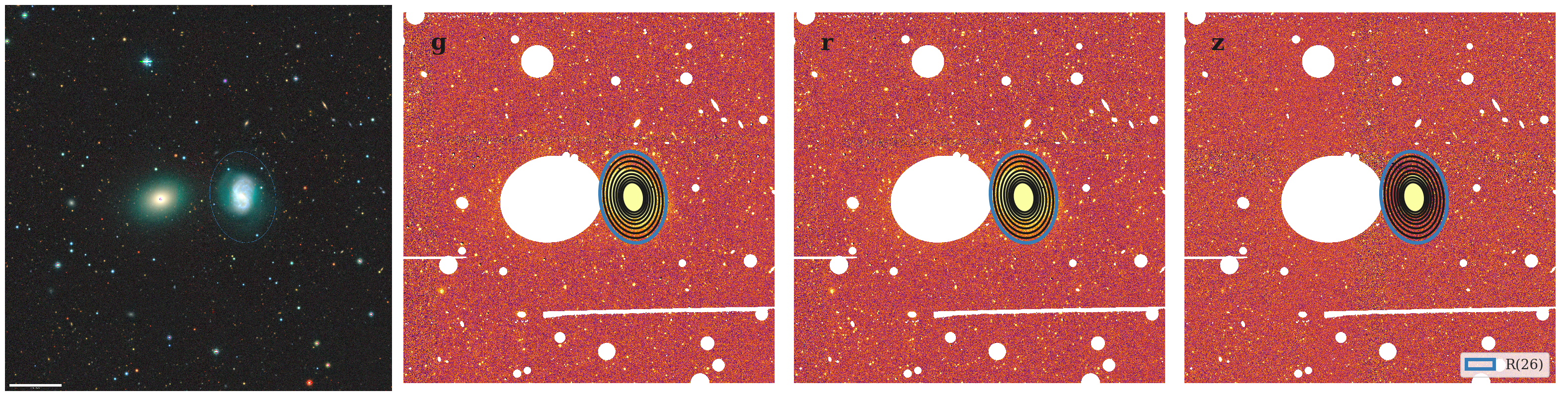

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

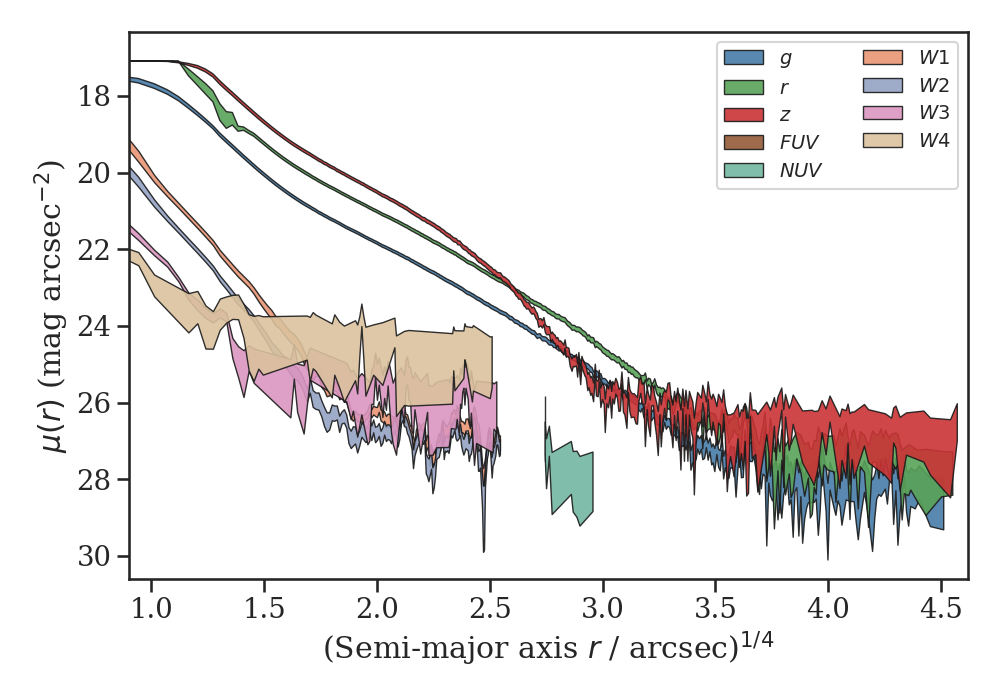

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5481 | SER | 6.00 | 34.204 | 101.99 | 0.160 | 94.616 | 105.53 | 0.279 | 66.315 | 91.501 | 128.276 | 58.755 | 33.472 | 21.100 |
| NGC5480 | SER | 1.33 | 11.037 | 75.75 | 0.873 | 92.610 | 7.85 | 0.284 | 62.471 | 83.683 | 106.257 | 25.249 | 25.780 | 20.728 |

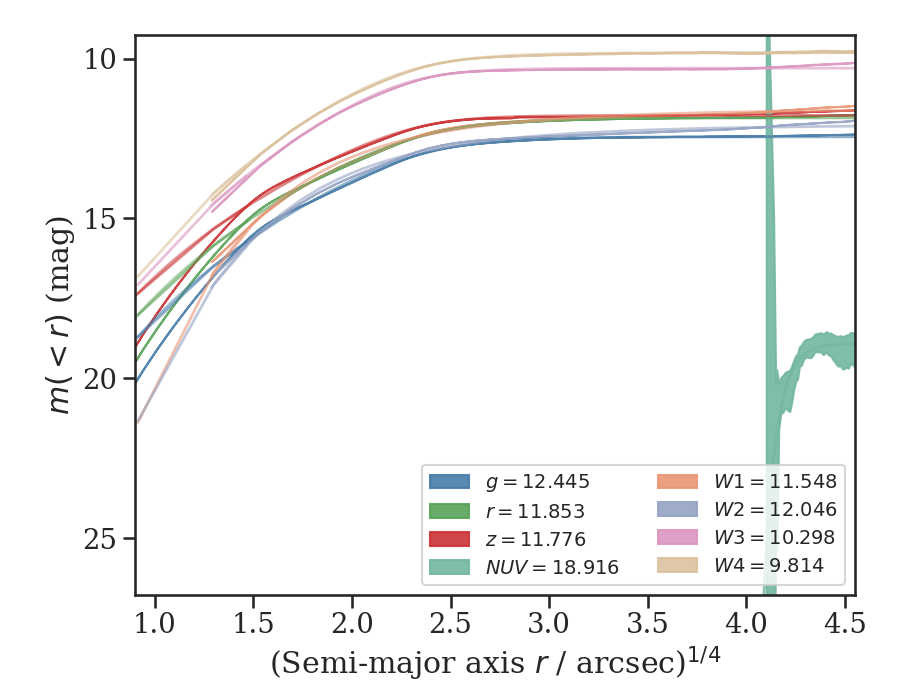

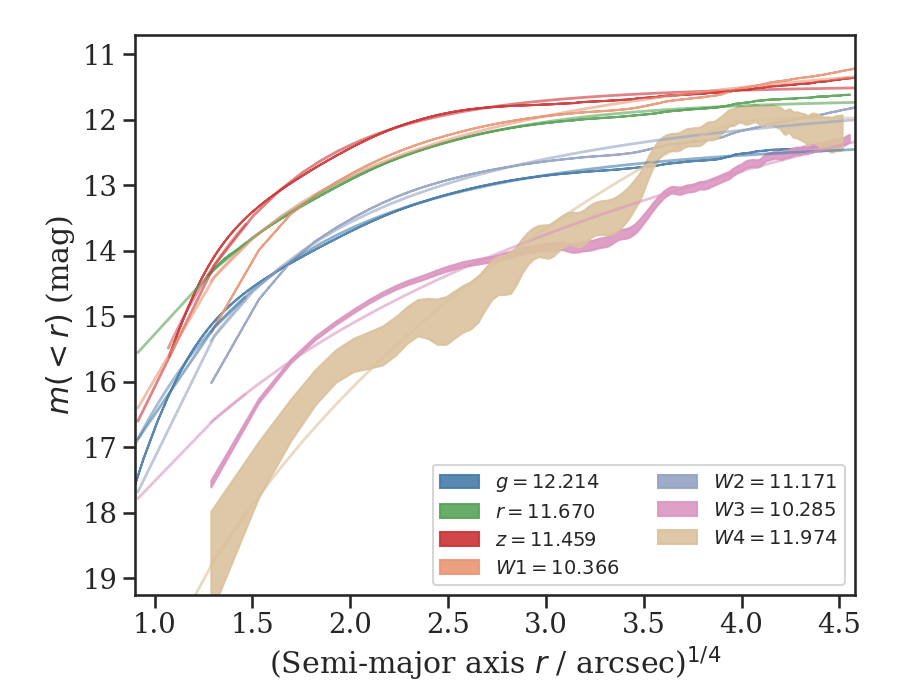

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

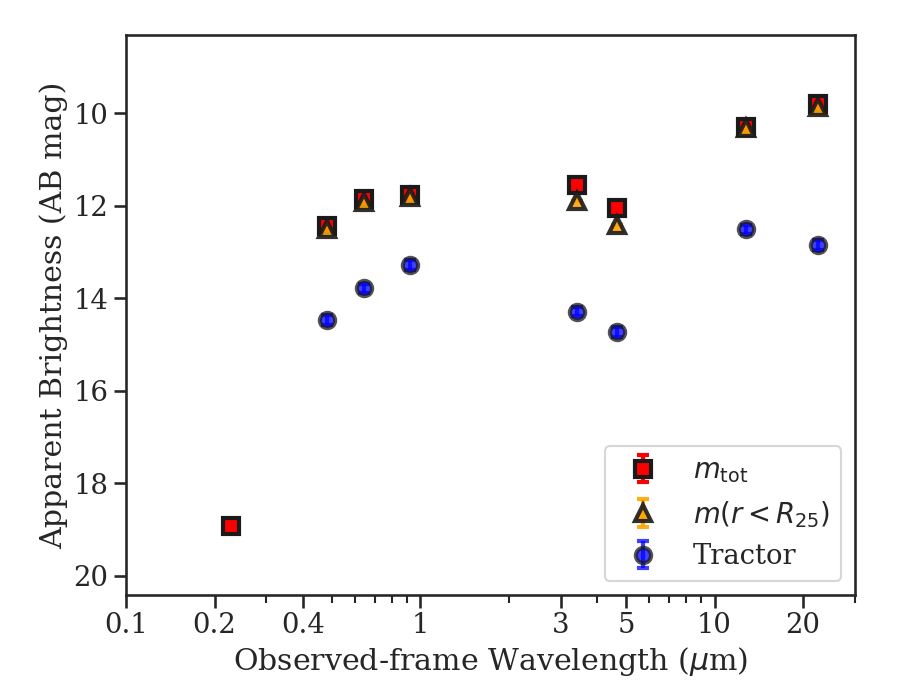

| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5481 | >9.730 | >9.815 | 12.567 | 11.778 | 11.259 | 11.688 | 12.289 | 13.328 | 13.608 | ... | ... | 12.214 | 11.670 | 11.459 | 10.366 | 11.171 | 10.285 | 11.974 |
| NGC5480 | ... | ... | 14.474 | 13.788 | 13.282 | 14.295 | 14.731 | 12.509 | 12.850 | ... | 18.916 | 12.445 | 11.853 | 11.776 | 11.548 | 12.046 | 10.298 | 9.814 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
