Group Properties

ID (Primary)	Group Name	Group RA	Group Dec	Group Diameter (arcmin)	Viewer
2157	UGC09242	216.3366696	39.5392965	7.8570	Link

Group Members

ID	Galaxy	RA	Dec	D(25) (arcmin)
2157	UGC09242	216.3366696	39.5392965	7.8570

Image Mosaics

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).

Missing file UGC09242-custom-montage-grz.png

Missing file UGC09242-custom-montage-FUVNUV.png

Missing file UGC09242-custom-montage-W1W2.png

Elliptical Isophote Analysis

Geometry

	Tractor					Ellipse Moments			Surface Brightness Threshold Radii (arcsec)			Half-light Radii (arcsec)
Galaxy	Type	n	r(50) (arcsec)	PA (deg)	e	Size (arcsec)	PA (deg)	e	R(24)	R(25)	R(26)	g(50)	r(50)	z(50)
UGC09242	SER	0.91	32.892	68.16	0.834	235.710	71.29	0.922	127.915	189.907	266.894	76.855	77.971	64.819

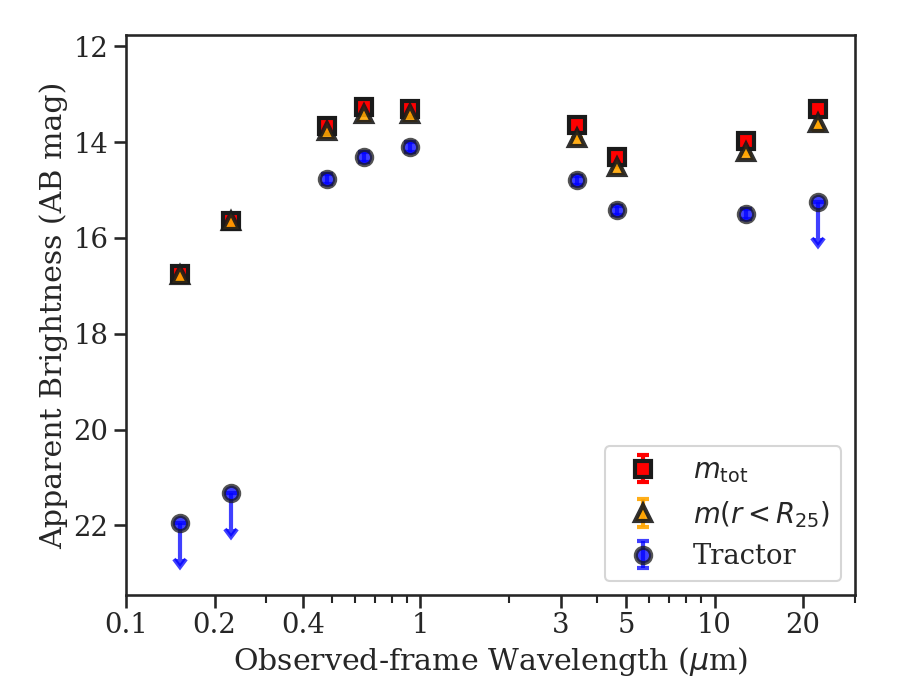

Photometry

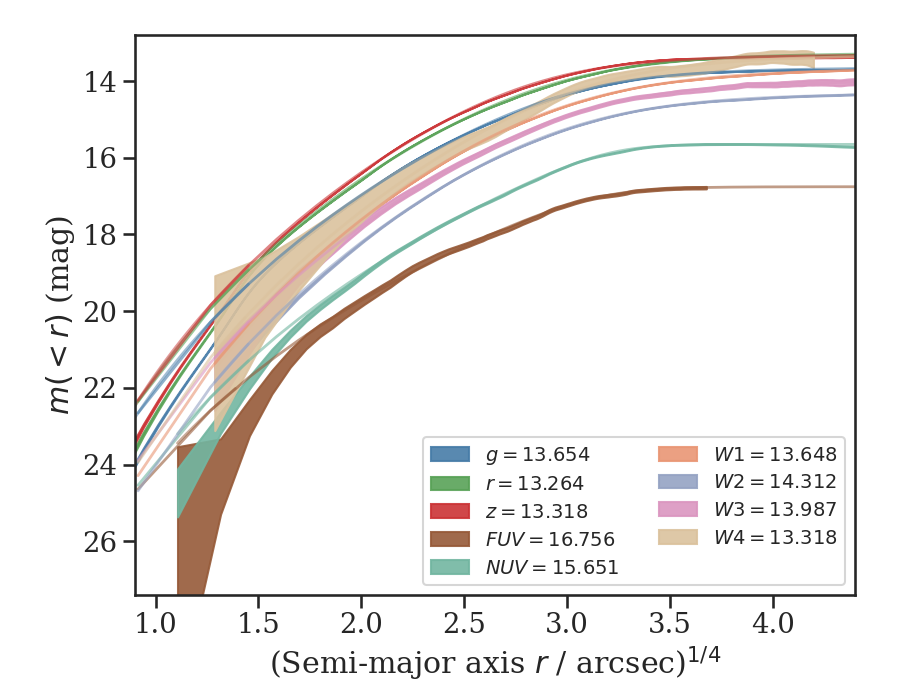

	Tractor									Curve of Growth
Galaxy	FUV	NUV	g	r	z	W1	W2	W3	W4	FUV	NUV	g	r	z	W1	W2	W3	W4
UGC09242	>21.953	>21.315	14.771	14.307	14.104	14.798	15.426	15.496	>15.242	16.756	15.651	13.654	13.264	13.318	13.648	14.312	13.987	13.318

UGC09242

Missing file thumb-UGC09242-custom-ellipse-2157-multiband-FUVNUV.png

Missing file thumb-UGC09242-custom-ellipse-2157-multiband.png

Missing file thumb-UGC09242-custom-ellipse-2157-multiband-W1W2.png
