| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 5524 | NGC5645 | 217.6642058 | 7.2748862 | 3.5061 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 5524 | NGC5645 | 217.6642058 | 7.2748862 | 3.5061 |
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|

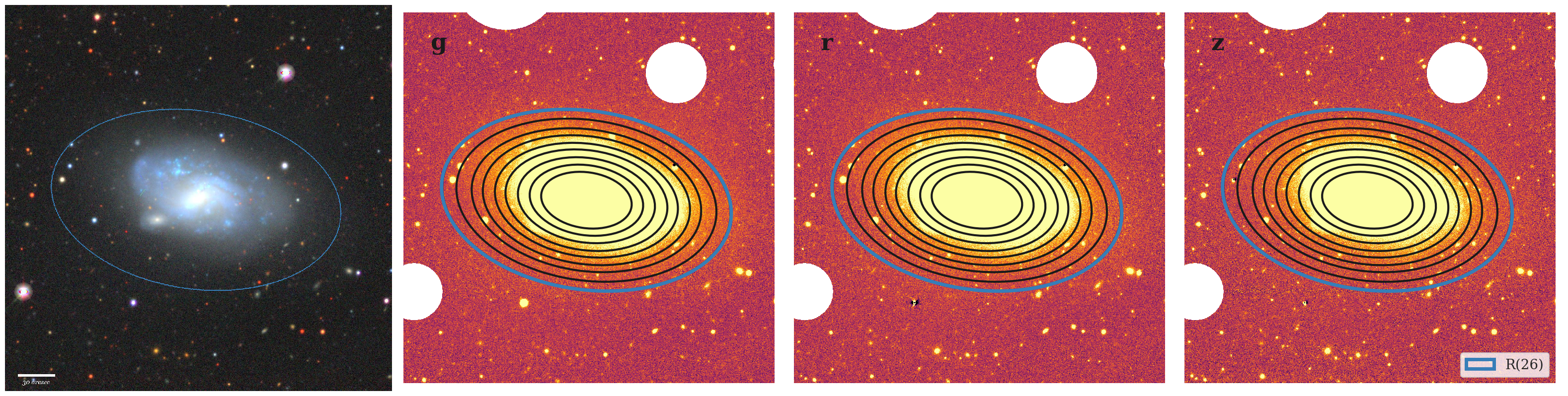

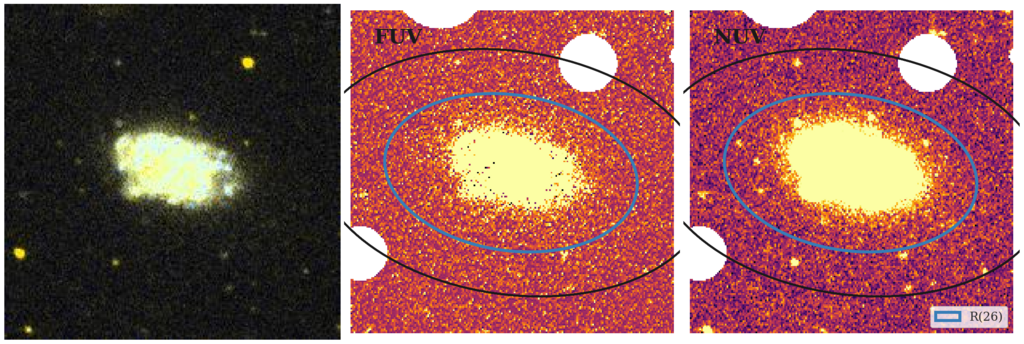

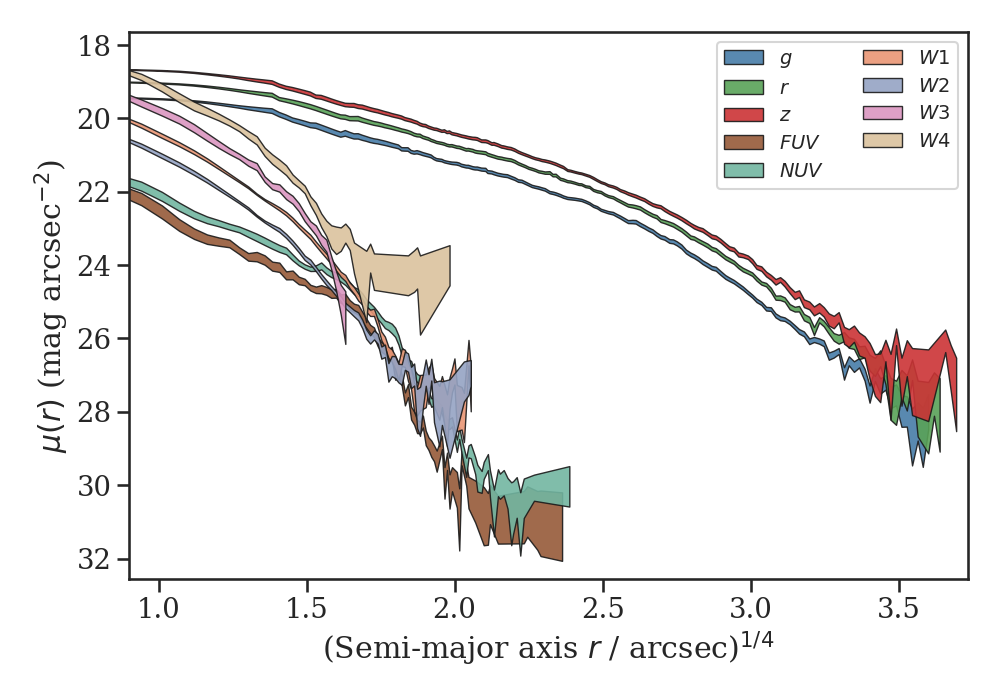

| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| NGC5645 | SER | 1.82 | 29.859 | 102.84 | 0.416 | 105.182 | 81.64 | 0.387 | 75.404 | 95.035 | 119.084 | 35.681 | 37.771 | 42.013 |

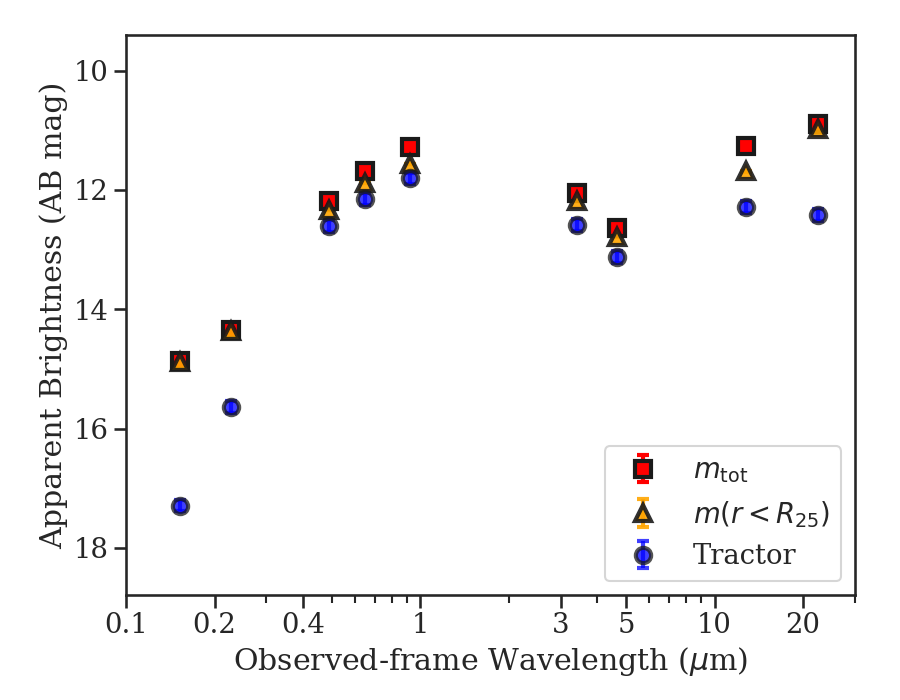

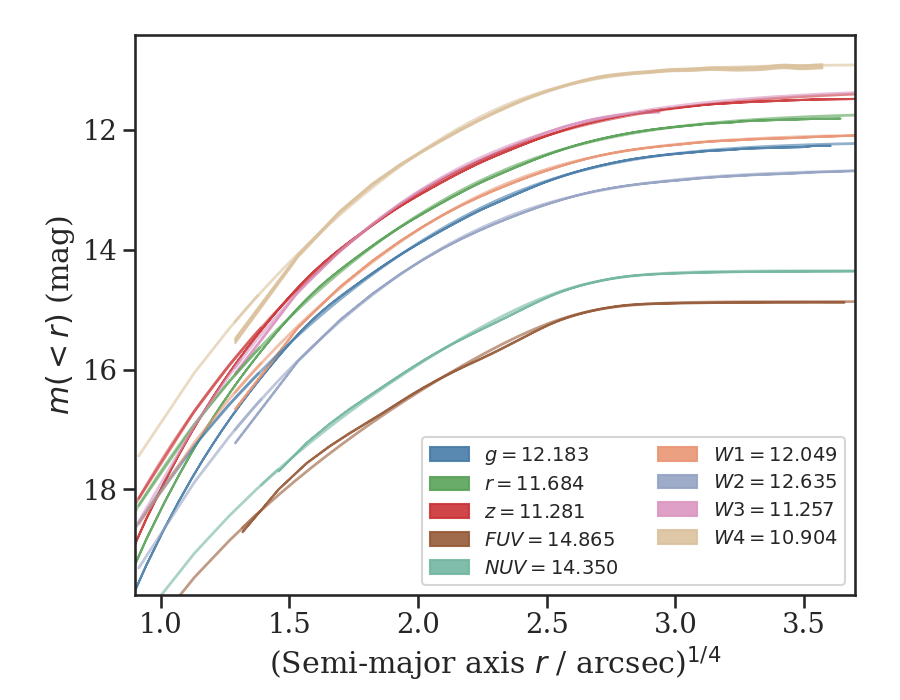

| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| NGC5645 | 17.290 | 15.645 | 12.609 | 12.148 | 11.808 | 12.591 | 13.127 | 12.280 | 12.422 | 14.865 | 14.350 | 12.183 | 11.684 | 11.281 | 12.049 | 12.635 | 11.257 | 10.904 |
 |
 |
 |
 |
 |
 |
