| ID (Primary) |
Group Name | Group RA | Group Dec | Group Diameter (arcmin) |
Viewer |
|---|---|---|---|---|---|
| 1201 | UGC09663 | 225.3068748 | 52.5958093 | 1.5330 | Link |
| ID | Galaxy | RA | Dec | D(25) (arcmin) |
|---|---|---|---|---|
| 1201 | UGC09663 | 225.3068748 | 52.5958093 | 1.5330 |

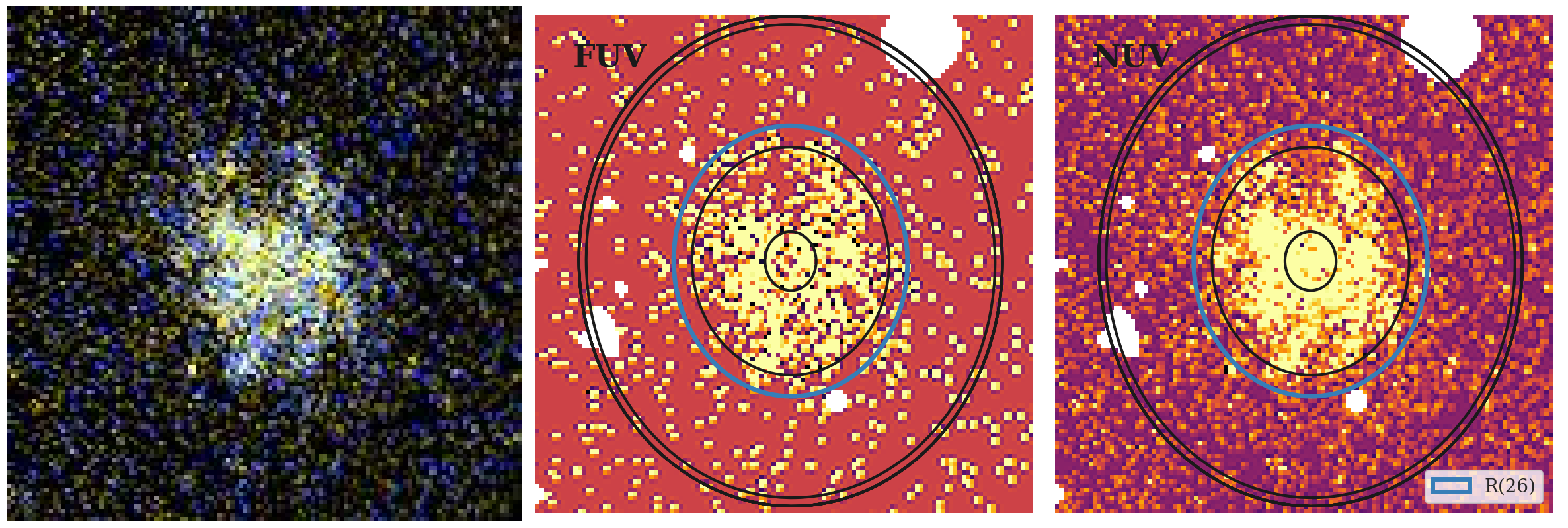

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
|
|
|
| Tractor | Ellipse Moments | Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | Type | n | r(50) (arcsec) | PA (deg) | e | Size (arcsec) | PA (deg) | e | R(24) | R(25) | R(26) | g(50) | r(50) | z(50) |
| UGC09663 | SER | 0.78 | 18.683 | 25.39 | 0.403 | 40.718 | 1.24 | 0.135 | 28.282 | 39.228 | 48.031 | 22.839 | 22.887 | 14.348 |
| Tractor | Curve of Growth | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galaxy | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 | FUV | NUV | g | r | z | W1 | W2 | W3 | W4 |
| UGC09663 | >21.672 | >21.072 | 15.299 | 14.815 | 14.852 | 15.446 | 16.215 | 16.241 | 15.850 | 16.131 | 16.017 | 14.524 | 14.135 | 14.926 | 14.289 | 14.781 | 14.777 | 14.340 |
 |
 |
 |
 |
 |
 |
