View Port

Views

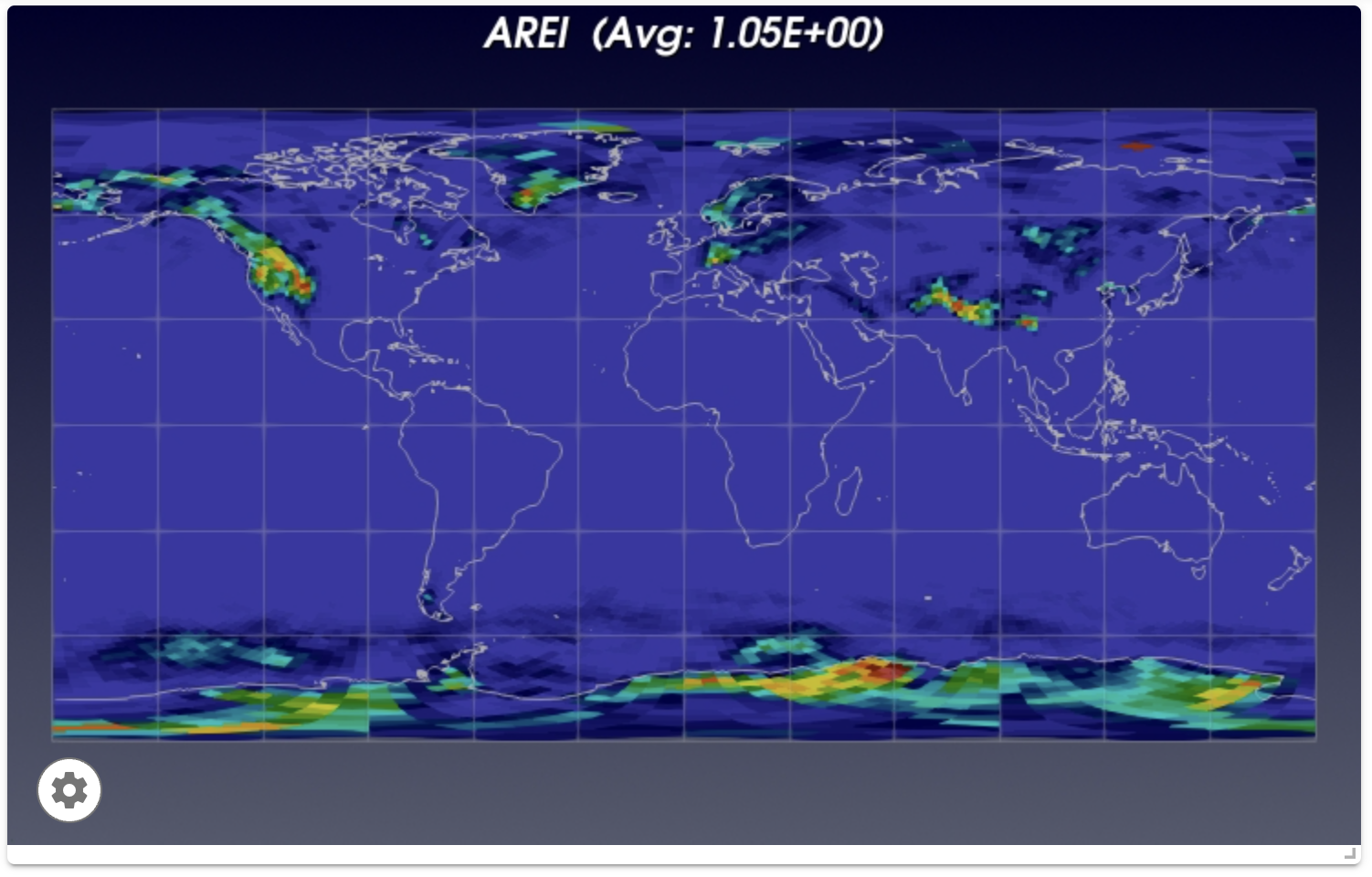

Once the user has selected the necessary variables for their analysis and used the Load Variables button, the QuickView app will create a view for every variable. Each view would look like the once below.

The view, apart from showing the ParaView rendering of the variable, also has two key components.

1. View Settings -- a button on the bottom left with a gear cog icon, which presents additional options related to the view.
2. Expand View -- a drag-resize button on the bottom right, which lets users control the size of the specific view.

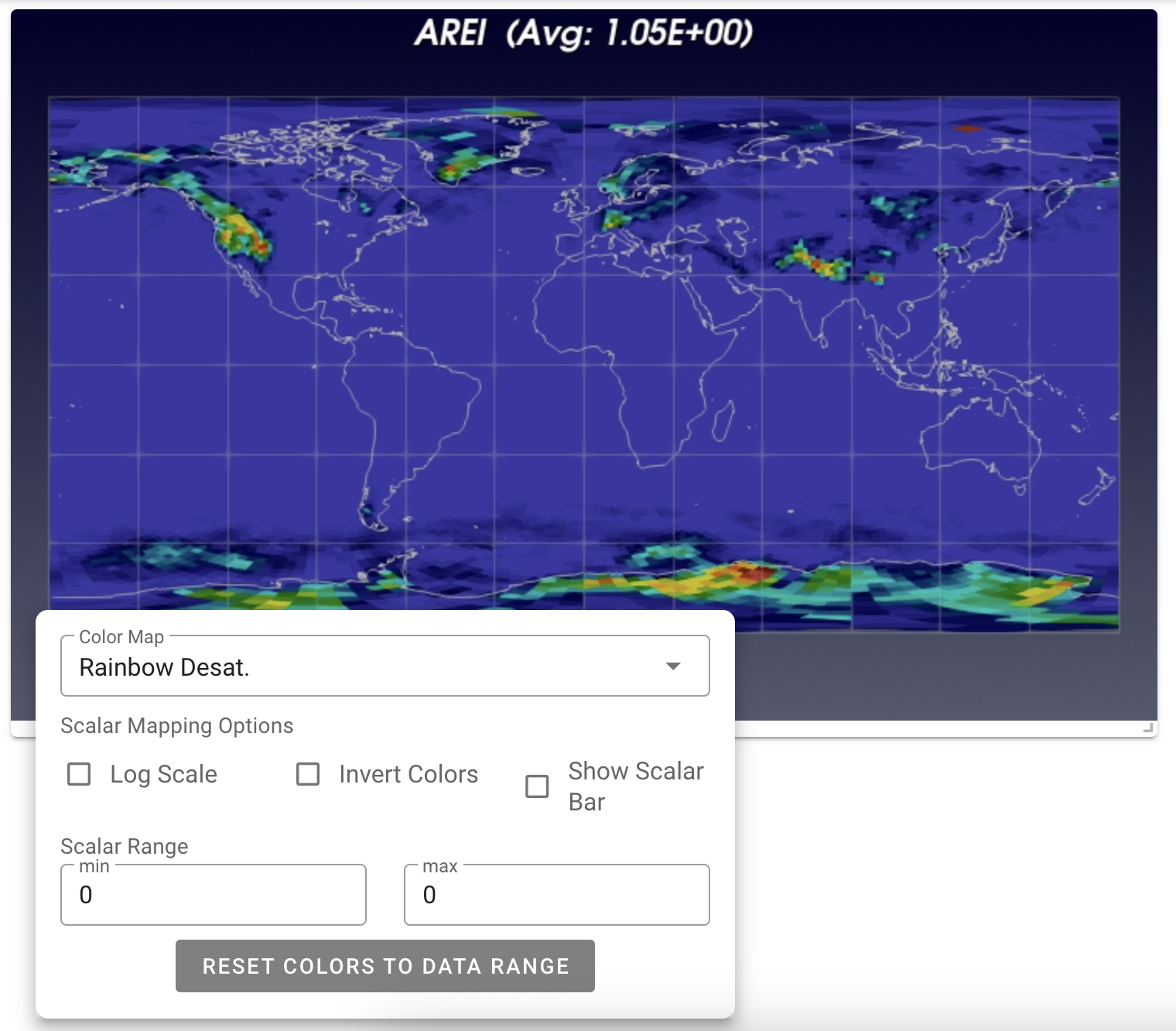

The below image shows the expanded view settings panel.

The panel contains option to control the properties of the view - the color map used to color the variable - options for mapping color -- log scale, inverted color map, or show/hide color bar - options to control the min and max values for color mapping - a button to reset the color mapping to the range of values in the data
