| Test Case | Errors | Images | |||
| %Diffs | Maximum | Baseline | Current | Diff Map | |
| pipe.nas | |||||
| nastran1_0 | 0.00 | 0.00 | |
||

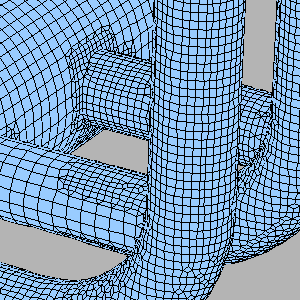

| nastran1_1 | 0.00 | 0.00 | |
||
| nastran1_2 | 24.98 | 0.06 | |
|
|
| waterjacket.nas | |||||

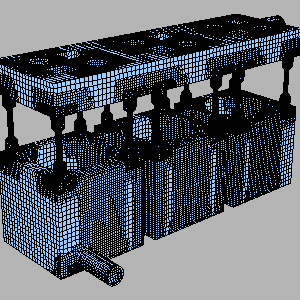

| nastran2_0 | 0.00 | 0.00 | |
||
| nastran2_1 | 0.00 | 0.00 | |
||
| nastran2_2 | 57.24 | 0.40 | |
|
|
| intake.nas | |||||
| nastran3_0 | 0.00 | 0.00 | |
||
| nastran3_1 | 0.00 | 0.00 | |
||
| nastran3_2 | 32.40 | 0.10 | |
|
|
| porsche.nas | |||||

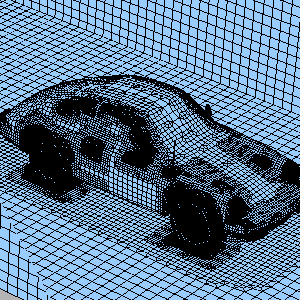

| nastran4_0 | 0.00 | 0.00 | |
||
| nastran4_1 | 0.00 | 0.00 | |
||
| nastran4_2 | 0.00 | 0.00 | |
||
| Rohr_01.nas | |||||
| nastran5_0 | 0.00 | 0.00 | |
||

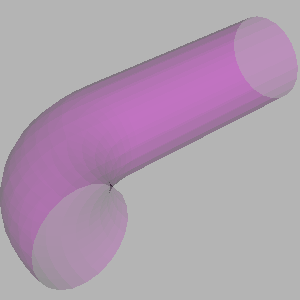

| nastran5_1 | 51.65 | 0.21 | |
|
|
| BMSP4E.nas | |||||

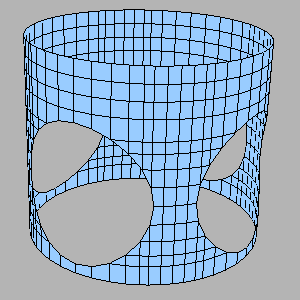

| nastran6_0 | 0.00 | 0.00 | |
||
| HAM6D.nas | |||||

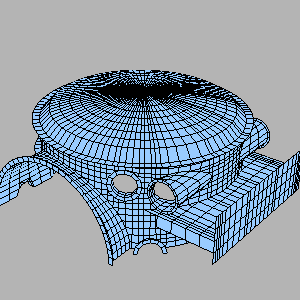

| nastran7_0 | 0.00 | 0.00 | |
||
| nastran7_1 | 0.00 | 0.00 | |
||
| simpleCQUAD8.nas | |||||

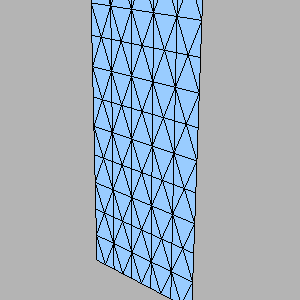

| nastran8_0 | 0.00 | 0.00 | |
||
| simpleQuadSphere.nas | |||||

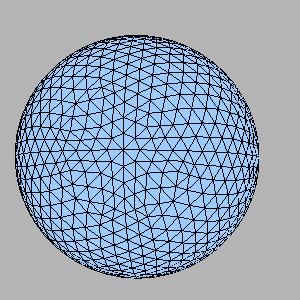

| nastran9_0 | 0.00 | 0.00 | |
||
| simpleQuadSphereBlock.nas | |||||
| nastran10_0 | 0.00 | 0.00 | |
||
| simpleQuadTet.nas | |||||
| nastran11_0 | 0.00 | 0.00 | |
||
| simpleQuadWedge.nas | |||||
| nastran12_0 | 0.00 | 0.00 | |
||
Final Return Code: 112
