Functions/Subroutines
subroutine, public	gw_common_init (pver_in, pgwv_in, dc_in, cref_in, do_molec_diff_in, tau_0_ubc_in, nbot_molec_in, ktop_in, kbotbg_in, fcrit2_in, kwv_in, gravit_in, rair_in, alpha_in, errstring)

subroutine, public	gw_prof (ncol, cpair, t, pmid, pint, rhoi, ti, nm, ni)

subroutine, public	momentum_energy_conservation (ncol, tend_level, dt, taucd, pint, pdel, u, v, dudt, dvdt, dsdt, utgw, vtgw, ttgw)

subroutine, public	gw_drag_prof (ncol, ngwv, src_level, tend_level, do_taper, dt, lat, t, ti, pmid, pint, dpm, rdpm, piln, rhoi, nm, ni, ubm, ubi, xv, yv, effgw, c, kvtt, q, dse, tau, utgw, vtgw, ttgw, qtgw, taucd, egwdffi, gwut, dttdf, dttke)

Variables
logical, public	orographic_only = .false.

integer, public, protected	pver = 0

integer, public, protected	pgwv = 0

real(r8), public, protected	dc = huge(1._r8)

real(r8), dimension(:), allocatable, public, protected	cref

logical, public, protected	do_molec_diff = .false.

integer, public, protected	nbot_molec = huge(1)

logical	tau_0_ubc = .false.

integer, parameter, public	west = 1

integer, parameter, public	east = 2

integer, parameter, public	south = 3

integer, parameter, public	north = 4

real(r8), public, protected	fcrit2 = huge(1._r8)

real(r8), public, protected	kwv = huge(1._r8)

real(r8), public, protected	gravit = huge(1._r8)

real(r8), public, protected	rair = huge(1._r8)

integer	ktop = huge(1)

integer	kbotbg = huge(1)

real(r8)	effkwv = huge(1._r8)

real(r8), parameter	dback = 0.05_r8

real(r8)	rog = huge(1._r8)

real(r8), dimension(:), allocatable	alpha

real(r8), parameter	taumin = 1.e-10_r8

real(r8)	tndmax = huge(1._r8)

real(r8), parameter	umcfac = 0.5_r8

real(r8), parameter	ubmc2mn = 0.01_r8

Function/Subroutine Documentation

◆ gw_common_init()

subroutine, public gw_common::gw_common_init	(	integer, intent(in)	pver_in,
		integer, intent(in)	pgwv_in,
		real(r8), intent(in)	dc_in,
		real(r8), dimension(-pgwv_in:), intent(in)	cref_in,
		logical, intent(in)	do_molec_diff_in,
		logical, intent(in)	tau_0_ubc_in,
		integer, intent(in)	nbot_molec_in,
		integer, intent(in)	ktop_in,
		integer, intent(in)	kbotbg_in,
		real(r8), intent(in)	fcrit2_in,
		real(r8), intent(in)	kwv_in,
		real(r8), intent(in)	gravit_in,
		real(r8), intent(in)	rair_in,
		real(r8), dimension(0:), intent(in)	alpha_in,
		character(len=*), intent(out)	errstring
	)

Here is the caller graph for this function:

◆ gw_drag_prof()

subroutine, public gw_common::gw_drag_prof	(	integer, intent(in)	ncol,
		integer, intent(in)	ngwv,
		integer, dimension(ncol), intent(in)	src_level,
		integer, dimension(ncol), intent(in)	tend_level,
		logical, intent(in)	do_taper,
		real(r8), intent(in)	dt,
		real(r8), dimension(ncol), intent(in)	lat,
		real(r8), dimension(ncol,pver), intent(in)	t,
		real(r8), dimension(ncol,0:pver), intent(in)	ti,
		real(r8), dimension(ncol,pver), intent(in)	pmid,
		real(r8), dimension(ncol,0:pver), intent(in)	pint,
		real(r8), dimension(ncol,pver), intent(in)	dpm,
		real(r8), dimension(ncol,pver), intent(in)	rdpm,
		real(r8), dimension(ncol,0:pver), intent(in)	piln,
		real(r8), dimension(ncol,0:pver), intent(in)	rhoi,
		real(r8), dimension(ncol,pver), intent(in)	nm,
		real(r8), dimension(ncol,0:pver), intent(in)	ni,
		real(r8), dimension(ncol,pver), intent(in)	ubm,
		real(r8), dimension(ncol,0:pver), intent(in)	ubi,
		real(r8), dimension(ncol), intent(in)	xv,
		real(r8), dimension(ncol), intent(in)	yv,
		real(r8), intent(in)	effgw,
		real(r8), dimension(ncol,-pgwv:pgwv), intent(in)	c,
		real(r8), dimension(ncol,0:pver), intent(in)	kvtt,
		real(r8), dimension(:,:,:), intent(in)	q,
		real(r8), dimension(ncol,pver), intent(in)	dse,
		real(r8), dimension(ncol,-pgwv:pgwv,0:pver), intent(inout)	tau,
		real(r8), dimension(ncol,pver), intent(out)	utgw,
		real(r8), dimension(ncol,pver), intent(out)	vtgw,
		real(r8), dimension(ncol,pver), intent(out)	ttgw,
		real(r8), dimension(:,:,:), intent(out)	qtgw,
		real(r8), dimension(ncol,0:pver,4), intent(out)	taucd,
		real(r8), dimension(ncol,0:pver), intent(out)	egwdffi,
		real(r8), dimension(ncol,pver,-ngwv:ngwv), intent(out)	gwut,
		real(r8), dimension(ncol,pver), intent(out)	dttdf,
		real(r8), dimension(ncol,pver), intent(out)	dttke
	)

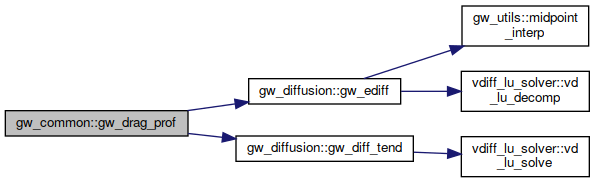

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gw_prof()

subroutine, public gw_common::gw_prof	(	integer, intent(in)	ncol,
		real(r8), intent(in)	cpair,
		real(r8), dimension(ncol,pver), intent(in)	t,
		real(r8), dimension(ncol,pver), intent(in)	pmid,
		real(r8), dimension(ncol,0:pver), intent(in)	pint,
		real(r8), dimension(ncol,0:pver), intent(out)	rhoi,
		real(r8), dimension(ncol,0:pver), intent(out)	ti,
		real(r8), dimension(ncol,pver), intent(out)	nm,
		real(r8), dimension(ncol,0:pver), intent(out)	ni
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ momentum_energy_conservation()

subroutine, public gw_common::momentum_energy_conservation	(	integer, intent(in)	ncol,
		integer, dimension(ncol), intent(in)	tend_level,
		real(r8), intent(in)	dt,
		real(r8), dimension(ncol,0:pver,4), intent(in)	taucd,
		real(r8), dimension(ncol,pver), intent(in)	pint,
		real(r8), dimension(ncol,pver), intent(in)	pdel,
		real(r8), dimension(ncol,pver), intent(in)	u,
		real(r8), dimension(ncol,pver), intent(in)	v,
		real(r8), dimension(:,:), intent(inout)	dudt,
		real(r8), dimension(:,:), intent(inout)	dvdt,
		real(r8), dimension(:,:), intent(inout)	dsdt,
		real(r8), dimension(ncol,pver), intent(inout)	utgw,
		real(r8), dimension(ncol,pver), intent(inout)	vtgw,
		real(r8), dimension(ncol,pver), intent(inout)	ttgw
	)

Here is the caller graph for this function:

Variable Documentation

◆ alpha

real(r8), dimension(:), allocatable gw_common::alpha

private

◆ cref

real(r8), dimension(:), allocatable, public, protected gw_common::cref

◆ dback

real(r8), parameter gw_common::dback = 0.05_r8

private

◆ dc

real(r8), public, protected gw_common::dc = huge(1._r8)

◆ do_molec_diff

logical, public, protected gw_common::do_molec_diff = .false.

◆ east

integer, parameter, public gw_common::east = 2

◆ effkwv

real(r8) gw_common::effkwv = huge(1._r8)

private

◆ fcrit2

real(r8), public, protected gw_common::fcrit2 = huge(1._r8)

◆ gravit

real(r8), public, protected gw_common::gravit = huge(1._r8)

◆ kbotbg

integer gw_common::kbotbg = huge(1)

private

◆ ktop

integer gw_common::ktop = huge(1)

private

◆ kwv

real(r8), public, protected gw_common::kwv = huge(1._r8)

◆ nbot_molec

integer, public, protected gw_common::nbot_molec = huge(1)

◆ north

integer, parameter, public gw_common::north = 4

◆ orographic_only

logical, public gw_common::orographic_only = .false.

◆ pgwv

integer, public, protected gw_common::pgwv = 0

◆ pver

integer, public, protected gw_common::pver = 0

◆ rair

real(r8), public, protected gw_common::rair = huge(1._r8)

◆ rog

real(r8) gw_common::rog = huge(1._r8)

private

◆ south

integer, parameter, public gw_common::south = 3

◆ tau_0_ubc

logical gw_common::tau_0_ubc = .false.

private

◆ taumin

real(r8), parameter gw_common::taumin = 1.e-10_r8

private

◆ tndmax

real(r8) gw_common::tndmax = huge(1._r8)

private

◆ ubmc2mn

real(r8), parameter gw_common::ubmc2mn = 0.01_r8

private

◆ umcfac

real(r8), parameter gw_common::umcfac = 0.5_r8

private

◆ west

integer, parameter, public gw_common::west = 1
