modal_aero_wateruptake Module Reference

Functions/Subroutines
subroutine, public	modal_aero_wateruptake_reg ()
subroutine, public	modal_aero_wateruptake_init (pbuf2d)
subroutine, public	modal_aero_wateruptake_dr (state, pbuf, list_idx_in, dgnumdry_m, dgnumwet_m, qaerwat_m, wetdens_m)
subroutine	modal_aero_wateruptake_sub (ncol, nmodes, rhcrystal, rhdeliques, dryrad, hygro, rh, dryvol, wetrad, wetvol, wtrvol)
subroutine	modal_aero_kohler (rdry_in, hygro, s, rwet_out, im)
subroutine	makoh_cubic (cx, p2, p1, p0, im)
subroutine	makoh_quartic (cx, p3, p2, p1, p0, im)

Variables
real(r8), parameter	third = 1._r8/3._r8
real(r8), parameter	pi43 = pi*4.0_r8/3.0_r8
integer	cld_idx = 0
integer	dgnum_idx = 0
integer	dgnumwet_idx = 0
integer	wetdens_ap_idx = 0
integer	qaerwat_idx = 0
logical	pergro_mods = .false.

Function/Subroutine Documentation

makoh_cubic()

subroutine modal_aero_wateruptake::makoh_cubic ( complex(r8), dimension(3,imx)  cx, real(r8), dimension(imx)  p2, real(r8), dimension(imx)  p1, real(r8), dimension(imx)  p0, integer  im  )

private

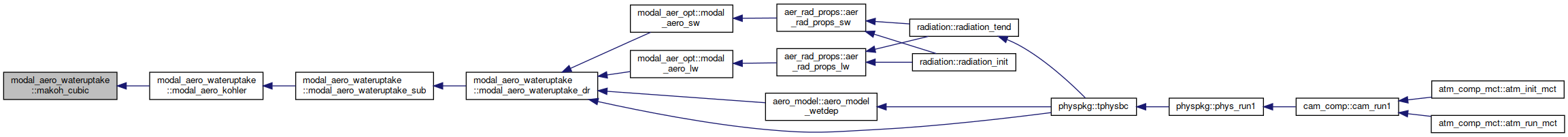

Here is the caller graph for this function:

makoh_quartic()

subroutine modal_aero_wateruptake::makoh_quartic ( complex(r8), dimension(4,imx)  cx, real(r8), dimension(imx)  p3, real(r8), dimension(imx)  p2, real(r8), dimension(imx)  p1, real(r8), dimension(imx)  p0, integer  im  )

private

Here is the caller graph for this function:

modal_aero_kohler()

subroutine modal_aero_wateruptake::modal_aero_kohler ( real(r8), dimension(:)  rdry_in, real(r8), dimension(:)  hygro, real(r8), dimension(:)  s, real(r8), dimension(:)  rwet_out, integer  im  )

private

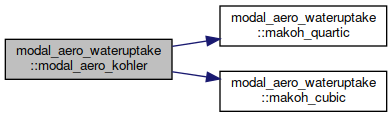

Here is the call graph for this function:

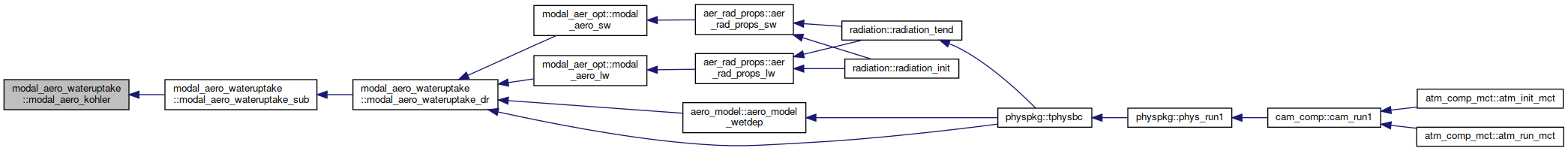

Here is the caller graph for this function:

modal_aero_wateruptake_dr()

subroutine, public modal_aero_wateruptake::modal_aero_wateruptake_dr	(	type(physics_state), intent(in), target	state,
		type(physics_buffer_desc), dimension(:), pointer	pbuf,
		integer, intent(in), optional	list_idx_in,
		real(r8), dimension(:,:,:), optional, pointer	dgnumdry_m,
		real(r8), dimension(:,:,:), optional, pointer	dgnumwet_m,
		real(r8), dimension(:,:,:), optional, pointer	qaerwat_m,
		real(r8), dimension(:,:,:), optional, pointer	wetdens_m
	)

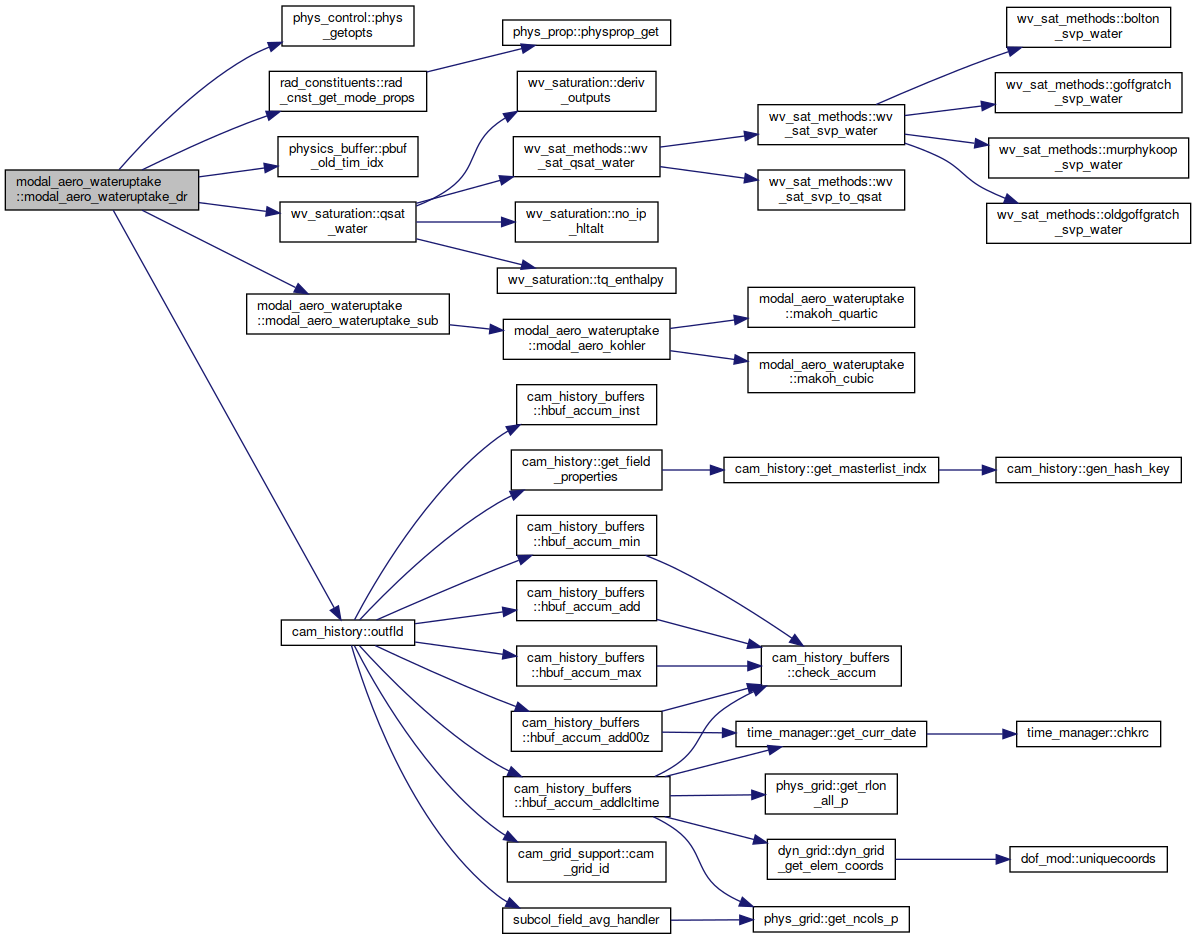

Here is the call graph for this function:

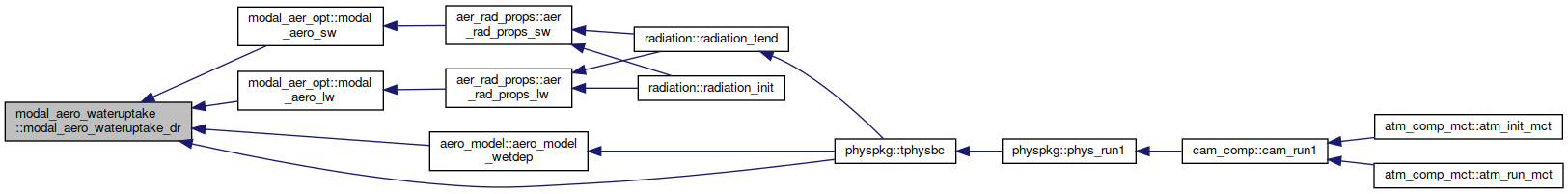

Here is the caller graph for this function:

modal_aero_wateruptake_init()

subroutine, public modal_aero_wateruptake::modal_aero_wateruptake_init

(

type(physics_buffer_desc), dimension(:,:), pointer

pbuf2d

)

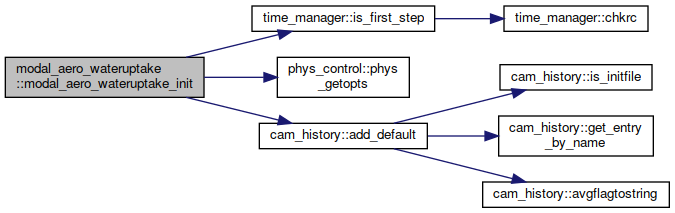

Here is the call graph for this function:

Here is the caller graph for this function:

modal_aero_wateruptake_reg()

subroutine, public modal_aero_wateruptake::modal_aero_wateruptake_reg

(

)

Here is the caller graph for this function:

modal_aero_wateruptake_sub()

subroutine modal_aero_wateruptake::modal_aero_wateruptake_sub ( integer, intent(in)  ncol, integer, intent(in)  nmodes, real(r8), dimension(:), intent(in)  rhcrystal, real(r8), dimension(:), intent(in)  rhdeliques, real(r8), dimension(:,:,:), intent(in)  dryrad, real(r8), dimension(:,:,:), intent(in)  hygro, real(r8), dimension(:,:), intent(in)  rh, real(r8), dimension(:,:,:), intent(in)  dryvol, real(r8), dimension(:,:,:), intent(out)  wetrad, real(r8), dimension(:,:,:), intent(out)  wetvol, real(r8), dimension(:,:,:), intent(out)  wtrvol  )

private

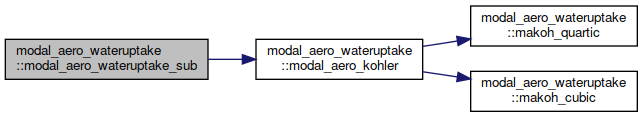

Here is the call graph for this function:

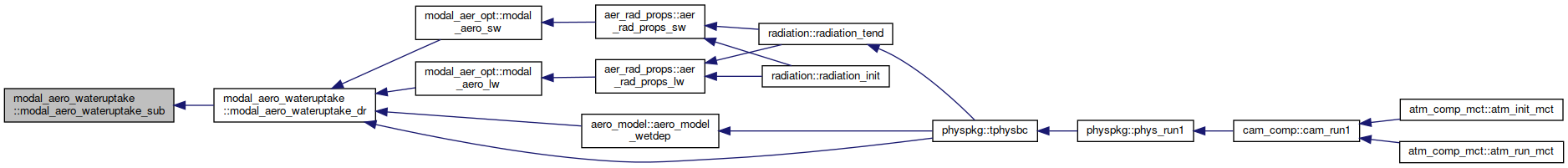

Here is the caller graph for this function:

Variable Documentation

cld_idx

integer modal_aero_wateruptake::cld_idx = 0

private

dgnum_idx

integer modal_aero_wateruptake::dgnum_idx = 0

private

dgnumwet_idx

integer modal_aero_wateruptake::dgnumwet_idx = 0

private

pergro_mods

logical modal_aero_wateruptake::pergro_mods = .false.

private

pi43

real(r8), parameter modal_aero_wateruptake::pi43 = pi*4.0_r8/3.0_r8

private

qaerwat_idx

integer modal_aero_wateruptake::qaerwat_idx = 0

private

third

real(r8), parameter modal_aero_wateruptake::third = 1._r8/3._r8

private

wetdens_ap_idx

integer modal_aero_wateruptake::wetdens_ap_idx = 0

private
