oldcloud Module Reference

Functions/Subroutines
subroutine, public	oldcloud_init ()
subroutine	old_liquid_optics_sw (state, pbuf, liq_tau, liq_tau_w, liq_tau_w_g, liq_tau_w_f, oldliqwp)
subroutine	old_ice_optics_sw (state, pbuf, ice_tau, ice_tau_w, ice_tau_w_g, ice_tau_w_f, oldicewp)
subroutine, public	oldcloud_lw (state, pbuf, cld_abs_od, oldwp)
subroutine, public	old_liq_get_rad_props_lw (state, pbuf, abs_od, oldliqwp)
subroutine, public	old_ice_get_rad_props_lw (state, pbuf, abs_od, oldicewp)
subroutine	cloud_total_vis_diag_out (lchnk, nnite, idxnite, tau, radsuffix)

Variables
integer	nmu
integer	nlambda
real(r8), dimension(:), allocatable	g_mu
real(r8), dimension(:,:), allocatable	g_lambda
real(r8), dimension(:,:,:), allocatable	ext_sw_liq
real(r8), dimension(:,:,:), allocatable	ssa_sw_liq
real(r8), dimension(:,:,:), allocatable	asm_sw_liq
real(r8), dimension(:,:,:), allocatable	abs_lw_liq
integer	n_g_d
real(r8), dimension(:), allocatable	g_d_eff
real(r8), dimension(:,:), allocatable	ext_sw_ice
real(r8), dimension(:,:), allocatable	ssa_sw_ice
real(r8), dimension(:,:), allocatable	asm_sw_ice
real(r8), dimension(:,:), allocatable	abs_lw_ice
real(r8)	cldmin
real(r8)	cldeps
integer	iciwp_idx = 0
integer	iclwp_idx = 0
integer	cld_idx = 0
integer	rel_idx = 0
integer	rei_idx = 0
integer	ixcldice
integer	ixcldliq

Function/Subroutine Documentation

cloud_total_vis_diag_out()

subroutine oldcloud::cloud_total_vis_diag_out	(	integer, intent(in)	lchnk,
		integer, intent(in)	nnite,
		integer, dimension(nnite), intent(in)	idxnite,
		real(r8), dimension(:,:), intent(in)	tau,
		character(len=*), intent(in)	radsuffix
	)

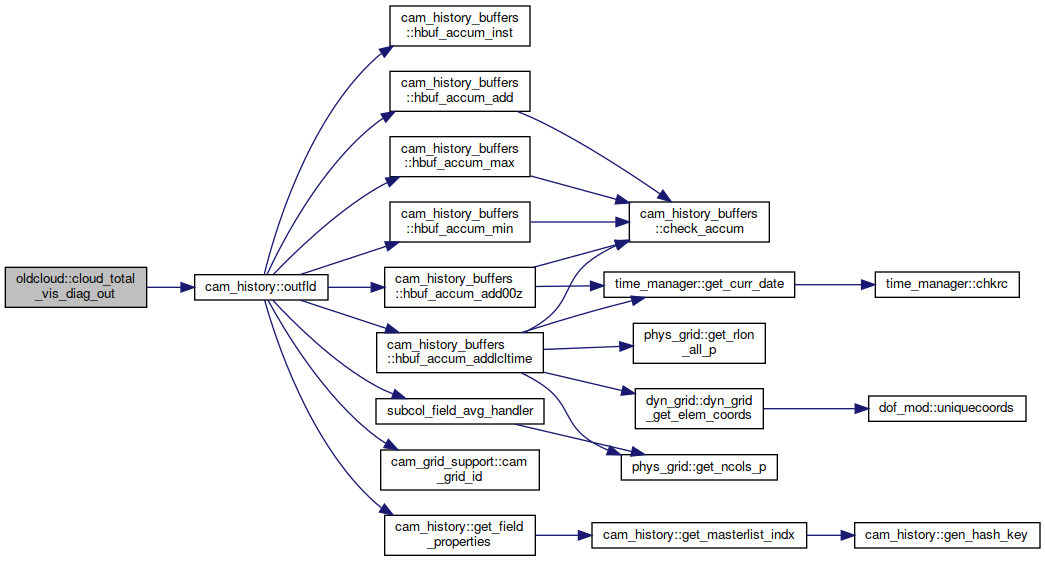

Here is the call graph for this function:

old_ice_get_rad_props_lw()

subroutine, public oldcloud::old_ice_get_rad_props_lw	(	type(physics_state), intent(in)	state,
		type(physics_buffer_desc), dimension(:), pointer	pbuf,
		real(r8), dimension(nlwbands,pcols,pver), intent(out)	abs_od,
		logical, intent(in)	oldicewp
	)

Here is the call graph for this function:

Here is the caller graph for this function:

old_ice_optics_sw()

subroutine oldcloud::old_ice_optics_sw	(	type(physics_state), intent(in)	state,
		type(physics_buffer_desc), dimension(:), pointer	pbuf,
		real(r8), dimension (nswbands,pcols,pver), intent(out)	ice_tau,
		real(r8), dimension (nswbands,pcols,pver), intent(out)	ice_tau_w,
		real(r8), dimension(nswbands,pcols,pver), intent(out)	ice_tau_w_g,
		real(r8), dimension(nswbands,pcols,pver), intent(out)	ice_tau_w_f,
		logical, intent(in)	oldicewp
	)

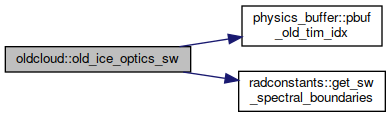

Here is the call graph for this function:

old_liq_get_rad_props_lw()

subroutine, public oldcloud::old_liq_get_rad_props_lw	(	type(physics_state), intent(in)	state,
		type(physics_buffer_desc), dimension(:), pointer	pbuf,
		real(r8), dimension(nlwbands,pcols,pver), intent(out)	abs_od,
		logical, intent(in)	oldliqwp
	)

Here is the call graph for this function:

Here is the caller graph for this function:

old_liquid_optics_sw()

subroutine oldcloud::old_liquid_optics_sw	(	type(physics_state), intent(in)	state,
		type(physics_buffer_desc), dimension(:), pointer	pbuf,
		real(r8), dimension (nswbands,pcols,pver), intent(out)	liq_tau,
		real(r8), dimension (nswbands,pcols,pver), intent(out)	liq_tau_w,
		real(r8), dimension(nswbands,pcols,pver), intent(out)	liq_tau_w_g,
		real(r8), dimension(nswbands,pcols,pver), intent(out)	liq_tau_w_f,
		logical, intent(in)	oldliqwp
	)

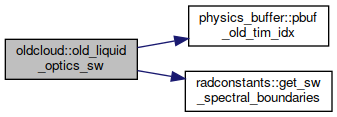

Here is the call graph for this function:

oldcloud_init()

subroutine, public oldcloud::oldcloud_init

(

)

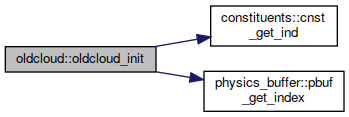

Here is the call graph for this function:

Here is the caller graph for this function:

oldcloud_lw()

subroutine, public oldcloud::oldcloud_lw	(	type(physics_state), intent(in)	state,
		type(physics_buffer_desc), dimension(:), pointer	pbuf,
		real(r8), dimension(nlwbands,pcols,pver), intent(out)	cld_abs_od,
		logical, intent(in)	oldwp
	)

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

abs_lw_ice

real(r8), dimension(:,:), allocatable oldcloud::abs_lw_ice

private

abs_lw_liq

real(r8), dimension(:,:,:), allocatable oldcloud::abs_lw_liq

private

asm_sw_ice

real(r8), dimension(:,:), allocatable oldcloud::asm_sw_ice

private

asm_sw_liq

real(r8), dimension(:,:,:), allocatable oldcloud::asm_sw_liq

private

cld_idx

integer oldcloud::cld_idx = 0

private

cldeps

real(r8) oldcloud::cldeps

private

cldmin

real(r8) oldcloud::cldmin

private

ext_sw_ice

real(r8), dimension(:,:), allocatable oldcloud::ext_sw_ice

private

ext_sw_liq

real(r8), dimension(:,:,:), allocatable oldcloud::ext_sw_liq

private

g_d_eff

real(r8), dimension(:), allocatable oldcloud::g_d_eff

private

g_lambda

real(r8), dimension(:,:), allocatable oldcloud::g_lambda

private

g_mu

real(r8), dimension(:), allocatable oldcloud::g_mu

private

iciwp_idx

integer oldcloud::iciwp_idx = 0

private

iclwp_idx

integer oldcloud::iclwp_idx = 0

private

ixcldice

integer oldcloud::ixcldice

private

ixcldliq

integer oldcloud::ixcldliq

private

n_g_d

integer oldcloud::n_g_d

private

nlambda

integer oldcloud::nlambda

private

nmu

integer oldcloud::nmu

private

rei_idx

integer oldcloud::rei_idx = 0

private

rel_idx

integer oldcloud::rel_idx = 0

private

ssa_sw_ice

real(r8), dimension(:,:), allocatable oldcloud::ssa_sw_ice

private

ssa_sw_liq

real(r8), dimension(:,:,:), allocatable oldcloud::ssa_sw_liq

private
