edge_mod_base Module Reference

Functions/Subroutines
subroutine, public	initedgesbuffer (par, edge, elem, nlyr, bptr, rptr)
subroutine, public	initedgebuffer (par, edge, elem, nlyr, NewMethod)
subroutine, public	initlongedgebuffer (edge, nlyr)
subroutine, public	edgedgvpack (edge, v, vlyr, kptr, ielem)
subroutine, public	freeedgebuffer (edge)
subroutine, public	freeghostbuffer3d (buffer)
subroutine, public	freelongedgebuffer (edge)
subroutine, public	edgevpack (edge, v, vlyr, kptr, ielem)
	Pack edges of v into an edge buffer for boundary exchange. More...
subroutine, public	edgespack (edge, v, vlyr, kptr, ielem)
subroutine, public	longedgevpack (edge, v, vlyr, kptr, desc)
subroutine, public	edgevunpack (edge, v, vlyr, kptr, ielem)
subroutine, public	edgevunpackvert (edge, v, ielem)
subroutine, public	edgedgvunpack (edge, v, vlyr, kptr, ielem)
subroutine, public	edgevunpackmax (edge, v, vlyr, kptr, ielem)
subroutine, public	edgesunpackmax (edge, v, vlyr, kptr, ielem)
subroutine, public	edgesunpackmin (edge, v, vlyr, kptr, ielem)
subroutine, public	edgevunpackmin (edge, v, vlyr, kptr, ielem)
subroutine, public	longedgevunpackmin (edge, v, vlyr, kptr, desc)
subroutine, public	ghostvpackfull (edge, v, nc1, nc2, nc, vlyr, kptr, desc)
	Pack edges of v into an edge buffer for boundary exchange. More...
subroutine, public	ghostvunpackfull (edge, v, nc1, nc2, nc, vlyr, kptr, desc)
subroutine, public	ghostvpack_unoriented (edge, v, nc, vlyr, kptr, desc)
	Pack edges of v into an edge buffer for boundary exchange. More...
subroutine, public	ghostvunpack_unoriented (edge, v, nc, vlyr, kptr, desc, GlobalId, u)
subroutine, public	initghostbuffer3d (ghost, nlyr, np, nhc_in)
subroutine, public	ghostvpack3d (ghost, v, vlyr, kptr, desc)
subroutine, public	ghostvunpack3d (g, v, vlyr, kptr, desc, sw, se, nw, ne, mult)

Variables
logical, private	threadsafe =.true.
real(kind=real_kind), parameter, public	edgedefaultval = 1.11e+100_real_kind

Function/Subroutine Documentation

edgedgvpack()

subroutine, public edge_mod_base::edgedgvpack	(	type (edgebuffer_t)	edge,
		real (kind=real_kind), dimension(np,np,vlyr), intent(in)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

Here is the call graph for this function:

edgedgvunpack()

subroutine, public edge_mod_base::edgedgvunpack	(	type (edgebuffer_t), intent(in)	edge,
		real (kind=real_kind), dimension(0:np+1,0:np+1,vlyr), intent(out)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

edgespack()

subroutine, public edge_mod_base::edgespack	(	type (edgebuffer_t)	edge,
		real (kind=real_kind), dimension(vlyr), intent(in)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

Here is the call graph for this function:

edgesunpackmax()

subroutine, public edge_mod_base::edgesunpackmax	(	type (edgebuffer_t), intent(in)	edge,
		real (kind=real_kind), dimension(vlyr), intent(inout)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

edgesunpackmin()

subroutine, public edge_mod_base::edgesunpackmin	(	type (edgebuffer_t), intent(in)	edge,
		real (kind=real_kind), dimension(vlyr), intent(inout)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

edgevpack()

subroutine, public edge_mod_base::edgevpack	(	type (edgebuffer_t)	edge,
		real (kind=real_kind), dimension(np,np,vlyr), intent(in)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

Pack edges of v into an edge buffer for boundary exchange.

This subroutine packs for one or more vertical layers into an edge buffer. If the buffer associated with edge is not large enough to hold all vertical layers you intent to pack, the method will halt the program with a call to parallel_mod::haltmp().

Parameters

[in]	edge	Edge Buffer into which the data will be packed. This buffer must be previously allocated with initEdgeBuffer().
[in]	v	The data to be packed.
[in]	vlyr	Number of vertical level coming into the subroutine for packing for input v.
[in]	kptr	Vertical pointer to the place in the edge buffer where data will be located.

Here is the call graph for this function:

Here is the caller graph for this function:

edgevunpack()

subroutine, public edge_mod_base::edgevunpack	(	type (edgebuffer_t), intent(in)	edge,
		real (kind=real_kind), dimension(np,np,vlyr), intent(inout)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

edgevunpackmax()

subroutine, public edge_mod_base::edgevunpackmax	(	type (edgebuffer_t), intent(in)	edge,
		real (kind=real_kind), dimension(np,np,vlyr), intent(inout)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

edgevunpackmin()

subroutine, public edge_mod_base::edgevunpackmin	(	type (edgebuffer_t), intent(in)	edge,
		real (kind=real_kind), dimension(np,np,vlyr), intent(inout)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		integer, intent(in)	ielem
	)

edgevunpackvert()

subroutine, public edge_mod_base::edgevunpackvert	(	type (edgebuffer_t), intent(inout)	edge,
		type (cartesian3d_t), dimension(:,:,:), intent(out)	v,
		integer, intent(in)	ielem
	)

Here is the call graph for this function:

freeedgebuffer()

subroutine, public edge_mod_base::freeedgebuffer

(

type (edgebuffer_t), intent(inout)

edge

)

freeghostbuffer3d()

subroutine, public edge_mod_base::freeghostbuffer3d

(

type (ghostbuffer3d_t), intent(inout)

buffer

)

freelongedgebuffer()

subroutine, public edge_mod_base::freelongedgebuffer

(

type (longedgebuffer_t), intent(inout)

edge

)

ghostvpack3d()

subroutine, public edge_mod_base::ghostvpack3d	(	type (ghostbuffer3d_t)	ghost,
		real (kind=real_kind), dimension(ghost%np, ghost%np, vlyr), intent(in)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t), intent(in)	desc
	)

ghostvpack_unoriented()

subroutine, public edge_mod_base::ghostvpack_unoriented	(	type (ghostbuffer3d_t), intent(inout)	edge,
		real (kind=real_kind), dimension(nc,nc,vlyr), intent(in)	v,
		integer, intent(in)	nc,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t), intent(in)	desc
	)

Pack edges of v into an edge buffer for boundary exchange.

This subroutine packs for one or more vertical layers into an edge buffer. If the buffer associated with edge is not large enough to hold all vertical layers you intent to pack, the method will halt the program with a call to parallel_mod::haltmp().

Parameters

[in]	edge	Ghost Buffer into which the data will be packed. This buffer must be previously allocated with initghostbuffer().
[in]	v	The data to be packed.
[in]	vlyr	Number of vertical level coming into the subroutine for packing for input v.
[in]	kptr	Vertical pointer to the place in the edge buffer where data will be located.

ghostvpackfull()

subroutine, public edge_mod_base::ghostvpackfull	(	type (ghostbuffer3d_t)	edge,
		real (kind=real_kind), dimension(nc1:nc2,nc1:nc2,vlyr), intent(in)	v,
		integer, intent(in)	nc1,
		integer, intent(in)	nc2,
		integer, intent(in)	nc,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t), intent(in)	desc
	)

Pack edges of v into an edge buffer for boundary exchange.

This subroutine packs for one or more vertical layers into an edge buffer. If the buffer associated with edge is not large enough to hold all vertical layers you intent to pack, the method will halt the program with a call to parallel_mod::haltmp().

Parameters

[in]	edge	Ghost Buffer into which the data will be packed. This buffer must be previously allocated with initghostbufferfull().
[in]	v	The data to be packed.
[in]	vlyr	Number of vertical level coming into the subroutine for packing for input v.
[in]	kptr	Vertical pointer to the place in the edge buffer where data will be located.

Here is the call graph for this function:

ghostvunpack3d()

subroutine, public edge_mod_base::ghostvunpack3d	(	type (ghostbuffer3d_t), intent(in)	g,
		real (kind=real_kind), dimension (1-g%nhc : g%np+g%nhc, 1-g%nhc : g%np+g%nhc, vlyr), intent(inout)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t)	desc,
		real (kind=real_kind), dimension(1-g%nhc : 1, 1-g%nhc : 1, vlyr, max_corner_elem-1), intent(out)	sw,
		real (kind=real_kind), dimension( g%np : g%np+g%nhc, 1-g%nhc : 1, vlyr, max_corner_elem-1), intent(out)	se,
		real (kind=real_kind), dimension(1-g%nhc : 1, g%np : g%np+g%nhc, vlyr, max_corner_elem-1), intent(out)	nw,
		real (kind=real_kind), dimension( g%np : g%np+g%nhc, g%np : g%np+g%nhc, vlyr, max_corner_elem-1), intent(out)	ne,
		integer, dimension(5:8), intent(out)	mult
	)

ghostvunpack_unoriented()

subroutine, public edge_mod_base::ghostvunpack_unoriented	(	type (ghostbuffer3d_t), intent(inout)	edge,
		real (kind=real_kind), dimension(nc,nc,vlyr,*), intent(out)	v,
		integer, intent(in)	nc,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t), intent(in)	desc,
		integer(kind=int_kind), intent(in)	GlobalId,
		real (kind=real_kind), dimension(nc,nc,vlyr), intent(in)	u
	)

ghostvunpackfull()

subroutine, public edge_mod_base::ghostvunpackfull	(	type (ghostbuffer3d_t), intent(in)	edge,
		real (kind=real_kind), dimension(nc1:nc2,nc1:nc2,vlyr), intent(inout)	v,
		integer, intent(in)	nc1,
		integer, intent(in)	nc2,
		integer, intent(in)	nc,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t)	desc
	)

Here is the call graph for this function:

initedgebuffer()

subroutine, public edge_mod_base::initedgebuffer	(	type (parallel_t), intent(in)	par,
		type (edgebuffer_t), intent(out), target	edge,
		type (element_t), dimension(:), intent(in)	elem,
		integer, intent(in)	nlyr,
		logical (kind=log_kind), intent(in), optional	NewMethod
	)

Here is the caller graph for this function:

initedgesbuffer()

subroutine, public edge_mod_base::initedgesbuffer	(	type (parallel_t), intent(in)	par,
		type (edgebuffer_t), intent(out), target	edge,
		type (element_t), dimension(:), intent(in)	elem,
		integer, intent(in)	nlyr,
		real(kind=real_kind), dimension(:), optional, pointer	bptr,
		real(kind=real_kind), dimension(:), optional, pointer	rptr
	)

Here is the call graph for this function:

initghostbuffer3d()

subroutine, public edge_mod_base::initghostbuffer3d	(	type (ghostbuffer3d_t), intent(out)	ghost,
		integer, intent(in)	nlyr,
		integer, intent(in)	np,
		integer, intent(in), optional	nhc_in
	)

Here is the call graph for this function:

initlongedgebuffer()

subroutine, public edge_mod_base::initlongedgebuffer	(	type (longedgebuffer_t), intent(out)	edge,
		integer, intent(in)	nlyr
	)

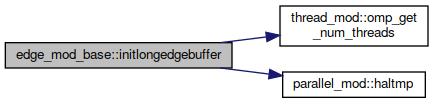

Here is the call graph for this function:

longedgevpack()

subroutine, public edge_mod_base::longedgevpack	(	type (longedgebuffer_t)	edge,
		integer (kind=int_kind), dimension(np,np,vlyr), intent(in)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t), intent(in)	desc
	)

longedgevunpackmin()

subroutine, public edge_mod_base::longedgevunpackmin	(	type (longedgebuffer_t), intent(in)	edge,
		integer (kind=int_kind), dimension(np,np,vlyr), intent(inout)	v,
		integer, intent(in)	vlyr,
		integer, intent(in)	kptr,
		type (edgedescriptor_t), intent(in)	desc
	)

Variable Documentation

edgedefaultval

real(kind=real_kind), parameter, public edge_mod_base::edgedefaultval = 1.11e+100_real_kind

threadsafe

logical, private edge_mod_base::threadsafe =.true.
