Data Types
interface	aurora

Functions/Subroutines
subroutine, public	aurora_register

subroutine, public	aurora_inti

subroutine, public	aurora_timestep_init

subroutine	aurora_prod (tn, o2, o1, mbar, rlats, qo2p, qop, qn2p, qnp, pmid, lchnk, calday, ncol, rlons, pbuf)

subroutine	aurora_hrate (tn, o2, o1, mbar, rlats, aur_hrate, cpair, pmid, lchnk, calday, ncol, rlons)

subroutine	aurora_cusp (cusp, do_aurora, hemis, colat, alon, ncol

subroutine	aurora_heat (flux, flux2, flux3, alfa, alfa2, alfa3, qteaur, drizl, do_aurora, hemis, alon, colat, ncol)

subroutine	aurora_ions (drizl, cusp, alfa1, alfa2, alfa3, flux1, flux2, flux3, tn, o2, o1, mbar, qo2p, qop, qn2p, qnp, pmid, do_aurora, ncol, lchnk, pbuf)

subroutine	total_ion_prod (drizl, cusp, alfa1, alfa2, alfa3, flux1, flux2, flux3, tn, o2, o1, mbar, tpions, pmid, do_aurora, ncol, lchnk)

subroutine	aion (si, so, do_aurora, ncol)

subroutine	bion (si, so, do_aurora, ncol)

subroutine	sunloc (calday, sunlons, lchnk, ncol)

Variables
integer, parameter	isouth = 1

integer, parameter	inorth = 2

real(r8), parameter	grav = 870._r8

integer	lev1 = 1

real(r8)	twopi

real(r8)	rmass_o1

real(r8)	rmass_o2

real(r8)	rmass_n2

real(r8)	rmassinv_o1

real(r8)	rmassinv_o2

real(r8)	rmassinv_n2

real(r8)	dtr

real(r8), parameter	alfad = 2.0_r8

real(r8), parameter	ed = 0.5_r8

real(r8)	fd

real(r8), parameter	alfac = 1.0_r8

real(r8), parameter	ec = 0.5_r8

real(r8)	fc

real(r8)	e1

real(r8)	e2

real(r8)	h1

real(r8)	h2

logical	add_sproton = .false.

real(r8), parameter	alfa_sp = 10._r8

real(r8), parameter	e_sp = 1.e-20_r8

real(r8)	flx_sp

logical	add_helectron = .false.

real(r8), parameter	alfa30 = 40._r8

real(r8), parameter	e30 = .05_r8

real(r8)	alfa0

real(r8)	ralfa

real(r8)	ralfa2

real(r8)	rrote

real(r8)	rroth

real(r8)	h0

real(r8)	rh

real(r8)	e0

real(r8)	e20

real(r8)	ree

real(r8)	re2

real(r8)	alfa20

real(r8), dimension(2)	theta0

real(r8), dimension(2)	offa

real(r8), dimension(2)	dskofa

real(r8), dimension(2)	phid

real(r8), dimension(2)	rrad

real(r8)	ctpoten

real(r8)	byimf

logical	has_ions = .false.

integer	indxaiprs = -1

Function/Subroutine Documentation

◆ aion()

subroutine mo_aurora::aion	(	real(r8), dimension(ncol), intent(in)	si,
		real(r8), dimension(ncol), intent(out)	so,
		logical, dimension(ncol), intent(in)	do_aurora,
		integer, intent(in)	ncol
	)

Here is the caller graph for this function:

◆ aurora_cusp()

subroutine mo_aurora::aurora_cusp	(	real(r8), dimension(ncol), intent(out)	cusp,
		logical, dimension(ncol), intent(in)	do_aurora,
		integer, dimension(ncol), intent(in)	hemis,
		real(r8), dimension(ncol), intent(in)	colat,
		real(r8), dimension(ncol), intent(in)	alon,
		integer, intent(in)	ncol
	)

Here is the caller graph for this function:

◆ aurora_heat()

subroutine mo_aurora::aurora_heat	(	real(r8), dimension(ncol), intent(inout)	flux,
		real(r8), dimension(ncol), intent(inout)	flux2,
		real(r8), dimension(ncol), intent(inout)	flux3,
		real(r8), dimension(ncol), intent(inout)	alfa,
		real(r8), dimension(ncol), intent(inout)	alfa2,
		real(r8), dimension(ncol), intent(inout)	alfa3,
		real(r8), dimension(ncol), intent(inout)	qteaur,
		real(r8), dimension(ncol), intent(inout)	drizl,
		logical, dimension(ncol), intent(in)	do_aurora,
		integer, dimension(ncol), intent(in)	hemis,
		real(r8), dimension(ncol), intent(in)	alon,
		real(r8), dimension(ncol), intent(in)	colat,
		integer, intent(in)	ncol
	)

private

Here is the caller graph for this function:

◆ aurora_hrate()

subroutine mo_aurora::aurora_hrate	(	real(r8), dimension(pcols,pver), intent(in)	tn,
		real(r8), dimension(ncol,pver), intent(in)	o2,
		real(r8), dimension(ncol,pver), intent(in)	o1,
		real(r8), dimension(ncol,pver), intent(in)	mbar,
		real(r8), dimension(ncol), intent(in)	rlats,
		real(r8), dimension(ncol,pver), intent(out)	aur_hrate,
		real(r8), dimension(ncol,pver), intent(in)	cpair,
		real(r8), dimension(pcols,pver), intent(in)	pmid,
		integer, intent(in)	lchnk,
		real(r8), intent(in)	calday,
		integer, intent(in)	ncol,
		real(r8), dimension(ncol), intent(in)	rlons
	)

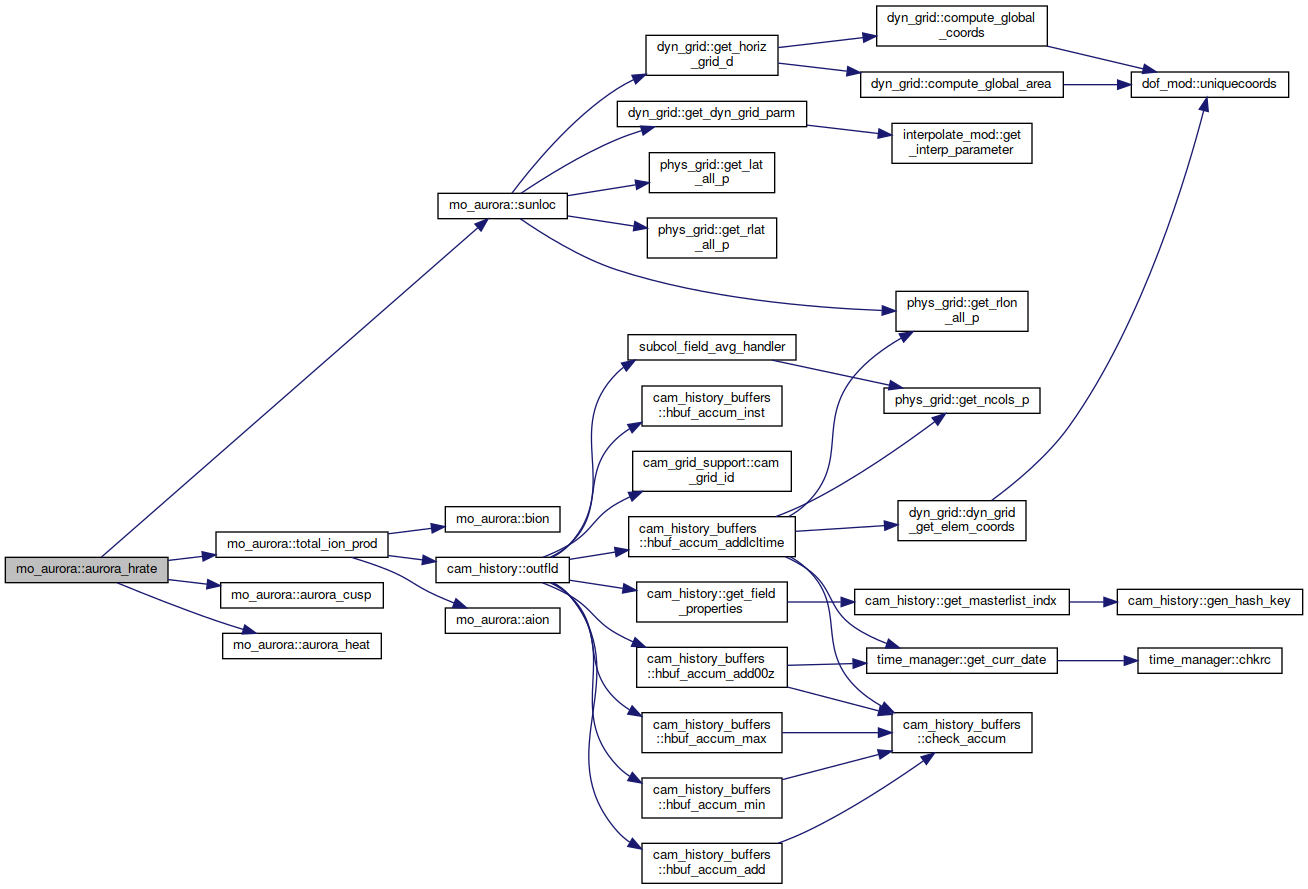

Here is the call graph for this function:

◆ aurora_inti()

subroutine, public mo_aurora::aurora_inti ( )

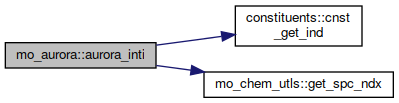

Here is the call graph for this function:

Here is the caller graph for this function:

◆ aurora_ions()

subroutine mo_aurora::aurora_ions	(	real(r8), dimension(ncol), intent(in)	drizl,
		real(r8), dimension(ncol), intent(in)	cusp,
		real(r8), dimension(ncol), intent(in)	alfa1,
		real(r8), dimension(ncol), intent(in)	alfa2,
		real(r8), dimension(ncol), intent(in)	alfa3,
		real(r8), dimension(ncol), intent(in)	flux1,
		real(r8), dimension(ncol), intent(in)	flux2,
		real(r8), dimension(ncol), intent(in)	flux3,
		real(r8), dimension(pcols,pver), intent(in)	tn,
		real(r8), dimension(ncol,pver), intent(in)	o2,
		real(r8), dimension(ncol,pver), intent(in)	o1,
		real(r8), dimension(ncol,pver), intent(in)	mbar,
		real(r8), dimension(ncol,pver), intent(inout)	qo2p,
		real(r8), dimension(ncol,pver), intent(inout)	qop,
		real(r8), dimension(ncol,pver), intent(inout)	qn2p,
		real(r8), dimension(ncol,pver), intent(inout)	qnp,
		real(r8), dimension(pcols,pver), intent(in)	pmid,
		logical, dimension(ncol), intent(in)	do_aurora,
		integer, intent(in)	ncol,
		integer, intent(in)	lchnk,
		type(physics_buffer_desc), dimension(:), pointer	pbuf
	)

private

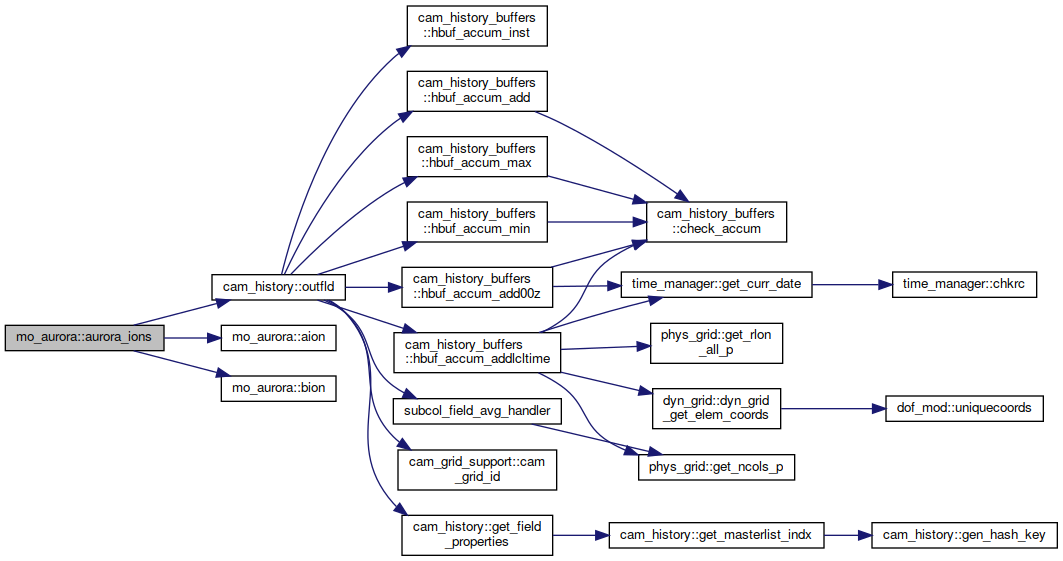

Here is the call graph for this function:

Here is the caller graph for this function:

◆ aurora_prod()

subroutine mo_aurora::aurora_prod	(	real(r8), dimension(pcols,pver), intent(in)	tn,
		real(r8), dimension(ncol,pver), intent(in)	o2,
		real(r8), dimension(ncol,pver), intent(in)	o1,
		real(r8), dimension(ncol,pver), intent(in)	mbar,
		real(r8), dimension(ncol), intent(in)	rlats,
		real(r8), dimension(ncol,pver), intent(out)	qo2p,
		real(r8), dimension(ncol,pver), intent(out)	qop,
		real(r8), dimension(ncol,pver), intent(out)	qn2p,
		real(r8), dimension(ncol,pver), intent(out)	qnp,
		real(r8), dimension(pcols,pver), intent(in)	pmid,
		integer, intent(in)	lchnk,
		real(r8), intent(in)	calday,
		integer, intent(in)	ncol,
		real(r8), dimension(ncol), intent(in)	rlons,
		type(physics_buffer_desc), dimension(:), pointer	pbuf
	)

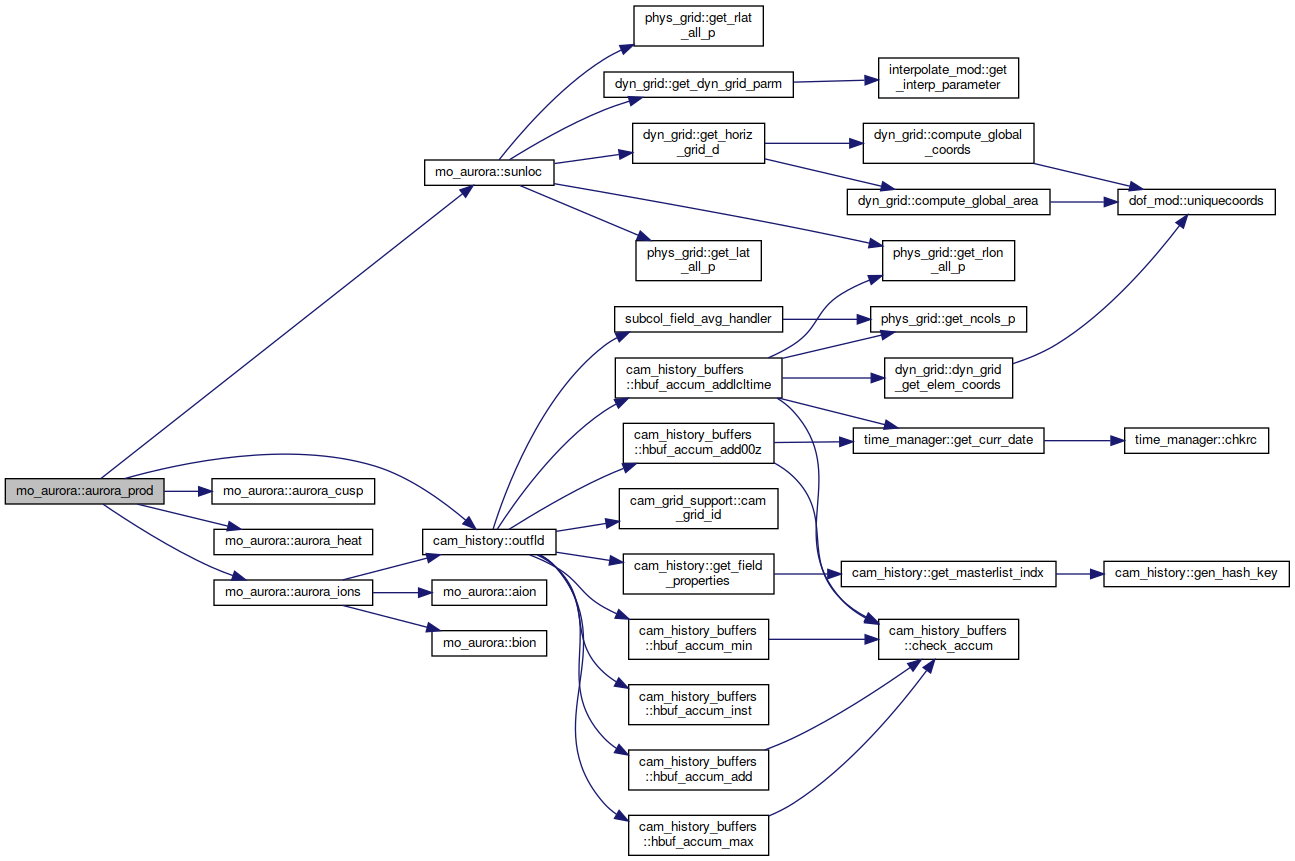

Here is the call graph for this function:

◆ aurora_register()

subroutine, public mo_aurora::aurora_register ( )

Here is the caller graph for this function:

◆ aurora_timestep_init()

subroutine, public mo_aurora::aurora_timestep_init ( )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bion()

subroutine mo_aurora::bion	(	real(r8), dimension(ncol), intent(in)	si,
		real(r8), dimension(ncol), intent(out)	so,
		logical, dimension(ncol), intent(in)	do_aurora,
		integer, intent(in)	ncol
	)

private

Here is the caller graph for this function:

◆ sunloc()

subroutine mo_aurora::sunloc	(	real(r8), intent(in)	calday,
		real(r8), dimension(ncol), intent(out)	sunlons,
		integer, intent(in)	lchnk,
		integer, intent(in)	ncol
	)

private

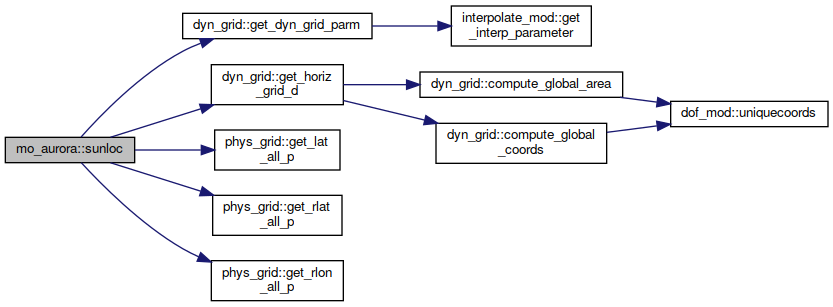

Here is the call graph for this function:

Here is the caller graph for this function:

◆ total_ion_prod()

subroutine mo_aurora::total_ion_prod	(	real(r8), dimension(ncol), intent(in)	drizl,
		real(r8), dimension(ncol), intent(in)	cusp,
		real(r8), dimension(ncol), intent(in)	alfa1,
		real(r8), dimension(ncol), intent(in)	alfa2,
		real(r8), dimension(ncol), intent(in)	alfa3,
		real(r8), dimension(ncol), intent(in)	flux1,
		real(r8), dimension(ncol), intent(in)	flux2,
		real(r8), dimension(ncol), intent(in)	flux3,
		real(r8), dimension(pcols,pver), intent(in)	tn,
		real(r8), dimension(ncol,pver), intent(in)	o2,
		real(r8), dimension(ncol,pver), intent(in)	o1,
		real(r8), dimension(ncol,pver), intent(in)	mbar,
		real(r8), dimension(ncol,pver), intent(inout)	tpions,
		real(r8), dimension(pcols,pver), intent(in)	pmid,
		logical, dimension(ncol), intent(in)	do_aurora,
		integer, intent(in)	ncol,
		integer, intent(in)	lchnk
	)

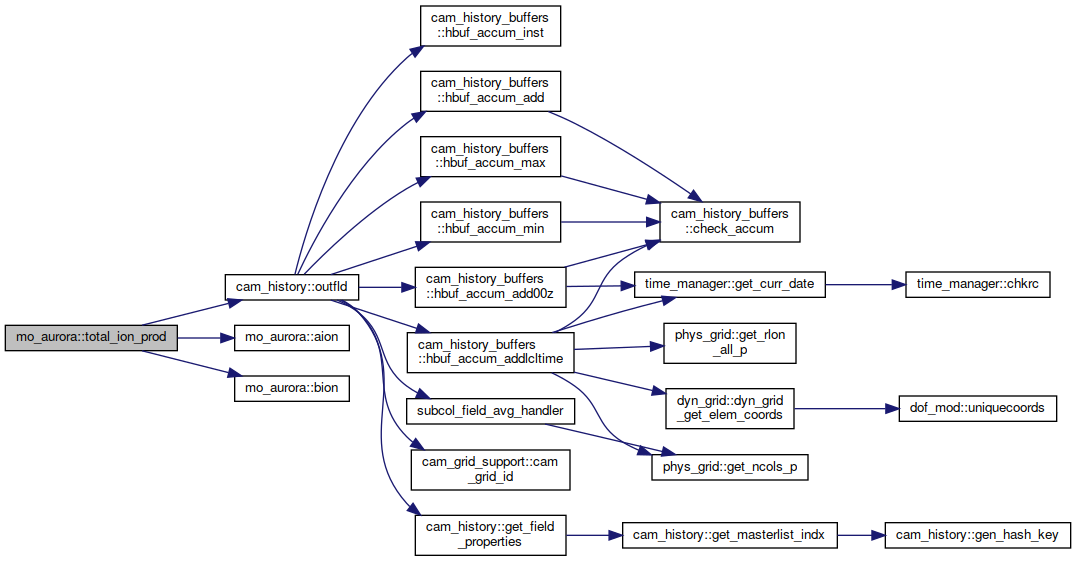

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ add_helectron

logical mo_aurora::add_helectron = .false.

◆ add_sproton

logical mo_aurora::add_sproton = .false.

◆ alfa0

real(r8) mo_aurora::alfa0

◆ alfa20

real(r8) mo_aurora::alfa20

◆ alfa30

real(r8), parameter mo_aurora::alfa30 = 40._r8

◆ alfa_sp

real(r8), parameter mo_aurora::alfa_sp = 10._r8

◆ alfac

real(r8), parameter mo_aurora::alfac = 1.0_r8

◆ alfad

real(r8), parameter mo_aurora::alfad = 2.0_r8

◆ byimf

real(r8) mo_aurora::byimf

◆ ctpoten

real(r8) mo_aurora::ctpoten

◆ dskofa

real(r8), dimension(2) mo_aurora::dskofa

◆ dtr

real(r8) mo_aurora::dtr

◆ e0

real(r8) mo_aurora::e0

◆ e1

real(r8) mo_aurora::e1

◆ e2

real(r8) mo_aurora::e2

◆ e20

real(r8) mo_aurora::e20

◆ e30

real(r8), parameter mo_aurora::e30 = .05_r8

◆ e_sp

real(r8), parameter mo_aurora::e_sp = 1.e-20_r8

◆ ec

real(r8), parameter mo_aurora::ec = 0.5_r8

◆ ed

real(r8), parameter mo_aurora::ed = 0.5_r8

◆ fc

real(r8) mo_aurora::fc

◆ fd

real(r8) mo_aurora::fd

◆ flx_sp

real(r8) mo_aurora::flx_sp

◆ grav

real(r8), parameter mo_aurora::grav = 870._r8

◆ h0

real(r8) mo_aurora::h0

◆ h1

real(r8) mo_aurora::h1

◆ h2

real(r8) mo_aurora::h2

◆ has_ions

logical mo_aurora::has_ions = .false.

private

◆ indxaiprs

integer mo_aurora::indxaiprs = -1

private

◆ inorth

integer, parameter mo_aurora::inorth = 2

◆ isouth

integer, parameter mo_aurora::isouth = 1

◆ lev1

integer mo_aurora::lev1 = 1

◆ offa

real(r8), dimension(2) mo_aurora::offa

◆ phid

real(r8), dimension(2) mo_aurora::phid

◆ ralfa

real(r8) mo_aurora::ralfa

◆ ralfa2

real(r8) mo_aurora::ralfa2

◆ re2

real(r8) mo_aurora::re2

◆ ree

real(r8) mo_aurora::ree

◆ rh

real(r8) mo_aurora::rh

◆ rmass_n2

real(r8) mo_aurora::rmass_n2

◆ rmass_o1

real(r8) mo_aurora::rmass_o1

◆ rmass_o2

real(r8) mo_aurora::rmass_o2

◆ rmassinv_n2

real(r8) mo_aurora::rmassinv_n2

◆ rmassinv_o1

real(r8) mo_aurora::rmassinv_o1

◆ rmassinv_o2

real(r8) mo_aurora::rmassinv_o2

◆ rrad

real(r8), dimension(2) mo_aurora::rrad

◆ rrote

real(r8) mo_aurora::rrote

◆ rroth

real(r8) mo_aurora::rroth

◆ theta0

real(r8), dimension(2) mo_aurora::theta0

◆ twopi

real(r8) mo_aurora::twopi
