vertical_se Module Reference

Data Types
type	solver_args
type	velem_t

Functions/Subroutines
type(solver_args) function	pack_solver_args (np1, nm1, n0, qn0, dt, hvcoord, hybrid, deriv, nets, nete, compute_diagnostics, eta_ave_w)
real(rl) elemental function	s2eta (s_coord, eta_t, eta_b)
real(dd) elemental function	eta2s (eta_coord, eta_t, eta_b)
real(rl) function, dimension(n, n)	mass_matrix (gll, n)
real(rl) function, dimension(n)	barycentric_weights (gll, n)
real(rl) function, dimension(n, n)	first_derivative_matrix (gll, n)
real(rl) function, dimension(np, np)	column_sum (f)
real(rl) function, dimension(n_unique)	compress (f)
real(rl) function, dimension(nlev)	decompress (f)
subroutine	precompute_lu ()
real(rl) function, dimension(npv, nrhs)	solve_lu (B, LU, ipiv, NRHS)
real(rl) function, dimension(m)	least_squares_integral (B, A)
real(rl) function, dimension(m)	solve (A, B, M)
real(rl) function, dimension(np, np, nlev)	eta_integral_from_1 (f, bc_1)
real(rl) function, dimension(np, np, nlev)	eta_integral_from_n (f, bc_n)
real(rl) function, dimension(nlev)	eta_derivative_1d (f)
real(rl) function, dimension(np, np, nlev)	eta_derivative (f)
real(rl) function, dimension(np, np, nlev)	eta_derivative_pow (f, x)
real(rl) function, dimension(ni)	evenly_spaced_eta_coords (ni)
real(rl) function, dimension(np, np, nlev)	advection (f, u, v, eta_dot, a, elem)
real(rl) function, dimension(np, np, nlev)	advection2 (f, df_deta, u, v, eta_dot, a, elem)
real(rl) function, dimension(np, np, 2, nlev)	self_advection (u, v, eta_dot, a, elem)
real(rl) function, dimension(np, np, 2, nlev)	self_advection2 (u, v, du_dn, dv_dn, eta_dot, a, elem)
subroutine	vertical_dss (f)
subroutine	vertical_dss_1d (f)
real(rl) function, dimension(size(s))	lagrange_polynomial (s, j, gll)
subroutine	init_vertical_interp (levels, ni)
real(rl) function, dimension(ni)	v_interpolate (f, ni)
real(rl) function, dimension(ni, nlev)	vertical_interp_matrix (s, ni)
subroutine	neumann_bcs_bottom_elem (f, dfdn)
subroutine	neumann_bcs_top_elem (f, dfdn)
subroutine	neumann_bcs_bottom (f, dfdn)
subroutine	neumann_bcs_top (f, dfdn)
subroutine	neumann_bcs_top_bottom (f, dfdn_t, dfdn_b)
subroutine	set_hvcoeffs_from_etai (hvcoord, hybrid)
subroutine	append_scalar_to_file (filename, scalar, erase)
subroutine	write_scalar_field_1d (filename, field)
subroutine	write_scalar_field_2d (filename, field)
subroutine	write_scalar_field_3d (filename, field)
subroutine	make_vertical_mesh (hybrid, hvcoord)
subroutine	test_vertical_operators (hybrid)

Variables
integer, parameter, public	npv = 5
integer, parameter, public	nev = nlev/npv
integer, parameter, public	n_unique = nev*(npv-1)+1
real(rl), dimension(npv, npv)	ddn
real(rl), dimension(npv, npv)	ddn2
real(rl), dimension(npv, npv)	ddn3
real(rl), dimension(npv, npv)	ddn4
real(rl), dimension(npv, npv)	ddn_1
real(rl), dimension(npv, npv)	ddn_n
real(rl), dimension(npv, npv)	m
real(rl), dimension(npv, npv)	lu_1
real(rl), dimension(npv, npv)	lu_n
type(quadrature_t)	gll
real(rl)	eta_t
real(rl)	eta_b
real(rl)	ds_deta
real(rl)	deta_ds
real(rl), dimension(nlev)	eta
real(rl), dimension(nlev)	ddn_hyam
real(rl), dimension(nlev)	ddn_hybm
real(rl), dimension(nlevp)	ddn_hyai
real(rl), dimension(nlevp)	ddn_hybi
integer, dimension(npv)	ipiv_1
integer, dimension(npv)	ipiv_n
type(velem_t), dimension(:), allocatable	ev
real(rl)	elem_height
real(rl), dimension(:,:), allocatable	m_interp
real(rl), dimension(:), allocatable	l_interp

Function/Subroutine Documentation

advection()

real(rl) function, dimension (np,np,nlev) vertical_se::advection	(	real(rl), dimension(np,np,nlev), intent(in)	f,
		real(rl), dimension(np,np,nlev), intent(in)	u,
		real(rl), dimension(np,np,nlev), intent(in)	v,
		real(rl), dimension(np,np,nlev), intent(in)	eta_dot,
		type(solver_args), intent(in)	a,
		type (element_t), intent(in), target	elem
	)

Here is the call graph for this function:

advection2()

real(rl) function, dimension (np,np,nlev) vertical_se::advection2	(	real(rl), dimension(np,np,nlev), intent(in)	f,
		real(rl), dimension(np,np,nlev), intent(in)	df_deta,
		real(rl), dimension(np,np,nlev), intent(in)	u,
		real(rl), dimension(np,np,nlev), intent(in)	v,
		real(rl), dimension(np,np,nlev), intent(in)	eta_dot,
		type(solver_args), intent(in)	a,
		type (element_t), intent(in), target	elem
	)

append_scalar_to_file()

subroutine vertical_se::append_scalar_to_file	(	character*(*), intent(in)	filename,
		real(rl), intent(in)	scalar,
		logical, intent(in)	erase
	)

barycentric_weights()

real(rl) function, dimension(n) vertical_se::barycentric_weights	(	type (quadrature_t), intent(in)	gll,
		integer, intent(in)	n
	)

Here is the caller graph for this function:

column_sum()

real (rl) function, dimension(np,np) vertical_se::column_sum

(

real (rl), dimension(np,np,nlev), intent(in)

f

)

compress()

real(rl) function, dimension(n_unique) vertical_se::compress

(

real(rl), dimension(nlev), intent(in)

f

)

decompress()

real(rl) function, dimension(nlev) vertical_se::decompress

(

real(rl), dimension(n_unique), intent(in)

f

)

eta2s()

real(dd) elemental function vertical_se::eta2s	(	real(rl), intent(in)	eta_coord,
		real(rl), intent(in)	eta_t,
		real(rl), intent(in)	eta_b
	)

Here is the caller graph for this function:

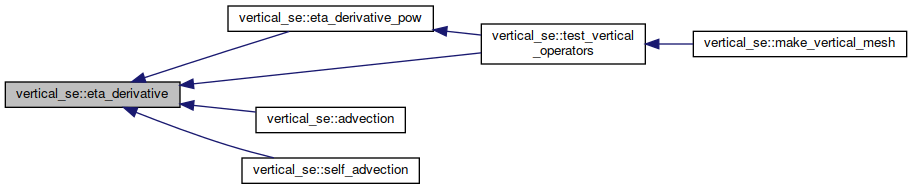

eta_derivative()

real (rl) function, dimension(np,np,nlev) vertical_se::eta_derivative

(

real (rl), dimension(np,np,nlev), intent(in)

f

)

Here is the call graph for this function:

Here is the caller graph for this function:

eta_derivative_1d()

real (rl) function, dimension(nlev) vertical_se::eta_derivative_1d

(

real (rl), dimension(nlev), intent(in)

f

)

Here is the call graph for this function:

Here is the caller graph for this function:

eta_derivative_pow()

real (rl) function, dimension(np,np,nlev) vertical_se::eta_derivative_pow	(	real (rl), dimension(np,np,nlev), intent(in)	f,
		integer, intent(in)	x
	)

Here is the call graph for this function:

Here is the caller graph for this function:

eta_integral_from_1()

real (rl) function, dimension(np,np,nlev) vertical_se::eta_integral_from_1	(	real (rl), dimension(np,np,nlev), intent(in)	f,
		real (rl), dimension(np,np), intent(in)	bc_1
	)

Here is the call graph for this function:

Here is the caller graph for this function:

eta_integral_from_n()

real (rl) function, dimension(np,np,nlev) vertical_se::eta_integral_from_n	(	real (rl), dimension(np,np,nlev), intent(in)	f,
		real (rl), dimension(np,np), intent(in)	bc_n
	)

Here is the call graph for this function:

Here is the caller graph for this function:

evenly_spaced_eta_coords()

real(rl) function, dimension(ni) vertical_se::evenly_spaced_eta_coords

(

integer

ni

)

Here is the caller graph for this function:

first_derivative_matrix()

real(rl) function, dimension(n,n) vertical_se::first_derivative_matrix	(	type (quadrature_t), intent(in)	gll,
		integer, intent(in)	n
	)

Here is the call graph for this function:

Here is the caller graph for this function:

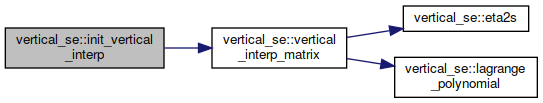

init_vertical_interp()

subroutine vertical_se::init_vertical_interp	(	real(rl), dimension(ni), intent(in)	levels,
		integer, intent(in)	ni
	)

Here is the call graph for this function:

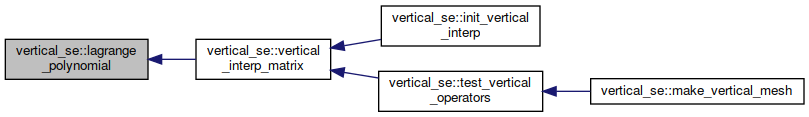

lagrange_polynomial()

real(rl) function, dimension(size(s)) vertical_se::lagrange_polynomial	(	real(rl), dimension(:), intent(in)	s,
		integer, intent(in)	j,
		type (quadrature_t), intent(in)	gll
	)

Here is the caller graph for this function:

least_squares_integral()

real(rl) function, dimension(m) vertical_se::least_squares_integral	(	real(rl), dimension(npv), intent(in)	B,
		real(rl), dimension(npv,npv), intent(in)	A
	)

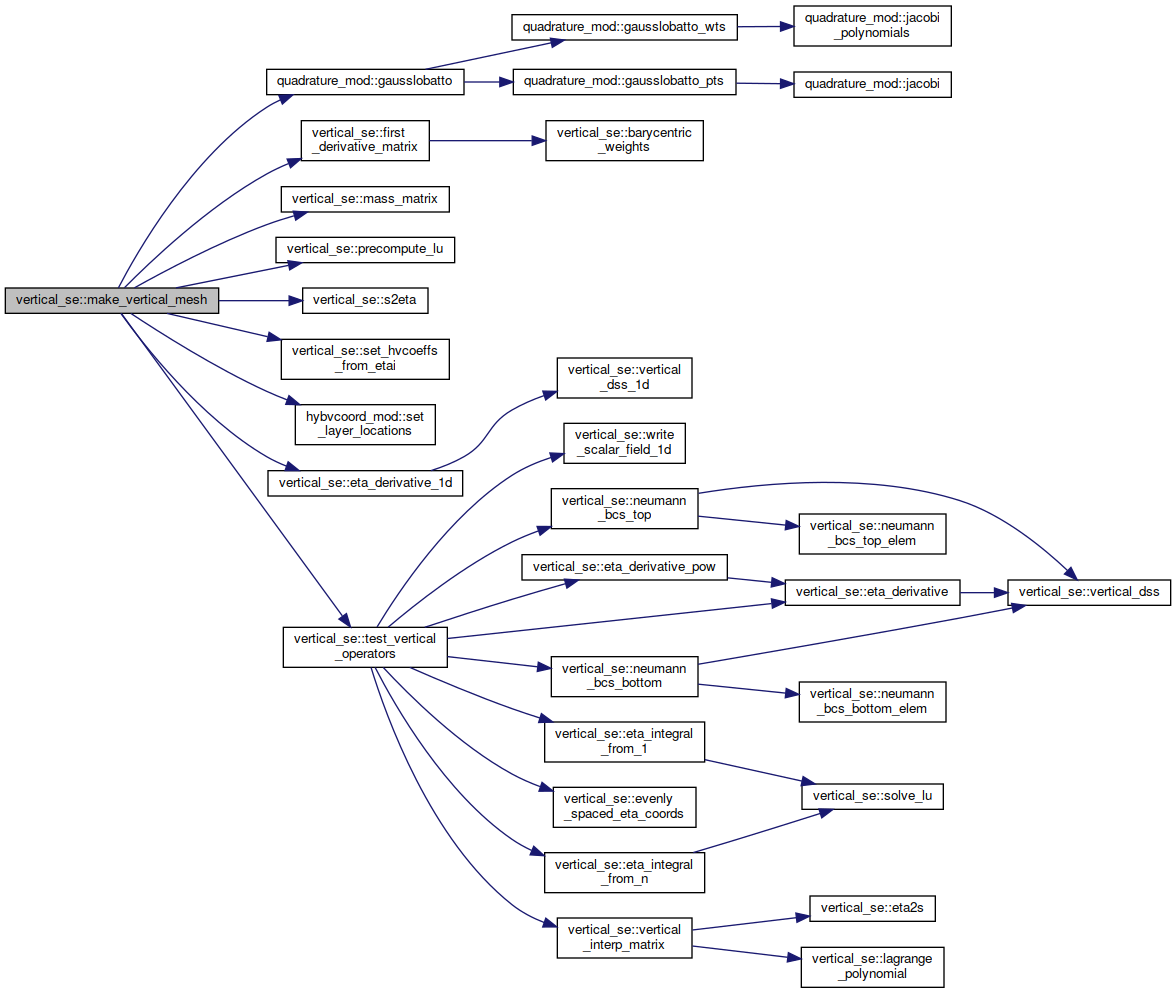

make_vertical_mesh()

subroutine vertical_se::make_vertical_mesh	(	type (hybrid_t), intent(in)	hybrid,
		type (hvcoord_t), intent(inout)	hvcoord
	)

Here is the call graph for this function:

mass_matrix()

real(rl) function, dimension(n,n) vertical_se::mass_matrix	(	type (quadrature_t), intent(in)	gll,
		integer, intent(in)	n
	)

Here is the caller graph for this function:

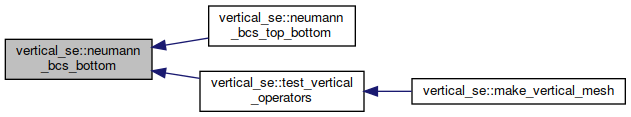

neumann_bcs_bottom()

subroutine vertical_se::neumann_bcs_bottom	(	real(rl), dimension(np,np,nlev), intent(inout)	f,
		real(rl), dimension(np,np), intent(in)	dfdn
	)

Here is the call graph for this function:

Here is the caller graph for this function:

neumann_bcs_bottom_elem()

subroutine vertical_se::neumann_bcs_bottom_elem	(	real(rl), dimension(np,np,npv), intent(inout)	f,
		real(rl), dimension(np,np), intent(in)	dfdn
	)

Here is the caller graph for this function:

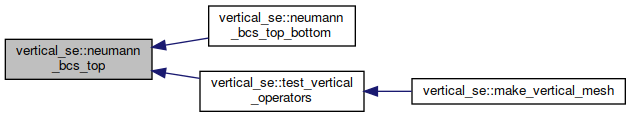

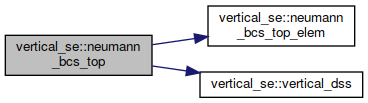

neumann_bcs_top()

subroutine vertical_se::neumann_bcs_top	(	real(rl), dimension(np,np,nlev), intent(inout)	f,
		real(rl), dimension(np,np), intent(in)	dfdn
	)

Here is the call graph for this function:

Here is the caller graph for this function:

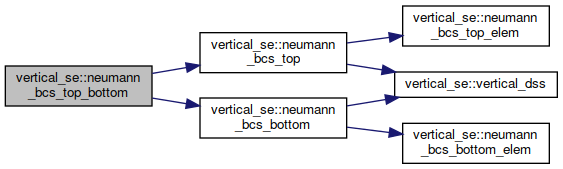

neumann_bcs_top_bottom()

subroutine vertical_se::neumann_bcs_top_bottom	(	real(rl), dimension(np,np,nlev), intent(inout)	f,
		real(rl), dimension(np,np), intent(in)	dfdn_t,
		real(rl), dimension(np,np), intent(in)	dfdn_b
	)

Here is the call graph for this function:

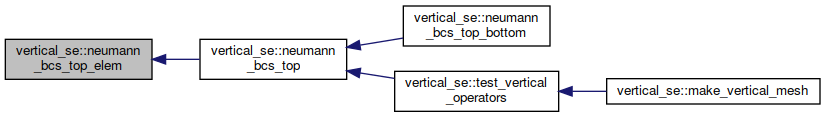

neumann_bcs_top_elem()

subroutine vertical_se::neumann_bcs_top_elem	(	real(rl), dimension(np,np,npv), intent(inout)	f,
		real(rl), dimension(np,np), intent(in)	dfdn
	)

Here is the caller graph for this function:

pack_solver_args()

type(solver_args) function vertical_se::pack_solver_args	(	integer, intent(in)	np1,
		integer, intent(in)	nm1,
		integer, intent(in)	n0,
		integer, intent(in)	qn0,
		real*8, intent(in)	dt,
		type (hvcoord_t), intent(in)	hvcoord,
		type (hybrid_t), intent(in)	hybrid,
		type (derivative_t), intent(in)	deriv,
		integer, intent(in)	nets,
		integer, intent(in)	nete,
		logical, intent(in)	compute_diagnostics,
		real (rl), intent(in)	eta_ave_w
	)

precompute_lu()

subroutine vertical_se::precompute_lu

(

)

Here is the caller graph for this function:

s2eta()

real(rl) elemental function vertical_se::s2eta	(	real(dd), intent(in)	s_coord,
		real(rl), intent(in)	eta_t,
		real(rl), intent(in)	eta_b
	)

Here is the caller graph for this function:

self_advection()

real(rl) function, dimension(np,np,2,nlev) vertical_se::self_advection	(	real(rl), dimension(np,np,nlev), intent(in)	u,
		real(rl), dimension(np,np,nlev), intent(in)	v,
		real(rl), dimension(np,np,nlev), intent(in)	eta_dot,
		type(solver_args), intent(in)	a,
		type (element_t), intent(in), target	elem
	)

Here is the call graph for this function:

self_advection2()

real(rl) function, dimension(np,np,2,nlev) vertical_se::self_advection2	(	real(rl), dimension(np,np,nlev), intent(in)	u,
		real(rl), dimension(np,np,nlev), intent(in)	v,
		real(rl), dimension(np,np,nlev), intent(in)	du_dn,
		real(rl), dimension(np,np,nlev), intent(in)	dv_dn,
		real(rl), dimension(np,np,nlev), intent(in)	eta_dot,
		type(solver_args), intent(in)	a,
		type (element_t), intent(in), target	elem
	)

set_hvcoeffs_from_etai()

subroutine vertical_se::set_hvcoeffs_from_etai	(	type(hvcoord_t), intent(inout)	hvcoord,
		type(hybrid_t), intent(in)	hybrid
	)

Here is the caller graph for this function:

solve()

real(rl) function, dimension(m) vertical_se::solve	(	real(rl), dimension(m,m), intent(in)	A,
		real(rl), dimension(m), intent(in)	B,
		integer, intent(in)	M
	)

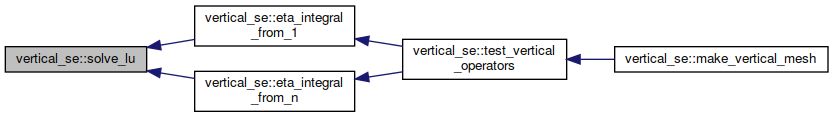

solve_lu()

real(rl) function, dimension(npv,nrhs) vertical_se::solve_lu	(	real(rl), dimension(npv,nrhs), intent(in)	B,
		real(rl), dimension(npv,npv), intent(in)	LU,
		integer, dimension(npv), intent(in)	ipiv,
		integer, intent(in)	NRHS
	)

Here is the caller graph for this function:

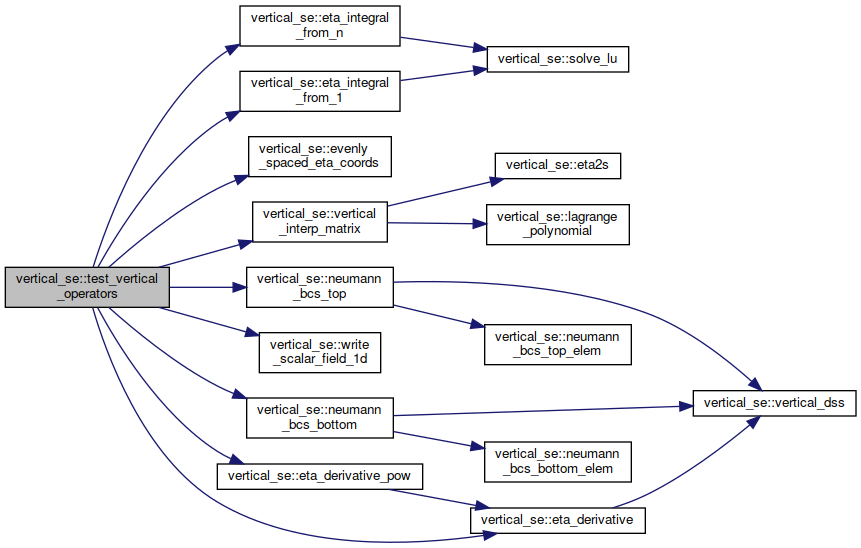

test_vertical_operators()

subroutine vertical_se::test_vertical_operators

(

type (hybrid_t), intent(in)

hybrid

)

Here is the call graph for this function:

Here is the caller graph for this function:

v_interpolate()

real(rl) function, dimension(ni) vertical_se::v_interpolate	(	real(rl), dimension(nlev), intent(in)	f,
		integer, intent(in)	ni
	)

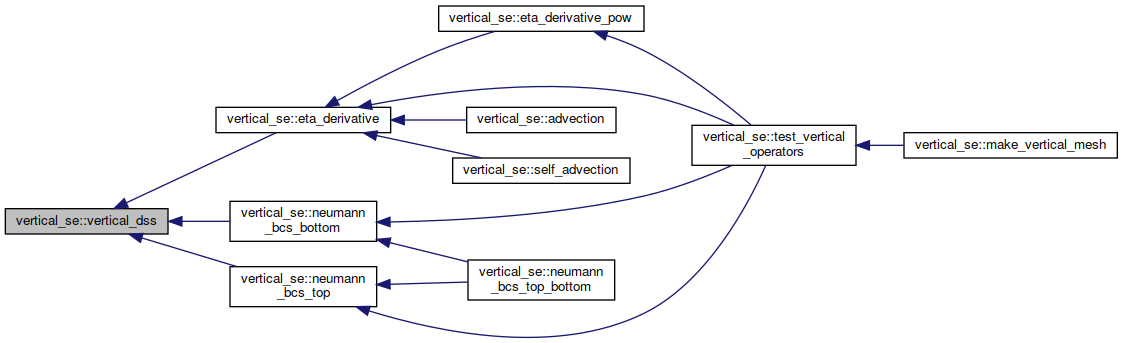

vertical_dss()

subroutine vertical_se::vertical_dss

(

real(rl), dimension(np,np,nlev), intent(inout)

f

)

Here is the caller graph for this function:

vertical_dss_1d()

subroutine vertical_se::vertical_dss_1d

(

real(rl), dimension(nlev), intent(inout)

f

)

Here is the caller graph for this function:

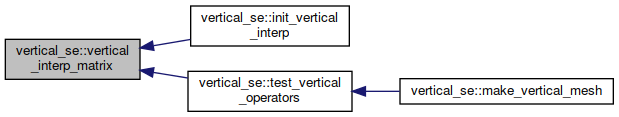

vertical_interp_matrix()

real(rl) function, dimension(ni,nlev ) vertical_se::vertical_interp_matrix	(	real(rl), dimension(:), intent(in)	s,
		integer	ni
	)

Here is the call graph for this function:

Here is the caller graph for this function:

write_scalar_field_1d()

subroutine vertical_se::write_scalar_field_1d	(	character*(*), intent(in)	filename,
		real(rl), dimension(:), intent(in)	field
	)

Here is the caller graph for this function:

write_scalar_field_2d()

subroutine vertical_se::write_scalar_field_2d	(	character*(*), intent(in)	filename,
		real(rl), dimension(:,:), intent(in)	field
	)

write_scalar_field_3d()

subroutine vertical_se::write_scalar_field_3d	(	character*(*), intent(in)	filename,
		real(rl), dimension(:,:,:), intent(in)	field
	)

Variable Documentation

ddn

real(rl), dimension(npv,npv) vertical_se::ddn

ddn2

real(rl), dimension(npv,npv) vertical_se::ddn2

ddn3

real(rl), dimension(npv,npv) vertical_se::ddn3

ddn4

real(rl), dimension(npv,npv) vertical_se::ddn4

ddn_1

real(rl), dimension(npv,npv) vertical_se::ddn_1

ddn_hyai

real(rl), dimension(nlevp) vertical_se::ddn_hyai

ddn_hyam

real(rl), dimension(nlev) vertical_se::ddn_hyam

ddn_hybi

real(rl), dimension(nlevp) vertical_se::ddn_hybi

ddn_hybm

real(rl), dimension(nlev) vertical_se::ddn_hybm

ddn_n

real(rl), dimension(npv,npv) vertical_se::ddn_n

deta_ds

real(rl) vertical_se::deta_ds

ds_deta

real(rl) vertical_se::ds_deta

elem_height

real(rl) vertical_se::elem_height

eta

real(rl), dimension(nlev) vertical_se::eta

eta_b

real(rl) vertical_se::eta_b

eta_t

real(rl) vertical_se::eta_t

ev

type(velem_t), dimension(:), allocatable vertical_se::ev

gll

type (quadrature_t) vertical_se::gll

ipiv_1

integer, dimension(npv) vertical_se::ipiv_1

ipiv_n

integer, dimension(npv) vertical_se::ipiv_n

l_interp

real(rl), dimension(:), allocatable vertical_se::l_interp

lu_1

real(rl), dimension(npv,npv) vertical_se::lu_1

lu_n

real(rl), dimension(npv,npv) vertical_se::lu_n

m

real(rl), dimension(npv,npv) vertical_se::m

m_interp

real(rl), dimension(:,:), allocatable vertical_se::m_interp

n_unique

integer, parameter, public vertical_se::n_unique = nev*(npv-1)+1

nev

integer, parameter, public vertical_se::nev = nlev/npv

npv

integer, parameter, public vertical_se::npv = 5
