Class for viewing/visualizing TPC calibration data base on TTree functionality for visualization Create a list of AliTPCCalPads, arrange them in an TObjArray. Pass this TObjArray to MakeTree and create the calibration Tree While craating this tree some statistical information are calculated Open the viewer with this Tree: AliTPCCalibViewer v("CalibTree.root") Have fun! EasyDraw("CETmean~-CETmean_mean", "A", "(CETmean~-CETmean_mean)>0") If you like to click, we recommand you the AliTPCCalibViewerGUI THE DOCUMENTATION IS STILL NOT COMPLETED !!!!
AliTPCCalibViewer() | |
AliTPCCalibViewer(const AliTPCCalibViewer& c) | |
AliTPCCalibViewer(TTree *const tree) | |
AliTPCCalibViewer(const char* fileName, const char* treeName = "calPads") | |
virtual | ~AliTPCCalibViewer() |
void | TObject::AbstractMethod(const char* method) const |
const char* | AddAbbreviations(const Char_t* c, Bool_t printDrawCommand = kFALSE) |
TFriendElement* | AddFriend(const char* treename, const char* filename) |
TFriendElement* | AddFriend(const char* treename, TFile* file) |
TFriendElement* | AddFriend(TTree* tree, const char* alias, Bool_t warn = kFALSE) |
TFriendElement* | AddReferenceTree(const char* filename, const char* treename = "calPads", const char* refname = "R") |
virtual void | TObject::AppendPad(Option_t* option = "") |
virtual void | TObject::Browse(TBrowser* b) |
static TClass* | Class() |
virtual const char* | TObject::ClassName() const |
virtual void | TObject::Clear(Option_t* = "") |
virtual TObject* | TObject::Clone(const char* newname = "") const |
virtual Int_t | TObject::Compare(const TObject* obj) const |
virtual void | TObject::Copy(TObject& object) const |
static void | CreateObjectList(const Char_t* filename, TObjArray* calibObjects) |
virtual void | Delete(Option_t* option = "") |
virtual Int_t | TObject::DistancetoPrimitive(Int_t px, Int_t py) |
virtual void | Draw(Option_t* opt = "") |
virtual Long64_t | Draw(const char* varexp, const TCut& selection, Option_t* option = "", Long64_t nentries = 1000000000, Long64_t firstentry = 0) |
virtual Long64_t | Draw(const char* varexp, const char* selection, Option_t* option = "", Long64_t nentries = 1000000000, Long64_t firstentry = 0) |
virtual void | TObject::DrawClass() constMENU |
virtual TObject* | TObject::DrawClone(Option_t* option = "") constMENU |
Int_t | DrawHisto1D(const char* drawCommand, Int_t sector, const char* cuts = 0, const char* sigmas = "2;4;6", Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE) const |
Int_t | DrawHisto1D(const char* drawCommand, const char* sector, const char* cuts = 0, const char* sigmas = "2;4;6", Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE) const |
virtual void | TObject::Dump() constMENU |
Int_t | EasyDraw(const char* drawCommand, const char* sector, const char* cuts = 0, const char* drawOptions = 0, Bool_t writeDrawCommand = kFALSE) const |
Int_t | EasyDraw(const char* drawCommand, Int_t sector, const char* cuts = 0, const char* drawOptions = 0, Bool_t writeDrawCommand = kFALSE) const |
Int_t | EasyDraw1D(const char* drawCommand, const char* sector, const char* cuts = 0, const char* drawOptions = 0, Bool_t writeDrawCommand = kFALSE) const |
Int_t | EasyDraw1D(const char* drawCommand, Int_t sector, const char* cuts = 0, const char* drawOptions = 0, Bool_t writeDrawCommand = kFALSE) const |
virtual void | TObject::Error(const char* method, const char* msgfmt) const |
virtual void | TObject::Execute(const char* method, const char* params, Int_t* error = 0) |
virtual void | TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0) |
virtual void | TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py) |
virtual void | TObject::Fatal(const char* method, const char* msgfmt) const |
virtual TObject* | TObject::FindObject(const char* name) const |
virtual TObject* | TObject::FindObject(const TObject* obj) const |
TString* | Fit(const char* drawCommand, const char* formula, const char* cuts, Double_t& chi2, TVectorD& fitParam, TMatrixD& covMatrix) |
void | FormatHistoLabels(TH1* histo) const |
TString& | GetAbbreviation() |
TString& | GetAppendString() |
TObjArray* | GetArrayOfCalPads() |
static Int_t | GetBin(Float_t value, Int_t nbins, Double_t binLow, Double_t binUp) |
AliTPCCalPad* | GetCalPad(const char* desiredData, const char* cuts = "", const char* calPadName = "NoName") const |
AliTPCCalPad* | GetCalPadOld(const char* desiredData, const char* cuts = "", const char* calPadName = "NoName") const |
AliTPCCalROC* | GetCalROC(const char* desiredData, UInt_t sector, const char* cuts = "") const |
virtual Option_t* | TObject::GetDrawOption() const |
static Long_t | TObject::GetDtorOnly() |
virtual const char* | TObject::GetIconName() const |
TObjArray* | GetListOfNormalizationVariables(Bool_t printList = kFALSE) const |
TObjArray* | GetListOfVariables(Bool_t printList = kFALSE) |
static Double_t | GetLTM(Int_t n, const Double_t *const array, Double_t *const sigma = 0, Double_t fraction = 0.9) |
virtual const char* | TObject::GetName() const |
virtual char* | TObject::GetObjectInfo(Int_t px, Int_t py) const |
static Bool_t | TObject::GetObjectStat() |
virtual Option_t* | TObject::GetOption() const |
virtual const char* | TObject::GetTitle() const |
TTree* | GetTree() const |
virtual UInt_t | TObject::GetUniqueID() const |
virtual Bool_t | TObject::HandleTimer(TTimer* timer) |
virtual ULong_t | TObject::Hash() const |
virtual void | TObject::Info(const char* method, const char* msgfmt) const |
virtual Bool_t | TObject::InheritsFrom(const char* classname) const |
virtual Bool_t | TObject::InheritsFrom(const TClass* cl) const |
virtual void | TObject::Inspect() constMENU |
static TH1F* | Integrate(TH1F *const histogram, Float_t mean = 0, Float_t sigma = 0, Float_t sigmaMax = 0, Float_t sigmaStep = -1) |
Int_t | Integrate(const char* drawCommand, const char* sector, const char* cuts = 0, Float_t sigmaMax = 5, Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE, const char* sigmas = "", Float_t sigmaStep = -1) const |
Int_t | Integrate(const char* drawCommand, Int_t sector, const char* cuts = 0, Float_t sigmaMax = 5, Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE, const char* sigmas = "", Float_t sigmaStep = -1) const |
static TH1F* | Integrate(Int_t n, const Float_t *const array, Int_t nbins, Float_t binLow, Float_t binUp, Float_t mean = 0, Float_t sigma = 0, Float_t sigmaMax = 0, Float_t sigmaStep = -1) |
Int_t | IntegrateOld(const char* drawCommand, const char* sector, const char* cuts = 0, Float_t sigmaMax = 5, Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE, const char* sigmas = "", Float_t sigmaStep = -1) const |
void | TObject::InvertBit(UInt_t f) |
virtual TClass* | IsA() const |
virtual Bool_t | TObject::IsEqual(const TObject* obj) const |
virtual Bool_t | TObject::IsFolder() const |
Bool_t | TObject::IsOnHeap() const |
virtual Bool_t | TObject::IsSortable() const |
Bool_t | TObject::IsZombie() const |
virtual void | TObject::ls(Option_t* option = "") const |
static void | MakeCalPadAliases(TTree* tree) |
static void | MakeTree(const char* fileName, TObjArray* array, const char* mapFileName = 0, AliTPCCalPad *const outlierPad = 0, Float_t ltmFraction = 0.9) |
static void | MakeTree(const char* outPutFileName, const Char_t* inputFileName, AliTPCCalPad* outlierPad = 0, Float_t ltmFraction = 0.9, const char* mapFileName = "$ALICE_ROOT/TPC/Calib/MapCalibrationObjects.root") |
static void | MakeTreeWithObjects(const char* fileName, const TObjArray *const array, const char* mapFileName = 0) |
void | TObject::MayNotUse(const char* method) const |
virtual Bool_t | TObject::Notify() |
void | TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const |
static void | TObject::operator delete(void* ptr) |
static void | TObject::operator delete(void* ptr, void* vp) |
static void | TObject::operator delete[](void* ptr) |
static void | TObject::operator delete[](void* ptr, void* vp) |
void* | TObject::operator new(size_t sz) |
void* | TObject::operator new(size_t sz, void* vp) |
void* | TObject::operator new[](size_t sz) |
void* | TObject::operator new[](size_t sz, void* vp) |
AliTPCCalibViewer& | operator=(const AliTPCCalibViewer& param) |
virtual void | TObject::Paint(Option_t* option = "") |
virtual void | TObject::Pop() |
virtual void | TObject::Print(Option_t* option = "") const |
virtual Int_t | TObject::Read(const char* name) |
virtual void | TObject::RecursiveRemove(TObject* obj) |
void | TObject::ResetBit(UInt_t f) |
virtual void | TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU |
virtual void | TObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "") |
void | SetAbbreviation(const Char_t* abr) |
void | SetAppendString(const Char_t* str) |
void | TObject::SetBit(UInt_t f) |
void | TObject::SetBit(UInt_t f, Bool_t set) |
virtual void | TObject::SetDrawOption(Option_t* option = "")MENU |
static void | TObject::SetDtorOnly(void* obj) |
static void | TObject::SetObjectStat(Bool_t stat) |
virtual void | TObject::SetUniqueID(UInt_t uid) |
virtual void | ShowMembers(TMemberInspector&) |
static TH1F* | SigmaCut(TH1F *const histogram, Float_t mean, Float_t sigma, Float_t sigmaMax, Float_t sigmaStep = -1, Bool_t pm = kFALSE) |
static TH1F* | SigmaCut(Int_t n, const Double_t* array, Double_t mean, Double_t sigma, Int_t nbins, const Double_t* xbins, Double_t sigmaMax) |
Int_t | SigmaCut(const char* drawCommand, Int_t sector, const char* cuts = 0, Float_t sigmaMax = 5, Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE, Bool_t pm = kFALSE, const char* sigmas = "", Float_t sigmaStep = -1) const |
Int_t | SigmaCut(const char* drawCommand, const char* sector, const char* cuts = 0, Float_t sigmaMax = 5, Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE, Bool_t pm = kFALSE, const char* sigmas = "", Float_t sigmaStep = -1) const |
static TH1F* | SigmaCut(Int_t n, const Float_t* array, Float_t mean, Float_t sigma, Int_t nbins, Float_t binLow, Float_t binUp, Float_t sigmaMax, Float_t sigmaStep = -1, Bool_t pm = kFALSE) |
Int_t | SigmaCutNew(const char* drawCommand, const char* sector, const char* cuts = 0, Float_t sigmaMax = 5, Bool_t plotMean = kTRUE, Bool_t plotMedian = kTRUE, Bool_t plotLTM = kTRUE, Bool_t pm = kFALSE, const char* sigmas = "", Float_t sigmaStep = -1) const |
virtual void | Streamer(TBuffer&) |
void | StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b) |
virtual void | TObject::SysError(const char* method, const char* msgfmt) const |
Bool_t | TObject::TestBit(UInt_t f) const |
Int_t | TObject::TestBits(UInt_t f) const |
virtual void | TObject::UseCurrentStyle() |
virtual void | TObject::Warning(const char* method, const char* msgfmt) const |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const |
virtual void | TObject::DoError(int level, const char* location, const char* fmt, va_list va) const |
void | DrawLines(TH1F* cutHistoMean, TVectorF nsigma, TLegend* legend, Int_t color, Bool_t pm) const |
void | DrawLines(TGraph* graph, TVectorF nsigma, TLegend* legend, Int_t color, Bool_t pm) const |
void | TObject::MakeZombie() |
enum TObject::EStatusBits { | kCanDelete | |
kMustCleanup | ||
kObjInCanvas | ||
kIsReferenced | ||
kHasUUID | ||
kCannotPick | ||
kNoContextMenu | ||
kInvalidObject | ||
}; | ||
enum TObject::[unnamed] { | kIsOnHeap | |
kNotDeleted | ||
kZombie | ||
kBitMask | ||
kSingleKey | ||
kOverwrite | ||
kWriteDelete | ||
}; |
TString | fAbbreviation | the abreviation for '.fElements' |
TString | fAppendString | '.fElements', stored in a TStrig |
TFile* | fFile | file that contains a calPads tree (e.g. written by AliTPCCalPad::MakeTree(...) |
TObjArray* | fListOfObjectsToBeDeleted | Objects, that will be deleted when the destructor ist called |
TTree* | fTree | tree containing visualization data (e.g. written by AliTPCCalPad::MakeTree(...) |
Bool_t | fTreeMustBeDeleted | decides weather the tree must be deleted in destructor or not |
Inheritance Chart: | ||||||||
|
dummy AliTPCCalibViewer copy constructor not yet working!!!
Constructor to initialize the calibration viewer the file 'fileName' contains the tree 'treeName'
AliTPCCalibViewer destructor all objects will be deleted, the file will be closed, the pictures will disappear
Should be called from AliTPCCalibViewerGUI class only. If you use Delete() do not call the destructor. All objects (except those contained in fListOfObjectsToBeDeleted) will be deleted, the file will be closed.
Replace all "<variable>" with "<variable><fAbbreviation>" (Adds forgotten "~") but take care on the statistical information, like "CEQmean_Mean" and also take care on correct given variables, like "CEQmean~" For each variable out of "listOfVariables": - 'Save' correct items: - form <replaceString>, take <variable>'s first char, add <removeString>, add rest of <variable>, e.g. "C!#EQmean" (<removeString> = "!#") - For each statistical information in "listOfNormalizationVariables": - ReplaceAll <variable><statistical_Information> with <replaceString><statistical_Information> - ReplaceAll <variable><abbreviation> with <replaceString><abbreviation>, e.g. "CEQmean~" -> "C!#EQmean~" - ReplaceAll <variable><appendStr> with <replaceString><appendStr>, e.g. "CEQmean.fElements" -> "C!#EQmean.fElements" - Do actual replacing: - ReplaceAll <variable> with <variable><fAbbreviation>, e.g. "CEQmean" -> "CEQmean~" - Undo saving: - For each statistical information in "listOfNormalizationVariables": - ReplaceAll <replaceString><statistical_Information> with <variable><statistical_Information> - ReplaceAll <replaceString><abbreviation> with <variable><abbreviation>, e.g. "C!#EQmean~" -> "CEQmean~" - ReplaceAll <replaceString><appendStr> with <variable><appendStr>, e.g. "C!#EQmean.fElements" -> "CEQmean.fElements" Now all the missing "~" should be added.
easy drawing of data, use '~' for abbreviation of '.fElements' example: EasyDraw("CETmean~-CETmean_mean", "A", "(CETmean~-CETmean_mean)>0") sector: sector-number - only the specified sector will be drwawn 'A'/'C' or 'a'/'c' - side A/C will be drawn 'ALL' - whole TPC will be drawn, projected on one side cuts: specifies cuts drawOptions: draw options like 'same' writeDrawCommand: write the command, that is passed to TTree::Draw
easy drawing of data, use '~' for abbreviation of '.fElements' example: EasyDraw("CETmean~-CETmean_mean", 34, "(CETmean~-CETmean_mean)>0") sector: sector-number - only the specified sector will be drwawn cuts: specifies cuts drawOptions: draw options like 'same' writeDrawCommand: write the command, that is passed to TTree::Draw
easy drawing of data, use '~' for abbreviation of '.fElements' example: EasyDraw("CETmean~-CETmean_mean", "A", "(CETmean~-CETmean_mean)>0") sector: sector-number - the specified sector will be drwawn 'A'/'C' or 'a'/'c' - side A/C will be drawn 'ALL' - whole TPC will be drawn, projected on one side cuts: specifies cuts drawOptions: draw options like 'same' writeDrawCommand: write the command, that is passed to TTree::Draw
easy drawing of data, use '~' for abbreviation of '.fElements' example: EasyDraw("CETmean~-CETmean_mean", 34, "(CETmean~-CETmean_mean)>0") sector: sector-number - the specified sector will be drwawn cuts: specifies cuts drawOptions: draw options like 'same' writeDrawCommand: write the command, that is passed to TTree::Draw
formats title and axis labels of histo removes '.fElements'
Easy drawing of data, in principle the same as EasyDraw1D Difference: A line for the mean / median / LTM is drawn in 'sigmas' you can specify in which distance to the mean/median/LTM you want to see a line in sigma-units, separated by ';' example: sigmas = "2; 4; 6;" at , and a line is drawn. "plotMean", "plotMedian" and "plotLTM": what kind of lines do you want to see?
Easy drawing of data, in principle the same as EasyDraw1D Difference: A line for the mean / median / LTM is drawn in 'sigmas' you can specify in which distance to the mean/median/LTM you want to see a line in sigma-units, separated by ';' example: sigmas = "2; 4; 6;" at , and a line is drawn. "plotMean", "plotMedian" and "plotLTM": what kind of lines do you want to see?
Creates a histogram , where you can see, how much of the data are inside sigma-intervals around the mean value The data of the distribution are given in 'array', 'n' specifies the length of the array 'mean' and 'sigma' are and of the distribution in 'array', to be specified by the user 'nbins': number of bins, 'binLow': first bin, 'binUp': last bin sigmaMax: up to which sigma around the mean/median/LTM the histogram is generated (in units of sigma, ) sigmaStep: the binsize of the generated histogram Creates a histogram, where you can see, how much of the data are inside sigma-intervals around the mean/median/LTM with drawCommand, sector and cuts you specify your input data, see EasyDraw sigmaMax: up to which sigma around the mean/median/LTM the histogram is generated (in units of sigma) sigmaStep: the binsize of the generated histogram plotMean/plotMedian/plotLTM: specifies where to put the center
Creates a histogram, where you can see, how much of the data are inside sigma-intervals around the mean/median/LTM with drawCommand, sector and cuts you specify your input data, see EasyDraw sigmaMax: up to which sigma around the mean/median/LTM the histogram is generated (in units of sigma) sigmaStep: the binsize of the generated histogram plotMean/plotMedian/plotLTM: specifies where to put the center
Creates a histogram, where you can see, how much of the data are inside sigma-intervals around the mean/median/LTM with drawCommand, sector and cuts you specify your input data, see EasyDraw sigmaMax: up to which sigma around the mean/median/LTM the histogram is generated (in units of sigma) sigmaStep: the binsize of the generated histogram plotMean/plotMedian/plotLTM: specifies where to put the center
Creates an integrated histogram , out of the input distribution distribution , given in "histogram" "mean" and "sigma" are and of the distribution in "histogram", to be specified by the user sigmaMax: up to which sigma around the mean/median/LTM you want to integrate if "igma == 0" and "sigmaMax == 0" the whole histogram is integrated "sigmaStep": the binsize of the generated histogram, -1 means, that the maximal reasonable stepsize is used The actual work is done on the array.
Creates an integrated histogram , out of the input distribution distribution , given in "histogram" "mean" and "sigma" are and of the distribution in "histogram", to be specified by the user sigmaMax: up to which sigma around the mean/median/LTM you want to integrate if "igma == 0" and "sigmaMax == 0" the whole histogram is integrated "sigmaStep": the binsize of the generated histogram, -1 means, that the maximal reasonable stepsize is used The actual work is done on the array.
Creates an integrated histogram , out of the input distribution distribution , given in "histogram" "mean" and "sigma" are and of the distribution in "histogram", to be specified by the user sigmaMax: up to which sigma around the mean/median/LTM you want to integrate if "igma == 0" and "sigmaMax == 0" the whole histogram is integrated "sigmaStep": the binsize of the generated histogram, -1 means, that the maximal reasonable stepsize is used The actual work is done on the array.
Returns the 'bin' for 'value' The interval between 'binLow' and 'binUp' is divided into 'nbins' equidistant bins avoid index out of bounds error: 'if (bin < binLow) bin = binLow' and vice versa
returns the LTM and sigma

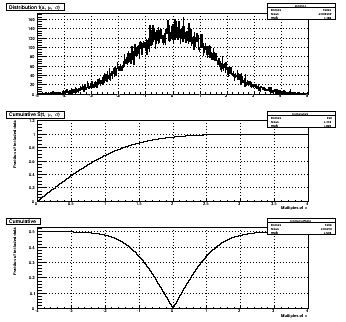

Creates a cumulative histogram , where you can see, how much of the data are inside sigma-intervals around the mean value The data of the distribution are given in 'histogram' 'mean' and 'sigma' are and of the distribution in 'histogram', to be specified by the user sigmaMax: up to which sigma around the mean/median/LTM the histogram is generated (in units of sigma, ) sigmaStep: the binsize of the generated histogram, -1 means, that the maximal reasonable stepsize is used pm: Decide weather (first case) or arbitrary (secound case) The actual work is done on the array.
{ Float_t mean = 0; Float_t sigma = 1.5; Float_t sigmaMax = 4; gROOT->SetStyle("Plain"); TH1F *distribution = new TH1F("Distrib1", "Distribution f(x, #mu, #sigma)", 1000,-5,5); TRandom rand(23); for (Int_t i = 0; i <50000;i++) distribution->Fill(rand.Gaus(mean, sigma)); Float_t *ar = distribution->GetArray(); TCanvas* macro_example_canvas = new TCanvas("cAliTPCCalibViewer1", "", 350, 350); macro_example_canvas->Divide(0,3); TVirtualPad *pad1 = macro_example_canvas->cd(1); pad1->SetGridy(); pad1->SetGridx(); distribution->Draw(); TVirtualPad *pad2 = macro_example_canvas->cd(2); pad2->SetGridy(); pad2->SetGridx(); TH1F *shist = AliTPCCalibViewer::SigmaCut(distribution, mean, sigma, sigmaMax); shist->SetNameTitle("Cumulative","Cumulative S(t, #mu, #sigma)"); shist->Draw(); TVirtualPad *pad3 = macro_example_canvas->cd(3); pad3->SetGridy(); pad3->SetGridx(); TH1F *shistPM = AliTPCCalibViewer::SigmaCut(distribution, mean, sigma, sigmaMax, -1, kTRUE); shistPM->Draw(); return macro_example_canvas; }
Creates a histogram , where you can see, how much of the data are inside sigma-intervals around the mean value
The data of the distribution are given in 'array', 'n' specifies the length of the array
'mean' and 'sigma' are and of the distribution in 'array', to be specified by the user
'nbins': number of bins, 'binLow': first bin, 'binUp': last bin
sigmaMax: up to which sigma around the mean/median/LTM the histogram is generated (in units of sigma, )
sigmaStep: the binsize of the generated histogram
Here the actual work is done.
SigmaCut for variable binsize NOT YET IMPLEMENTED !!!
Creates an integrated histogram , out of the input distribution distribution , given in "histogram" "mean" and "sigma" are and of the distribution in "histogram", to be specified by the user sigmaMax: up to which sigma around the mean/median/LTM you want to integrate if "igma == 0" and "sigmaMax == 0" the whole histogram is integrated "sigmaStep": the binsize of the generated histogram, -1 means, that the maximal reasonable stepsize is used The actual work is done on the array.
Creates an integrated histogram , out of the input distribution distribution , given in "histogram" "mean" and "sigma" are and of the distribution in "histogram", to be specified by the user sigmaMax: up to which sigma around the mean/median/LTM you want to integrate if "igma == 0" and "sigmaMax == 0" the whole histogram is integrated "sigmaStep": the binsize of the generated histogram, -1 means, that the maximal reasonable stepsize is used Here the actual work is done.
creates a AliTPCCalPad out of the 'desiredData' the functionality of EasyDraw1D is used calPadName specifies the name of the created AliTPCCalPad - this takes a while -
creates a AliTPCCalPad out of the 'desiredData' the functionality of EasyDraw1D is used calPadName specifies the name of the created AliTPCCalPad - this takes a while -
creates a AliTPCCalROC out of the desiredData the functionality of EasyDraw1D is used sector specifies the sector of the created AliTPCCalROC
scan the tree - produces a list of available variables in the tree printList: print the list to the screen, after the scan is done
produces a list of available variables for normalization in the tree printList: print the list to the screen, after the scan is done
add a reference tree to the current tree
by default the treename is 'calPads' and the reference treename is 'R'
Returns a TObjArray with all AliTPCCalPads that are stored in the tree - this takes a while -
fit an arbitrary function, specified by formula into the data, specified by drawCommand and cuts returns chi2, fitParam and covMatrix returns TString with fitted formula
Write tree with all available information im mapFileName is speciefied, the Map information are also written to the tree AliTPCCalPad-Objects are written directly to the tree, so that they can be accessd later on (does not work!!!)
Write a tree with all available information if mapFileName is speciefied, the Map information are also written to the tree pads specified in outlierPad are not used for calculating statistics The following statistical information on the basis of a ROC are calculated: "_Median", "_Mean", "_LTM", "_RMS_LTM" "_Median_OutlierCutted", "_Mean_OutlierCutted", "_RMS_OutlierCutted", "_LTM_OutlierCutted", "_RMS_LTM_OutlierCutted" The following position variables are available: "row", "pad", "lx", "ly", "gx", "gy", "rpad", "channel" The tree out of this function is the basis for the AliTPCCalibViewer and the AliTPCCalibViewerGUI.
Function to create a calibration Tree with all available information. See also documentation to MakeTree the file "inputFileName" must be in the following format (see also CreateObjectList): (each colum separated by tabs, "dependingOnType" can have 2 or 3 colums) type path dependingOnType type == "CE": dependingOnType = CETmean CEQmean CETrms type == "Pulser": dependingOnType = PulserTmean PulsterQmean PulserTrms type == "Pedestals": dependingOnType = Pedestals Noise type == "CalPad": dependingOnType = NameInFile NameToWriteToFile
Function to create a TObjArray out of a given file the file must be in the following format: (each colum separated by tabs, "dependingOnType" can have 2 or 3 colums) type path dependingOnType type == "CE": dependingOnType = CETmean CEQmean CETrms type == "Pulser": dependingOnType = PulserTmean PulsterQmean PulserTrms type == "Pedestals": dependingOnType = Pedestals Noise type == "CalPad": dependingOnType = NameInFile NameToWriteToFile
