Furthermore, the class contains basic geometrical descriptions like field cage radii (fgkIFCRadius, fgkOFCRadius) and length (fgkTPCZ0) plus the voltages. Also, the definitions of size and widths of the fulcrums building the grid of the final look-up table, which is then interpolated, is defined in kNX and fgkXList).
All physics-model classes below are derived from this class in order to not duplicate code and to allow a uniform treatment of all physics models.
Note: This class is normally used via the class AliTPCComposedCorrection

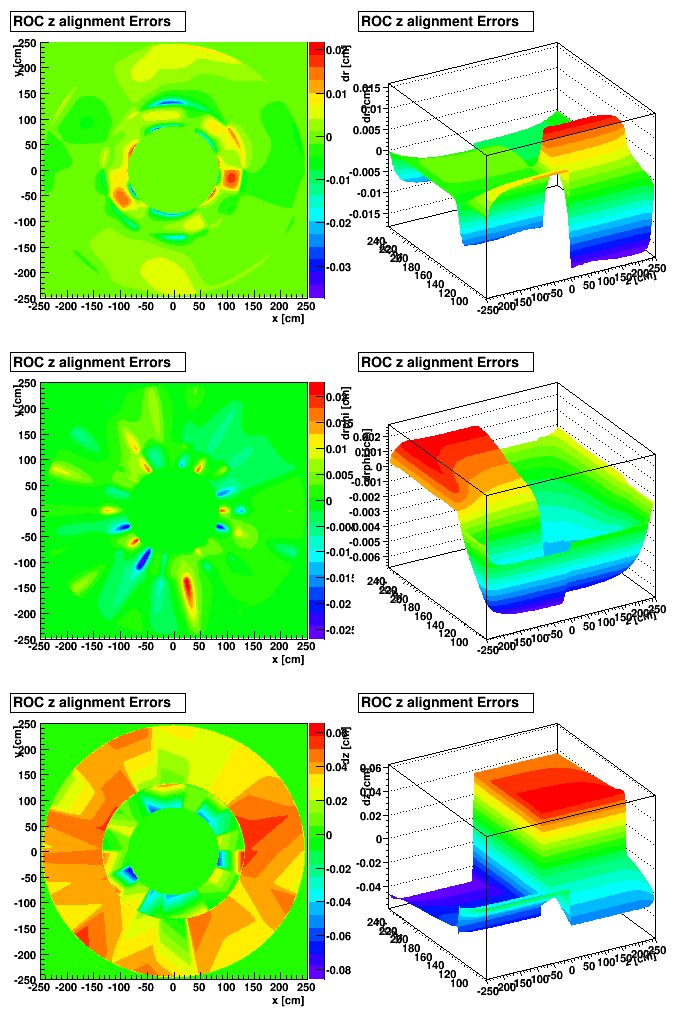

{ gROOT->SetStyle("Plain"); gStyle->SetPalette(1); TCanvas *c2 = new TCanvas("cAliTPCCorrection","cAliTPCCorrection",700,1050); c2->Divide(2,3); AliTPCROCVoltError3D roc; // EXAMPLE PLOTS - SEE BELOW SetROCDataFileName("$ALICE_ROOT/TPC/Calib/maps/TPCROCdzSurvey.root"); roc.SetOmegaTauT1T2(0,1,1); Float_t z0 = 1; c2->cd(1); roc.CreateHistoDRinXY(1.,300,300)->Draw("cont4z"); c2->cd(3);roc.CreateHistoDRPhiinXY(1.,300,300)->Draw("cont4z"); c2->cd(5);roc.CreateHistoDZinXY(1.,300,300)->Draw("cont4z"); Float_t phi0=0.5; c2->cd(2);roc.CreateHistoDRinZR(phi0)->Draw("surf2"); c2->cd(4);roc.CreateHistoDRPhiinZR(phi0)->Draw("surf2"); c2->cd(6);roc.CreateHistoDZinZR(phi0)->Draw("surf2"); return c2; }
Date: 27/04/2010
Authors: Magnus Mager, Stefan Rossegger, Jim Thomas
AliTPCCorrection() | |
AliTPCCorrection(const char* name, const char* title) | |
virtual | ~AliTPCCorrection() |
void | TObject::AbstractMethod(const char* method) const |
virtual Bool_t | AddCorrectionCompact(AliTPCCorrection* corr, Double_t weight) |
static void | AddVisualCorrection(AliTPCCorrection* corr, Int_t position) |
virtual void | TObject::AppendPad(Option_t* option = "") |
virtual void | TObject::Browse(TBrowser* b) |
static TClass* | Class() |
virtual const char* | TObject::ClassName() const |
virtual void | TNamed::Clear(Option_t* option = "") |
virtual TObject* | TNamed::Clone(const char* newname = "") const |
virtual Int_t | TNamed::Compare(const TObject* obj) const |
virtual void | TNamed::Copy(TObject& named) const |
void | CorrectPoint(Float_t* x, Short_t roc) |
void | CorrectPoint(const Float_t* x, Short_t roc, Float_t* xp) |
void | CorrectPointLocal(Float_t* x, Short_t roc) |
TTree* | CreateDistortionTree(Double_t step = 5) |
TH2F* | CreateHistoDRinXY(Float_t z = 10., Int_t nx = 100, Int_t ny = 100) |
TH2F* | CreateHistoDRinZR(Float_t phi = 0., Int_t nZ = 100, Int_t nR = 100) |
TH2F* | CreateHistoDRPhiinXY(Float_t z = 10., Int_t nx = 100, Int_t nphi = 100) |
TH2F* | CreateHistoDRPhiinZR(Float_t phi = 0., Int_t nZ = 100, Int_t nR = 100) |
TH2F* | CreateHistoDZinXY(Float_t z = 10., Int_t nx = 100, Int_t ny = 100) |
TH2F* | CreateHistoDZinZR(Float_t phi = 0., Int_t nZ = 100, Int_t nR = 100) |
virtual void | TObject::Delete(Option_t* option = "")MENU |
virtual Int_t | TObject::DistancetoPrimitive(Int_t px, Int_t py) |
void | DistortPoint(Float_t* x, Short_t roc) |
void | DistortPoint(const Float_t* x, Short_t roc, Float_t* xp) |
void | DistortPointLocal(Float_t* x, Short_t roc) |
virtual void | TObject::Draw(Option_t* option = "") |
virtual void | TObject::DrawClass() constMENU |
virtual TObject* | TObject::DrawClone(Option_t* option = "") constMENU |
virtual void | TObject::Dump() constMENU |
virtual void | TObject::Error(const char* method, const char* msgfmt) const |
virtual void | TObject::Execute(const char* method, const char* params, Int_t* error = 0) |
virtual void | TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0) |
virtual void | TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py) |
void | FastSimDistortedVertex(Double_t* orgVertex, Int_t nTracks, AliESDVertex& aV, AliESDVertex& avOrg, AliESDVertex& cV, AliESDVertex& cvOrg, TTreeSRedirector *const pcstream, Double_t etaCuts) |
virtual void | TObject::Fatal(const char* method, const char* msgfmt) const |
virtual void | TNamed::FillBuffer(char*& buffer) |
virtual TObject* | TObject::FindObject(const char* name) const |
virtual TObject* | TObject::FindObject(const TObject* obj) const |
AliExternalTrackParam* | FitDistortedTrack(AliExternalTrackParam& trackIn, Double_t refX, Int_t dir, TTreeSRedirector* pcstream) |
virtual void | GetCorrection(const Float_t* x, Short_t roc, Float_t* dx) |
virtual void | GetCorrectionDz(const Float_t* x, Short_t roc, Float_t* dx, Float_t delta) |
virtual void | GetCorrectionIntegralDz(const Float_t* x, Short_t roc, Float_t* dx, Float_t delta) |
virtual Float_t | GetCorrScaleFactor() const |
static Double_t | GetCorrSector(Double_t sector, Double_t r, Double_t kZ, Int_t axisType, Int_t corrType = 0) |
static Double_t | GetCorrXYZ(Double_t gx, Double_t gy, Double_t gz, Int_t axisType, Int_t corrType = 0) |
static Double_t | GetCorrXYZDz(Double_t gx, Double_t gy, Double_t gz, Int_t axisType, Int_t corrType = 0, Double_t delta = 5) |
static Double_t | GetCorrXYZIntegrateZ(Double_t gx, Double_t gy, Double_t gz, Int_t axisType, Int_t corrType = 0, Double_t delta = 5) |
virtual void | GetDistortion(const Float_t* x, Short_t roc, Float_t* dx) |
virtual void | GetDistortionDz(const Float_t* x, Short_t roc, Float_t* dx, Float_t delta) |
virtual void | GetDistortionIntegralDz(const Float_t* x, Short_t roc, Float_t* dx, Float_t delta) |
static Double_t | GetDistXYZ(Double_t gx, Double_t gy, Double_t gz, Int_t axisType, Int_t corrType = 0) |
static Double_t | GetDistXYZDz(Double_t gx, Double_t gy, Double_t gz, Int_t axisType, Int_t corrType = 0, Double_t delta = 5) |
static Double_t | GetDistXYZIntegrateZ(Double_t gx, Double_t gy, Double_t gz, Int_t axisType, Int_t corrType = 0, Double_t delta = 5) |
virtual Option_t* | TObject::GetDrawOption() const |
static Long_t | TObject::GetDtorOnly() |
virtual const char* | TObject::GetIconName() const |
virtual const char* | TNamed::GetName() const |
virtual char* | TObject::GetObjectInfo(Int_t px, Int_t py) const |
static Bool_t | TObject::GetObjectStat() |
virtual Option_t* | TObject::GetOption() const |
virtual const char* | TNamed::GetTitle() const |
virtual UInt_t | TObject::GetUniqueID() const |
static AliTPCCorrection* | GetVisualCorrection(Int_t position) |
virtual Bool_t | TObject::HandleTimer(TTimer* timer) |
virtual ULong_t | TNamed::Hash() const |
virtual void | TObject::Info(const char* method, const char* msgfmt) const |
virtual Bool_t | TObject::InheritsFrom(const char* classname) const |
virtual Bool_t | TObject::InheritsFrom(const TClass* cl) const |
virtual void | Init() |
virtual void | TObject::Inspect() constMENU |
void | TObject::InvertBit(UInt_t f) |
virtual TClass* | IsA() const |
virtual Bool_t | TObject::IsEqual(const TObject* obj) const |
virtual Bool_t | TObject::IsFolder() const |
Bool_t | TObject::IsOnHeap() const |
virtual Bool_t | TNamed::IsSortable() const |
Bool_t | TObject::IsZombie() const |
virtual void | TNamed::ls(Option_t* option = "") const |
static void | MakeDistortionMap(THnSparse* his0, TTreeSRedirector* pcstream, const char* hname, Int_t run, Float_t refX, Int_t type, Int_t integ = 1) |
static void | MakeDistortionMapCosmic(THnSparse* his0, TTreeSRedirector* pcstream, const char* hname, Int_t run, Float_t refX, Int_t type) |
static void | MakeDistortionMapSector(THnSparse* his0, TTreeSRedirector* pcstream, const char* hname, Int_t run, Int_t type) |
static void | MakeLaserDistortionTree(TTree* tree, TObjArray* corrArray, Int_t itype) |
static void | MakeLaserDistortionTreeOld(TTree* tree, TObjArray* corrArray, Int_t itype) |
static void | MakeSectorDistortionTree(TTree* tinput, Int_t dtype, Int_t ptype, const TObjArray* corrArray, Int_t step = 1, Int_t offset = 0, Bool_t debug = 0) |
static void | MakeTrackDistortionTree(TTree* tinput, Int_t dtype, Int_t ptype, const TObjArray* corrArray, Int_t step = 1, Int_t offset = 0, Bool_t debug = 0) |
void | TObject::MayNotUse(const char* method) const |
virtual Bool_t | TObject::Notify() |
void | TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const |
static void | TObject::operator delete(void* ptr) |
static void | TObject::operator delete(void* ptr, void* vp) |
static void | TObject::operator delete[](void* ptr) |
static void | TObject::operator delete[](void* ptr, void* vp) |
void* | TObject::operator new(size_t sz) |
void* | TObject::operator new(size_t sz, void* vp) |
void* | TObject::operator new[](size_t sz) |
void* | TObject::operator new[](size_t sz, void* vp) |
virtual void | TObject::Paint(Option_t* option = "") |
virtual void | TObject::Pop() |
virtual void | Print(Option_t* option = "") const |
virtual Int_t | TObject::Read(const char* name) |
virtual void | TObject::RecursiveRemove(TObject* obj) |
void | TObject::ResetBit(UInt_t f) |
virtual void | TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU |
virtual void | TObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "") |
void | TObject::SetBit(UInt_t f) |
void | TObject::SetBit(UInt_t f, Bool_t set) |
virtual void | SetCorrScaleFactor(Float_t) |
virtual void | TObject::SetDrawOption(Option_t* option = "")MENU |
static void | TObject::SetDtorOnly(void* obj) |
virtual void | TNamed::SetName(const char* name)MENU |
virtual void | TNamed::SetNameTitle(const char* name, const char* title) |
static void | TObject::SetObjectStat(Bool_t stat) |
virtual void | SetOmegaTauT1T2(Float_t omegaTau, Float_t t1, Float_t t2) |
virtual void | TNamed::SetTitle(const char* title = "")MENU |
virtual void | TObject::SetUniqueID(UInt_t uid) |
virtual void | ShowMembers(TMemberInspector&) |
virtual Int_t | TNamed::Sizeof() const |
void | StoreInOCDB(Int_t startRun, Int_t endRun, const char* comment = 0) |
virtual void | Streamer(TBuffer&) |
void | StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b) |
virtual void | TObject::SysError(const char* method, const char* msgfmt) const |
Bool_t | TObject::TestBit(UInt_t f) const |
Int_t | TObject::TestBits(UInt_t f) const |
virtual void | Update(const TTimeStamp& timeStamp) |
virtual void | TObject::UseCurrentStyle() |
virtual void | TObject::Warning(const char* method, const char* msgfmt) const |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const |
TH2F* | CreateTH2F(const char* name, const char* title, const char* xlabel, const char* ylabel, const char* zlabel, Int_t nbinsx, Double_t xlow, Double_t xup, Int_t nbinsy, Double_t ylow, Double_t yup) |
virtual void | TObject::DoError(int level, const char* location, const char* fmt, va_list va) const |
Double_t | Interpolate(const Double_t* xArray, const Double_t* yArray, Int_t order, Double_t x) |
Float_t | Interpolate(const Double_t* xArray, const Float_t* yArray, Int_t order, Double_t x) |
void | Interpolate2DEdistortion(Int_t order, Double_t r, Double_t z, const Double_t er[][kNR], Double_t& erValue) |
Double_t | Interpolate2DTable(Int_t order, Double_t x, Double_t y, Int_t nx, Int_t ny, const Double_t* xv, const Double_t* yv, const TMatrixD& array) |
Float_t | Interpolate2DTable(Int_t order, Double_t x, Double_t y, Int_t nx, Int_t ny, const Double_t* xv, const Double_t* yv, const TMatrixF& array) |
void | Interpolate3DEdistortion(Int_t order, Double_t r, Float_t phi, Double_t z, const Double_t er[][kNPhi][kNR], const Double_t ephi[][kNPhi][kNR], const Double_t ez[][kNPhi][kNR], Double_t& erValue, Double_t& ephiValue, Double_t& ezValue) |
Double_t | Interpolate3DTable(Int_t order, Double_t x, Double_t y, Double_t z, Int_t nx, Int_t ny, Int_t nz, const Double_t* xv, const Double_t* yv, const Double_t* zv, TMatrixD** arrayofArrays) |
Float_t | Interpolate3DTable(Int_t order, Double_t x, Double_t y, Double_t z, Int_t nx, Int_t ny, Int_t nz, const Double_t* xv, const Double_t* yv, const Double_t* zv, TMatrixF** arrayofArrays) |
Bool_t | IsLocal() const |
virtual Int_t | IsPowerOfTwo(Int_t i) const |
void | TObject::MakeZombie() |
void | PoissonRelaxation2D(TMatrixD& arrayV, TMatrixD& chargeDensity, TMatrixD& arrayErOverEz, TMatrixD& arrayDeltaEz, Int_t rows, Int_t columns, Int_t iterations, Bool_t rocDisplacement = kTRUE) |
void | PoissonRelaxation3D(TMatrixD** arrayofArrayV, TMatrixD** arrayofChargeDensities, TMatrixD** arrayofEroverEz, TMatrixD** arrayofEPhioverEz, TMatrixD** arrayofEz, Int_t rows, Int_t columns, Int_t phislices, Float_t deltaphi, Int_t iterations, Int_t summetry, Bool_t rocDisplacement = kTRUE) |
void | Search(Int_t n, const Double_t* xArray, Double_t x, Int_t& low) |
void | SetIsLocal(Bool_t isLocal) |
AliTPCCorrection(const AliTPCCorrection&) | |
void | InitLookUpfulcrums() |
AliTPCCorrection& | operator=(const AliTPCCorrection&) |
enum CompositionType { | kParallel | |
kQueue | ||
}; | ||
enum { | kNR | |
kNPhi | ||
kNZ | ||
}; | ||
enum TObject::EStatusBits { | kCanDelete | |
kMustCleanup | ||
kObjInCanvas | ||
kIsReferenced | ||
kHasUUID | ||
kCannotPick | ||
kNoContextMenu | ||
kInvalidObject | ||
}; | ||
enum TObject::[unnamed] { | kIsOnHeap | |
kNotDeleted | ||
kZombie | ||
kBitMask | ||
kSingleKey | ||
kOverwrite | ||
kWriteDelete | ||
}; |
Int_t | fILow | |
Bool_t | fIsLocal | switch to indicate that the distortion is a local vector drphi/dz, dr/dz |
Int_t | fJLow | |
Int_t | fKLow | variable to help in the interpolation |
TString | TNamed::fName | object identifier |
Double_t | fT1 | tensor term of wt - T1 |
Double_t | fT2 | tensor term of wt - T2 |
TString | TNamed::fTitle | object title |
static TObjArray* | fgVisualCorrection | array of orrection for visualization |
static const Double_t | fgkCathodeV | Cathode Voltage (volts) |
static const Double_t | fgkEM | charge/mass in [C/kg] |
static const Double_t | fgkGG | Gating Grid voltage (volts) |
static const Double_t | fgkIFCRadius | Mean Radius of the Inner Field Cage ( 82.43 min, 83.70 max) (cm) |
static const Double_t | fgkOFCRadius | Mean Radius of the Outer Field Cage (252.55 min, 256.45 max) (cm) |
Double_t | fgkPhiList[181] | points in the phi direction (for the lookup table) |
Double_t | fgkRList[72] | points in the radial direction (for the lookup table) |
static const Double_t | fgkTPCZ0 | nominal gating grid position |
Double_t | fgkZList[166] | points in the z direction (for the lookup table) |
static const Double_t | fgkZOffSet | Offset from CE: calculate all distortions closer to CE as if at this point |
static const Double_t | fgkdvdE | [cm/V] drift velocity dependency on the E field (from Magboltz for NeCO2N2 at standard environment) |
static const Double_t | fgke0 | vacuum permittivity [A·s/(V·m)] |
default constructor, that set the name and title
Add correction and make them compact Assumptions: - origin of distortion/correction are additive - only correction ot the same type supported ()
Corrects the initial coordinates x (cartesian coordinates) according to the given effect (inherited classes) roc represents the TPC read out chamber (offline numbering convention)
Corrects the initial coordinates x (cartesian coordinates) and stores the new (distorted) coordinates in xp. The distortion is set according to the given effect (inherited classes) roc represents the TPC read out chamber (offline numbering convention)
Distorts the initial coordinates x (cartesian coordinates) according to the given effect (inherited classes) roc represents the TPC read out chamber (offline numbering convention)
Distorts the initial coordinates x (cartesian coordinates) according to the given effect (inherited classes) roc represents the TPC read out chamber (offline numbering convention)
Distorts the initial coordinates x (cartesian coordinates) according to the given effect (inherited classes) roc represents the TPC read out chamber (offline numbering convention)
Distorts the initial coordinates x (cartesian coordinates) and stores the new (distorted) coordinates in xp. The distortion is set according to the given effect (inherited classes) roc represents the TPC read out chamber (offline numbering convention)
This function delivers the correction values dx in respect to the inital coordinates x roc represents the TPC read out chamber (offline numbering convention) Note: The dx is overwritten by the inherited effectice class ...
This function delivers the distortion values dx in respect to the inital coordinates x roc represents the TPC read out chamber (offline numbering convention)
author: marian.ivanov@cern.ch In this (virtual)function calculates the dx'/dz, dy'/dz and dz'/dz at given point (x,y,z) Generic implementation. Better precision can be acchieved knowing the internal structure of underlying trasnformation. Derived classes can reimplement it. To calculate correction is fitted in small neighberhood: (x+-delta,y+-delta,z+-delta) where delta is an argument Input parameters: x[] - space point corrdinate roc - readout chamber identifier (important e.g to do not miss the side of detector) delta - define the size of neighberhood Output parameter: dx[] - array {dx'/dz, dy'/dz , dz'/dz }
author: marian.ivanov@cern.ch In this (virtual)function calculates the dx'/dz, dy'/dz and dz'/dz at given point (x,y,z) Generic implementation. Better precision can be acchieved knowing the internal structure of underlying trasnformation. Derived classes can reimplement it. To calculate distortion is fitted in small neighberhood: (x+-delta,y+-delta,z+-delta) where delta is an argument Input parameters: x[] - space point corrdinate roc - readout chamber identifier (important e.g to do not miss the side of detector) delta - define the size of neighberhood Output parameter: dx[] - array {dx'/dz, dy'/dz , dz'/dz }
Integrate 3D distortion along drift lines starting from the roc plane to the expected z position of the point, this assumes that dz is small and the error propagating to z' instead of the correct z is negligible To define the drift lines virtual function AliTPCCorrection::GetCorrectionDz is used Input parameters: x[] - space point corrdinate roc - readout chamber identifier (important e.g to do not miss the side of detector) delta - define the size of neighberhood Output parameter: dx[] - array { integral(dx'/dz), integral(dy'/dz) , integral(dz'/dz) }
Integrate 3D distortion along drift lines To define the drift lines virtual function AliTPCCorrection::GetCorrectionDz is used Input parameters: x[] - space point corrdinate roc - readout chamber identifier (important e.g to do not miss the side of detector) delta - define the size of neighberhood Output parameter: dx[] - array { integral(dx'/dz), integral(dy'/dz) , integral(dz'/dz) }
Print function to check which correction classes are used option=="d" prints details regarding the setted magnitude option=="a" prints the C0 and C1 coefficents for calibration purposes
Simple plot functionality. Returns a 2d hisogram which represents the corrections in radial direction (dr) in respect to position z within the XY plane. The histogramm has nx times ny entries.
Simple plot functionality. Returns a 2d hisogram which represents the corrections in rphi direction (drphi) in respect to position z within the XY plane. The histogramm has nx times ny entries.
Simple plot functionality. Returns a 2d hisogram which represents the corrections in longitudinal direction (dz) in respect to position z within the XY plane. The histogramm has nx times ny entries.
Simple plot functionality. Returns a 2d hisogram which represents the corrections in r direction (dr) in respect to angle phi within the ZR plane. The histogramm has nx times ny entries.
Simple plot functionality. Returns a 2d hisogram which represents the corrections in rphi direction (drphi) in respect to angle phi within the ZR plane. The histogramm has nx times ny entries.
Simple plot functionality. Returns a 2d hisogram which represents the corrections in longitudinal direction (dz) in respect to angle phi within the ZR plane. The histogramm has nx times ny entries.
Helper function to create a 2d histogramm of given size
Interpolate table - 2D interpolation
{0,0,0,0,0}
Interpolate table - 3D interpolation
{0,0,0,0,0}
Interpolate table (TMatrix format) - 2D interpolation
Interpolate table (TMatrix format) - 3D interpolation
Interpolate function Y(x) using linear (order=1) or quadratic (order=2) interpolation.
Interpolate table (TMatrix format) - 2D interpolation Float version (in order to decrease the OCDB size)
Interpolate table (TMatrix format) - 3D interpolation Float version (in order to decrease the OCDB size)
Interpolate function Y(x) using linear (order=1) or quadratic (order=2) interpolation. Float version (in order to decrease the OCDB size)
Search an ordered table by starting at the most recently used point
Initialization of interpolation points - for main look up table (course grid in the middle, fine grid on the borders)
Solve Poisson's Equation by Relaxation Technique in 2D (assuming cylindrical symmetry) Solve Poissons equation in a cylindrical coordinate system. The arrayV matrix must be filled with the boundary conditions on the first and last rows, and the first and last columns. The remainder of the array can be blank or contain a preliminary guess at the solution. The Charge density matrix contains the enclosed spacecharge density at each point. The charge density matrix can be full of zero's if you wish to solve Laplaces equation however it should not contain random numbers or you will get random numbers back as a solution. Poisson's equation is solved by iteratively relaxing the matrix to the final solution. In order to speed up the convergence to the best solution, this algorithm does a binary expansion of the solution space. First it solves the problem on a very sparse grid by skipping rows and columns in the original matrix. Then it doubles the number of points and solves the problem again. Then it doubles the number of points and solves the problem again. This happens several times until the maximum number of points has been included in the array. NOTE: In order for this algorithmto work, the number of rows and columns must be a power of 2 plus one. So rows == 2**M + 1 and columns == 2**N + 1. The number of rows and columns can be different. NOTE: rocDisplacement is used to include (or ignore) the ROC misalignment in the dz calculation Original code by Jim Thomas (STAR TPC Collaboration)
3D - Solve Poisson's Equation in 3D by Relaxation Technique NOTE: In order for this algorith to work, the number of rows and columns must be a power of 2 plus one. The number of rows and COLUMNS can be different. ROWS == 2**M + 1 COLUMNS == 2**N + 1 PHISLICES == Arbitrary but greater than 3 DeltaPhi in Radians SYMMETRY = 0 if no phi symmetries, and no phi boundary conditions = 1 if we have reflection symmetry at the boundaries (eg. sector symmetry or half sector symmetries). NOTE: rocDisplacement is used to include (or ignore) the ROC misalignment in the dz calculation
Fit the track parameters - without and with distortion 1. Space points in the TPC are simulated along the trajectory 2. Space points distorted 3. Fits the non distorted and distroted track to the reference plane at refX 4. For visualization and debugging purposes the space points and tracks can be stored in the tree - using the TTreeSRedirector functionality trackIn - input track parameters refX - reference X to fit the track dir - direction - out=1 or in=-1 pcstream - debug streamer to check the results see AliExternalTrackParam.h documentation: track1.fP[0] - local y (rphi) track1.fP[1] - z track1.fP[2] - sinus of local inclination angle track1.fP[3] - tangent of deep angle track1.fP[4] - 1/pt
create the distortion tree on a mesh with granularity given by step return the tree with distortions at given position Map is created on the mesh with given step size
Make a fit tree: For each partial correction (specified in array) and given track topology (phi, theta, snp, refX) calculates partial distortions Partial distortion is stored in the resulting tree Output is storred in the file distortion_<dettype>_<partype>.root Partial distortion is stored with the name given by correction name Parameters of function: input - input tree dtype - distortion type 0 - ITSTPC, 1 -TPCTRD, 2 - TPCvertex , 3 - TPC-TOF, 4 - TPCTPC track crossing ppype - parameter type corrArray - array with partial corrections step - skipe entries - if 1 all entries processed - it is slow debug 0 if debug on also space points dumped - it is slow
Make a fit tree: For each partial correction (specified in array) and given track topology (phi, theta, snp, refX) calculates partial distortions Partial distortion is stored in the resulting tree Output is storred in the file distortion_<dettype>_<partype>.root Partial distortion is stored with the name given by correction name Parameters of function: input - input tree dtype - distortion type 10 - IROC-OROC ppype - parameter type corrArray - array with partial corrections step - skipe entries - if 1 all entries processed - it is slow debug 0 if debug on also space points dumped - it is slow
Make a laser fit tree for global minimization
make a distortion map out ou fthe residual histogram Results are written to the debug streamer - pcstream Parameters: his0 - input (4D) residual histogram pcstream - file to write the tree run - run number refX - track matching reference X type - 0- y 1-z,2 -snp, 3-theta, 4=1/pt THnSparse axes: OBJ: TAxis #Delta #Delta OBJ: TAxis tanTheta tan(#Theta) OBJ: TAxis phi #phi OBJ: TAxis snp snp
make a distortion map out ou fthe residual histogram Results are written to the debug streamer - pcstream Parameters: his0 - input (4D) residual histogram pcstream - file to write the tree run - run number refX - track matching reference X type - 0- y 1-z,2 -snp, 3-theta, 4=1/pt marian.ivanov@cern.ch Histo axeses Collection name='TObjArray', class='TObjArray', size=16 0. OBJ: TAxis #Delta #Delta 1. OBJ: TAxis N_{cl} N_{cl} 2. OBJ: TAxis dca_{r} (cm) dca_{r} (cm) 3. OBJ: TAxis z (cm) z (cm) 4. OBJ: TAxis sin(#phi) sin(#phi) 5. OBJ: TAxis tan(#theta) tan(#theta) 6. OBJ: TAxis 1/pt (1/GeV) 1/pt (1/GeV) 7. OBJ: TAxis pt (GeV) pt (GeV) 8. OBJ: TAxis alpha alpha
make a distortion map out of the residual histogram Results are written to the debug streamer - pcstream Parameters: his0 - input (4D) residual histogram pcstream - file to write the tree run - run number type - 0- y 1-z,2 -snp, 3-theta marian.ivanov@cern.ch
Store object in the OCDB By default the object is stored in the current directory default comment consit of user name and the date
Fast method to simulate the influence of the given distortion on the vertex reconstruction
make correction available for visualization using TFormula, TFX and TTree::Draw important in order to check corrections and also compute dervied variables e.g correction partial derivatives NOTE - class is not owner of correction
Get visula correction registered at index=position
calculate the correction at given position - check the geffCorr corrType return values 0 - delta R 1 - delta RPhi 2 - delta Z 3 - delta RPHI
return correction at given x,y,z
return correction at given x,y,z
return correction at given x,y,z
return correction at given x,y,z
return correction at given x,y,z
return correction at given x,y,z
Make a laser fit tree for global minimization
normally called directly in the correction classes which inherit from this class
