ccdtlclass Module Reference

This class defines the linear transfer map and RF field for the CCDTL beam line elment. More...

Data Types
type	ccdtl
interface	getparam_ccdtl
interface	setparam_ccdtl

Functions/Subroutines
subroutine	construct_ccdtl (this, numseg, nmpstp, type, blength)
subroutine	setparam1_ccdtl (this, i, value)
subroutine	setparam2_ccdtl (this, values)
subroutine	setparam3_ccdtl (this, numseg, nmpstp, type, blength)
subroutine	getparam1_ccdtl (this, i, blparam)
subroutine	getparam2_ccdtl (this, blparams)
subroutine	getparam3_ccdtl (this, blength, bnseg, bmapstp, btype)
subroutine	getaxflde_ccdtl (z, this, ez1, ezp1, ezpp1)
	interpolate the field from the CCDTL rf cavity onto bunch location. More...
subroutine	getflderr_ccdtl (pos, extfld, this, dx, dy, anglex, angley,
	get the external field with misalignment and rotation errors. More...
subroutine	getfld_ccdtl (pos, extfld, this)
	get the external field without misalignment and rotation errors. More...
subroutine	getfldt_ccdtl (pos, extfld, this, fldata)
	get the external field without misalignment and rotation errors. More...

Variables
integer, parameter, private	nparam = 11

Detailed Description

This class defines the linear transfer map and RF field for the CCDTL beam line elment.

Author

Ji Qiang

---

Data Type Documentation

ccdtlclass::ccdtl

type ccdtlclass::ccdtl

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_ccdtl()

subroutine ccdtlclass::construct_ccdtl	(	type (ccdtl), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getaxflde_ccdtl()

subroutine ccdtlclass::getaxflde_ccdtl	(	double precision, intent(in)	z,
		type (ccdtl), intent(in)	this,
		double precision, intent(out)	ez1,
		double precision, intent(out)	ezp1,
		double precision, intent(out)	ezpp1
	)

interpolate the field from the CCDTL rf cavity onto bunch location.

Here is the caller graph for this function:

getfld_ccdtl()

subroutine ccdtlclass::getfld_ccdtl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (ccdtl), intent(in)	this
	)

get the external field without misalignment and rotation errors.

Here is the caller graph for this function:

getflderr_ccdtl()

subroutine ccdtlclass::getflderr_ccdtl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (ccdtl), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley
	)

get the external field with misalignment and rotation errors.

Here is the caller graph for this function:

getfldt_ccdtl()

subroutine ccdtlclass::getfldt_ccdtl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (ccdtl), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get the external field without misalignment and rotation errors.

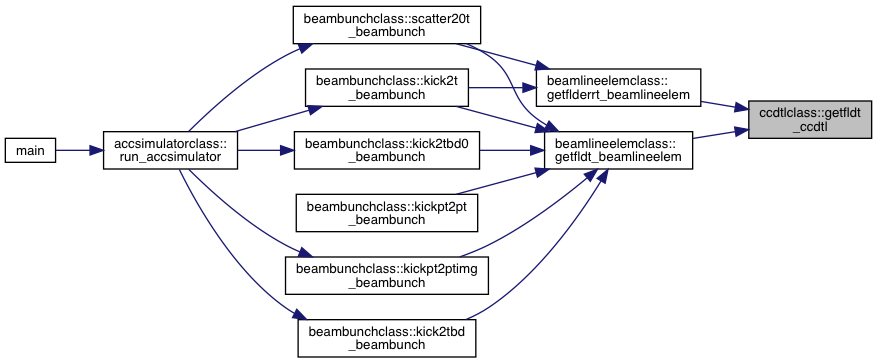

Here is the caller graph for this function:

getparam1_ccdtl()

subroutine ccdtlclass::getparam1_ccdtl	(	type (ccdtl), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_ccdtl()

subroutine ccdtlclass::getparam2_ccdtl	(	type (ccdtl), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_ccdtl()

subroutine ccdtlclass::getparam3_ccdtl	(	type (ccdtl), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

setparam1_ccdtl()

subroutine ccdtlclass::setparam1_ccdtl	(	type (ccdtl), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_ccdtl()

subroutine ccdtlclass::setparam2_ccdtl	(	type (ccdtl), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_ccdtl()

subroutine ccdtlclass::setparam3_ccdtl	(	type (ccdtl), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private ccdtlclass::nparam = 11

private
