cclclass Module Reference

This class defines the linear transfer map and RF field for the CCL beam line elment. More...

Data Types
type	ccl
interface	getparam_ccl
interface	setparam_ccl

Functions/Subroutines
subroutine	construct_ccl (this, numseg, nmpstp, type, blength)
subroutine	setparam1_ccl (this, i, value)
subroutine	setparam2_ccl (this, values)
subroutine	setparam3_ccl (this, numseg, nmpstp, type, blength)
subroutine	getparam1_ccl (this, i, blparam)
subroutine	getparam2_ccl (this, blparams)
subroutine	getparam3_ccl (this, blength, bnseg, bmapstp, btype)
subroutine	getaxflde_ccl (z, this, ez1, ezp1, ezpp1)
	interpolate the field from the CCL rf cavity onto bunch location. More...
subroutine	getaxfldefc_ccl (z, this, ez1, ezp1, ezpp1)
	get external RF field on axis from analytical Fourier coefficients More...
subroutine	getflderr_ccl (pos, extfld, this, dx, dy, anglex, angley, anglez)
	get external field with displacement and rotation errors. More...
subroutine	getfld_ccl (pos, extfld, this)
	get external field without displacement and rotation errors. More...
subroutine	getfldt_ccl (pos, extfld, this, fldata)
	get external field without displacement and rotation errors. More...

Variables
integer, parameter, private	nparam = 11

Detailed Description

This class defines the linear transfer map and RF field for the CCL beam line elment.

Author

Ji Qiang

---

Data Type Documentation

cclclass::ccl

type cclclass::ccl

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_ccl()

subroutine cclclass::construct_ccl	(	type (ccl), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getaxflde_ccl()

subroutine cclclass::getaxflde_ccl	(	double precision, intent(in)	z,
		type (ccl), intent(in)	this,
		double precision, intent(out)	ez1,
		double precision, intent(out)	ezp1,
		double precision, intent(out)	ezpp1
	)

interpolate the field from the CCL rf cavity onto bunch location.

Here is the caller graph for this function:

getaxfldefc_ccl()

subroutine cclclass::getaxfldefc_ccl	(	double precision, intent(in)	z,
		type (ccl), intent(in)	this,
		double precision, intent(out)	ez1,
		double precision, intent(out)	ezp1,
		double precision, intent(out)	ezpp1
	)

get external RF field on axis from analytical Fourier coefficients

getfld_ccl()

subroutine cclclass::getfld_ccl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (ccl), intent(in)	this
	)

get external field without displacement and rotation errors.

Here is the caller graph for this function:

getflderr_ccl()

subroutine cclclass::getflderr_ccl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (ccl), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley,
		double precision, intent(in)	anglez
	)

get external field with displacement and rotation errors.

Here is the caller graph for this function:

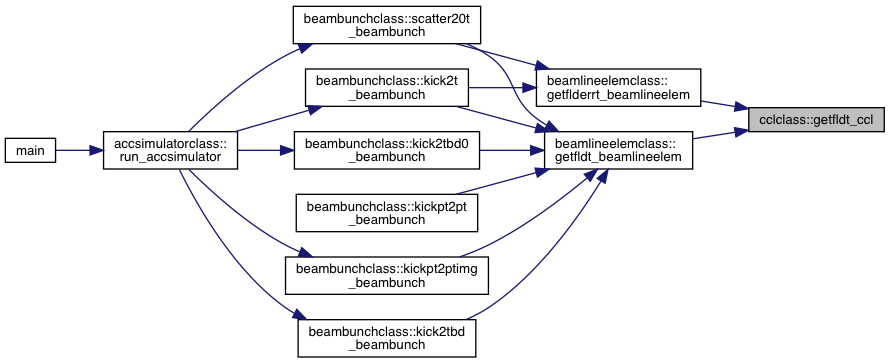

getfldt_ccl()

subroutine cclclass::getfldt_ccl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (ccl), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get external field without displacement and rotation errors.

Here is the caller graph for this function:

getparam1_ccl()

subroutine cclclass::getparam1_ccl	(	type (ccl), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_ccl()

subroutine cclclass::getparam2_ccl	(	type (ccl), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_ccl()

subroutine cclclass::getparam3_ccl	(	type (ccl), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

setparam1_ccl()

subroutine cclclass::setparam1_ccl	(	type (ccl), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_ccl()

subroutine cclclass::setparam2_ccl	(	type (ccl), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_ccl()

subroutine cclclass::setparam3_ccl	(	type (ccl), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private cclclass::nparam = 11

private
