dipoleclass Module Reference

This class defines the linear transfer map and field for the Dipole beam line elment. More...

Data Types
type	dipole
interface	getparam_dipole
interface	setparam_dipole

Functions/Subroutines
subroutine	construct_dipole (this, numseg, nmpstp, type, blength)
subroutine	setparam1_dipole (this, i, value)
subroutine	setparam2_dipole (this, values)
subroutine	setparam3_dipole (this, numseg, nmpstp, type, blength)
subroutine	getparam1_dipole (this, i, blparam)
subroutine	getparam2_dipole (this, blparams)
subroutine	getparam3_dipole (this, blength, bnseg, bmapstp, btype)
subroutine	maplinear_dipole (t, tau, xm, this, refpt, Bchg, Bmass)
	The linear map calculation for the dipole is not correct. More...
subroutine	rk6i_dipole (h, ns, t, y, nvar, this, Bchg, Bmass)
subroutine	intfunc1_dipole (t, y, f, this, Bchg, Bmass)
subroutine	getflderr_dipole (pos, extfld, this, dx, dy, anglex, angley
	get external field with displacement and rotation errors. More...
subroutine	getfld_dipole (pos, extfld, this)
subroutine	getfldtlinear_dipole (pos, extfld, this, fldata)
	get external field without displacement and rotation errors. More...
subroutine	getfldtold_dipole (pos, extfld, this, fldata)
subroutine	getfldt_dipole (pos, extfld, this, fldata)
	get external dipole field without displacement and rotation errors. here the fringe field of dipole is approximated using an Enge function. More...

Variables
integer, parameter, private	nparam = 10

Detailed Description

This class defines the linear transfer map and field for the Dipole beam line elment.

Author

Ji Qiang

---

Data Type Documentation

dipoleclass::dipole

type dipoleclass::dipole

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_dipole()

subroutine dipoleclass::construct_dipole	(	type (dipole), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getfld_dipole()

subroutine dipoleclass::getfld_dipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dipole), intent(in)	this
	)

Here is the caller graph for this function:

getflderr_dipole()

subroutine dipoleclass::getflderr_dipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dipole), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley
	)

get external field with displacement and rotation errors.

Here is the caller graph for this function:

getfldt_dipole()

subroutine dipoleclass::getfldt_dipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dipole), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get external dipole field without displacement and rotation errors. here the fringe field of dipole is approximated using an Enge function.

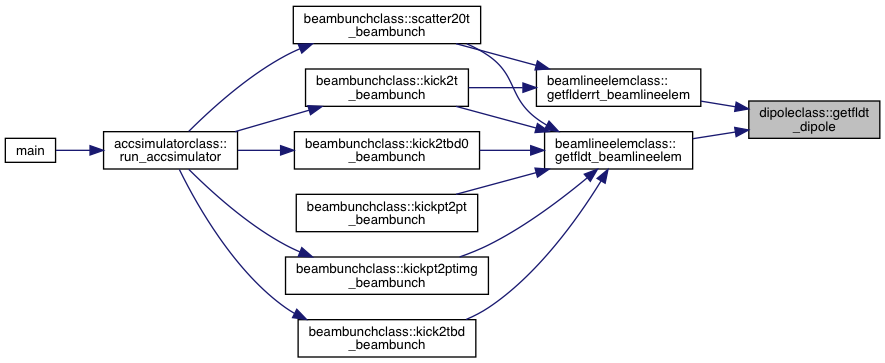

Here is the caller graph for this function:

getfldtlinear_dipole()

subroutine dipoleclass::getfldtlinear_dipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dipole), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get external field without displacement and rotation errors.

getfldtold_dipole()

subroutine dipoleclass::getfldtold_dipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dipole), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

getparam1_dipole()

subroutine dipoleclass::getparam1_dipole	(	type (dipole), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_dipole()

subroutine dipoleclass::getparam2_dipole	(	type (dipole), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_dipole()

subroutine dipoleclass::getparam3_dipole	(	type (dipole), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

intfunc1_dipole()

subroutine dipoleclass::intfunc1_dipole	(	double precision, intent(in)	t,
		double precision, dimension(:), intent(in)	y,
		double precision, dimension(:), intent(out)	f,
		type (dipole), intent(in)	this,
		double precision, intent(in)	Bchg,
		double precision, intent(in)	Bmass
	)

Here is the caller graph for this function:

maplinear_dipole()

subroutine dipoleclass::maplinear_dipole	(	double precision, intent(in)	t,
		double precision, intent(in)	tau,
		double precision, dimension(6,6), intent(out)	xm,
		type (dipole), intent(in)	this,
		double precision, dimension(6), intent(inout)	refpt,
		double precision, intent(in)	Bchg,
		double precision, intent(in)	Bmass
	)

The linear map calculation for the dipole is not correct.

Here is the call graph for this function:

rk6i_dipole()

subroutine dipoleclass::rk6i_dipole	(	double precision, intent(in)	h,
		integer, intent(in)	ns,
		double precision, intent(inout)	t,
		double precision, dimension(nvar), intent(inout)	y,
		integer, intent(in)	nvar,
		type (dipole), intent(in)	this,
		double precision, intent(in)	Bchg,
		double precision, intent(in)	Bmass
	)

Here is the call graph for this function:

Here is the caller graph for this function:

setparam1_dipole()

subroutine dipoleclass::setparam1_dipole	(	type (dipole), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_dipole()

subroutine dipoleclass::setparam2_dipole	(	type (dipole), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_dipole()

subroutine dipoleclass::setparam3_dipole	(	type (dipole), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private dipoleclass::nparam = 10

private
