dtlclass Module Reference

This class defines the linear transfer map and RF field for the DTL beam line elment. More...

Data Types
type	dtl
interface	getparam_dtl
interface	setparam_dtl

Functions/Subroutines
subroutine	construct_dtl (this, numseg, nmpstp, type, blength)
subroutine	setparam1_dtl (this, i, value)
subroutine	setparam2_dtl (this, values)
subroutine	setparam3_dtl (this, numseg, nmpstp, type, blength)
subroutine	getparam1_dtl (this, i, blparam)
subroutine	getparam2_dtl (this, blparams)
subroutine	getparam3_dtl (this, blength, bnseg, bmapstp, btype)
subroutine	getaxflde_dtl (z, this, ez1, ezp1, ezpp1)
	interpolate the field from the DTL rf cavity onto bunch location. More...
subroutine	getbgradfld_dtl (z, this, bgrad)
subroutine	getflderrold_dtl (pos, extfld, this, dx, dy, anglex, angley
	get external field with displacement and rotation errors. More...
subroutine	getflderr_dtl (pos, extfld, this, dx, dy, anglex, angley, anglez)
	get external field with different field and Quad displacement and rotation errors. Here, there 2 displacement errors and rotation errors for Quad More...
subroutine	getfld_dtl (pos, extfld, this)
	get external field without displacement and rotation errors. More...
subroutine	getfldt_dtl (pos, extfld, this, fldata)
	get external field without displacement and rotation errors. More...

Variables
integer, parameter, private	nparam = 25

Detailed Description

This class defines the linear transfer map and RF field for the DTL beam line elment.

Author

Ji Qiang

---

Data Type Documentation

dtlclass::dtl

type dtlclass::dtl

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_dtl()

subroutine dtlclass::construct_dtl	(	type (dtl), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getaxflde_dtl()

subroutine dtlclass::getaxflde_dtl	(	double precision, intent(in)	z,
		type (dtl), intent(in)	this,
		double precision, intent(out)	ez1,
		double precision, intent(out)	ezp1,
		double precision, intent(out)	ezpp1
	)

interpolate the field from the DTL rf cavity onto bunch location.

Here is the caller graph for this function:

getbgradfld_dtl()

subroutine dtlclass::getbgradfld_dtl	(	double precision, intent(in)	z,
		type (dtl), intent(in)	this,
		double precision, intent(out)	bgrad
	)

getfld_dtl()

subroutine dtlclass::getfld_dtl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dtl), intent(in)	this
	)

get external field without displacement and rotation errors.

Here is the caller graph for this function:

getflderr_dtl()

subroutine dtlclass::getflderr_dtl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dtl), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley,
		double precision, intent(in)	anglez
	)

get external field with different field and Quad displacement and rotation errors. Here, there 2 displacement errors and rotation errors for Quad

Here is the caller graph for this function:

getflderrold_dtl()

subroutine dtlclass::getflderrold_dtl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dtl), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley
	)

get external field with displacement and rotation errors.

getfldt_dtl()

subroutine dtlclass::getfldt_dtl	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (dtl), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get external field without displacement and rotation errors.

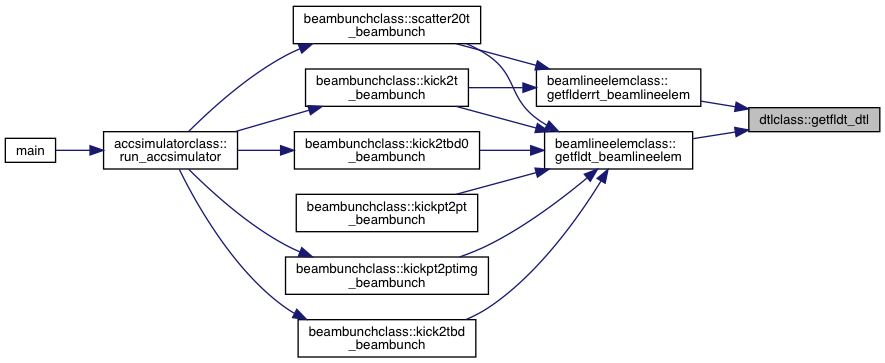

Here is the caller graph for this function:

getparam1_dtl()

subroutine dtlclass::getparam1_dtl	(	type (dtl), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_dtl()

subroutine dtlclass::getparam2_dtl	(	type (dtl), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_dtl()

subroutine dtlclass::getparam3_dtl	(	type (dtl), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

setparam1_dtl()

subroutine dtlclass::setparam1_dtl	(	type (dtl), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_dtl()

subroutine dtlclass::setparam2_dtl	(	type (dtl), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_dtl()

subroutine dtlclass::setparam3_dtl	(	type (dtl), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private dtlclass::nparam = 25

private
