fieldquantclass Module Reference

This class defines a 3-D field quantity in the accelerator. The field quantity can be updated at each step. More...

Data Types
type	fieldquant

Functions/Subroutines
subroutine	construct_fieldquant (this, innx, inny, innz, geom, grid)
	Initialize field class. More...

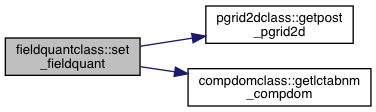

subroutine	set_fieldquant (this, innx, inny, innz, geom, grid, nprx, npry)
	set field quantity. More...
subroutine	gradeb_fieldquant (innx, inny, innz, temppotent, ptsgeom, grid, Flagbc, gammaz, FlagImage, egxout, egyout, egzout, bgxout, bgyout, bgzout)
	find the E and B fields in the lab frame from the potential on the grid of beam frame. More...
subroutine	update3otnew_fieldquant (this, source, fldgeom, grid, nxlc
	update potential (solving Possion's equation) with 3D isolated boundary conditions. Here, image charge potential along z also calculated More...
subroutine	openbc3dnew (innx, inny, innz, rho, hx, hy, hz, nxpylc2, nypzlc2, myidz, myidy, npz, npy, commrow, commcol, comm2d, pztable, pytable, ypzstable, xpystable, inxglb, inyglb, inzglb, rhoImg, flagImage, zshift)
	Solving Poisson's equation with open BCs. More...
subroutine	greenf1tintnew2 (nx, ny, nz, nsizez, nsizey, nsizexy, nsizey
	green function for extended array. More...
subroutine	greenf1tintshift2 (nx, ny, nz, nsizez, nsizey, nsizexy, nsiz
	green function for extended array. More...

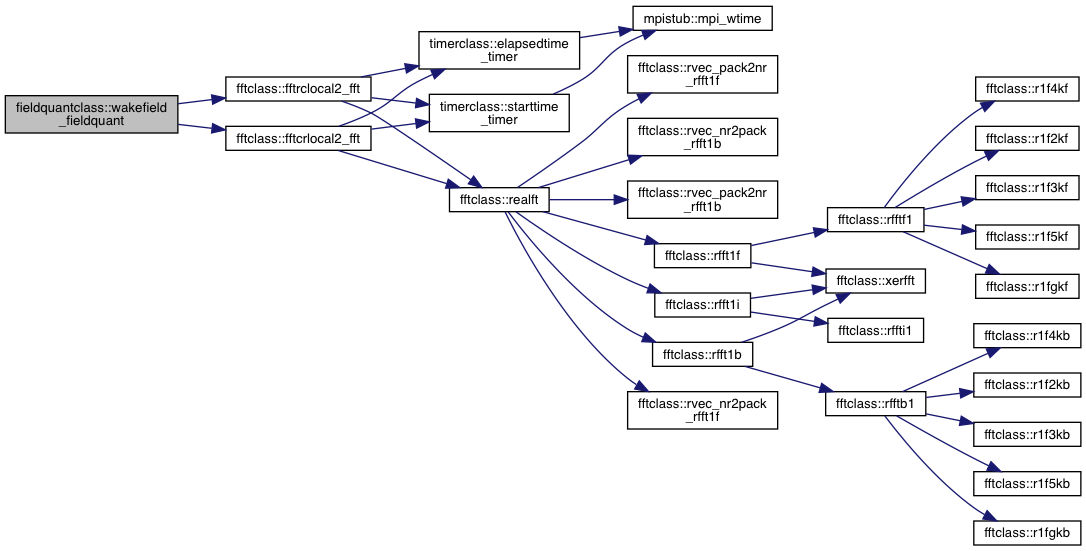

subroutine	wakefield_fieldquant (Nz, xwakez, ywakez, recvdensz, exwake
	longitudinal and transverse wakefield More...
subroutine	wakereadin_fieldquant (Nz, xwakez, ywakez, recvdensz, exwak
	longitudinal and transverse wakefield on a beam using the readin longitudinal and transverse wake functions More...
subroutine	csrwaketr_fieldquant (Nx, r0, ptmin, hx, blength, rhonew, rh
	new version of the csrwake calculation. this subroutine calculate the 1d csr wakefield including entrance, stead-state, and transitions effects here, hx, rho,...are in real unit. the return ezwake is V/m More...
subroutine	setval_fieldquant (this, i, j, k, value)
double precision function	get_fieldquant (this, i, j, k)
subroutine	getglb_fieldquant (this, temp)
subroutine	getlcgrid_fieldquant (this, nxlc, nylc, nzlc)
subroutine	psiroot (r0, xx, deltas, psi, eps, Nmax)
	find the psi in equation 12 of Stupakov and Emma's paper More...
subroutine	destruct_fieldquant (this)
subroutine	csrwaketrigf_fieldquant (Nx, r0, ptmin, hx, blength, rhonew
	This subroutine calculates the 1d csr wakefield including entrance, stead-state, and transitions effects. Here, hx, rho,...are in real units. The return ezwake is in V! /m. The current version uses IGF corresponding to the four cases ! of Saldin et al. More...
double precision function	icsrcasea (phih, ssh, xk2)
double precision function	icsrcaseb (ssh, xk2)
double precision function	icsrcasec (phimh, xxbarh, ssh, xk2)
double precision function	icsrcased (xxbarh, psimax, ssh, xk2, epstol, Nmax)
subroutine	dwakefield_fieldquant (Nx, Ny, Nz, hx, hy, hz, chgdens, dexwak
	This routine computes the root of the function that is evaluated ! in the subroutine 'funcd'. It is based on the subroutine 'root' of Numerical Recipes 9.4, which makes use of a Newton-Raphson method with root bracketing. It has been modified to handle the two bra! cket endpoints carefully. The routine searches for a root in the inter! val [x1,x2] with a tolerance given by 'xacc', and returns this value as 'rtsafe'. The maximum number of iterations allowed is 'maxit'! . C.E.M. More...
subroutine	dwakeconv_fieldquant (Nz, weightz, hz, kern, lam)
subroutine	dispeqslab_fieldquant (a, b, eps, dlx, nkx, nky, dkx, dky)
subroutine	ampslab_fieldquant (a, b, eps, nkx, nky, dkx, dky, amp)
subroutine	dispeqcyl_fieldquant (a, b, eps, nkx, nky, dky)
subroutine	ampcyl_fieldquant (a, b, eps, nkx, nky, dky, amp)
double precision function	func1 (x, c1, c2)
double precision function	func2 (x, c1, c3)
double precision function	amplsm_sym (a, b, eps, kx, ky)
double precision function	amplsm_asym (a, b, eps, kx, ky)
double precision function	amplse_sym (a, b, eps, kx, ky)
double precision function	amplse_asym (a, b, eps, kx, ky)
double precision function	calclfs (s, a, b, eps)
double precision function	calcr0 (s, a, b)

Detailed Description

This class defines a 3-D field quantity in the accelerator. The field quantity can be updated at each step.

Author

Ji Qiang

---

Data Type Documentation

fieldquantclass::fieldquant

type fieldquantclass::fieldquant

Data Fields
double precision, dimension(:,:,:), pointer	fieldq	num field quantity array.
integer	nx	num of mesh points in x and y directions.
integer	nxlocal
integer	ny
integer	nylocal
integer	nz
integer	nzlocal

Function/Subroutine Documentation

ampcyl_fieldquant()

subroutine fieldquantclass::ampcyl_fieldquant	(	double precision, intent(in)	a,
		double precision, intent(in)	b,
		double precision, intent(in)	eps,
		double precision, intent(in)	nkx,
		double precision, intent(in)	nky,
		double precision, dimension(:,:,:), intent(in)	dky,
		double precision, dimension(:,:,:), intent(out)	amp
	)

Here is the call graph for this function:

Here is the caller graph for this function:

amplse_asym()

double precision function fieldquantclass::amplse_asym	(	double precision	a,
		double precision	b,
		double precision	eps,
		double precision	kx,
		double precision	ky
	)

Here is the caller graph for this function:

amplse_sym()

double precision function fieldquantclass::amplse_sym	(	double precision	a,
		double precision	b,
		double precision	eps,
		double precision	kx,
		double precision	ky
	)

Here is the caller graph for this function:

amplsm_asym()

double precision function fieldquantclass::amplsm_asym	(	double precision	a,
		double precision	b,
		double precision	eps,
		double precision	kx,
		double precision	ky
	)

Here is the caller graph for this function:

amplsm_sym()

double precision function fieldquantclass::amplsm_sym	(	double precision	a,
		double precision	b,
		double precision	eps,
		double precision	kx,
		double precision	ky
	)

Here is the caller graph for this function:

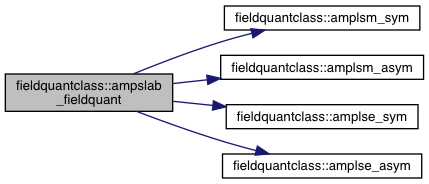

ampslab_fieldquant()

subroutine fieldquantclass::ampslab_fieldquant	(	double precision, intent(in)	a,
		double precision, intent(in)	b,
		double precision, intent(in)	eps,
		double precision, intent(in)	nkx,
		double precision, intent(in)	nky,
		double precision, dimension(:), intent(in)	dkx,
		double precision, dimension(:,:,:), intent(in)	dky,
		double precision, dimension(:,:,:), intent(out)	amp
	)

Here is the call graph for this function:

Here is the caller graph for this function:

calclfs()

double precision function fieldquantclass::calclfs	(	double precision	s,
		double precision	a,
		double precision	b,
		double precision	eps
	)

Here is the call graph for this function:

Here is the caller graph for this function:

calcr0()

double precision function fieldquantclass::calcr0	(	double precision	s,
		double precision	a,
		double precision	b
	)

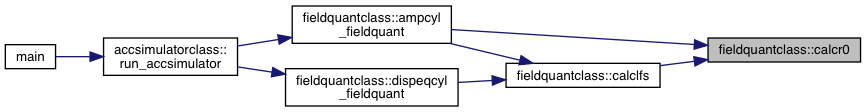

Here is the caller graph for this function:

construct_fieldquant()

subroutine fieldquantclass::construct_fieldquant	(	type (fieldquant), intent(out)	this,
		integer, intent(in)	innx,
		integer, intent(in)	inny,
		integer, intent(in)	innz,
		type (compdom), intent(in)	geom,
		type (pgrid2d), intent(in)	grid
	)

Initialize field class.

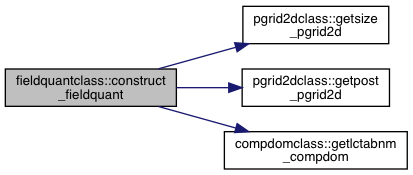

Here is the call graph for this function:

Here is the caller graph for this function:

csrwaketr_fieldquant()

subroutine fieldquantclass::csrwaketr_fieldquant	(	integer, intent(in)	Nx,
		real*8	r0,
		real*8	ptmin,
		real*8	hx,
		real*8	blength,
		real*8, dimension(nx)	rhonew,
			rh
	)

new version of the csrwake calculation. this subroutine calculate the 1d csr wakefield including entrance, stead-state, and transitions effects here, hx, rho,...are in real unit. the return ezwake is V/m

Author

J. Q. 11/3/08

Here is the call graph for this function:

csrwaketrigf_fieldquant()

subroutine fieldquantclass::csrwaketrigf_fieldquant	(	integer, intent(in)	Nx,
		real*8	r0,
		real*8	ptmin,
		real*8	hx,
		real*8	blength,
		real*8, dimension(nx)	rhonew
	)

This subroutine calculates the 1d csr wakefield including entrance, stead-state, and transitions effects. Here, hx, rho,...are in real units. The return ezwake is in V! /m. The current version uses IGF corresponding to the four cases ! of Saldin et al.

Here is the call graph for this function:

Here is the caller graph for this function:

destruct_fieldquant()

subroutine fieldquantclass::destruct_fieldquant

(

type (fieldquant), intent(out)

this

)

Here is the caller graph for this function:

dispeqcyl_fieldquant()

subroutine fieldquantclass::dispeqcyl_fieldquant	(	double precision, intent(in)	a,
		double precision, intent(in)	b,
		double precision, intent(in)	eps,
		double precision, intent(in)	nkx,
		double precision, intent(in)	nky,
		double precision, dimension(:,:,:), intent(out)	dky
	)

Here is the call graph for this function:

Here is the caller graph for this function:

dispeqslab_fieldquant()

subroutine fieldquantclass::dispeqslab_fieldquant	(	double precision, intent(in)	a,
		double precision, intent(in)	b,
		double precision, intent(in)	eps,
		double precision, intent(in)	dlx,
		double precision, intent(in)	nkx,
		double precision, intent(in)	nky,
		double precision, dimension(:), intent(out)	dkx,
		double precision, dimension(:,:,:), intent(out)	dky
	)

Here is the call graph for this function:

Here is the caller graph for this function:

dwakeconv_fieldquant()

subroutine fieldquantclass::dwakeconv_fieldquant	(	integer, intent(in)	Nz,
		double precision, dimension(nz), intent(in)	weightz,
		double precision, intent(in)	hz,
		double precision, dimension(nz), intent(in)	kern,
		double precision, dimension(nz), intent(out)	lam
	)

Here is the call graph for this function:

Here is the caller graph for this function:

dwakefield_fieldquant()

subroutine fieldquantclass::dwakefield_fieldquant	(	integer, intent(in)	Nx,
		integer, intent(in)	Ny,
		integer, intent(in)	Nz,
		double precision, intent(in)	hx,
		double precision, intent(in)	hy,
		double precision, intent(in)	hz,
		double precision, dimension(:,:,:), intent(in)	chgdens,
			dexwak
	)

This routine computes the root of the function that is evaluated ! in the subroutine 'funcd'. It is based on the subroutine 'root' of Numerical Recipes 9.4, which makes use of a Newton-Raphson method with root bracketing. It has been modified to handle the two bra! cket endpoints carefully. The routine searches for a root in the inter! val [x1,x2] with a tolerance given by 'xacc', and returns this value as 'rtsafe'. The maximum number of iterations allowed is 'maxit'! . C.E.M.

This routine evaluates the function whose root produces the retarded angle psi that is required for evaluating the CSR kernel in Case D of Saldin et al. The value of the function is output as 'f', and its derivative is output as 'derivf'. C.E.M.

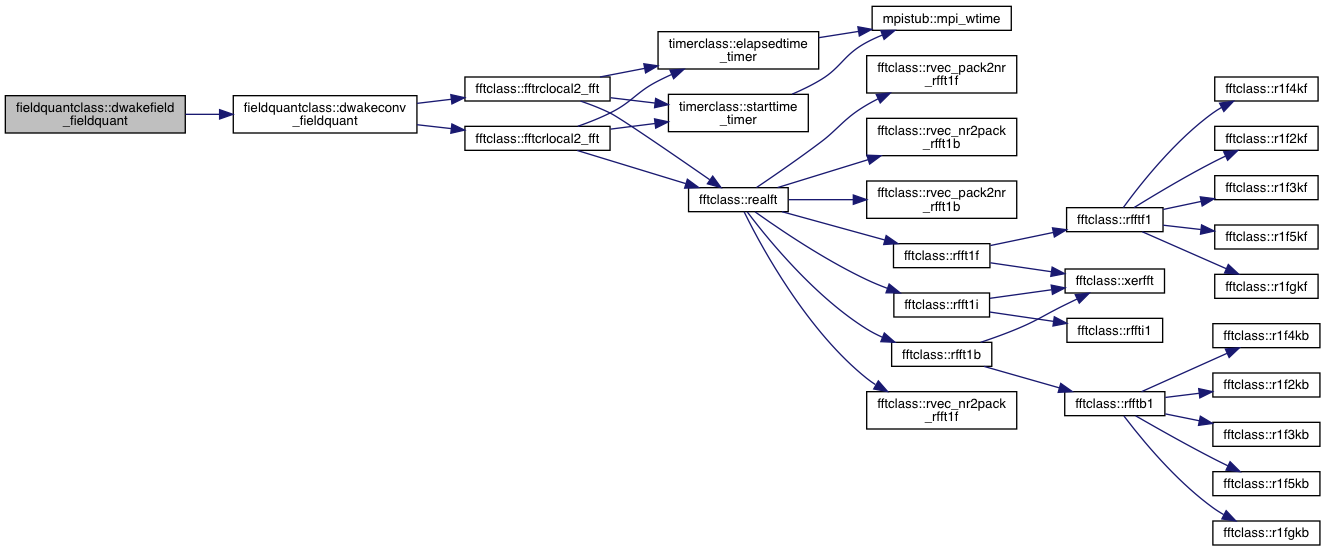

Here is the call graph for this function:

Here is the caller graph for this function:

func1()

double precision function fieldquantclass::func1	(	double precision	x,
		double precision	c1,
		double precision	c2
	)

Here is the caller graph for this function:

func2()

double precision function fieldquantclass::func2	(	double precision	x,
		double precision	c1,
		double precision	c3
	)

Here is the caller graph for this function:

get_fieldquant()

double precision function fieldquantclass::get_fieldquant	(	type (fieldquant), intent(in)	this,
		integer, intent(in)	i,
		integer, intent(in)	j,
		integer, intent(in)	k
	)

Here is the caller graph for this function:

getglb_fieldquant()

subroutine fieldquantclass::getglb_fieldquant	(	type (fieldquant), intent(in)	this,
		type (fieldquant), intent(out)	temp
	)

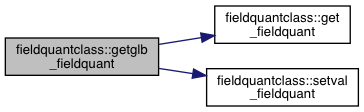

Here is the call graph for this function:

getlcgrid_fieldquant()

subroutine fieldquantclass::getlcgrid_fieldquant	(	type (fieldquant), intent(in)	this,
		integer, intent(out)	nxlc,
		integer, intent(out)	nylc,
		integer, intent(out)	nzlc
	)

gradeb_fieldquant()

subroutine fieldquantclass::gradeb_fieldquant	(	integer, intent(in)	innx,
		integer, intent(in)	inny,
		integer, intent(in)	innz,
			temppotent,
		type (compdom), intent(in)	ptsgeom,
		type (pgrid2d), intent(in)	grid,
		integer, intent(in)	Flagbc,
		double precision, intent(in)	gammaz,
		integer, intent(in)	FlagImage,
			egxout,
			egyout,
			egzout,
			bgxout,
			bgyout,
			bgzout
	)

find the E and B fields in the lab frame from the potential on the grid of beam frame.

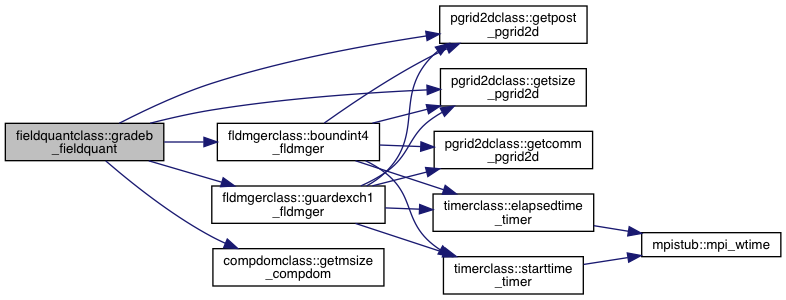

Here is the call graph for this function:

Here is the caller graph for this function:

greenf1tintnew2()

subroutine fieldquantclass::greenf1tintnew2	(	integer, intent(in)	nx,
		integer, intent(in)	ny,
		integer, intent(in)	nz,
		integer, intent(in)	nsizez,
		integer, intent(in)	nsizey,
		integer, intent(in)	nsizexy,
			nsizey
	)

green function for extended array.

Here is the call graph for this function:

Here is the caller graph for this function:

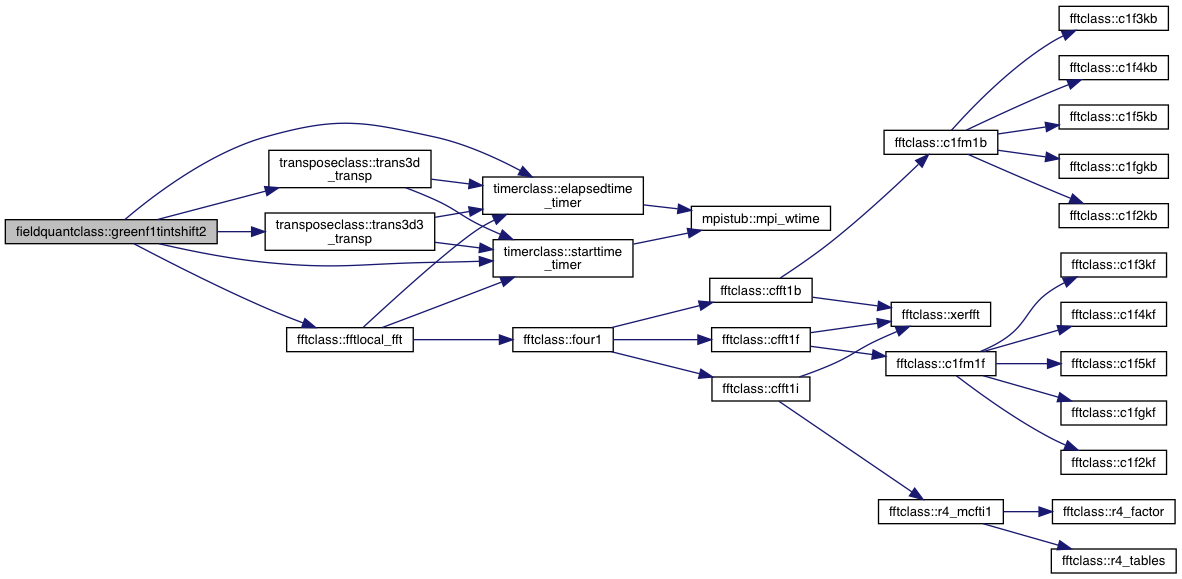

greenf1tintshift2()

subroutine fieldquantclass::greenf1tintshift2	(	integer, intent(in)	nx,
		integer, intent(in)	ny,
		integer, intent(in)	nz,
		integer, intent(in)	nsizez,
		integer, intent(in)	nsizey,
		integer, intent(in)	nsizexy,
			nsiz
	)

green function for extended array.

Here is the call graph for this function:

Here is the caller graph for this function:

icsrcasea()

double precision function fieldquantclass::icsrcasea	(	double precision	phih,
		double precision	ssh,
		double precision	xk2
	)

Here is the caller graph for this function:

icsrcaseb()

double precision function fieldquantclass::icsrcaseb	(	double precision	ssh,
		double precision	xk2
	)

Here is the caller graph for this function:

icsrcasec()

double precision function fieldquantclass::icsrcasec	(	double precision	phimh,
		double precision	xxbarh,
		double precision	ssh,
		double precision	xk2
	)

Here is the caller graph for this function:

icsrcased()

double precision function fieldquantclass::icsrcased	(	double precision	xxbarh,
		double precision	psimax,
		double precision	ssh,
		double precision	xk2,
		double precision	epstol,
		integer	Nmax
	)

Here is the caller graph for this function:

openbc3dnew()

subroutine fieldquantclass::openbc3dnew	(	integer, intent(in)	innx,
		integer, intent(in)	inny,
		integer, intent(in)	innz,
		double precision, dimension(innx,inny,innz), intent(inout)	rho,
		double precision, intent(in)	hx,
		double precision, intent(in)	hy,
		double precision, intent(in)	hz,
		integer, intent(in)	nxpylc2,
		integer, intent(in)	nypzlc2,
		integer, intent(in)	myidz,
		integer, intent(in)	myidy,
		integer, intent(in)	npz,
		integer, intent(in)	npy,
		integer, intent(in)	commrow,
		integer, intent(in)	commcol,
		integer, intent(in)	comm2d,
		integer, dimension(0:npz-1), intent(in)	pztable,
		integer, dimension(0:npy-1), intent(in)	pytable,
		integer, dimension(0:npz-1), intent(in)	ypzstable,
		integer, dimension(0:npy-1), intent(in)	xpystable,
		integer, intent(in)	inxglb,
		integer, intent(in)	inyglb,
		integer, intent(in)	inzglb,
			rhoImg,
		integer, intent(in)	flagImage,
		double precision, intent(in)	zshift
	)

Solving Poisson's equation with open BCs.

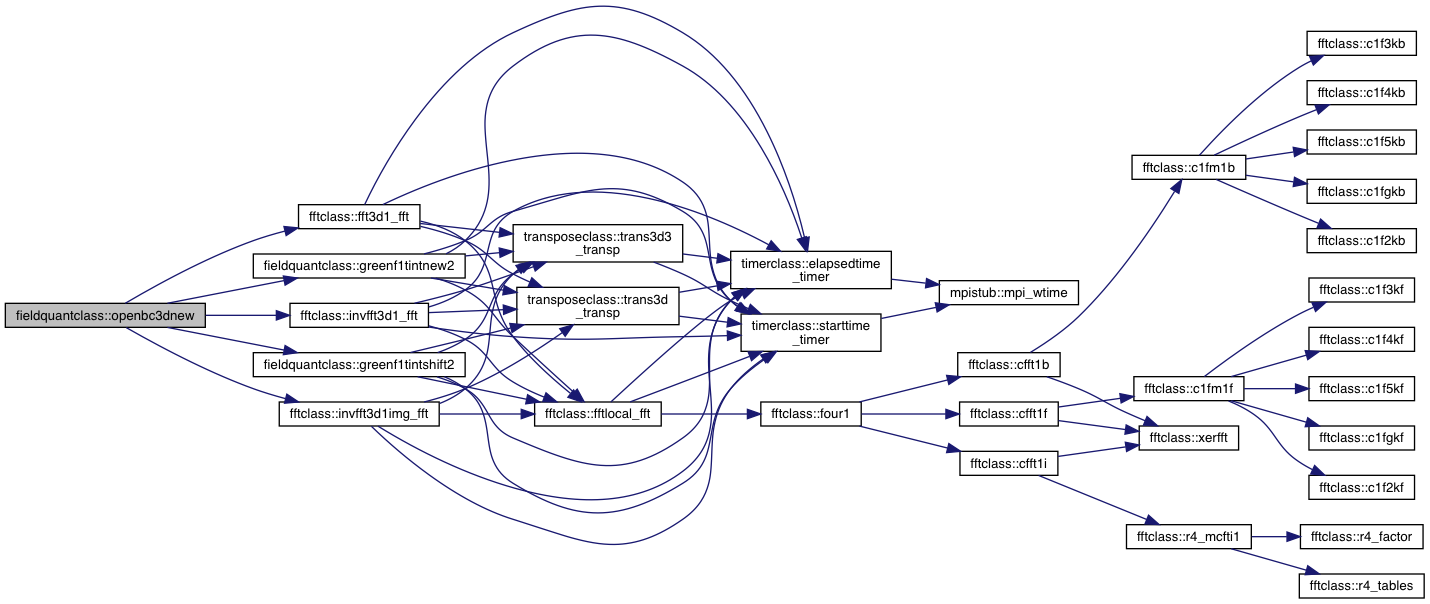

Here is the call graph for this function:

Here is the caller graph for this function:

psiroot()

subroutine fieldquantclass::psiroot	(	real*8	r0,
		real*8	xx,
		real*8	deltas,
		real*8	psi,
		real*8	eps,
		integer	Nmax
	)

find the psi in equation 12 of Stupakov and Emma's paper

Here is the caller graph for this function:

set_fieldquant()

subroutine fieldquantclass::set_fieldquant	(	type (fieldquant), intent(inout)	this,
		integer, intent(in)	innx,
		integer, intent(in)	inny,
		integer, intent(in)	innz,
		type (compdom), intent(in)	geom,
		type (pgrid2d), intent(in)	grid,
		integer, intent(in)	nprx,
		integer, intent(in)	npry
	)

set field quantity.

Here is the call graph for this function:

Here is the caller graph for this function:

setval_fieldquant()

subroutine fieldquantclass::setval_fieldquant	(	type (fieldquant), intent(out)	this,
		integer, intent(in)	i,
		integer, intent(in)	j,
		integer, intent(in)	k,
		double precision, intent(in)	value
	)

Here is the caller graph for this function:

update3otnew_fieldquant()

subroutine fieldquantclass::update3otnew_fieldquant	(	type (fieldquant), intent(inout)	this,
			source,
		type (compdom), intent(in)	fldgeom,
		type (pgrid2d), intent(in)	grid,
		integer, intent(in)	nxlc
	)

update potential (solving Possion's equation) with 3D isolated boundary conditions. Here, image charge potential along z also calculated

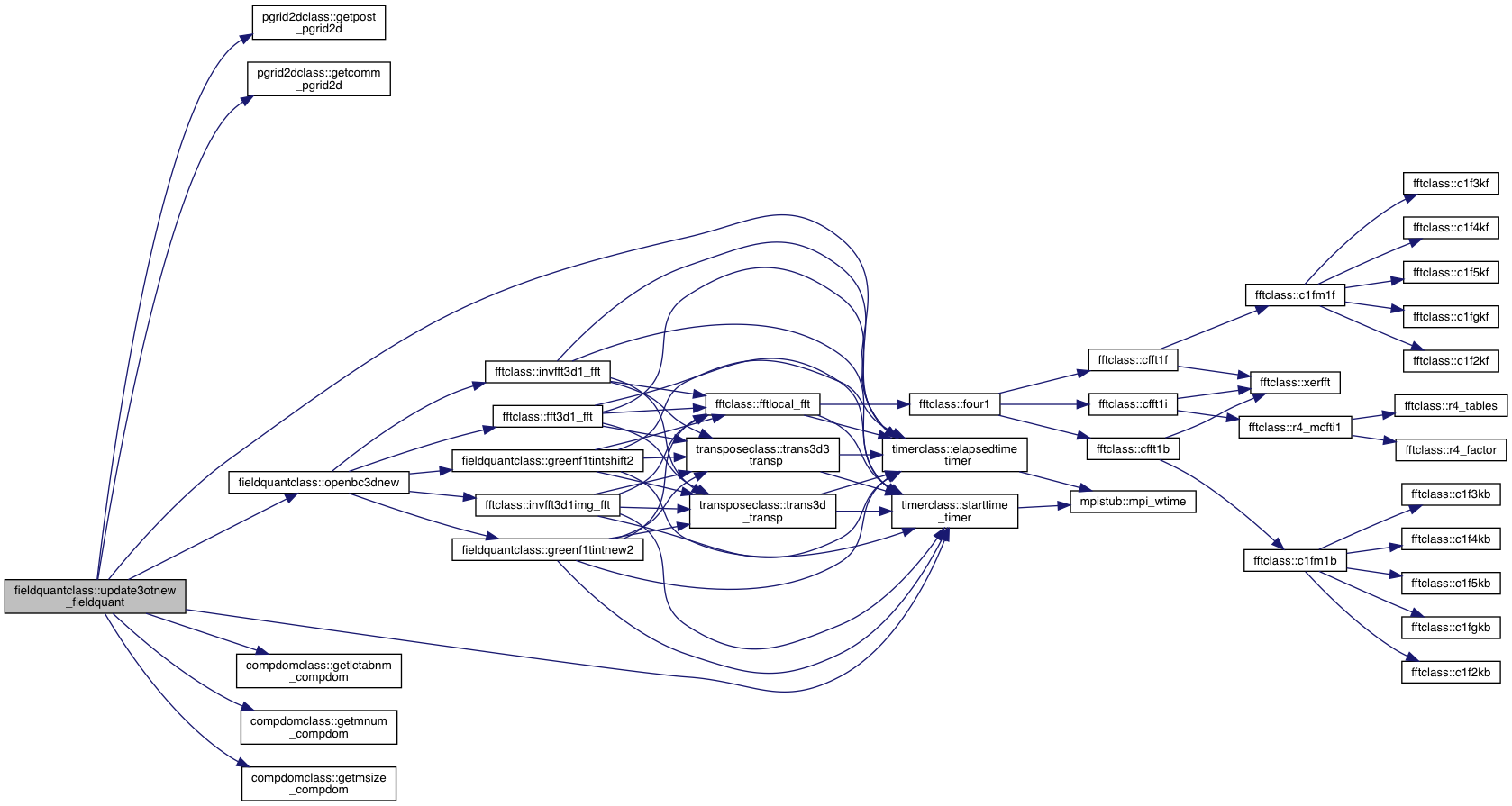

Here is the call graph for this function:

Here is the caller graph for this function:

wakefield_fieldquant()

subroutine fieldquantclass::wakefield_fieldquant	(	integer, intent(in)	Nz,
		double precision, dimension(nz), intent(in)	xwakez,
		double precision, dimension(nz), intent(in)	ywakez,
		double precision, dimension(nz,2), intent(in)	recvdensz,
		double precision, dimension(nz), intent(out)	exwake
	)

longitudinal and transverse wakefield

Here is the call graph for this function:

Here is the caller graph for this function:

wakereadin_fieldquant()

subroutine fieldquantclass::wakereadin_fieldquant	(	integer, intent(in)	Nz,
		double precision, dimension(nz), intent(in)	xwakez,
		double precision, dimension(nz), intent(in)	ywakez,
		double precision, dimension(nz,2), intent(in)	recvdensz,
			exwak
	)

longitudinal and transverse wakefield on a beam using the readin longitudinal and transverse wake functions

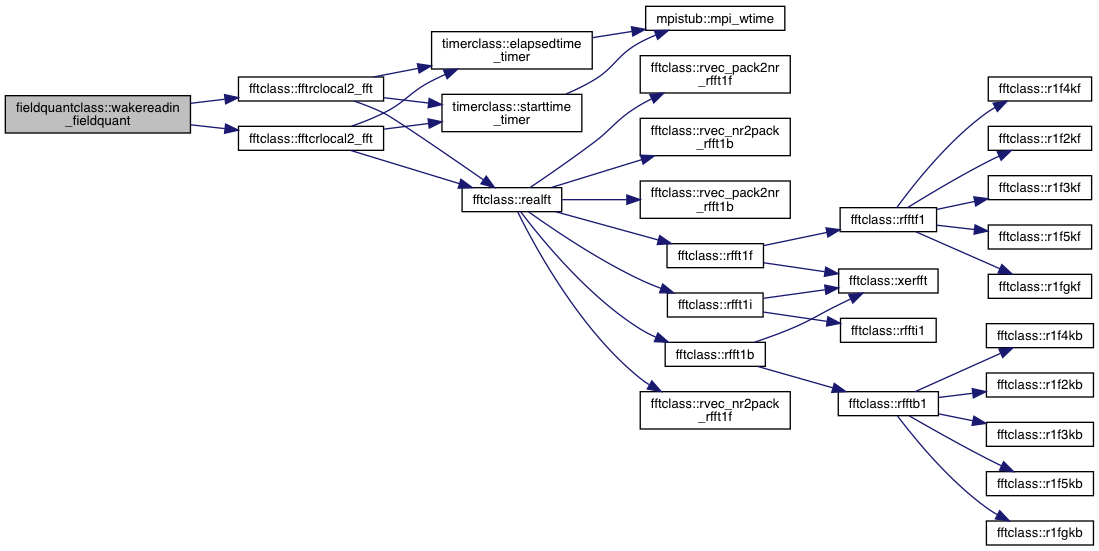

Here is the call graph for this function:

Here is the caller graph for this function:
