multipoleclass Module Reference

This class defines the linear transfer map and field for the multipole (sextupole, octupole, decapole) beam line elment. More...

Data Types
interface	getparam_multipole
type	multipole
interface	setparam_multipole

Functions/Subroutines
subroutine	construct_multipole (this, numseg, nmpstp, type, blength)
subroutine	setparam1_multipole (this, i, value)
subroutine	setparam2_multipole (this, values)
subroutine	setparam3_multipole (this, numseg, nmpstp, type, blength)
subroutine	getparam1_multipole (this, i, blparam)
subroutine	getparam2_multipole (this, blparams)
subroutine	getparam3_multipole (this, blength, bnseg, bmapstp, btype)
subroutine	maplinear_multipole (t, tau, xm, this, refpt, Bchg, Bmass)
subroutine	rk6i_multipole (h, ns, t, y, nvar, this, Bchg, Bmass)
subroutine	intfunc1_multipole (t, y, f, this, Bchg, Bmass)
subroutine	getflderr_multipole (pos, extfld, this, dx, dy, anglex, angley, anglez)
	get external field with displacement and rotation errors. More...
subroutine	getflderrt_multipole (pos, extfld, this)
	get external field with displacement and rotation errors. More...
subroutine	getfld_multipole (pos, extfld, this)
	get external field without displacement and rotation errors. More...
subroutine	getfldfrg_multipole (zz, this, bgrad)
	interpolate the field from the SC rf cavity onto bunch location. More...

Variables
integer, parameter, private	nparam = 10

Detailed Description

This class defines the linear transfer map and field for the multipole (sextupole, octupole, decapole) beam line elment.

Author

Ji Qiang

---

Data Type Documentation

multipoleclass::multipole

type multipoleclass::multipole

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_multipole()

subroutine multipoleclass::construct_multipole	(	type (multipole), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getfld_multipole()

subroutine multipoleclass::getfld_multipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (multipole), intent(in)	this
	)

get external field without displacement and rotation errors.

Here is the call graph for this function:

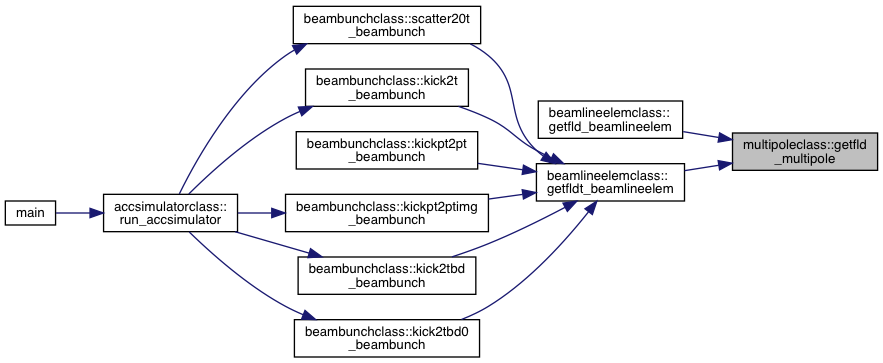

Here is the caller graph for this function:

getflderr_multipole()

subroutine multipoleclass::getflderr_multipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (multipole), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley,
		double precision, intent(in)	anglez
	)

get external field with displacement and rotation errors.

Here is the call graph for this function:

Here is the caller graph for this function:

getflderrt_multipole()

subroutine multipoleclass::getflderrt_multipole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (multipole), intent(in)	this
	)

get external field with displacement and rotation errors.

Here is the call graph for this function:

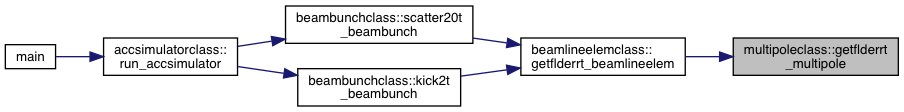

Here is the caller graph for this function:

getfldfrg_multipole()

subroutine multipoleclass::getfldfrg_multipole	(	double precision, intent(in)	zz,
		type (multipole), intent(in)	this,
		double precision, intent(out)	bgrad
	)

interpolate the field from the SC rf cavity onto bunch location.

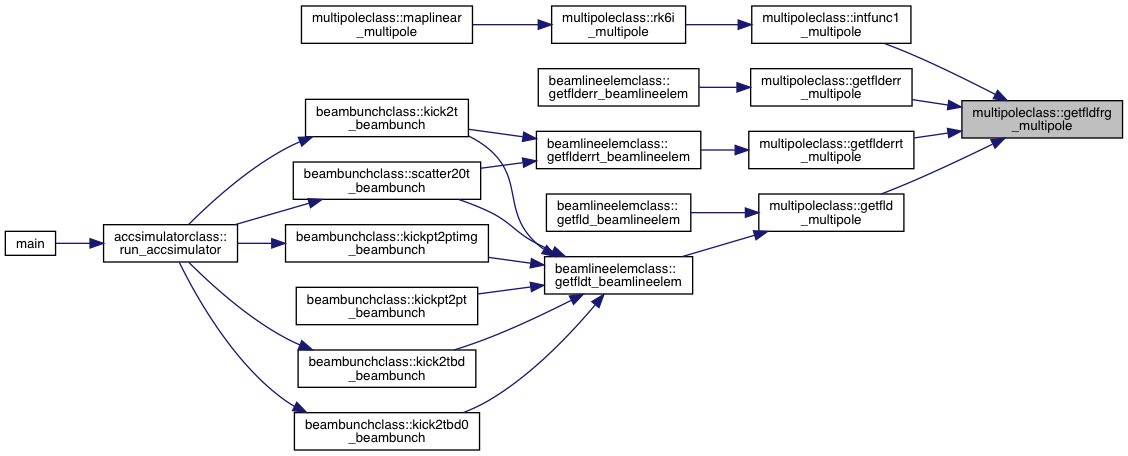

Here is the caller graph for this function:

getparam1_multipole()

subroutine multipoleclass::getparam1_multipole	(	type (multipole), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_multipole()

subroutine multipoleclass::getparam2_multipole	(	type (multipole), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_multipole()

subroutine multipoleclass::getparam3_multipole	(	type (multipole), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

intfunc1_multipole()

subroutine multipoleclass::intfunc1_multipole	(	double precision, intent(in)	t,
		double precision, dimension(:), intent(in)	y,
		double precision, dimension(:), intent(out)	f,
		type (multipole), intent(in)	this,
		double precision, intent(in)	Bchg,
		double precision, intent(in)	Bmass
	)

Here is the call graph for this function:

Here is the caller graph for this function:

maplinear_multipole()

subroutine multipoleclass::maplinear_multipole	(	double precision, intent(in)	t,
		double precision, intent(in)	tau,
		double precision, dimension(6,6), intent(out)	xm,
		type (multipole), intent(in)	this,
		double precision, dimension(6), intent(inout)	refpt,
		double precision, intent(in)	Bchg,
		double precision, intent(in)	Bmass
	)

Here is the call graph for this function:

rk6i_multipole()

subroutine multipoleclass::rk6i_multipole	(	double precision, intent(in)	h,
		integer, intent(in)	ns,
		double precision, intent(inout)	t,
		double precision, dimension(nvar), intent(inout)	y,
		integer, intent(in)	nvar,
		type (multipole), intent(in)	this,
		double precision, intent(in)	Bchg,
		double precision, intent(in)	Bmass
	)

Here is the call graph for this function:

Here is the caller graph for this function:

setparam1_multipole()

subroutine multipoleclass::setparam1_multipole	(	type (multipole), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_multipole()

subroutine multipoleclass::setparam2_multipole	(	type (multipole), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_multipole()

subroutine multipoleclass::setparam3_multipole	(	type (multipole), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private multipoleclass::nparam = 10

private
