quadrupoleclass Module Reference

This class defines the linear transfer map and field for the quadrupole beam line elment. More...

Data Types
interface	getparam_quadrupole
type	quadrupole
interface	setparam_quadrupole

Functions/Subroutines
subroutine	construct_quadrupole (this, numseg, nmpstp, type, blength)
subroutine	setparam1_quadrupole (this, i, value)
subroutine	setparam2_quadrupole (this, values)
subroutine	setparam3_quadrupole (this, numseg, nmpstp, type, blength)
subroutine	getparam1_quadrupole (this, i, blparam)
subroutine	getparam2_quadrupole (this, blparams)
subroutine	getparam3_quadrupole (this, blength, bnseg, bmapstp, btype)
subroutine	getflderr_quadrupole (pos, extfld, this, dx, dy, anglex, angley, anglez)
	get external field with displacement and rotation errors. More...
subroutine	getfld_quadrupole (pos, extfld, this)
	get external field without displacement and rotation errors. here, the skew quad can can be modeled with nonzero anglez More...
subroutine	getfldfrg_quadrupole (zz, this, bgrad)
	interpolate the field from the SC rf cavity onto bunch location. More...
subroutine	getfldfrgana_quadrupole (zz, this, bgrad)
subroutine	getfldfrgana2_quadrupole (zz, this, bgrad, bgradp, bgradpp
subroutine	getflderrt_quadrupole (pos, extfld, this)
	get external field with displacement and rotation errors. More...

Variables
integer, parameter, private	nparam = 11

Detailed Description

This class defines the linear transfer map and field for the quadrupole beam line elment.

Author

Ji Qiang

---

Data Type Documentation

quadrupoleclass::quadrupole

type quadrupoleclass::quadrupole

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_quadrupole()

subroutine quadrupoleclass::construct_quadrupole	(	type (quadrupole), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getfld_quadrupole()

subroutine quadrupoleclass::getfld_quadrupole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (quadrupole), intent(in)	this
	)

get external field without displacement and rotation errors. here, the skew quad can can be modeled with nonzero anglez

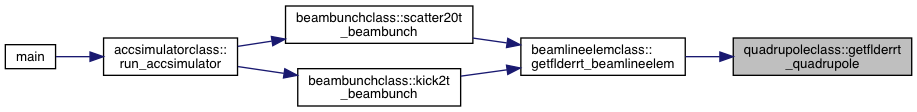

Here is the call graph for this function:

Here is the caller graph for this function:

getflderr_quadrupole()

subroutine quadrupoleclass::getflderr_quadrupole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (quadrupole), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley,
		double precision, intent(in)	anglez
	)

get external field with displacement and rotation errors.

Here is the call graph for this function:

Here is the caller graph for this function:

getflderrt_quadrupole()

subroutine quadrupoleclass::getflderrt_quadrupole	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (quadrupole), intent(in)	this
	)

get external field with displacement and rotation errors.

Here is the call graph for this function:

Here is the caller graph for this function:

getfldfrg_quadrupole()

subroutine quadrupoleclass::getfldfrg_quadrupole	(	double precision, intent(in)	zz,
		type (quadrupole), intent(in)	this,
		double precision, intent(out)	bgrad
	)

interpolate the field from the SC rf cavity onto bunch location.

getfldfrgana2_quadrupole()

subroutine quadrupoleclass::getfldfrgana2_quadrupole	(	double precision, intent(in)	zz,
		type (quadrupole), intent(in)	this,
		double precision, intent(out)	bgrad,
		double precision	bgradp,
		double precision	bgradpp
	)

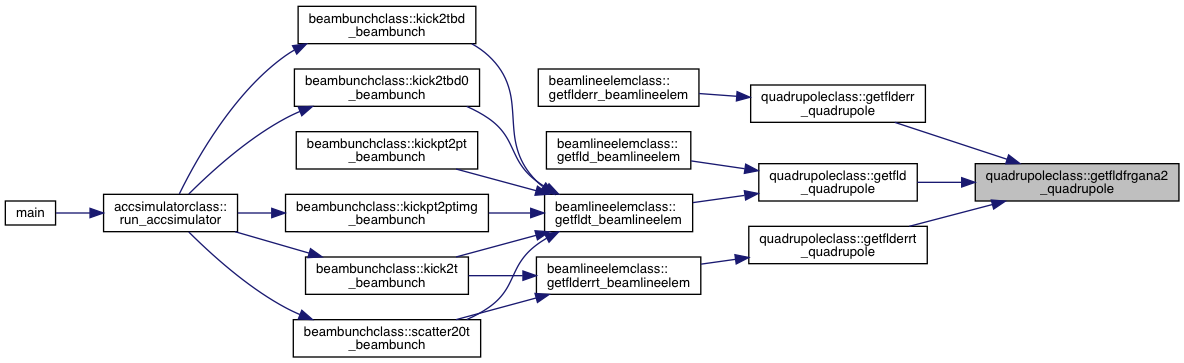

Here is the caller graph for this function:

getfldfrgana_quadrupole()

subroutine quadrupoleclass::getfldfrgana_quadrupole	(	double precision, intent(in)	zz,
		type (quadrupole), intent(in)	this,
		double precision, intent(out)	bgrad
	)

getparam1_quadrupole()

subroutine quadrupoleclass::getparam1_quadrupole	(	type (quadrupole), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_quadrupole()

subroutine quadrupoleclass::getparam2_quadrupole	(	type (quadrupole), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_quadrupole()

subroutine quadrupoleclass::getparam3_quadrupole	(	type (quadrupole), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

setparam1_quadrupole()

subroutine quadrupoleclass::setparam1_quadrupole	(	type (quadrupole), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_quadrupole()

subroutine quadrupoleclass::setparam2_quadrupole	(	type (quadrupole), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_quadrupole()

subroutine quadrupoleclass::setparam3_quadrupole	(	type (quadrupole), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private quadrupoleclass::nparam = 11

private
