solclass Module Reference

This class defines the linear transfer map and field for the Solenoid beam line elment. More...

Data Types
interface	getparam_sol
interface	setparam_sol
type	sol

Functions/Subroutines
subroutine	construct_sol (this, numseg, nmpstp, type, blength)
subroutine	setparam1_sol (this, i, value)
subroutine	setparam2_sol (this, values)
subroutine	setparam3_sol (this, numseg, nmpstp, type, blength)
subroutine	getparam1_sol (this, i, blparam)
subroutine	getparam2_sol (this, blparams)
subroutine	getparam3_sol (this, blength, bnseg, bmapstp, btype)
subroutine	getbgradfld_sol (z, this, b0, bgrad)
subroutine	getflderr_sol (pos, extfld, this, dx, dy, anglex, angley, anglez)
	get external field with displacement and rotation errors. More...
subroutine	getfld_sol (pos, extfld, this)
	get external field without displacement and rotation errors and with fringe field of Solenoid. (f(z) = b0 + bb*z^2 + cc*z^4,f(x0)=0,f'(x0)=0) More...
subroutine	getfldt_sol (pos, extfld, this, fldata)
	get the discrete Br, Bz as a function or "r" at given "z". More...

Variables
integer, parameter, private	nparam = 9

Detailed Description

This class defines the linear transfer map and field for the Solenoid beam line elment.

Authors

Ji Qiang

---

Data Type Documentation

solclass::sol

type solclass::sol

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_sol()

subroutine solclass::construct_sol	(	type (sol), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getbgradfld_sol()

subroutine solclass::getbgradfld_sol	(	double precision, intent(in)	z,
		type (sol), intent(in)	this,
		double precision, intent(out)	b0,
		double precision, intent(out)	bgrad
	)

getfld_sol()

subroutine solclass::getfld_sol	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (sol), intent(in)	this
	)

get external field without displacement and rotation errors and with fringe field of Solenoid. (f(z) = b0 + bb*z^2 + cc*z^4,f(x0)=0,f'(x0)=0)

Here is the caller graph for this function:

getflderr_sol()

subroutine solclass::getflderr_sol	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (sol), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley,
		double precision, intent(in)	anglez
	)

get external field with displacement and rotation errors.

Here is the caller graph for this function:

getfldt_sol()

subroutine solclass::getfldt_sol	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (sol), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get the discrete Br, Bz as a function or "r" at given "z".

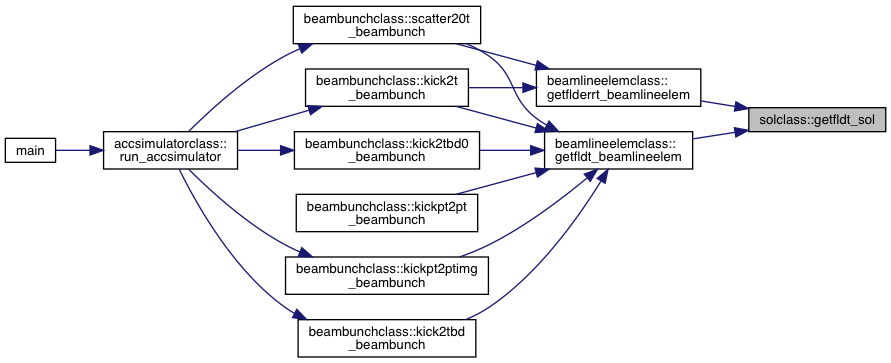

Here is the caller graph for this function:

getparam1_sol()

subroutine solclass::getparam1_sol	(	type (sol), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_sol()

subroutine solclass::getparam2_sol	(	type (sol), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_sol()

subroutine solclass::getparam3_sol	(	type (sol), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

setparam1_sol()

subroutine solclass::setparam1_sol	(	type (sol), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_sol()

subroutine solclass::setparam2_sol	(	type (sol), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_sol()

subroutine solclass::setparam3_sol	(	type (sol), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private solclass::nparam = 9

private
