solrfclass Module Reference

This class defines the linear transfer map and RF field for the Sol-RF beam line elment. More...

Data Types
interface	getparam_solrf
interface	setparam_solrf
type	solrf

Functions/Subroutines
subroutine	construct_solrf (this, numseg, nmpstp, type, blength)
subroutine	setparam1_solrf (this, i, value)
subroutine	setparam2_solrf (this, values)
subroutine	setparam3_solrf (this, numseg, nmpstp, type, blength)
subroutine	getparam1_solrf (this, i, blparam)
subroutine	getparam2_solrf (this, blparams)
subroutine	getparam3_solrf (this, blength, bnseg, bmapstp, btype)
subroutine	getaxflde_solrf (z, this, ez1, ezp1, ezpp1)
	interpolate the field from the SolRF rf cavity onto bunch location. More...
subroutine	getbgradfld_solrf (z, this, b0, bgrad)
subroutine	getflderr_solrf (pos, extfld, this, dx, dy, anglex, angley,
	get external field with displacement and rotation errors. More...
subroutine	getfld_solrf (pos, extfld, this)
	get external field without displacement and rotation errors. More...
subroutine	getfldt_solrf (pos, extfld, this, fldata)
	get external field without displacement and rotation errors. More...
subroutine	getflderrt_solrf (pos, extfld, this, fldata)
	get external field with displacement and rotation errors. More...
subroutine	getvecat_solrf (pos, extfld, this, fldata)
	get external field without displacement and rotation errors. More...

Variables
integer, parameter, private	nparam = 12

Detailed Description

This class defines the linear transfer map and RF field for the Sol-RF beam line elment.

Author

Ji Qiang

---

Data Type Documentation

solrfclass::solrf

type solrfclass::solrf

Data Fields
integer	itype
double precision	length
integer	mapstp
integer	nseg
double precision, dimension(nparam)	param

Function/Subroutine Documentation

construct_solrf()

subroutine solrfclass::construct_solrf	(	type (solrf), intent(out)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

getaxflde_solrf()

subroutine solrfclass::getaxflde_solrf	(	double precision, intent(in)	z,
		type (solrf), intent(in)	this,
		double precision, intent(out)	ez1,
		double precision, intent(out)	ezp1,
		double precision, intent(out)	ezpp1
	)

interpolate the field from the SolRF rf cavity onto bunch location.

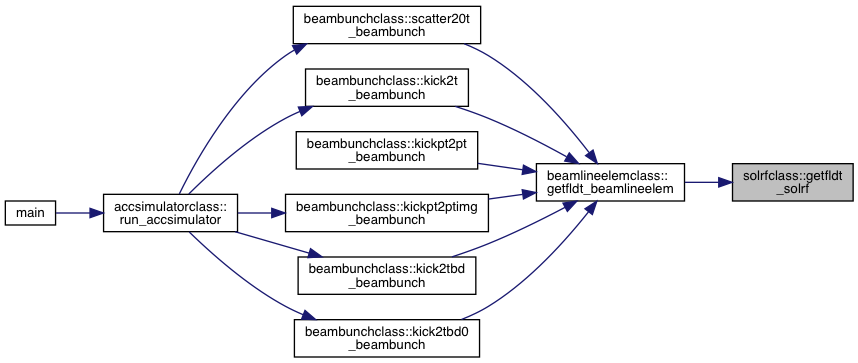

Here is the caller graph for this function:

getbgradfld_solrf()

subroutine solrfclass::getbgradfld_solrf	(	double precision, intent(in)	z,
		type (solrf), intent(in)	this,
		double precision, intent(out)	b0,
		double precision, intent(out)	bgrad
	)

getfld_solrf()

subroutine solrfclass::getfld_solrf	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (solrf), intent(in)	this
	)

get external field without displacement and rotation errors.

Here is the caller graph for this function:

getflderr_solrf()

subroutine solrfclass::getflderr_solrf	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (solrf), intent(in)	this,
		double precision, intent(in)	dx,
		double precision, intent(in)	dy,
		double precision, intent(in)	anglex,
		double precision, intent(in)	angley
	)

get external field with displacement and rotation errors.

Here is the caller graph for this function:

getflderrt_solrf()

subroutine solrfclass::getflderrt_solrf	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (solrf), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get external field with displacement and rotation errors.

Here is the caller graph for this function:

getfldt_solrf()

subroutine solrfclass::getfldt_solrf	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(6), intent(out)	extfld,
		type (solrf), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get external field without displacement and rotation errors.

Here is the caller graph for this function:

getparam1_solrf()

subroutine solrfclass::getparam1_solrf	(	type (solrf), intent(in)	this,
		integer, intent(in)	i,
		double precision, intent(out)	blparam
	)

getparam2_solrf()

subroutine solrfclass::getparam2_solrf	(	type (solrf), intent(in)	this,
		double precision, dimension(:), intent(out)	blparams
	)

getparam3_solrf()

subroutine solrfclass::getparam3_solrf	(	type (solrf), intent(in)	this,
		double precision, intent(out)	blength,
		integer, intent(out)	bnseg,
		integer, intent(out)	bmapstp,
		integer, intent(out)	btype
	)

getvecat_solrf()

subroutine solrfclass::getvecat_solrf	(	double precision, dimension(4), intent(in)	pos,
		double precision, dimension(3), intent(out)	extfld,
		type (solrf), intent(in)	this,
		type (fielddata), intent(in)	fldata
	)

get external field without displacement and rotation errors.

setparam1_solrf()

subroutine solrfclass::setparam1_solrf	(	type (solrf), intent(inout)	this,
		integer, intent(in)	i,
		double precision, intent(in)	value
	)

setparam2_solrf()

subroutine solrfclass::setparam2_solrf	(	type (solrf), intent(inout)	this,
		double precision, dimension(:), intent(in)	values
	)

setparam3_solrf()

subroutine solrfclass::setparam3_solrf	(	type (solrf), intent(inout)	this,
		integer, intent(in)	numseg,
		integer, intent(in)	nmpstp,
		integer, intent(in)	type,
		double precision, intent(in)	blength
	)

Variable Documentation

nparam

integer, parameter, private solrfclass::nparam = 12

private
