Abstract base class for Hierarchically Semi-Separable (HSS) matrices. More...

#include <HSSMatrixBase.hpp>

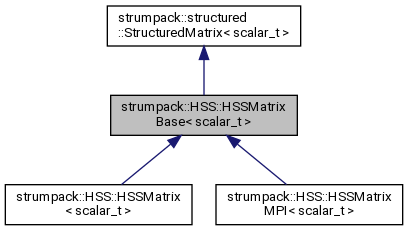

Inheritance diagram for strumpack::HSS::HSSMatrixBase< scalar_t >:

[legend]

Collaboration diagram for strumpack::HSS::HSSMatrixBase< scalar_t >:

Public Member Functions
	HSSMatrixBase (std::size_t m, std::size_t n, bool active)

virtual	~HSSMatrixBase ()=default

	HSSMatrixBase (const HSSMatrixBase< scalar_t > &other)

HSSMatrixBase< scalar_t > &	operator= (const HSSMatrixBase< scalar_t > &other)

	HSSMatrixBase (HSSMatrixBase &&h)=default

HSSMatrixBase &	operator= (HSSMatrixBase &&h)=default

virtual std::unique_ptr< HSSMatrixBase< scalar_t > >	clone () const =0

std::pair< std::size_t, std::size_t >	dims () const

std::size_t	rows () const override

std::size_t	cols () const override

bool	leaf () const

virtual std::size_t	factor_nonzeros () const

const HSSMatrixBase< scalar_t > &	child (int c) const

HSSMatrixBase< scalar_t > &	child (int c)

bool	is_compressed () const

bool	is_untouched () const

bool	active () const

virtual std::size_t	levels () const =0

virtual void	print_info (std::ostream &out=std::cout, std::size_t roff=0, std::size_t coff=0) const =0

void	set_openmp_task_depth (int depth)

virtual void	shift (scalar_t sigma) override=0

virtual void	draw (std::ostream &of, std::size_t rlo, std::size_t clo) const

virtual void	forward_solve (WorkSolveMPI< scalar_t > &w, const DistM_t &b, bool partial) const

virtual void	backward_solve (WorkSolveMPI< scalar_t > &w, DistM_t &x) const

virtual const BLACSGrid *	grid () const

virtual const BLACSGrid *	grid (const BLACSGrid *local_grid) const

virtual const BLACSGrid *	grid_local () const

virtual int	Ptotal () const

virtual int	Pactive () const

virtual void	to_block_row (const DistM_t &A, DenseM_t &sub_A, DistM_t &leaf_A) const

virtual void	allocate_block_row (int d, DenseM_t &sub_A, DistM_t &leaf_A) const

virtual void	from_block_row (DistM_t &A, const DenseM_t &sub_A, const DistM_t &leaf_A, const BLACSGrid *lg) const

Public Member Functions inherited from strumpack::structured::StructuredMatrix< scalar_t >
virtual	~StructuredMatrix ()=default

virtual std::size_t	memory () const =0

virtual std::size_t	nonzeros () const =0

virtual std::size_t	rank () const =0

virtual std::size_t	local_rows () const

virtual std::size_t	begin_row () const

virtual std::size_t	end_row () const

virtual const std::vector< int > &	dist () const

virtual const std::vector< int > &	rdist () const

virtual const std::vector< int > &	cdist () const

virtual void	mult (Trans op, const DenseMatrix< scalar_t > &x, DenseMatrix< scalar_t > &y) const

void	mult (Trans op, int m, const scalar_t x, int ldx, scalar_t y, int ldy) const

virtual void	mult (Trans op, const DistributedMatrix< scalar_t > &x, DistributedMatrix< scalar_t > &y) const

virtual void	factor ()

virtual void	solve (DenseMatrix< scalar_t > &b) const

virtual void	solve (int nrhs, scalar_t *b, int ldb) const

virtual void	solve (DistributedMatrix< scalar_t > &b) const

Friends
class	HSSMatrix< scalar_t >

class	HSSMatrixMPI< scalar_t >

Detailed Description

template<typename scalar_t>
class strumpack::HSS::HSSMatrixBase< scalar_t >

Abstract base class for Hierarchically Semi-Separable (HSS) matrices.

This is for non-symmetric HSS matrices, but can be used with symmetric matrices as well.

Template Parameters

scalar_t Can be float, double, std:complex<float> or std::complex<double>.

See also: HSSMatrix, HSSMatrixMPI

Constructor & Destructor Documentation

◆ HSSMatrixBase() [1/3]

template<typename scalar_t >

strumpack::HSS::HSSMatrixBase< scalar_t >::HSSMatrixBase	(	std::size_t	m,
		std::size_t	n,
		bool	active
	)

Construct an m x n HSS matrix, not initialized.

Parameters

m	number of rows
n	number of columns
active	Denote if this matrix (node) is active on this process.

◆ ~HSSMatrixBase()

template<typename scalar_t >

virtual strumpack::HSS::HSSMatrixBase< scalar_t >::~HSSMatrixBase ( )

virtualdefault

Default virtual destructor.

◆ HSSMatrixBase() [2/3]

template<typename scalar_t >

strumpack::HSS::HSSMatrixBase< scalar_t >::HSSMatrixBase ( const HSSMatrixBase< scalar_t > & other )

Copy constructor.

Parameters

other HSS matrix to copy.

◆ HSSMatrixBase() [3/3]

template<typename scalar_t >

strumpack::HSS::HSSMatrixBase< scalar_t >::HSSMatrixBase ( HSSMatrixBase< scalar_t > && h )

default

Move constructor.

Parameters

h	HSS matrix to move from, h will be emptied.

Member Function Documentation

◆ active()

template<typename scalar_t >

bool strumpack::HSS::HSSMatrixBase< scalar_t >::active ( ) const

inline

Check if this HSS matrix (or node in the HSS tree) is active on this rank.

Returns: True if this node is active, false otherwise.

◆ child() [1/2]

template<typename scalar_t >

HSSMatrixBase<scalar_t>& strumpack::HSS::HSSMatrixBase< scalar_t >::child ( int c )

inline

Return a reference to the child (0, or 1) of this HSS matrix. This is only valid when !this->leaf(). It is assumed that a non-leaf node always has exactly 2 children.

Parameters

c	Number of the child, should be 0 or 1, for the left or the right child.

Returns: Reference to the child (HSSMatrixBase).

◆ child() [2/2]

template<typename scalar_t >

const HSSMatrixBase<scalar_t>& strumpack::HSS::HSSMatrixBase< scalar_t >::child ( int c ) const

inline

Return a const reference to the child (0, or 1) of this HSS matrix. This is only valid when !this->leaf(). It is assumed that a non-leaf node always has exactly 2 children.

Parameters

c	Number of the child, should be 0 or 1, for the left or the right child.

Returns: Const reference to the child (HSSMatrixBase).

◆ clone()

template<typename scalar_t >

virtual std::unique_ptr<HSSMatrixBase<scalar_t> > strumpack::HSS::HSSMatrixBase< scalar_t >::clone ( ) const

pure virtual

Clone this HSS matrix. TODO delete this??

Returns: std::unique_ptr to a clone of this HSS matrix.

Implemented in strumpack::HSS::HSSMatrixMPI< scalar_t >, and strumpack::HSS::HSSMatrix< scalar_t >.

◆ cols()

template<typename scalar_t >

std::size_t strumpack::HSS::HSSMatrixBase< scalar_t >::cols ( ) const

inlineoverridevirtual

Return the number of columns in this HSS matrix.

Returns: number of columns

Implements strumpack::structured::StructuredMatrix< scalar_t >.

◆ dims()

template<typename scalar_t >

std::pair<std::size_t,std::size_t> strumpack::HSS::HSSMatrixBase< scalar_t >::dims ( ) const

inline

Returns the dimensions of this HSS matrix, as a pair.

Returns: pair with number of rows and columns of this HSS matrix.

◆ draw()

template<typename scalar_t >

virtual void strumpack::HSS::HSSMatrixBase< scalar_t >::draw	(	std::ostream &	of,
		std::size_t	rlo,
		std::size_t	clo
	)		const

inlinevirtual

Internal routine to draw this HSS matrix. Do not use this directly. Use HSS::draw.

See also: HSS::draw

Reimplemented in strumpack::HSS::HSSMatrix< scalar_t >.

◆ is_compressed()

template<typename scalar_t >

bool strumpack::HSS::HSSMatrixBase< scalar_t >::is_compressed ( ) const

inline

Check whether the HSS matrix was compressed.

Returns: True if this HSS matrix was succesfully compressed, false otherwise.

See also: is_untouched

◆ is_untouched()

template<typename scalar_t >

bool strumpack::HSS::HSSMatrixBase< scalar_t >::is_untouched ( ) const

inline

Check whether the HSS compression was started for this matrix.

Returns: True if HSS compression was not started yet, false otherwise. False may mean that compression was started but failed, or that compression succeeded.

See also: is_compressed

◆ leaf()

template<typename scalar_t >

bool strumpack::HSS::HSSMatrixBase< scalar_t >::leaf ( ) const

inline

Check whether this node of the HSS tree is a leaf.

Returns: true if this node is a leaf, false otherwise.

◆ levels()

template<typename scalar_t >

virtual std::size_t strumpack::HSS::HSSMatrixBase< scalar_t >::levels ( ) const

pure virtual

Return the number of levels in the HSS matrix.

Returns: Number of HSS levels (>= 1).

Implemented in strumpack::HSS::HSSMatrixMPI< scalar_t >, and strumpack::HSS::HSSMatrix< scalar_t >.

◆ operator=() [1/2]

template<typename scalar_t >

HSSMatrixBase<scalar_t>& strumpack::HSS::HSSMatrixBase< scalar_t >::operator= ( const HSSMatrixBase< scalar_t > & other )

Copy assignment operator, makes a deep copy.

Parameters

other HSS matrix to copy.

Returns: reference to this HSS matrix.

◆ operator=() [2/2]

template<typename scalar_t >

HSSMatrixBase& strumpack::HSS::HSSMatrixBase< scalar_t >::operator= ( HSSMatrixBase< scalar_t > && h )

default

Move assignment operator.

Parameters

h	HSS matrix to move from, h will be emptied.

Returns: reference to this HSS matrix.

◆ print_info()

template<typename scalar_t >

virtual void strumpack::HSS::HSSMatrixBase< scalar_t >::print_info	(	std::ostream &	out = `std::cout`,
		std::size_t	roff = `0`,
		std::size_t	coff = `0`
	)		const

pure virtual

Print info about this HSS matrix, such as tree info, ranks, etc.

Parameters

out	Stream to print to, defaults to std::cout
roff	Row offset of top left corner, defaults to 0. This is used to recursively print the tree, you can leave this at the default.
coff	Column offset of top left corner, defaults to 0. This is used to recursively print the tree, you can leave this at the default.

Implemented in strumpack::HSS::HSSMatrixMPI< scalar_t >, and strumpack::HSS::HSSMatrix< scalar_t >.

◆ rows()

template<typename scalar_t >

std::size_t strumpack::HSS::HSSMatrixBase< scalar_t >::rows ( ) const

inlineoverridevirtual

Return the number of rows in this HSS matrix.

Returns: number of rows

Implements strumpack::structured::StructuredMatrix< scalar_t >.

◆ set_openmp_task_depth()

template<typename scalar_t >

void strumpack::HSS::HSSMatrixBase< scalar_t >::set_openmp_task_depth ( int depth )

inline

Set the depth of openmp nested tasks. This can be used to limit the number of tasks to spawn in the HSS routines, which is can reduce task creation overhead. This is used in the sparse solver when multiple HSS matrices are created from within multiple openmp tasks. The HSS routines all use openmp tasking to traverse the HSS tree and for parallelism within the HSS nodes as well.

◆ shift()

template<typename scalar_t >

virtual void strumpack::HSS::HSSMatrixBase< scalar_t >::shift ( scalar_t sigma )

overridepure virtual

Apply a shift to the diagonal of this matrix. Ie, this += sigma * I, with I the identity matrix. Call this after compression.

Parameters

sigma Shift to be applied to the diagonal.

Reimplemented from strumpack::structured::StructuredMatrix< scalar_t >.

Implemented in strumpack::HSS::HSSMatrixMPI< scalar_t >, and strumpack::HSS::HSSMatrix< scalar_t >.

The documentation for this class was generated from the following file:

/home/pieterg/LBL/STRUMPACK/src/HSS/HSSMatrixBase.hpp
