Distributed SuperLU data types and function prototypes. More...

#include "superlu_defs.h"

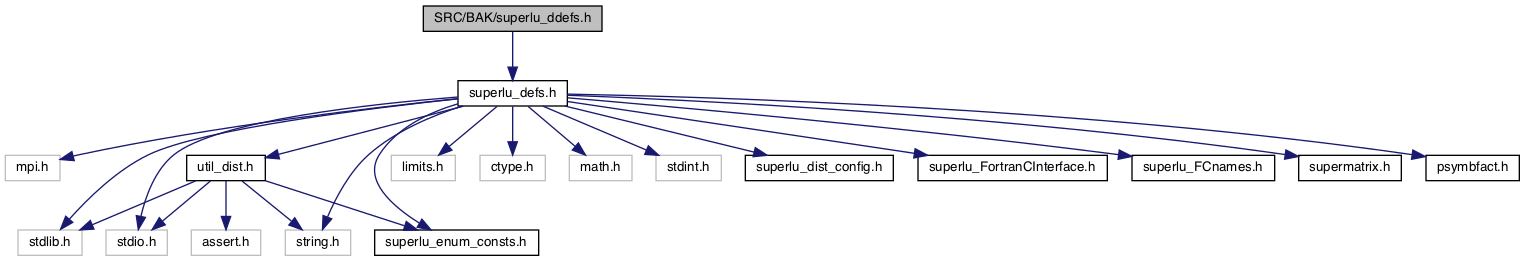

Include dependency graph for superlu_ddefs.h:

Classes
struct	dScalePermstruct_t

struct	dLocalLU_t

struct	dLUstruct_t

struct	pdgsmv_comm_t

struct	dSOLVEstruct_t

struct	uPanelInfo_t

struct	lPanelInfo_t

struct	HyP_t

struct	dLUValSubBuf_t

struct	trf3Dpartition_t

struct	dscuBufs_t

struct	ddiagFactBufs_t

struct	packLUInfo_t

Macros
#define	MAX_LOOKAHEADS 50

Functions
int_t	scuStatUpdate (int_t knsupc, HyP_t HyP, SCT_t SCT, SuperLUStat_t *stat)

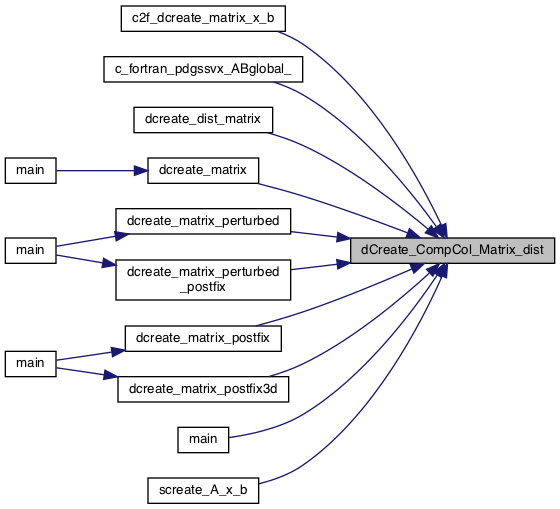

void	dCreate_CompCol_Matrix_dist (SuperMatrix , int_t, int_t, int_t, double , int_t , int_t , Stype_t, Dtype_t, Mtype_t)

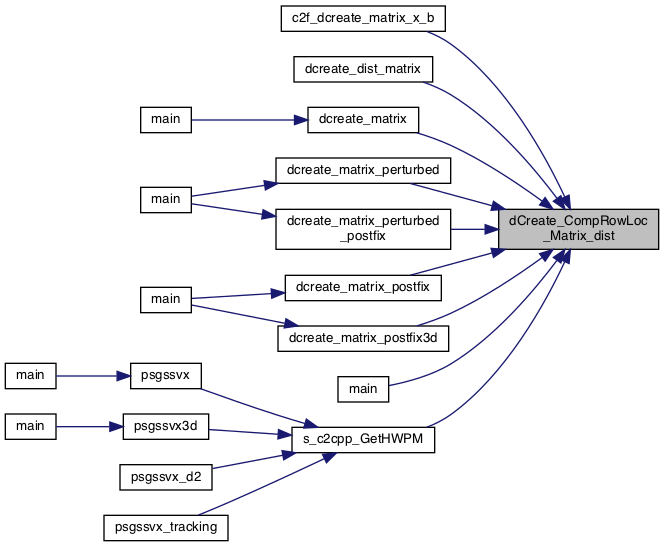

void	dCreate_CompRowLoc_Matrix_dist (SuperMatrix , int_t, int_t, int_t, int_t, int_t, double , int_t , int_t , Stype_t, Dtype_t, Mtype_t)

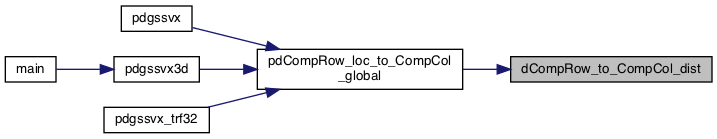

void	dCompRow_to_CompCol_dist (int_t, int_t, int_t, double , int_t , int_t , double , int_t , int_t *)

int	pdCompRow_loc_to_CompCol_global (int_t, SuperMatrix , gridinfo_t , SuperMatrix *)
	Gather A from the distributed compressed row format to global A in compressed column format. More...

void	dCopy_CompCol_Matrix_dist (SuperMatrix , SuperMatrix )

void	dCreate_Dense_Matrix_dist (SuperMatrix , int_t, int_t, double , int_t, Stype_t, Dtype_t, Mtype_t)

void	dCreate_SuperNode_Matrix_dist (SuperMatrix , int_t, int_t, int_t, double , int_t , int_t , int_t , int_t , int_t *, Stype_t, Dtype_t, Mtype_t)

void	dCopy_Dense_Matrix_dist (int_t, int_t, double , int_t, double , int_t)

void	dallocateA_dist (int_t, int_t, double , int_t , int_t **)

void	dGenXtrue_dist (int_t, int_t, double *, int_t)

void	dFillRHS_dist (char , int_t, double , int_t, SuperMatrix , double , int_t)
	Let rhs[i] = sum of i-th row of A, so the solution vector is all 1's. More...

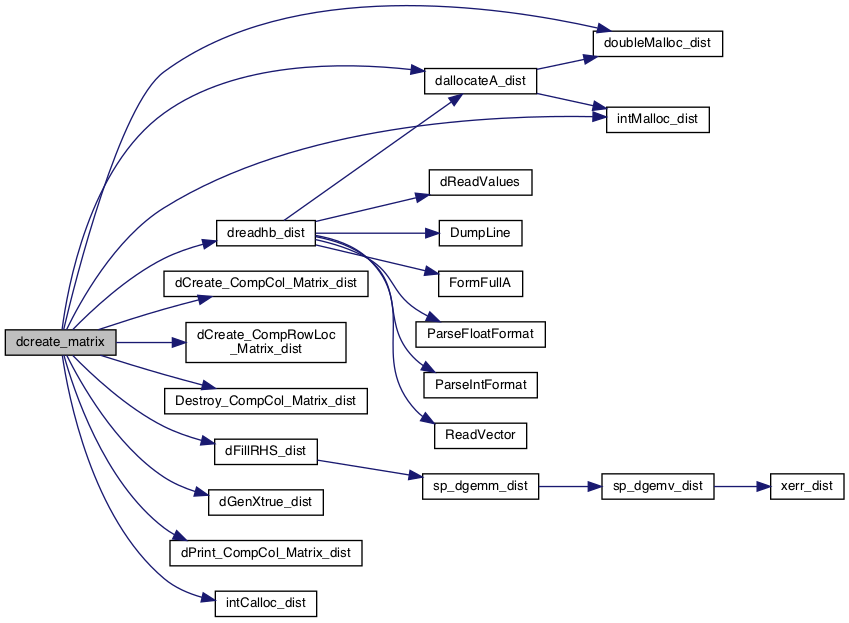

int	dcreate_matrix (SuperMatrix , int, double , int , double *, int , FILE , gridinfo_t )

int	dcreate_matrix_rb (SuperMatrix , int, double , int , double *, int , FILE , gridinfo_t )

int	dcreate_matrix_dat (SuperMatrix , int, double , int , double *, int , FILE , gridinfo_t )

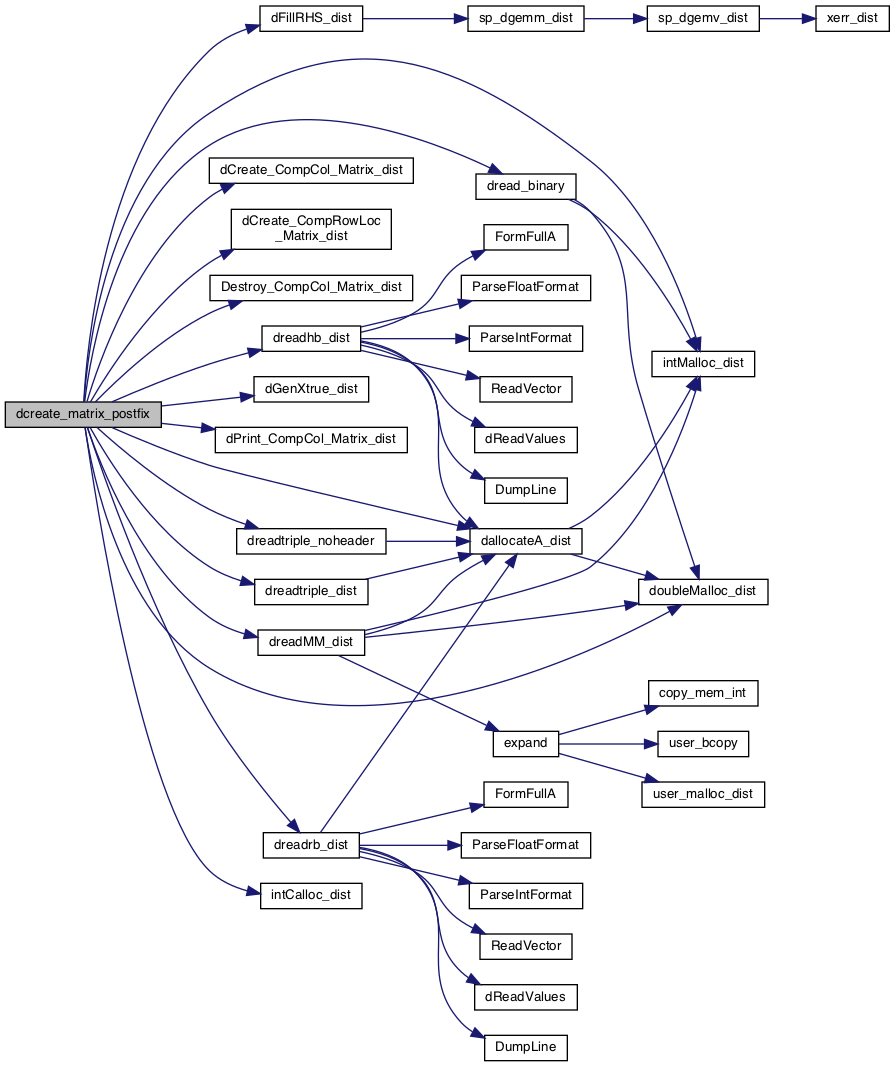

int	dcreate_matrix_postfix (SuperMatrix , int, double , int , double *, int , FILE , char , gridinfo_t *)

void	dScalePermstructInit (const int_t, const int_t, dScalePermstruct_t *)
	Allocate storage in ScalePermstruct. More...

void	dScalePermstructFree (dScalePermstruct_t *)
	Deallocate ScalePermstruct. More...

void	dgsequ_dist (SuperMatrix , double , double , double , double , double , int_t *)

double	dlangs_dist (char , SuperMatrix )

void	dlaqgs_dist (SuperMatrix , double , double , double, double, double, char )

void	pdgsequ (SuperMatrix , double , double , double , double , double , int_t , gridinfo_t )

double	pdlangs (char , SuperMatrix , gridinfo_t *)

void	pdlaqgs (SuperMatrix , double , double , double, double, double, char )

int	pdPermute_Dense_Matrix (int_t, int_t, int_t[], int_t[], double[], int, double[], int, int, gridinfo_t *)
	Permute the distributed dense matrix: B <= perm(X). perm[i] = j means the i-th row of X is in the j-th row of B. More...

int	sp_dtrsv_dist (char , char , char , SuperMatrix , SuperMatrix , double , int *)

int	sp_dgemv_dist (char , double, SuperMatrix , double , int, double, double , int)
	SpGEMV. More...

int	sp_dgemm_dist (char , int, double, SuperMatrix , double , int, double, double , int)

float	ddistribute (fact_t, int_t, SuperMatrix , Glu_freeable_t , dLUstruct_t , gridinfo_t )

void	pdgssvx_ABglobal (superlu_dist_options_t , SuperMatrix , dScalePermstruct_t , double , int, int, gridinfo_t , dLUstruct_t , double , SuperLUStat_t , int *)

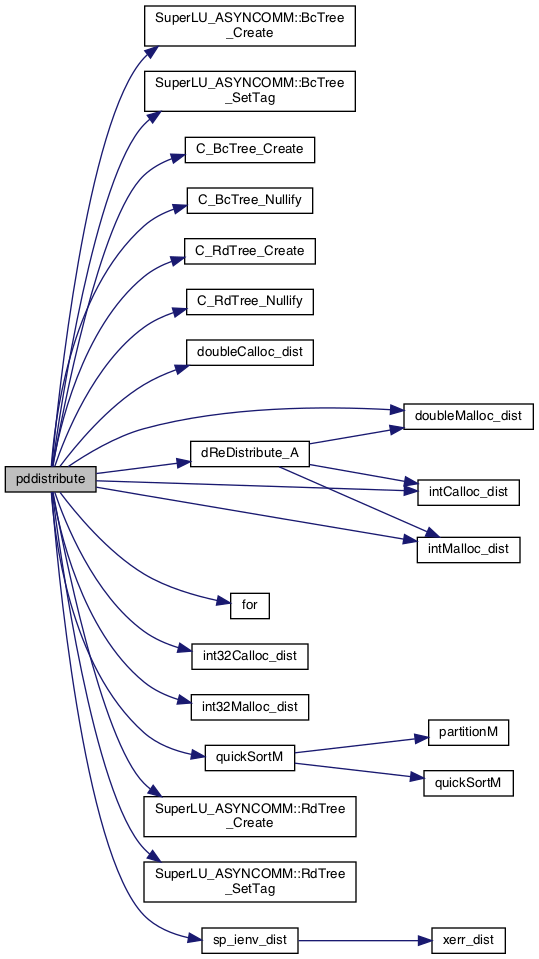

float	pddistribute (fact_t, int_t, SuperMatrix , dScalePermstruct_t , Glu_freeable_t , dLUstruct_t , gridinfo_t *)

void	pdgssvx (superlu_dist_options_t , SuperMatrix , dScalePermstruct_t , double , int, int, gridinfo_t , dLUstruct_t , dSOLVEstruct_t , double , SuperLUStat_t , int )

void	pdCompute_Diag_Inv (int_t, dLUstruct_t , gridinfo_t , SuperLUStat_t , int )

int	dSolveInit (superlu_dist_options_t , SuperMatrix , int_t[], int_t[], int_t, dLUstruct_t , gridinfo_t , dSOLVEstruct_t *)
	Initialize the data structure for the solution phase. More...

void	dSolveFinalize (superlu_dist_options_t , dSOLVEstruct_t )
	Release the resources used for the solution phase. More...

void	dDestroy_A3d_gathered_on_2d (dSOLVEstruct_t , gridinfo3d_t )

int_t	pdgstrs_init (int_t, int_t, int_t, int_t, int_t[], int_t[], gridinfo_t grid, Glu_persist_t , dSOLVEstruct_t *)

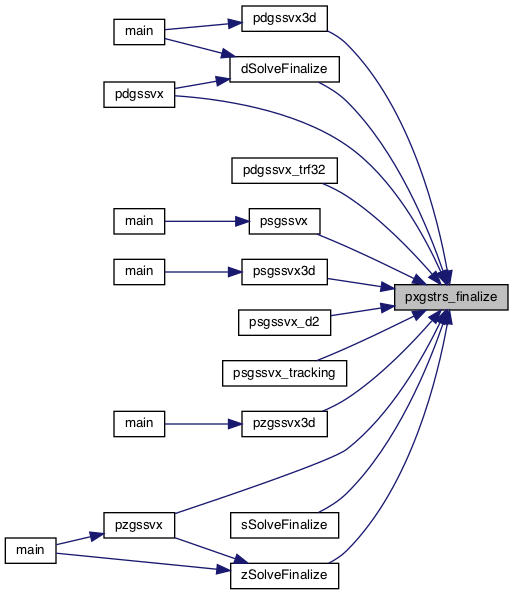

void	pxgstrs_finalize (pxgstrs_comm_t *)

int	dldperm_dist (int, int, int_t, int_t[], int_t[], double[], int_t *, double[], double[])

int	dstatic_schedule (superlu_dist_options_t , int, int, dLUstruct_t , gridinfo_t , SuperLUStat_t , int_t , int_t , int *)

void	dLUstructInit (const int_t, dLUstruct_t *)
	Allocate storage in LUstruct. More...

void	dLUstructFree (dLUstruct_t *)
	Deallocate LUstruct. More...

void	dDestroy_LU (int_t, gridinfo_t , dLUstruct_t )
	Destroy distributed L & U matrices. More...

void	dDestroy_Tree (int_t, gridinfo_t , dLUstruct_t )
	Destroy broadcast and reduction trees used in triangular solve. More...

void	dscatter_l (int ib, int ljb, int nsupc, int_t iukp, int_t xsup, int klst, int nbrow, int_t lptr, int temp_nbrow, int_t usub, int_t lsub, double tempv, int indirect_thread, int indirect2, int_t Lrowind_bc_ptr, double Lnzval_bc_ptr, gridinfo_t *grid)

void	dscatter_u (int ib, int jb, int nsupc, int_t iukp, int_t xsup, int klst, int nbrow, int_t lptr, int temp_nbrow, int_t lsub, int_t usub, double tempv, int_t Ufstnz_br_ptr, double Unzval_br_ptr, gridinfo_t *grid)

int_t	pdgstrf (superlu_dist_options_t , int, int, double anorm, dLUstruct_t , gridinfo_t , SuperLUStat_t , int *)

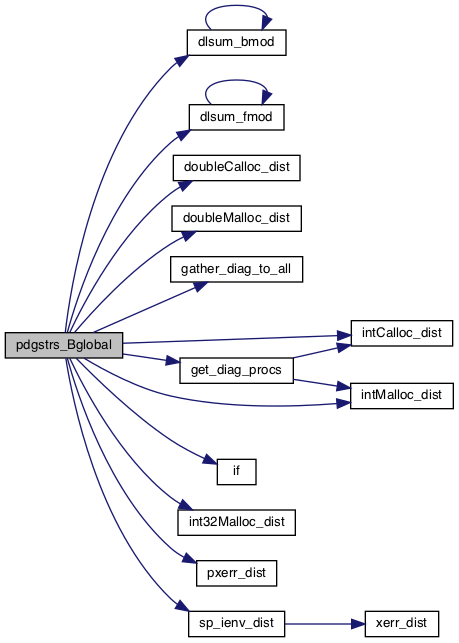

void	pdgstrs_Bglobal (int_t, dLUstruct_t , gridinfo_t , double , int_t, int, SuperLUStat_t , int *)

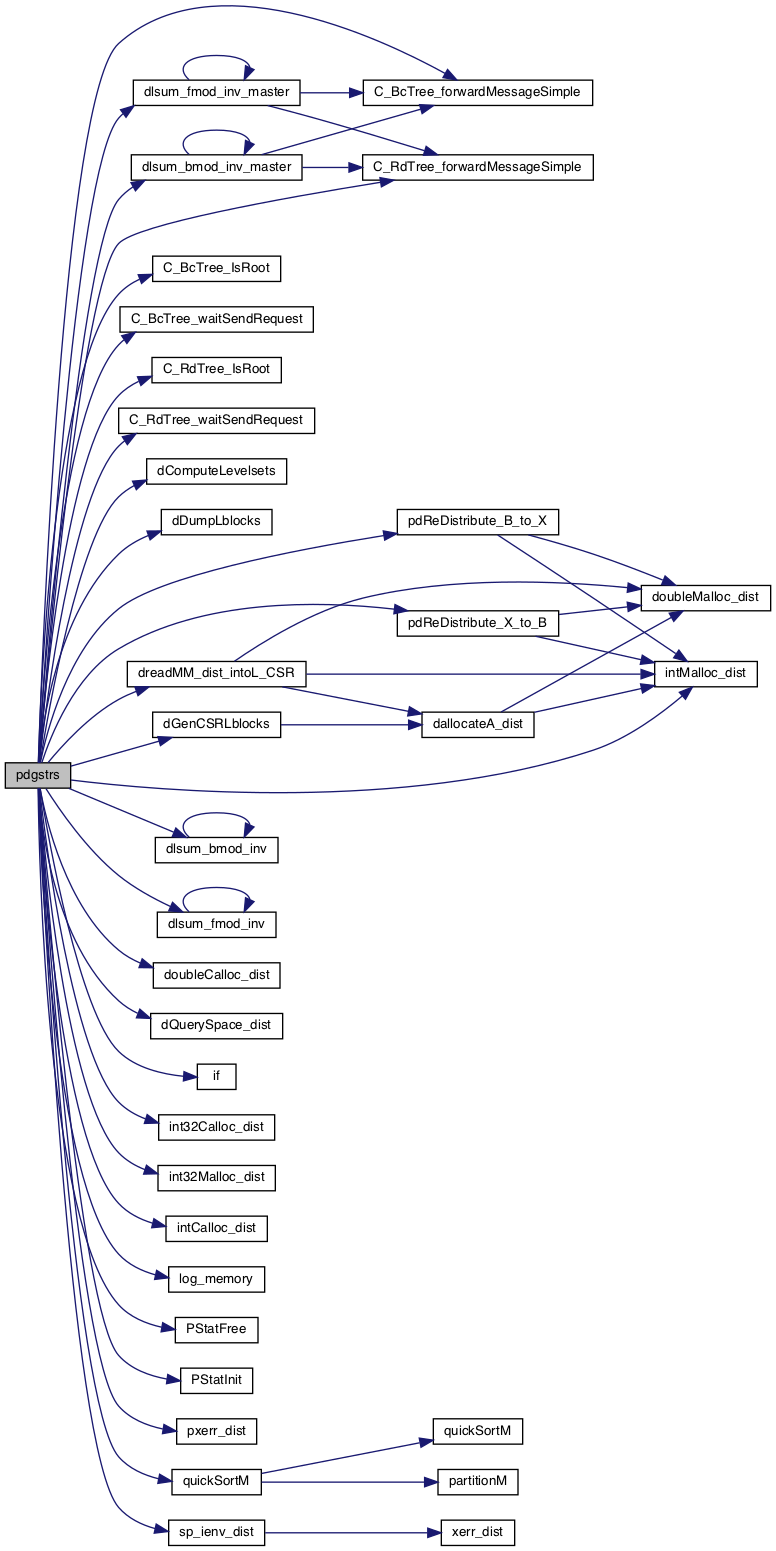

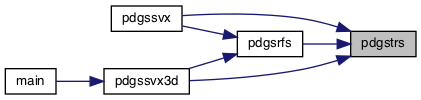

void	pdgstrs (int_t, dLUstruct_t , dScalePermstruct_t , gridinfo_t , double , int_t, int_t, int_t, int, dSOLVEstruct_t , SuperLUStat_t , int *)

void	pdgstrf2_trsm (superlu_dist_options_t options, int_t k0, int_t k, double thresh, Glu_persist_t , gridinfo_t , dLocalLU_t , MPI_Request , int tag_ub, SuperLUStat_t , int *info)

void	pdgstrs2_omp (int_t k0, int_t k, Glu_persist_t , gridinfo_t , dLocalLU_t , Ublock_info_t , SuperLUStat_t *)

int_t	pdReDistribute_B_to_X (double B, int_t m_loc, int nrhs, int_t ldb, int_t fst_row, int_t ilsum, double x, dScalePermstruct_t , Glu_persist_t , gridinfo_t , dSOLVEstruct_t *)

void	dlsum_fmod (double , double , double , double , int, int, int_t, int fmod, int_t, int_t, int_t, int_t , gridinfo_t , dLocalLU_t , MPI_Request[], SuperLUStat_t *)

void	dlsum_bmod (double , double , double , int, int_t, int bmod, int_t , Ucb_indptr_t , int_t , int_t , gridinfo_t , dLocalLU_t , MPI_Request[], SuperLUStat_t *)

void	dlsum_fmod_inv (double , double , double , double , int, int_t, int fmod, int_t , gridinfo_t , dLocalLU_t , SuperLUStat_t *, int_t , int_t *, int_t, int_t, int_t, int_t, int, int)

void	dlsum_fmod_inv_master (double , double , double , double , int, int, int_t, int fmod, int_t, int_t , gridinfo_t , dLocalLU_t , SuperLUStat_t **, int_t, int_t, int_t, int_t, int, int)

void	dlsum_bmod_inv (double , double , double , double , int, int_t, int bmod, int_t , Ucb_indptr_t , int_t , int_t , gridinfo_t , dLocalLU_t , SuperLUStat_t , int_t , int_t *, int_t, int_t, int, int)

void	dlsum_bmod_inv_master (double , double , double , double , int, int_t, int bmod, int_t , Ucb_indptr_t , int_t , int_t , gridinfo_t , dLocalLU_t , SuperLUStat_t *, int_t, int_t, int, int)

void	dComputeLevelsets (int, int_t, gridinfo_t , Glu_persist_t , dLocalLU_t , int_t )

void	pdgsrfs (int_t, SuperMatrix , double, dLUstruct_t , dScalePermstruct_t , gridinfo_t , double[], int_t, double[], int_t, int, dSOLVEstruct_t , double , SuperLUStat_t , int )

void	pdgsrfs_ABXglobal (int_t, SuperMatrix , double, dLUstruct_t , gridinfo_t , double , int_t, double , int_t, int, double , SuperLUStat_t , int )

int	pdgsmv_AXglobal_setup (SuperMatrix , Glu_persist_t , gridinfo_t , int_t , int_t [], double [], int_t *[], int_t[])

int	pdgsmv_AXglobal (int_t, int_t[], double[], int_t[], double[], double[])

int	pdgsmv_AXglobal_abs (int_t, int_t[], double[], int_t[], double[], double[])

void	pdgsmv_init (SuperMatrix , int_t , gridinfo_t , pdgsmv_comm_t )

void	pdgsmv (int_t, SuperMatrix , gridinfo_t , pdgsmv_comm_t *, double x[], double ax[])

void	pdgsmv_finalize (pdgsmv_comm_t *)

double *	doubleMalloc_dist (int_t)

double *	doubleCalloc_dist (int_t)

void *	duser_malloc_dist (int_t, int_t)

void	duser_free_dist (int_t, int_t)

int_t	dQuerySpace_dist (int_t, dLUstruct_t , gridinfo_t , SuperLUStat_t , superlu_dist_mem_usage_t )

void	dClone_CompRowLoc_Matrix_dist (SuperMatrix , SuperMatrix )

void	dCopy_CompRowLoc_Matrix_dist (SuperMatrix , SuperMatrix )

void	dZero_CompRowLoc_Matrix_dist (SuperMatrix *)
	Sets all entries of a matrix to zero, A_{i,j}=0, for i,j=1,..,n. More...

void	dScaleAddId_CompRowLoc_Matrix_dist (SuperMatrix *, double)
	Scale and add I: scales a matrix and adds an identity. A_{i,j} = c * A_{i,j} + \delta_{i,j} for i,j=1,...,n and \delta_{i,j} is the Kronecker delta. More...

void	dScaleAdd_CompRowLoc_Matrix_dist (SuperMatrix , SuperMatrix , double)
	Scale and add: adds a scalar multiple of one matrix to another. A_{i,j} = c * A_{i,j} + B_{i,j}$ for i,j=1,...,n. More...

void	dZeroLblocks (int, int, gridinfo_t , dLUstruct_t )
	Sets all entries of matrix L to zero. More...

void	dZeroUblocks (int iam, int n, gridinfo_t , dLUstruct_t )
	Sets all entries of matrix U to zero. More...

void	dfill_dist (double *, int_t, double)
	Fills a double precision array with a given value. More...

void	dinf_norm_error_dist (int_t, int_t, double , int_t, double , int_t, gridinfo_t *)
	Check the inf-norm of the error vector. More...

void	pdinf_norm_error (int, int_t, int_t, double[], int_t, double[], int_t, MPI_Comm)
	Check the inf-norm of the error vector. More...

void	dreadhb_dist (int, FILE , int_t , int_t , int_t , double , int_t , int_t **)

void	dreadtriple_dist (FILE , int_t , int_t , int_t , double , int_t , int_t **)

void	dreadtriple_noheader (FILE , int_t , int_t , int_t , double , int_t , int_t **)

void	dreadrb_dist (int, FILE , int_t , int_t , int_t , double , int_t , int_t **)

void	dreadMM_dist (FILE , int_t , int_t , int_t , double , int_t , int_t **)

int	dread_binary (FILE , int_t , int_t , int_t , double , int_t , int_t **)

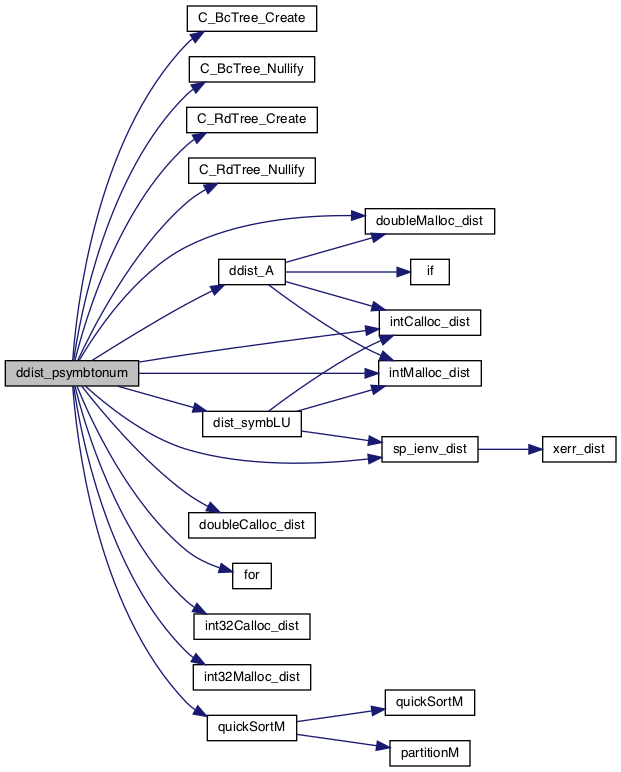

float	ddist_psymbtonum (fact_t, int_t, SuperMatrix , dScalePermstruct_t , Pslu_freeable_t , dLUstruct_t , gridinfo_t *)

void	pdGetDiagU (int_t, dLUstruct_t , gridinfo_t , double *)

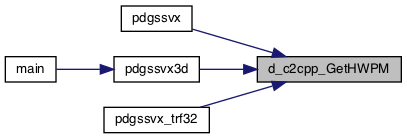

int	d_c2cpp_GetHWPM (SuperMatrix , gridinfo_t , dScalePermstruct_t *)

void	dPrintLblocks (int, int_t, gridinfo_t , Glu_persist_t , dLocalLU_t *)
	Print the blocks in the factored matrix L. More...

void	dPrintUblocks (int, int_t, gridinfo_t , Glu_persist_t , dLocalLU_t *)
	Print the blocks in the factored matrix U. More...

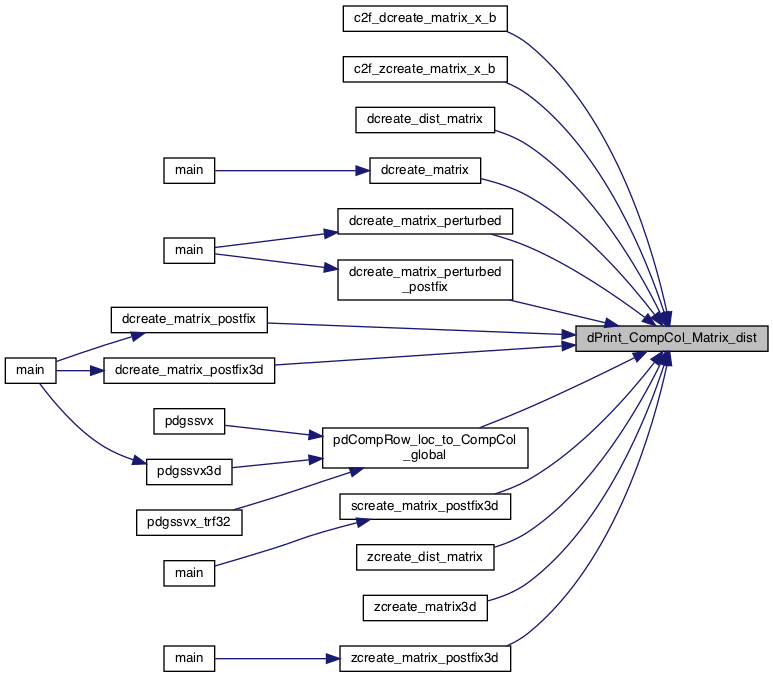

void	dPrint_CompCol_Matrix_dist (SuperMatrix *)

void	dPrint_Dense_Matrix_dist (SuperMatrix *)

int	dPrint_CompRowLoc_Matrix_dist (SuperMatrix *)

int	file_dPrint_CompRowLoc_Matrix_dist (FILE fp, SuperMatrix A)

void	Printdouble5 (char , int_t, double )

int	file_Printdouble5 (FILE , char , int_t, double *)

void	dGenCOOLblocks (int, int_t, gridinfo_t , Glu_persist_t , dLocalLU_t , int_t , int_t , double , int_t , int_t *)

void	dGenCSCLblocks (int, int_t, gridinfo_t , Glu_persist_t , dLocalLU_t , double , int_t , int_t , int_t , int_t *)

void	dGenCSRLblocks (int, int_t, gridinfo_t , Glu_persist_t , dLocalLU_t , double , int_t , int_t , int_t , int_t *)

int	dgemm_ (const char , const char , const int , const int , const int , const double , const double , const int , const double , const int , const double , double , const int *)

int	dtrsv_ (char , char , char , int , double , int , double , int )

int	dtrsm_ (const char , const char , const char , const char , const int , const int , const double , const double , const int , double , const int *)

void	dgemv_ (const char , const int , const int , const double , const double a, const int , const double , const int , const double , double , const int *)

void	dger_ (const int , const int , const double , const double , const int , const double , const int , double , const int *)

int	dscal_ (const int n, const double alpha, double dx, const int incx)

int	daxpy_ (const int n, const double alpha, const double x, const int incx, double y, const int incy)

int	superlu_dgemm (const char transa, const char transb, int m, int n, int k, double alpha, double a, int lda, double b, int ldb, double beta, double *c, int ldc)

int	superlu_dtrsm (const char sideRL, const char uplo, const char transa, const char diag, const int m, const int n, const double alpha, const double a, const int lda, double b, const int ldb)

int	superlu_dger (const int m, const int n, const double alpha, const double x, const int incx, const double y, const int incy, double *a, const int lda)

int	superlu_dscal (const int n, const double alpha, double *x, const int incx)

int	superlu_daxpy (const int n, const double alpha, const double x, const int incx, double y, const int incy)

int	superlu_dgemv (const char trans, const int m, const int n, const double alpha, const double a, const int lda, const double x, const int incx, const double beta, double y, const int incy)

int	superlu_dtrsv (char uplo, char trans, char diag, int n, double a, int lda, double *x, int incx)

int	dcreate_matrix3d (SuperMatrix A, int nrhs, double rhs, int ldb, double *x, int ldx, FILE fp, gridinfo3d_t grid3d)

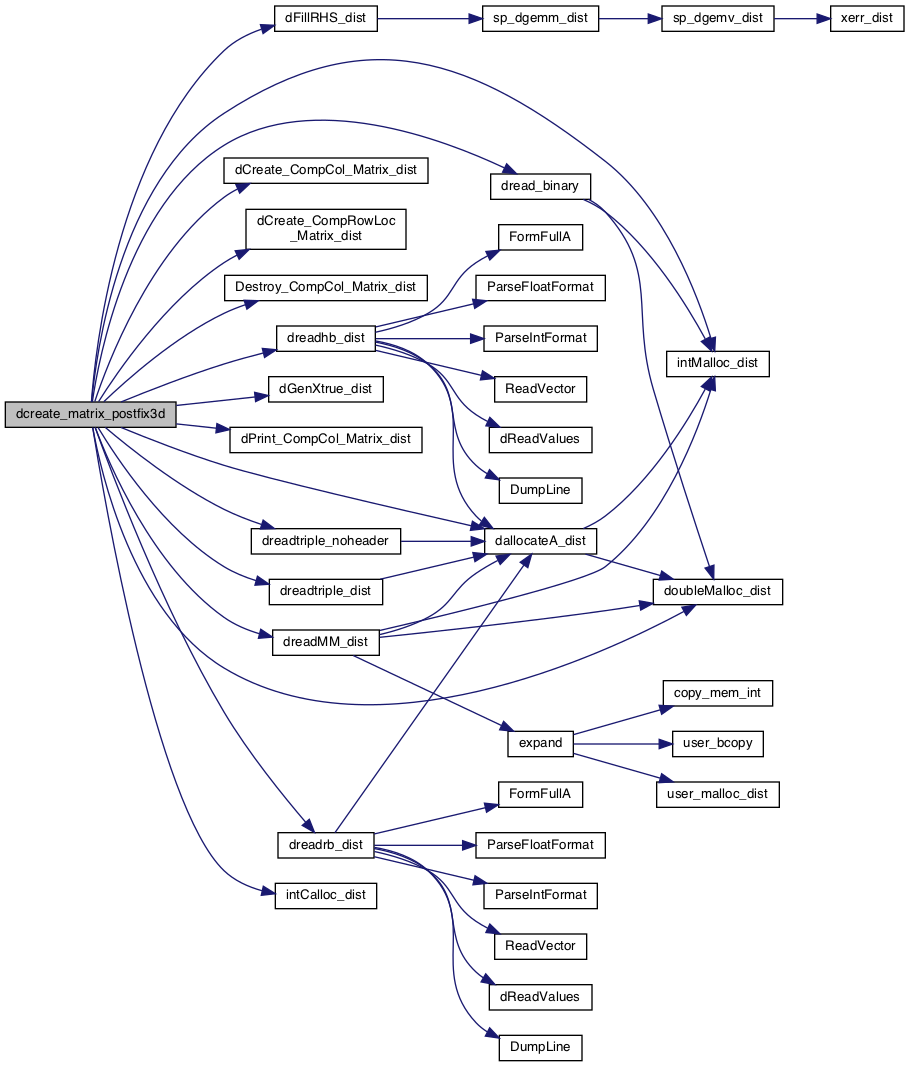

int	dcreate_matrix_postfix3d (SuperMatrix A, int nrhs, double rhs, int ldb, double *x, int ldx, FILE fp, char postfix, gridinfo3d_t *grid3d)

void	dGatherNRformat_loc3d (fact_t Fact, NRformat_loc A, double B, int ldb, int nrhs, gridinfo3d_t grid3d, NRformat_loc3d *)

int	dScatter_B3d (NRformat_loc3d A3d, gridinfo3d_t grid3d)

void	pdgssvx3d (superlu_dist_options_t , SuperMatrix , dScalePermstruct_t , double B[], int ldb, int nrhs, gridinfo3d_t , dLUstruct_t , dSOLVEstruct_t , double berr, SuperLUStat_t , int *info)

int_t	pdgstrf3d (superlu_dist_options_t , int m, int n, double anorm, trf3Dpartition_t , SCT_t , dLUstruct_t , gridinfo3d_t , SuperLUStat_t , int *)

void	dInit_HyP (HyP_t HyP, dLocalLU_t Llu, int_t mcb, int_t mrb)

void	Free_HyP (HyP_t *HyP)

int	updateDirtyBit (int_t k0, HyP_t HyP, gridinfo_t grid)

void	dblock_gemm_scatter (int_t lb, int_t j, Ublock_info_t Ublock_info, Remain_info_t Remain_info, double L_mat, int ldl, double U_mat, int ldu, double bigV, int_t knsupc, int_t klst, int_t lsub, int_t usub, int_t ldt, int_t thread_id, int indirect, int indirect2, int_t Lrowind_bc_ptr, double Lnzval_bc_ptr, int_t Ufstnz_br_ptr, double Unzval_br_ptr, int_t xsup, gridinfo_t , SuperLUStat_t )

int_t	dblock_gemm_scatterTopLeft (int_t lb, int_t j, double bigV, int_t knsupc, int_t klst, int_t lsub, int_t usub, int_t ldt, int indirect, int indirect2, HyP_t HyP, dLUstruct_t , gridinfo_t , SCT_t SCT, SuperLUStat_t )

int_t	dblock_gemm_scatterTopRight (int_t lb, int_t j, double bigV, int_t knsupc, int_t klst, int_t lsub, int_t usub, int_t ldt, int indirect, int indirect2, HyP_t HyP, dLUstruct_t , gridinfo_t , SCT_t SCT, SuperLUStat_t )

int_t	dblock_gemm_scatterBottomLeft (int_t lb, int_t j, double bigV, int_t knsupc, int_t klst, int_t lsub, int_t usub, int_t ldt, int indirect, int indirect2, HyP_t HyP, dLUstruct_t , gridinfo_t , SCT_t SCT, SuperLUStat_t )

int_t	dblock_gemm_scatterBottomRight (int_t lb, int_t j, double bigV, int_t knsupc, int_t klst, int_t lsub, int_t usub, int_t ldt, int indirect, int indirect2, HyP_t HyP, dLUstruct_t , gridinfo_t , SCT_t SCT, SuperLUStat_t )

void	dgather_u (int_t num_u_blks, Ublock_info_t Ublock_info, int_t usub, double uval, double bigU, int_t ldu, int_t *xsup, int_t klst)

void	dgather_l (int_t num_LBlk, int_t knsupc, Remain_info_t L_info, double lval, int_t LD_lval, double *L_buff)

void	dRgather_L (int_t k, int_t lsub, double lusup, gEtreeInfo_t , Glu_persist_t , gridinfo_t , HyP_t , int_t myIperm, int_t iperm_c_supno)

void	dRgather_U (int_t k, int_t jj0, int_t usub, double uval, double bigU, gEtreeInfo_t , Glu_persist_t , gridinfo_t , HyP_t , int_t myIperm, int_t iperm_c_supno, int_t perm_u)

trf3Dpartition_t *	dinitTrf3Dpartition (int_t nsupers, superlu_dist_options_t options, dLUstruct_t LUstruct, gridinfo3d_t *grid3d)

void	dDestroy_trf3Dpartition (trf3Dpartition_t trf3Dpartition, gridinfo3d_t grid3d)

void	d3D_printMemUse (trf3Dpartition_t trf3Dpartition, dLUstruct_t LUstruct, gridinfo3d_t *grid3d)

void	dinit3DLUstructForest (int_t myTreeIdxs, int_t myZeroTrIdxs, sForest_t *sForests, dLUstruct_t LUstruct, gridinfo3d_t *grid3d)

int_t	dgatherAllFactoredLUFr (int_t myZeroTrIdxs, sForest_t sForests, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t *SCT)

int_t	dLpanelUpdate (int_t off0, int_t nsupc, double ublk_ptr, int_t ld_ujrow, double lusup, int_t nsupr, SCT_t *)

void	Local_Dgstrf2 (superlu_dist_options_t options, int_t k, double thresh, double BlockUFactor, Glu_persist_t , gridinfo_t , dLocalLU_t , SuperLUStat_t , int info, SCT_t )

int_t	dTrs2_GatherU (int_t iukp, int_t rukp, int_t klst, int_t nsupc, int_t ldu, int_t usub, double uval, double *tempv)

int_t	dTrs2_ScatterU (int_t iukp, int_t rukp, int_t klst, int_t nsupc, int_t ldu, int_t usub, double uval, double *tempv)

int_t	dTrs2_GatherTrsmScatter (int_t klst, int_t iukp, int_t rukp, int_t usub, double uval, double tempv, int_t knsupc, int nsupr, double lusup, Glu_persist_t *Glu_persist)

void	pdgstrs2 (int_t m, int_t k0, int_t k, Glu_persist_t Glu_persist, gridinfo_t grid, dLocalLU_t Llu, SuperLUStat_t stat)

void	pdgstrf2 (superlu_dist_options_t , int_t nsupers, int_t k0, int_t k, double thresh, Glu_persist_t , gridinfo_t , dLocalLU_t , MPI_Request , int, SuperLUStat_t , int *)

int_t	dAllocLlu_3d (int_t nsupers, dLUstruct_t LUstruct, gridinfo3d_t grid3d)

int_t	dp3dScatter (int_t n, dLUstruct_t LUstruct, gridinfo3d_t grid3d)

int_t	dscatter3dLPanels (int_t nsupers, dLUstruct_t LUstruct, gridinfo3d_t grid3d)

int_t	dscatter3dUPanels (int_t nsupers, dLUstruct_t LUstruct, gridinfo3d_t grid3d)

int_t	dcollect3dLpanels (int_t layer, int_t nsupers, dLUstruct_t LUstruct, gridinfo3d_t grid3d)

int_t	dcollect3dUpanels (int_t layer, int_t nsupers, dLUstruct_t LUstruct, gridinfo3d_t grid3d)

int_t	dp3dCollect (int_t layer, int_t n, dLUstruct_t LUstruct, gridinfo3d_t grid3d)

int_t	dzeroSetLU (int_t nnodes, int_t nodeList, dLUstruct_t , gridinfo3d_t *)

int	dAllocGlu_3d (int_t n, int_t nsupers, dLUstruct_t *)

int	dDeAllocLlu_3d (int_t n, dLUstruct_t , gridinfo3d_t )

int	dDeAllocGlu_3d (dLUstruct_t *)

int_t	dreduceAncestors3d (int_t sender, int_t receiver, int_t nnodes, int_t nodeList, double Lval_buf, double Uval_buf, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t SCT)

int	dreduceAllAncestors3d (int_t ilvl, int_t myNodeCount, int_t treePerm, dLUValSubBuf_t LUvsb, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t *SCT)

int_t	dgatherFactoredLU (int_t sender, int_t receiver, int_t nnodes, int_t nodeList, dLUValSubBuf_t LUvsb, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t *SCT)

int_t	dgatherAllFactoredLU (trf3Dpartition_t trf3Dpartition, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t SCT)

int_t	dinit3DLUstruct (int_t myTreeIdxs, int_t myZeroTrIdxs, int_t nodeCount, int_t nodeList, dLUstruct_t LUstruct, gridinfo3d_t *grid3d)

int_t	dzSendLPanel (int_t k, int_t receiver, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t *SCT)

int_t	dzRecvLPanel (int_t k, int_t sender, double alpha, double beta, double Lval_buf, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t SCT)

int_t	dzSendUPanel (int_t k, int_t receiver, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t *SCT)

int_t	dzRecvUPanel (int_t k, int_t sender, double alpha, double beta, double Uval_buf, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SCT_t SCT)

int_t	dIBcast_LPanel (int_t k, int_t k0, int_t lsub, double lusup, gridinfo_t , int msgcnt, MPI_Request , int ToSendR, int_t xsup, int)

int_t	dBcast_LPanel (int_t k, int_t k0, int_t lsub, double lusup, gridinfo_t , int msgcnt, int *ToSendR, int_t xsup, SCT_t *, int)

int_t	dIBcast_UPanel (int_t k, int_t k0, int_t usub, double uval, gridinfo_t , int msgcnt, MPI_Request , int ToSendD, int)

int_t	dBcast_UPanel (int_t k, int_t k0, int_t usub, double uval, gridinfo_t , int msgcnt, int ToSendD, SCT_t , int)

int_t	dIrecv_LPanel (int_t k, int_t k0, int_t Lsub_buf, double Lval_buf, gridinfo_t , MPI_Request , dLocalLU_t *, int)

int_t	dIrecv_UPanel (int_t k, int_t k0, int_t Usub_buf, double , dLocalLU_t , gridinfo_t , MPI_Request *, int)

int_t	dWait_URecv (MPI_Request , int msgcnt, SCT_t *)

int_t	dWait_LRecv (MPI_Request , int msgcnt, int msgcntsU, gridinfo_t , SCT_t *)

int_t	dISend_UDiagBlock (int_t k0, double ublk_ptr, int_t size, MPI_Request , gridinfo_t *, int)

int_t	dRecv_UDiagBlock (int_t k0, double ublk_ptr, int_t size, int_t src, gridinfo_t , SCT_t *, int)

int_t	dPackLBlock (int_t k, double Dest, Glu_persist_t , gridinfo_t , dLocalLU_t )

int_t	dISend_LDiagBlock (int_t k0, double lblk_ptr, int_t size, MPI_Request , gridinfo_t *, int)

int_t	dIRecv_UDiagBlock (int_t k0, double ublk_ptr, int_t size, int_t src, MPI_Request , gridinfo_t , SCT_t , int)

int_t	dIRecv_LDiagBlock (int_t k0, double L_blk_ptr, int_t size, int_t src, MPI_Request , gridinfo_t , SCT_t , int)

int_t	dUDiagBlockRecvWait (int_t k, int_t IrecvPlcd_D, int_t factored_L, MPI_Request , gridinfo_t , dLUstruct_t , SCT_t )

int_t	LDiagBlockRecvWait (int_t k, int_t factored_U, MPI_Request , gridinfo_t *)

int_t	dDiagFactIBCast (int_t k, int_t k0, double BlockUFactor, double BlockLFactor, int_t IrecvPlcd_D, MPI_Request , MPI_Request , MPI_Request , MPI_Request , gridinfo_t , superlu_dist_options_t , double thresh, dLUstruct_t LUstruct, SuperLUStat_t , int info, SCT_t *, int tag_ub)

int_t	dUPanelTrSolve (int_t k, double BlockLFactor, double bigV, int_t ldt, Ublock_info_t , gridinfo_t , dLUstruct_t , SuperLUStat_t , SCT_t *)

int_t	dLPanelUpdate (int_t k, int_t IrecvPlcd_D, int_t factored_L, MPI_Request , double BlockUFactor, gridinfo_t , dLUstruct_t , SCT_t *)

int_t	dUPanelUpdate (int_t k, int_t factored_U, MPI_Request , double BlockLFactor, double bigV, int_t ldt, Ublock_info_t , gridinfo_t , dLUstruct_t , SuperLUStat_t , SCT_t *)

int_t	dIBcastRecvLPanel (int_t k, int_t k0, int msgcnt, MPI_Request , MPI_Request , int_t Lsub_buf, double Lval_buf, int_t factored, gridinfo_t , dLUstruct_t , SCT_t *, int tag_ub)

int_t	dIBcastRecvUPanel (int_t k, int_t k0, int msgcnt, MPI_Request , MPI_Request , int_t Usub_buf, double Uval_buf, gridinfo_t , dLUstruct_t , SCT_t , int tag_ub)

int_t	dWaitL (int_t k, int msgcnt, int msgcntU, MPI_Request , MPI_Request , gridinfo_t , dLUstruct_t , SCT_t *)

int_t	dWaitU (int_t k, int msgcnt, MPI_Request , MPI_Request , gridinfo_t , dLUstruct_t , SCT_t )

int_t	dLPanelTrSolve (int_t k, int_t factored_L, double BlockUFactor, gridinfo_t , dLUstruct_t )

int	getNsupers (int, Glu_persist_t *)

int_t	initPackLUInfo (int_t nsupers, packLUInfo_t *packLUInfo)

int	freePackLUInfo (packLUInfo_t *packLUInfo)

int_t	dSchurComplementSetup (int_t k, int msgcnt, Ublock_info_t , Remain_info_t , uPanelInfo_t , lPanelInfo_t , int_t , int_t , int_t , double bigU, int_t Lsub_buf, double Lval_buf, int_t Usub_buf, double Uval_buf, gridinfo_t , dLUstruct_t *)

int_t	dSchurComplementSetupGPU (int_t k, msgs_t msgs, packLUInfo_t , int_t , int_t , int_t , gEtreeInfo_t , factNodelists_t , dscuBufs_t , dLUValSubBuf_t LUvsb, gridinfo_t , dLUstruct_t , HyP_t )

double *	dgetBigV (int_t, int_t)

double *	dgetBigU (int_t, gridinfo_t , dLUstruct_t )

int_t	dLluBufInit (dLUValSubBuf_t , dLUstruct_t )

int_t	dinitScuBufs (int_t ldt, int_t num_threads, int_t nsupers, dscuBufs_t , dLUstruct_t , gridinfo_t *)

int	dfreeScuBufs (dscuBufs_t *scuBufs)

int_t	treeFactor (int_t nnnodes, int_t perm_c_supno, commRequests_t comReqs, dscuBufs_t scuBufs, packLUInfo_t packLUInfo, msgs_t msgs, dLUValSubBuf_t LUvsb, ddiagFactBufs_t dFBuf, factStat_t factStat, factNodelists_t fNlists, superlu_dist_options_t options, int_t gIperm_c_supno, int_t ldt, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SuperLUStat_t stat, double thresh, SCT_t SCT, int info)

int_t	dsparseTreeFactor (int_t nnodes, int_t perm_c_supno, treeTopoInfo_t treeTopoInfo, commRequests_t comReqs, dscuBufs_t scuBufs, packLUInfo_t packLUInfo, msgs_t msgs, dLUValSubBuf_t LUvsb, ddiagFactBufs_t dFBuf, factStat_t factStat, factNodelists_t fNlists, superlu_dist_options_t options, int_t gIperm_c_supno, int_t ldt, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SuperLUStat_t stat, double thresh, SCT_t SCT, int *info)

int_t	ddenseTreeFactor (int_t nnnodes, int_t perm_c_supno, commRequests_t comReqs, dscuBufs_t scuBufs, packLUInfo_t packLUInfo, msgs_t msgs, dLUValSubBuf_t LUvsb, ddiagFactBufs_t dFBuf, factStat_t factStat, factNodelists_t fNlists, superlu_dist_options_t options, int_t gIperm_c_supno, int_t ldt, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SuperLUStat_t stat, double thresh, SCT_t SCT, int tag_ub, int info)

int_t	dsparseTreeFactor_ASYNC (sForest_t sforest, commRequests_t comReqss, dscuBufs_t scuBufs, packLUInfo_t packLUInfo, msgs_t msgss, dLUValSubBuf_t LUvsbs, ddiagFactBufs_t dFBufs, factStat_t factStat, factNodelists_t fNlists, gEtreeInfo_t gEtreeInfo, superlu_dist_options_t options, int_t gIperm_c_supno, int_t ldt, HyP_t HyP, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SuperLUStat_t stat, double thresh, SCT_t SCT, int tag_ub, int info)

dLUValSubBuf_t **	dLluBufInitArr (int_t numLA, dLUstruct_t *LUstruct)

int	dLluBufFreeArr (int_t numLA, dLUValSubBuf_t **LUvsbs)

ddiagFactBufs_t **	dinitDiagFactBufsArr (int_t mxLeafNode, int_t ldt, gridinfo_t *grid)

int	dfreeDiagFactBufsArr (int_t mxLeafNode, ddiagFactBufs_t **dFBufs)

int_t	dinitDiagFactBufs (int_t ldt, ddiagFactBufs_t *dFBuf)

int_t	checkRecvUDiag (int_t k, commRequests_t comReqs, gridinfo_t grid, SCT_t *SCT)

int_t	checkRecvLDiag (int_t k, commRequests_t comReqs, gridinfo_t , SCT_t *)

int_t	ancestorFactor (int_t ilvl, sForest_t sforest, commRequests_t comReqss, dscuBufs_t scuBufs, packLUInfo_t packLUInfo, msgs_t msgss, dLUValSubBuf_t LUvsbs, ddiagFactBufs_t dFBufs, factStat_t factStat, factNodelists_t fNlists, gEtreeInfo_t gEtreeInfo, superlu_dist_options_t options, int_t gIperm_c_supno, int_t ldt, HyP_t HyP, dLUstruct_t LUstruct, gridinfo3d_t grid3d, SuperLUStat_t stat, double thresh, SCT_t SCT, int tag_ub, int info)

Detailed Description

Distributed SuperLU data types and function prototypes.

The source code is distributed under BSD license, see the file License.txt at the top-level directory.

-- Distributed SuperLU routine (version 7.0) --
Lawrence Berkeley National Lab, Univ. of California Berkeley,
Georgia Institute of Technology
November 1, 2007
April 5, 2015
September 18, 2018  version 6.0
February 8, 2019  version 6.1.1
May 10, 2019 version 7.0.0

Macro Definition Documentation

◆ MAX_LOOKAHEADS

#define MAX_LOOKAHEADS 50

Function Documentation

◆ ancestorFactor()

int_t ancestorFactor	(	int_t	ilvl,
		sForest_t *	sforest,
		commRequests_t **	comReqss,
		dscuBufs_t *	scuBufs,
		packLUInfo_t *	packLUInfo,
		msgs_t **	msgss,
		dLUValSubBuf_t **	LUvsbs,
		ddiagFactBufs_t **	dFBufs,
		factStat_t *	factStat,
		factNodelists_t *	fNlists,
		gEtreeInfo_t *	gEtreeInfo,
		superlu_dist_options_t *	options,
		int_t *	gIperm_c_supno,
		int_t	ldt,
		HyP_t *	HyP,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat,
		double	thresh,
		SCT_t *	SCT,
		int	tag_ub,
		int *	info
	)

◆ checkRecvLDiag()

int_t checkRecvLDiag	(	int_t	k,
		commRequests_t *	comReqs,
		gridinfo_t *	grid,
		SCT_t *	SCT
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkRecvUDiag()

int_t checkRecvUDiag	(	int_t	k,
		commRequests_t *	comReqs,
		gridinfo_t *	grid,
		SCT_t *	SCT
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ d3D_printMemUse()

void d3D_printMemUse	(	trf3Dpartition_t *	trf3Dpartition,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ d_c2cpp_GetHWPM()

int d_c2cpp_GetHWPM	(	SuperMatrix *	A,
		gridinfo_t *	grid,
		dScalePermstruct_t *	ScalePermstruct
	)

Purpose
=======

Get heavy-weight perfect matching (HWPM).

Reference:


Arguments
=========

A      (input) SuperMatrix*
       The distributed input matrix A of dimension (A->nrow, A->ncol).
       The type of A can be: Stype = SLU_NR_loc; Dtype = SLU_D; Mtype = SLU_GE.

grid   (input) gridinfo_t*
       SuperLU's 2D process mesh.

ScalePermstruct (output) dScalePermstruct_t*
       ScalePermstruct->perm_r stores the permutation obtained from HWPM.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dallocateA_dist()

void dallocateA_dist	(	int_t	n,
		int_t	nnz,
		double **	a,
		int_t **	asub,
		int_t **	xa
	)

◆ dAllocGlu_3d()

int dAllocGlu_3d	(	int_t	n,
		int_t	nsupers,
		dLUstruct_t *	LUstruct
	)

◆ dAllocLlu_3d()

int_t dAllocLlu_3d	(	int_t	nsupers,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ daxpy_()

int daxpy_	(	const int *	n,
		const double *	alpha,
		const double *	x,
		const int *	incx,
		double *	y,
		const int *	incy
	)

◆ dBcast_LPanel()

int_t dBcast_LPanel	(	int_t	k,
		int_t	k0,
		int_t *	lsub,
		double *	lusup,
		gridinfo_t *	,
		int *	msgcnt,
		int **	ToSendR,
		int_t *	xsup,
		SCT_t *	,
		int
	)

◆ dBcast_UPanel()

int_t dBcast_UPanel	(	int_t	k,
		int_t	k0,
		int_t *	usub,
		double *	uval,
		gridinfo_t *	,
		int *	msgcnt,
		int *	ToSendD,
		SCT_t *	,
		int
	)

◆ dblock_gemm_scatter()

void dblock_gemm_scatter	(	int_t	lb,
		int_t	j,
		Ublock_info_t *	Ublock_info,
		Remain_info_t *	Remain_info,
		double *	L_mat,
		int	ldl,
		double *	U_mat,
		int	ldu,
		double *	bigV,
		int_t	knsupc,
		int_t	klst,
		int_t *	lsub,
		int_t *	usub,
		int_t	ldt,
		int_t	thread_id,
		int *	indirect,
		int *	indirect2,
		int_t **	Lrowind_bc_ptr,
		double **	Lnzval_bc_ptr,
		int_t **	Ufstnz_br_ptr,
		double **	Unzval_br_ptr,
		int_t *	xsup,
		gridinfo_t *	,
		SuperLUStat_t *
	)

◆ dblock_gemm_scatterBottomLeft()

int_t dblock_gemm_scatterBottomLeft	(	int_t	lb,
		int_t	j,
		double *	bigV,
		int_t	knsupc,
		int_t	klst,
		int_t *	lsub,
		int_t *	usub,
		int_t	ldt,
		int *	indirect,
		int *	indirect2,
		HyP_t *	HyP,
		dLUstruct_t *	,
		gridinfo_t *	,
		SCT_t *	SCT,
		SuperLUStat_t *
	)

Here is the caller graph for this function:

◆ dblock_gemm_scatterBottomRight()

int_t dblock_gemm_scatterBottomRight	(	int_t	lb,
		int_t	j,
		double *	bigV,
		int_t	knsupc,
		int_t	klst,
		int_t *	lsub,
		int_t *	usub,
		int_t	ldt,
		int *	indirect,
		int *	indirect2,
		HyP_t *	HyP,
		dLUstruct_t *	,
		gridinfo_t *	,
		SCT_t *	SCT,
		SuperLUStat_t *
	)

Here is the caller graph for this function:

◆ dblock_gemm_scatterTopLeft()

int_t dblock_gemm_scatterTopLeft	(	int_t	lb,
		int_t	j,
		double *	bigV,
		int_t	knsupc,
		int_t	klst,
		int_t *	lsub,
		int_t *	usub,
		int_t	ldt,
		int *	indirect,
		int *	indirect2,
		HyP_t *	HyP,
		dLUstruct_t *	,
		gridinfo_t *	,
		SCT_t *	SCT,
		SuperLUStat_t *
	)

Here is the caller graph for this function:

◆ dblock_gemm_scatterTopRight()

int_t dblock_gemm_scatterTopRight	(	int_t	lb,
		int_t	j,
		double *	bigV,
		int_t	knsupc,
		int_t	klst,
		int_t *	lsub,
		int_t *	usub,
		int_t	ldt,
		int *	indirect,
		int *	indirect2,
		HyP_t *	HyP,
		dLUstruct_t *	,
		gridinfo_t *	,
		SCT_t *	SCT,
		SuperLUStat_t *
	)

Here is the caller graph for this function:

◆ dClone_CompRowLoc_Matrix_dist()

void dClone_CompRowLoc_Matrix_dist	(	SuperMatrix *	,
		SuperMatrix *
	)

◆ dcollect3dLpanels()

int_t dcollect3dLpanels	(	int_t	layer,
		int_t	nsupers,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ dcollect3dUpanels()

int_t dcollect3dUpanels	(	int_t	layer,
		int_t	nsupers,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ dCompRow_to_CompCol_dist()

void dCompRow_to_CompCol_dist	(	int_t	,
		int_t	,
		int_t	,
		double *	,
		int_t *	,
		int_t *	,
		double **	,
		int_t **	,
		int_t **
	)

Here is the caller graph for this function:

◆ dComputeLevelsets()

void dComputeLevelsets	(	int	iam,
		int_t	nsupers,
		gridinfo_t *	grid,
		Glu_persist_t *	Glu_persist,
		dLocalLU_t *	Llu,
		int_t *	levels
	)

\Compute the level sets in the L factor

◆ dCopy_CompCol_Matrix_dist()

void dCopy_CompCol_Matrix_dist	(	SuperMatrix *	,
		SuperMatrix *
	)

◆ dCopy_CompRowLoc_Matrix_dist()

void dCopy_CompRowLoc_Matrix_dist	(	SuperMatrix *	A,
		SuperMatrix *	B
	)

◆ dCopy_Dense_Matrix_dist()

void dCopy_Dense_Matrix_dist	(	int_t	,
		int_t	,
		double *	,
		int_t	,
		double *	,
		int_t
	)

Here is the caller graph for this function:

◆ dCreate_CompCol_Matrix_dist()

void dCreate_CompCol_Matrix_dist	(	SuperMatrix *	,
		int_t	,
		int_t	,
		int_t	,
		double *	,
		int_t *	,
		int_t *	,
		Stype_t	,
		Dtype_t	,
		Mtype_t
	)

Here is the caller graph for this function:

◆ dCreate_CompRowLoc_Matrix_dist()

void dCreate_CompRowLoc_Matrix_dist	(	SuperMatrix *	,
		int_t	,
		int_t	,
		int_t	,
		int_t	,
		int_t	,
		double *	,
		int_t *	,
		int_t *	,
		Stype_t	,
		Dtype_t	,
		Mtype_t
	)

Here is the caller graph for this function:

◆ dCreate_Dense_Matrix_dist()

void dCreate_Dense_Matrix_dist	(	SuperMatrix *	,
		int_t	,
		int_t	,
		double *	,
		int_t	,
		Stype_t	,
		Dtype_t	,
		Mtype_t
	)

◆ dcreate_matrix()

int dcreate_matrix	(	SuperMatrix *	A,
		int	nrhs,
		double **	rhs,
		int *	ldb,
		double **	x,
		int *	ldx,
		FILE *	fp,
		gridinfo_t *	grid
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dcreate_matrix3d()

int dcreate_matrix3d	(	SuperMatrix *	A,
		int	nrhs,
		double **	rhs,
		int *	ldb,
		double **	x,
		int *	ldx,
		FILE *	fp,
		gridinfo3d_t *	grid3d
	)

◆ dcreate_matrix_dat()

int dcreate_matrix_dat	(	SuperMatrix *	,
		int	,
		double **	,
		int *	,
		double **	,
		int *	,
		FILE *	,
		gridinfo_t *
	)

◆ dcreate_matrix_postfix()

int dcreate_matrix_postfix	(	SuperMatrix *	A,
		int	nrhs,
		double **	rhs,
		int *	ldb,
		double **	x,
		int *	ldx,
		FILE *	fp,
		char *	postfix,
		gridinfo_t *	grid
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dcreate_matrix_postfix3d()

int dcreate_matrix_postfix3d	(	SuperMatrix *	A,
		int	nrhs,
		double **	rhs,
		int *	ldb,
		double **	x,
		int *	ldx,
		FILE *	fp,
		char *	postfix,
		gridinfo3d_t *	grid3d
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dcreate_matrix_rb()

int dcreate_matrix_rb	(	SuperMatrix *	,
		int	,
		double **	,
		int *	,
		double **	,
		int *	,
		FILE *	,
		gridinfo_t *
	)

◆ dCreate_SuperNode_Matrix_dist()

void dCreate_SuperNode_Matrix_dist	(	SuperMatrix *	,
		int_t	,
		int_t	,
		int_t	,
		double *	,
		int_t *	,
		int_t *	,
		int_t *	,
		int_t *	,
		int_t *	,
		Stype_t	,
		Dtype_t	,
		Mtype_t
	)

◆ dDeAllocGlu_3d()

int dDeAllocGlu_3d ( dLUstruct_t * LUstruct )

◆ dDeAllocLlu_3d()

int dDeAllocLlu_3d	(	int_t	n,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ ddenseTreeFactor()

int_t ddenseTreeFactor	(	int_t	nnnodes,
		int_t *	perm_c_supno,
		commRequests_t *	comReqs,
		dscuBufs_t *	scuBufs,
		packLUInfo_t *	packLUInfo,
		msgs_t *	msgs,
		dLUValSubBuf_t *	LUvsb,
		ddiagFactBufs_t *	dFBuf,
		factStat_t *	factStat,
		factNodelists_t *	fNlists,
		superlu_dist_options_t *	options,
		int_t *	gIperm_c_supno,
		int_t	ldt,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat,
		double	thresh,
		SCT_t *	SCT,
		int	tag_ub,
		int *	info
	)

◆ dDestroy_A3d_gathered_on_2d()

void dDestroy_A3d_gathered_on_2d	(	dSOLVEstruct_t *	SOLVEstruct,
		gridinfo3d_t *	grid3d
	)

◆ dDestroy_LU()

void dDestroy_LU	(	int_t	n,
		gridinfo_t *	grid,
		dLUstruct_t *	LUstruct
	)

Destroy distributed L & U matrices.

◆ dDestroy_Tree()

void dDestroy_Tree	(	int_t	n,
		gridinfo_t *	grid,
		dLUstruct_t *	LUstruct
	)

Destroy broadcast and reduction trees used in triangular solve.

◆ dDestroy_trf3Dpartition()

void dDestroy_trf3Dpartition	(	trf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d
	)

Here is the caller graph for this function:

◆ dDiagFactIBCast()

int_t dDiagFactIBCast	(	int_t	k,
		int_t	k0,
		double *	BlockUFactor,
		double *	BlockLFactor,
		int_t *	IrecvPlcd_D,
		MPI_Request *	,
		MPI_Request *	,
		MPI_Request *	,
		MPI_Request *	,
		gridinfo_t *	,
		superlu_dist_options_t *	,
		double	thresh,
		dLUstruct_t *	LUstruct,
		SuperLUStat_t *	,
		int *	info,
		SCT_t *	,
		int	tag_ub
	)

Here is the caller graph for this function:

◆ ddist_psymbtonum()

float ddist_psymbtonum	(	fact_t	fact,
		int_t	n,
		SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		Pslu_freeable_t *	Pslu_freeable,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid
	)

Purpose
=======
  Distribute the input matrix onto the 2D process mesh.

Arguments
=========

fact (input) fact_t
       Specifies whether or not the L and U structures will be re-used.
       = SamePattern_SameRowPerm: L and U structures are input, and
                                  unchanged on exit.
         This routine should not be called for this case, an error
         is generated.  Instead, pddistribute routine should be called.
       = DOFACT or SamePattern: L and U structures are computed and output.

n      (Input) int
       Dimension of the matrix.

A      (Input) SuperMatrix*
   The distributed input matrix A of dimension (A->nrow, A->ncol).
       A may be overwritten by diag(R)*A*diag(C)*Pc^T.
       The type of A can be: Stype = NR; Dtype = SLU_D; Mtype = GE.

ScalePermstruct (Input) dScalePermstruct_t*
       The data structure to store the scaling and permutation vectors
       describing the transformations performed to the original matrix A.

Glu_freeable (Input) *Glu_freeable_t
       The global structure describing the graph of L and U.

LUstruct (Input) dLUstruct_t*
       Data structures for L and U factors.

grid   (Input) gridinfo_t*
       The 2D process mesh.

Return value
============
  < 0, number of bytes allocated on return from the dist_symbLU
  > 0, number of bytes allocated for performing the distribution
      of the data, when out of memory.
       (an approximation).

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ddistribute()

float ddistribute	(	fact_t	fact,
		int_t	n,
		SuperMatrix *	A,
		Glu_freeable_t *	Glu_freeable,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid
	)

Purpose
=======
  Distribute the matrix onto the 2D process mesh.

Arguments
=========

fact (input) fact_t
       Specifies whether or not the L and U structures will be re-used.
       = SamePattern_SameRowPerm: L and U structures are input, and
                                  unchanged on exit.
       = DOFACT or SamePattern: L and U structures are computed and output.

n      (input) int
       Dimension of the matrix.

A      (input) SuperMatrix*
   The original matrix A, permuted by columns, of dimension
       (A->nrow, A->ncol). The type of A can be:
       Stype = SLU_NCP; Dtype = SLU_D; Mtype = SLU_GE.

LUstruct (input) dLUstruct_t*
       Data structures for L and U factors.

grid   (input) gridinfo_t*
       The 2D process mesh.

Return value
============
  > 0, working storage (in bytes) required to perform redistribution.
       (excluding LU factor size)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dfill_dist()

void dfill_dist	(	double *	a,
		int_t	alen,
		double	dval
	)

Fills a double precision array with a given value.

◆ dFillRHS_dist()

void dFillRHS_dist	(	char *	trans,
		int_t	nrhs,
		double *	x,
		int_t	ldx,
		SuperMatrix *	A,
		double *	rhs,
		int_t	ldb
	)

Let rhs[i] = sum of i-th row of A, so the solution vector is all 1's.

◆ dfreeDiagFactBufsArr()

int dfreeDiagFactBufsArr	(	int_t	mxLeafNode,
		ddiagFactBufs_t **	dFBufs
	)

Here is the caller graph for this function:

◆ dfreeScuBufs()

int dfreeScuBufs ( dscuBufs_t * scuBufs )

Here is the caller graph for this function:

◆ dgather_l()

void dgather_l	(	int_t	num_LBlk,
		int_t	knsupc,
		Remain_info_t *	L_info,
		double *	lval,
		int_t	LD_lval,
		double *	L_buff
	)

◆ dgather_u()

void dgather_u	(	int_t	num_u_blks,
		Ublock_info_t *	Ublock_info,
		int_t *	usub,
		double *	uval,
		double *	bigU,
		int_t	ldu,
		int_t *	xsup,
		int_t	klst
	)

◆ dgatherAllFactoredLU()

int_t dgatherAllFactoredLU	(	trf3Dpartition_t *	trf3Dpartition,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

Here is the caller graph for this function:

◆ dgatherAllFactoredLUFr()

int_t dgatherAllFactoredLUFr	(	int_t *	myZeroTrIdxs,
		sForest_t *	sForests,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

◆ dgatherFactoredLU()

int_t dgatherFactoredLU	(	int_t	sender,
		int_t	receiver,
		int_t	nnodes,
		int_t *	nodeList,
		dLUValSubBuf_t *	LUvsb,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

◆ dGatherNRformat_loc3d()

void dGatherNRformat_loc3d	(	fact_t	Fact,
		NRformat_loc *	A,
		double *	B,
		int	ldb,
		int	nrhs,
		gridinfo3d_t *	grid3d,
		NRformat_loc3d **
	)

Here is the caller graph for this function:

◆ dgemm_()

int dgemm_	(	const char *	,
		const char *	,
		const int *	,
		const int *	,
		const int *	,
		const double *	,
		const double *	,
		const int *	,
		const double *	,
		const int *	,
		const double *	,
		double *	,
		const int *
	)

◆ dgemv_()

void dgemv_	(	const char *	,
		const int *	,
		const int *	,
		const double *	,
		const double *	a,
		const int *	,
		const double *	,
		const int *	,
		const double *	,
		double *	,
		const int *
	)

◆ dGenCOOLblocks()

void dGenCOOLblocks	(	int	iam,
		int_t	nsupers,
		gridinfo_t *	grid,
		Glu_persist_t *	Glu_persist,
		dLocalLU_t *	Llu,
		int_t **	cooRows,
		int_t **	cooCols,
		double **	cooVals,
		int_t *	n,
		int_t *	nnzL
	)

\Dump the factored matrix L using matlab triple-let format

◆ dGenCSCLblocks()

void dGenCSCLblocks	(	int	iam,
		int_t	nsupers,
		gridinfo_t *	grid,
		Glu_persist_t *	Glu_persist,
		dLocalLU_t *	Llu,
		double **	nzval,
		int_t **	rowind,
		int_t **	colptr,
		int_t *	n,
		int_t *	nnzL
	)

\Dump the factored matrix L using CSC format

◆ dGenCSRLblocks()

void dGenCSRLblocks	(	int	iam,
		int_t	nsupers,
		gridinfo_t *	grid,
		Glu_persist_t *	Glu_persist,
		dLocalLU_t *	Llu,
		double **	nzval,
		int_t **	colind,
		int_t **	rowptr,
		int_t *	n,
		int_t *	nnzL
	)

\Dump the factored matrix L using CSR format

◆ dGenXtrue_dist()

void dGenXtrue_dist	(	int_t	n,
		int_t	nrhs,
		double *	x,
		int_t	ldx
	)

◆ dger_()

void dger_	(	const int *	,
		const int *	,
		const double *	,
		const double *	,
		const int *	,
		const double *	,
		const int *	,
		double *	,
		const int *
	)

◆ dgetBigU()

double * dgetBigU	(	int_t	,
		gridinfo_t *	,
		dLUstruct_t *
	)

◆ dgetBigV()

double * dgetBigV	(	int_t	,
		int_t
	)

◆ dgsequ_dist()

void dgsequ_dist	(	SuperMatrix *	A,
		double *	r,
		double *	c,
		double *	rowcnd,
		double *	colcnd,
		double *	amax,
		int_t *	info
	)


    Purpose
    =======

    DGSEQU_dist computes row and column scalings intended to equilibrate an
    M-by-N sparse matrix A and reduce its condition number. R returns the row
    scale factors and C the column scale factors, chosen to try to make
    the largest element in each row and column of the matrix B with
    elements B(i,j)=R(i)*A(i,j)*C(j) have absolute value 1.

    R(i) and C(j) are restricted to be between SMLNUM = smallest safe
    number and BIGNUM = largest safe number.  Use of these scaling
    factors is not guaranteed to reduce the condition number of A but
    works well in practice.

    See supermatrix.h for the definition of 'SuperMatrix' structure.

    Arguments
    =========

    A       (input) SuperMatrix*
            The matrix of dimension (A->nrow, A->ncol) whose equilibration
            factors are to be computed. The type of A can be:
            Stype = SLU_NC; Dtype = SLU_D; Mtype = SLU_GE.

    R       (output) double*, size A->nrow
            If INFO = 0 or INFO > M, R contains the row scale factors
            for A.

    C       (output) double*, size A->ncol
            If INFO = 0,  C contains the column scale factors for A.

    ROWCND  (output) double*
            If INFO = 0 or INFO > M, ROWCND contains the ratio of the
            smallest R(i) to the largest R(i).  If ROWCND >= 0.1 and
            AMAX is neither too large nor too small, it is not worth
            scaling by R.

    COLCND  (output) double*
            If INFO = 0, COLCND contains the ratio of the smallest
            C(i) to the largest C(i).  If COLCND >= 0.1, it is not
            worth scaling by C.

    AMAX    (output) double*
            Absolute value of largest matrix element.  If AMAX is very
            close to overflow or very close to underflow, the matrix
            should be scaled.

    INFO    (output) int*
            = 0:  successful exit
            < 0:  if INFO = -i, the i-th argument had an illegal value
            > 0:  if INFO = i,  and i is
                  <= M:  the i-th row of A is exactly zero
                  >  M:  the (i-M)-th column of A is exactly zero

    =====================================================================

Purpose
  =======

  DGSEQU_DIST computes row and column scalings intended to equilibrate an
  M-by-N sparse matrix A and reduce its condition number. R returns the row
  scale factors and C the column scale factors, chosen to try to make
  the largest element in each row and column of the matrix B with
  elements B(i,j)=R(i)*A(i,j)*C(j) have absolute value 1.

  R(i) and C(j) are restricted to be between SMLNUM = smallest safe
  number and BIGNUM = largest safe number.  Use of these scaling
  factors is not guaranteed to reduce the condition number of A but
  works well in practice.

  See supermatrix.h for the definition of 'SuperMatrix' structure.

  Arguments
  =========

  A       (input) SuperMatrix*
          The matrix of dimension (A->nrow, A->ncol) whose equilibration
          factors are to be computed. The type of A can be:
          Stype = SLU_NC; Dtype = SLU_D; Mtype = SLU_GE.

  R       (output) double*, size A->nrow
          If INFO = 0 or INFO > M, R contains the row scale factors
          for A.

  C       (output) double*, size A->ncol
          If INFO = 0,  C contains the column scale factors for A.

  ROWCND  (output) double*
          If INFO = 0 or INFO > M, ROWCND contains the ratio of the
          smallest R(i) to the largest R(i).  If ROWCND >= 0.1 and
          AMAX is neither too large nor too small, it is not worth
          scaling by R.

  COLCND  (output) double*
          If INFO = 0, COLCND contains the ratio of the smallest
          C(i) to the largest C(i).  If COLCND >= 0.1, it is not
          worth scaling by C.

  AMAX    (output) double*
          Absolute value of largest matrix element.  If AMAX is very
          close to overflow or very close to underflow, the matrix
          should be scaled.

  INFO    (output) int*
          = 0:  successful exit
          < 0:  if INFO = -i, the i-th argument had an illegal value
          > 0:  if INFO = i,  and i is
                <= A->nrow:  the i-th row of A is exactly zero
                >  A->ncol:  the (i-M)-th column of A is exactly zero

  =====================================================================

◆ dIBcast_LPanel()

int_t dIBcast_LPanel	(	int_t	k,
		int_t	k0,
		int_t *	lsub,
		double *	lusup,
		gridinfo_t *	,
		int *	msgcnt,
		MPI_Request *	,
		int **	ToSendR,
		int_t *	xsup,
		int
	)

◆ dIBcast_UPanel()

int_t dIBcast_UPanel	(	int_t	k,
		int_t	k0,
		int_t *	usub,
		double *	uval,
		gridinfo_t *	,
		int *	msgcnt,
		MPI_Request *	,
		int *	ToSendD,
		int
	)

◆ dIBcastRecvLPanel()

int_t dIBcastRecvLPanel	(	int_t	k,
		int_t	k0,
		int *	msgcnt,
		MPI_Request *	,
		MPI_Request *	,
		int_t *	Lsub_buf,
		double *	Lval_buf,
		int_t *	factored,
		gridinfo_t *	,
		dLUstruct_t *	,
		SCT_t *	,
		int	tag_ub
	)

Here is the caller graph for this function:

◆ dIBcastRecvUPanel()

int_t dIBcastRecvUPanel	(	int_t	k,
		int_t	k0,
		int *	msgcnt,
		MPI_Request *	,
		MPI_Request *	,
		int_t *	Usub_buf,
		double *	Uval_buf,
		gridinfo_t *	,
		dLUstruct_t *	,
		SCT_t *	,
		int	tag_ub
	)

Here is the caller graph for this function:

◆ dinf_norm_error_dist()

void dinf_norm_error_dist	(	int_t	n,
		int_t	nrhs,
		double *	x,
		int_t	ldx,
		double *	xtrue,
		int_t	ldxtrue,
		gridinfo_t *	grid
	)

Check the inf-norm of the error vector.

◆ dinit3DLUstruct()

int_t dinit3DLUstruct	(	int_t *	myTreeIdxs,
		int_t *	myZeroTrIdxs,
		int_t *	nodeCount,
		int_t **	nodeList,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ dinit3DLUstructForest()

void dinit3DLUstructForest	(	int_t *	myTreeIdxs,
		int_t *	myZeroTrIdxs,
		sForest_t **	sForests,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ dInit_HyP()

void dInit_HyP	(	HyP_t *	HyP,
		dLocalLU_t *	Llu,
		int_t	mcb,
		int_t	mrb
	)

Here is the caller graph for this function:

◆ dinitDiagFactBufs()

int_t dinitDiagFactBufs	(	int_t	ldt,
		ddiagFactBufs_t *	dFBuf
	)

Here is the caller graph for this function:

◆ dinitDiagFactBufsArr()

ddiagFactBufs_t ** dinitDiagFactBufsArr	(	int_t	mxLeafNode,
		int_t	ldt,
		gridinfo_t *	grid
	)

Here is the caller graph for this function:

◆ dinitScuBufs()

int_t dinitScuBufs	(	int_t	ldt,
		int_t	num_threads,
		int_t	nsupers,
		dscuBufs_t *	,
		dLUstruct_t *	,
		gridinfo_t *
	)

Here is the caller graph for this function:

◆ dinitTrf3Dpartition()

trf3Dpartition_t * dinitTrf3Dpartition	(	int_t	nsupers,
		superlu_dist_options_t *	options,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

Here is the caller graph for this function:

◆ dIRecv_LDiagBlock()

int_t dIRecv_LDiagBlock	(	int_t	k0,
		double *	L_blk_ptr,
		int_t	size,
		int_t	src,
		MPI_Request *	,
		gridinfo_t *	,
		SCT_t *	,
		int
	)

◆ dIrecv_LPanel()

int_t dIrecv_LPanel	(	int_t	k,
		int_t	k0,
		int_t *	Lsub_buf,
		double *	Lval_buf,
		gridinfo_t *	,
		MPI_Request *	,
		dLocalLU_t *	,
		int
	)

◆ dIRecv_UDiagBlock()

int_t dIRecv_UDiagBlock	(	int_t	k0,
		double *	ublk_ptr,
		int_t	size,
		int_t	src,
		MPI_Request *	,
		gridinfo_t *	,
		SCT_t *	,
		int
	)

◆ dIrecv_UPanel()

int_t dIrecv_UPanel	(	int_t	k,
		int_t	k0,
		int_t *	Usub_buf,
		double *	,
		dLocalLU_t *	,
		gridinfo_t *	,
		MPI_Request *	,
		int
	)

◆ dISend_LDiagBlock()

int_t dISend_LDiagBlock	(	int_t	k0,
		double *	lblk_ptr,
		int_t	size,
		MPI_Request *	,
		gridinfo_t *	,
		int
	)

◆ dISend_UDiagBlock()

int_t dISend_UDiagBlock	(	int_t	k0,
		double *	ublk_ptr,
		int_t	size,
		MPI_Request *	,
		gridinfo_t *	,
		int
	)

Here is the caller graph for this function:

◆ dlangs_dist()

double dlangs_dist	(	char *	norm,
		SuperMatrix *	A
	)


    Purpose
    =======

    DLANGS_dist returns the value of the one norm, or the Frobenius norm, or
    the infinity norm, or the element of largest absolute value of a
    real matrix A.

    Description
    ===========

    DLANGE returns the value

       DLANGE = ( max(abs(A(i,j))), NORM = 'M' or 'm'
                (
                ( norm1(A),         NORM = '1', 'O' or 'o'
                (
                ( normI(A),         NORM = 'I' or 'i'
                (
                ( normF(A),         NORM = 'F', 'f', 'E' or 'e'

    where  norm1  denotes the  one norm of a matrix (maximum column sum),
    normI  denotes the  infinity norm  of a matrix  (maximum row sum) and
    normF  denotes the  Frobenius norm of a matrix (square root of sum of
    squares).  Note that  max(abs(A(i,j)))  is not a  matrix norm.

    Arguments
    =========

    NORM    (input) CHARACTER*1
            Specifies the value to be returned in DLANGE as described above.
    A       (input) SuperMatrix*
            The M by N sparse matrix A.

   =====================================================================

Purpose
  =======

  DLANGS_DIST returns the value of the one norm, or the Frobenius norm, or
  the infinity norm, or the element of largest absolute value of a
  real matrix A.

  Description
  ===========

  DLANGE returns the value

     DLANGE = ( max(abs(A(i,j))), NORM = 'M' or 'm'
              (
              ( norm1(A),         NORM = '1', 'O' or 'o'
              (
              ( normI(A),         NORM = 'I' or 'i'
              (
              ( normF(A),         NORM = 'F', 'f', 'E' or 'e'

  where  norm1  denotes the  one norm of a matrix (maximum column sum),
  normI  denotes the  infinity norm  of a matrix  (maximum row sum) and
  normF  denotes the  Frobenius norm of a matrix (square root of sum of
  squares).  Note that  max(abs(A(i,j)))  is not a  matrix norm.

  Arguments
  =========

  NORM    (input) CHARACTER*1
          Specifies the value to be returned in DLANGE as described above.
  A       (input) SuperMatrix*
          The M by N sparse matrix A.

 =====================================================================

◆ dlaqgs_dist()

void dlaqgs_dist	(	SuperMatrix *	A,
		double *	r,
		double *	c,
		double	rowcnd,
		double	colcnd,
		double	amax,
		char *	equed
	)

    Purpose
    =======

    DLAQGS_dist equilibrates a general sparse M by N matrix A using the row
    and column scaling factors in the vectors R and C.

    See supermatrix.h for the definition of 'SuperMatrix' structure.

    Arguments
    =========

    A       (input/output) SuperMatrix*
            On exit, the equilibrated matrix.  See EQUED for the form of
            the equilibrated matrix. The type of A can be:
        Stype = SLU_NC; Dtype = SLU_D; Mtype = SLU_GE.

    R       (input) double*, dimension (A->nrow)
            The row scale factors for A.

    C       (input) double*, dimension (A->ncol)
            The column scale factors for A.

    ROWCND  (input) double
            Ratio of the smallest R(i) to the largest R(i).

    COLCND  (input) double
            Ratio of the smallest C(i) to the largest C(i).

    AMAX    (input) double
            Absolute value of largest matrix entry.

    EQUED   (output) char*
            Specifies the form of equilibration that was done.
            = 'N':  No equilibration
            = 'R':  Row equilibration, i.e., A has been premultiplied by
                    diag(R).
            = 'C':  Column equilibration, i.e., A has been postmultiplied
                    by diag(C).
            = 'B':  Both row and column equilibration, i.e., A has been
                    replaced by diag(R) * A * diag(C).

    Internal Parameters
    ===================

    THRESH is a threshold value used to decide if row or column scaling
    should be done based on the ratio of the row or column scaling
    factors.  If ROWCND < THRESH, row scaling is done, and if
    COLCND < THRESH, column scaling is done.

    LARGE and SMALL are threshold values used to decide if row scaling
    should be done based on the absolute size of the largest matrix
    element.  If AMAX > LARGE or AMAX < SMALL, row scaling is done.

    =====================================================================

  Purpose
  =======

  DLAQGS_DIST equilibrates a general sparse M by N matrix A using the row and
  scaling factors in the vectors R and C.

  See supermatrix.h for the definition of 'SuperMatrix' structure.

  Arguments
  =========

  A       (input/output) SuperMatrix*
          On exit, the equilibrated matrix.  See EQUED for the form of
          the equilibrated matrix. The type of A can be:
     Stype = NC; Dtype = SLU_D; Mtype = GE.

  R       (input) double*, dimension (A->nrow)
          The row scale factors for A.

  C       (input) double*, dimension (A->ncol)
          The column scale factors for A.

  ROWCND  (input) double
          Ratio of the smallest R(i) to the largest R(i).

  COLCND  (input) double
          Ratio of the smallest C(i) to the largest C(i).

  AMAX    (input) double
          Absolute value of largest matrix entry.

  EQUED   (output) char*
          Specifies the form of equilibration that was done.
          = 'N':  No equilibration
          = 'R':  Row equilibration, i.e., A has been premultiplied by
                  diag(R).
          = 'C':  Column equilibration, i.e., A has been postmultiplied
                  by diag(C).
          = 'B':  Both row and column equilibration, i.e., A has been
                  replaced by diag(R) * A * diag(C).

  Internal Parameters
  ===================

  THRESH is a threshold value used to decide if row or column scaling
  should be done based on the ratio of the row or column scaling
  factors.  If ROWCND < THRESH, row scaling is done, and if
  COLCND < THRESH, column scaling is done.

  LARGE and SMALL are threshold values used to decide if row scaling
  should be done based on the absolute size of the largest matrix
  element.  If AMAX > LARGE or AMAX < SMALL, row scaling is done.

  =====================================================================

◆ dldperm_dist()

int dldperm_dist	(	int	job,
		int	n,
		int_t	nnz,
		int_t	colptr[],
		int_t	adjncy[],
		double	nzval[],
		int_t *	perm,
		double	u[],
		double	v[]
	)

Purpose
=======

  DLDPERM finds a row permutation so that the matrix has large
  entries on the diagonal.

Arguments
=========

job    (input) int
       Control the action. Possible values for JOB are:
       = 1 : Compute a row permutation of the matrix so that the
             permuted matrix has as many entries on its diagonal as
             possible. The values on the diagonal are of arbitrary size.
             HSL subroutine MC21A/AD is used for this.
       = 2 : Compute a row permutation of the matrix so that the smallest
             value on the diagonal of the permuted matrix is maximized.
       = 3 : Compute a row permutation of the matrix so that the smallest
             value on the diagonal of the permuted matrix is maximized.
             The algorithm differs from the one used for JOB = 2 and may
             have quite a different performance.
       = 4 : Compute a row permutation of the matrix so that the sum
             of the diagonal entries of the permuted matrix is maximized.
       = 5 : Compute a row permutation of the matrix so that the product
             of the diagonal entries of the permuted matrix is maximized
             and vectors to scale the matrix so that the nonzero diagonal
             entries of the permuted matrix are one in absolute value and
             all the off-diagonal entries are less than or equal to one in
             absolute value.
       Restriction: 1 <= JOB <= 5.

n      (input) int
       The order of the matrix.

nnz    (input) int
       The number of nonzeros in the matrix.

adjncy (input) int*, of size nnz
       The adjacency structure of the matrix, which contains the row
       indices of the nonzeros.

colptr (input) int*, of size n+1
       The pointers to the beginning of each column in ADJNCY.

nzval  (input) double*, of size nnz
       The nonzero values of the matrix. nzval[k] is the value of
       the entry corresponding to adjncy[k].
       It is not used if job = 1.

perm   (output) int*, of size n
       The permutation vector. perm[i] = j means row i in the
       original matrix is in row j of the permuted matrix.

u      (output) double*, of size n
       If job = 5, the natural logarithms of the row scaling factors.

v      (output) double*, of size n
       If job = 5, the natural logarithms of the column scaling factors.
       The scaled matrix B has entries b_ij = a_ij * exp(u_i + v_j).

◆ dLluBufFreeArr()

int dLluBufFreeArr	(	int_t	numLA,
		dLUValSubBuf_t **	LUvsbs
	)

Here is the caller graph for this function:

◆ dLluBufInit()

int_t dLluBufInit	(	dLUValSubBuf_t *	,
		dLUstruct_t *
	)

◆ dLluBufInitArr()

dLUValSubBuf_t ** dLluBufInitArr	(	int_t	numLA,
		dLUstruct_t *	LUstruct
	)

Here is the caller graph for this function:

◆ dLPanelTrSolve()

int_t dLPanelTrSolve	(	int_t	k,
		int_t *	factored_L,
		double *	BlockUFactor,
		gridinfo_t *	,
		dLUstruct_t *
	)

Here is the caller graph for this function:

◆ dLPanelUpdate()

int_t dLPanelUpdate	(	int_t	k,
		int_t *	IrecvPlcd_D,
		int_t *	factored_L,
		MPI_Request *	,
		double *	BlockUFactor,
		gridinfo_t *	,
		dLUstruct_t *	,
		SCT_t *
	)

Here is the caller graph for this function:

◆ dLpanelUpdate()

int_t dLpanelUpdate	(	int_t	off0,
		int_t	nsupc,
		double *	ublk_ptr,
		int_t	ld_ujrow,
		double *	lusup,
		int_t	nsupr,
		SCT_t *
	)

◆ dlsum_bmod()

void dlsum_bmod	(	double *	lsum,
		double *	x,
		double *	xk,
		int	nrhs,
		int_t	k,
		int *	bmod,
		int_t *	Urbs,
		Ucb_indptr_t **	Ucb_indptr,
		int_t **	Ucb_valptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		MPI_Request	send_req[],
		SuperLUStat_t *	stat
	)

◆ dlsum_bmod_inv()

void dlsum_bmod_inv	(	double *	lsum,
		double *	x,
		double *	xk,
		double *	rtemp,
		int	nrhs,
		int_t	k,
		int *	bmod,
		int_t *	Urbs,
		Ucb_indptr_t **	Ucb_indptr,
		int_t **	Ucb_valptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		SuperLUStat_t **	stat,
		int_t *	root_send,
		int_t *	nroot_send,
		int_t	sizelsum,
		int_t	sizertemp,
		int	thread_id,
		int	num_thread
	)

◆ dlsum_bmod_inv_master()

void dlsum_bmod_inv_master	(	double *	lsum,
		double *	x,
		double *	xk,
		double *	rtemp,
		int	nrhs,
		int_t	k,
		int *	bmod,
		int_t *	Urbs,
		Ucb_indptr_t **	Ucb_indptr,
		int_t **	Ucb_valptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		SuperLUStat_t **	stat,
		int_t	sizelsum,
		int_t	sizertemp,
		int	thread_id,
		int	num_thread
	)

◆ dlsum_fmod()

void dlsum_fmod	(	double *	lsum,
		double *	x,
		double *	xk,
		double *	rtemp,
		int	nrhs,
		int	knsupc,
		int_t	k,
		int *	fmod,
		int_t	nlb,
		int_t	lptr,
		int_t	luptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		MPI_Request	send_req[],
		SuperLUStat_t *	stat
	)

Purpose
=======
  Perform local block modifications: lsum[i] -= L_i,k * X[k].

◆ dlsum_fmod_inv()

void dlsum_fmod_inv	(	double *	lsum,
		double *	x,
		double *	xk,
		double *	rtemp,
		int	nrhs,
		int_t	k,
		int *	fmod,
		int_t *	xsup,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		SuperLUStat_t **	stat,
		int_t *	leaf_send,
		int_t *	nleaf_send,
		int_t	sizelsum,
		int_t	sizertemp,
		int_t	recurlevel,
		int_t	maxsuper,
		int	thread_id,
		int	num_thread
	)

Purpose
=======
  Perform local block modifications: lsum[i] -= L_i,k * X[k].

◆ dlsum_fmod_inv_master()

void dlsum_fmod_inv_master	(	double *	lsum,
		double *	x,
		double *	xk,
		double *	rtemp,
		int	nrhs,
		int	knsupc,
		int_t	k,
		int *	fmod,
		int_t	nlb,
		int_t *	xsup,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		SuperLUStat_t **	stat,
		int_t	sizelsum,
		int_t	sizertemp,
		int_t	recurlevel,
		int_t	maxsuper,
		int	thread_id,
		int	num_thread
	)

Purpose
=======
  Perform local block modifications: lsum[i] -= L_i,k * X[k].

◆ dLUstructFree()

void dLUstructFree ( dLUstruct_t * LUstruct )

Deallocate LUstruct.

◆ dLUstructInit()

void dLUstructInit	(	const	int_t,
		dLUstruct_t *	LUstruct
	)

Allocate storage in LUstruct.

◆ doubleCalloc_dist()

double * doubleCalloc_dist ( int_t n )

◆ doubleMalloc_dist()

double * doubleMalloc_dist ( int_t n )

◆ dp3dCollect()

int_t dp3dCollect	(	int_t	layer,
		int_t	n,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ dp3dScatter()

int_t dp3dScatter	(	int_t	n,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

Here is the caller graph for this function:

◆ dPackLBlock()

int_t dPackLBlock	(	int_t	k,
		double *	Dest,
		Glu_persist_t *	,
		gridinfo_t *	,
		dLocalLU_t *
	)

◆ dPrint_CompCol_Matrix_dist()

void dPrint_CompCol_Matrix_dist ( SuperMatrix * )

Here is the caller graph for this function:

◆ dPrint_CompRowLoc_Matrix_dist()

int dPrint_CompRowLoc_Matrix_dist ( SuperMatrix * )

◆ dPrint_Dense_Matrix_dist()

void dPrint_Dense_Matrix_dist ( SuperMatrix * )

◆ dPrintLblocks()

void dPrintLblocks	(	int	iam,
		int_t	nsupers,
		gridinfo_t *	grid,
		Glu_persist_t *	Glu_persist,
		dLocalLU_t *	Llu
	)

Print the blocks in the factored matrix L.

◆ dPrintUblocks()

void dPrintUblocks	(	int	iam,
		int_t	nsupers,
		gridinfo_t *	grid,
		Glu_persist_t *	Glu_persist,
		dLocalLU_t *	Llu
	)

Print the blocks in the factored matrix U.

◆ dQuerySpace_dist()

int_t dQuerySpace_dist	(	int_t	n,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		SuperLUStat_t *	stat,
		superlu_dist_mem_usage_t *	mem_usage
	)

mem_usage consists of the following fields:
for_lu (float)
     The amount of space used in bytes for the L\U data structures.
total (float)
     The amount of space needed in bytes to perform factorization.
expansions (int)
     Number of memory expansions during the LU factorization.

◆ dread_binary()

int dread_binary	(	FILE *	fp,
		int_t *	m,
		int_t *	n,
		int_t *	nnz,
		double **	nzval,
		int_t **	rowind,
		int_t **	colptr
	)

◆ dreadhb_dist()

void dreadhb_dist	(	int	iam,
		FILE *	fp,
		int_t *	nrow,
		int_t *	ncol,
		int_t *	nonz,
		double **	nzval,
		int_t **	rowind,
		int_t **	colptr
	)

Purpose
=======

Read a DOUBLE PRECISION matrix stored in Harwell-Boeing format
as described below.

Line 1 (A72,A8)
    Col. 1 - 72   Title (TITLE)
 Col. 73 - 80  Key (KEY)

Line 2 (5I14)
    Col. 1 - 14   Total number of lines excluding header (TOTCRD)
    Col. 15 - 28  Number of lines for pointers (PTRCRD)
    Col. 29 - 42  Number of lines for row (or variable) indices (INDCRD)
    Col. 43 - 56  Number of lines for numerical values (VALCRD)
 Col. 57 - 70  Number of lines for right-hand sides (RHSCRD)
                   (including starting guesses and solution vectors
           if present)
                  (zero indicates no right-hand side data is present)

Line 3 (A3, 11X, 4I14)
    Col. 1 - 3    Matrix type (see below) (MXTYPE)
    Col. 15 - 28  Number of rows (or variables) (NROW)
    Col. 29 - 42  Number of columns (or elements) (NCOL)
 Col. 43 - 56  Number of row (or variable) indices (NNZERO)
               (equal to number of entries for assembled matrices)
    Col. 57 - 70  Number of elemental matrix entries (NELTVL)
               (zero in the case of assembled matrices)
Line 4 (2A16, 2A20)
    Col. 1 - 16   Format for pointers (PTRFMT)
 Col. 17 - 32  Format for row (or variable) indices (INDFMT)
 Col. 33 - 52  Format for numerical values of coefficient matrix (VALFMT)
    Col. 53 - 72 Format for numerical values of right-hand sides (RHSFMT)

Line 5 (A3, 11X, 2I14) Only present if there are right-hand sides present
    Col. 1        Right-hand side type:
              F for full storage or M for same format as matrix
    Col. 2        G if a starting vector(s) (Guess) is supplied. (RHSTYP)
    Col. 3        X if an exact solution vector(s) is supplied.
 Col. 15 - 28  Number of right-hand sides (NRHS)
 Col. 29 - 42  Number of row indices (NRHSIX)
                  (ignored in case of unassembled matrices)

The three character type field on line 3 describes the matrix type.
The following table lists the permitted values for each of the three
characters. As an example of the type field, RSA denotes that the matrix
is real, symmetric, and assembled.

First Character:
 R Real matrix
 C Complex matrix
 P Pattern only (no numerical values supplied)

Second Character:
 S Symmetric
 U Unsymmetric
 H Hermitian
 Z Skew symmetric
 R Rectangular

Third Character:
 A Assembled
 E Elemental matrices (unassembled)

◆ dreadMM_dist()

void dreadMM_dist	(	FILE *	fp,
		int_t *	m,
		int_t *	n,
		int_t *	nonz,
		double **	nzval,
		int_t **	rowind,
		int_t **	colptr
	)

brief

Output parameters
=================
  (nzval, rowind, colptr): (*rowind)[*] contains the row subscripts of
     nonzeros in columns of matrix A; (*nzval)[*] the numerical values;
 column i of A is given by (*nzval)[k], k = (*rowind)[i],...,
     (*rowind)[i+1]-1.

◆ dreadrb_dist()

void dreadrb_dist	(	int	iam,
		FILE *	fp,
		int_t *	nrow,
		int_t *	ncol,
		int_t *	nonz,
		double **	nzval,
		int_t **	rowind,
		int_t **	colptr
	)

◆ dreadtriple_dist()

void dreadtriple_dist	(	FILE *	fp,
		int_t *	m,
		int_t *	n,
		int_t *	nonz,
		double **	nzval,
		int_t **	rowind,
		int_t **	colptr
	)

brief

Output parameters
=================
  (nzval, rowind, colptr): (*rowind)[*] contains the row subscripts of
     nonzeros in columns of matrix A; (*nzval)[*] the numerical values;
 column i of A is given by (*nzval)[k], k = (*rowind)[i],...,
     (*rowind)[i+1]-1.

◆ dreadtriple_noheader()

void dreadtriple_noheader	(	FILE *	fp,
		int_t *	m,
		int_t *	n,
		int_t *	nonz,
		double **	nzval,
		int_t **	rowind,
		int_t **	colptr
	)

brief

Output parameters
=================
  (nzval, rowind, colptr): (*rowind)[*] contains the row subscripts of
     nonzeros in columns of matrix A; (*nzval)[*] the numerical values;
 column i of A is given by (*nzval)[k], k = (*rowind)[i],...,
     (*rowind)[i+1]-1.

◆ dRecv_UDiagBlock()

int_t dRecv_UDiagBlock	(	int_t	k0,
		double *	ublk_ptr,
		int_t	size,
		int_t	src,
		gridinfo_t *	,
		SCT_t *	,
		int
	)

Here is the caller graph for this function:

◆ dreduceAllAncestors3d()

int dreduceAllAncestors3d	(	int_t	ilvl,
		int_t *	myNodeCount,
		int_t **	treePerm,
		dLUValSubBuf_t *	LUvsb,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

Here is the caller graph for this function:

◆ dreduceAncestors3d()

int_t dreduceAncestors3d	(	int_t	sender,
		int_t	receiver,
		int_t	nnodes,
		int_t *	nodeList,
		double *	Lval_buf,
		double *	Uval_buf,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

◆ dRgather_L()

void dRgather_L	(	int_t	k,
		int_t *	lsub,
		double *	lusup,
		gEtreeInfo_t *	,
		Glu_persist_t *	,
		gridinfo_t *	,
		HyP_t *	,
		int_t *	myIperm,
		int_t *	iperm_c_supno
	)

◆ dRgather_U()

void dRgather_U	(	int_t	k,
		int_t	jj0,
		int_t *	usub,
		double *	uval,
		double *	bigU,
		gEtreeInfo_t *	,
		Glu_persist_t *	,
		gridinfo_t *	,
		HyP_t *	,
		int_t *	myIperm,
		int_t *	iperm_c_supno,
		int_t *	perm_u
	)

◆ dscal_()

int dscal_	(	const int *	n,
		const double *	alpha,
		double *	dx,
		const int *	incx
	)

◆ dScaleAdd_CompRowLoc_Matrix_dist()

void dScaleAdd_CompRowLoc_Matrix_dist	(	SuperMatrix *	A,
		SuperMatrix *	B,
		double	c
	)

Scale and add: adds a scalar multiple of one matrix to another. A_{i,j} = c * A_{i,j} + B_{i,j}$ for i,j=1,...,n.

◆ dScaleAddId_CompRowLoc_Matrix_dist()

void dScaleAddId_CompRowLoc_Matrix_dist	(	SuperMatrix *	A,
		double	c
	)

Scale and add I: scales a matrix and adds an identity. A_{i,j} = c * A_{i,j} + \delta_{i,j} for i,j=1,...,n and \delta_{i,j} is the Kronecker delta.

◆ dScalePermstructFree()

void dScalePermstructFree ( dScalePermstruct_t * ScalePermstruct )

Deallocate ScalePermstruct.

◆ dScalePermstructInit()

void dScalePermstructInit	(	const	int_t,
		const	int_t,
		dScalePermstruct_t *	ScalePermstruct
	)

Allocate storage in ScalePermstruct.

◆ dscatter3dLPanels()

int_t dscatter3dLPanels	(	int_t	nsupers,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ dscatter3dUPanels()

int_t dscatter3dUPanels	(	int_t	nsupers,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

◆ dScatter_B3d()

int dScatter_B3d	(	NRformat_loc3d *	A3d,
		gridinfo3d_t *	grid3d
	)

Here is the caller graph for this function:

◆ dscatter_l()

void dscatter_l	(	int	ib,
		int	ljb,
		int	nsupc,
		int_t	iukp,
		int_t *	xsup,
		int	klst,
		int	nbrow,
		int_t	lptr,
		int	temp_nbrow,
		int_t *	usub,
		int_t *	lsub,
		double *	tempv,
		int *	indirect_thread,
		int *	indirect2,
		int_t **	Lrowind_bc_ptr,
		double **	Lnzval_bc_ptr,
		gridinfo_t *	grid
	)

◆ dscatter_u()

void dscatter_u	(	int	ib,
		int	jb,
		int	nsupc,
		int_t	iukp,
		int_t *	xsup,
		int	klst,
		int	nbrow,
		int_t	lptr,
		int	temp_nbrow,
		int_t *	lsub,
		int_t *	usub,
		double *	tempv,
		int_t **	Ufstnz_br_ptr,
		double **	Unzval_br_ptr,
		gridinfo_t *	grid
	)

◆ dSchurComplementSetup()

int_t dSchurComplementSetup	(	int_t	k,
		int *	msgcnt,
		Ublock_info_t *	,
		Remain_info_t *	,
		uPanelInfo_t *	,
		lPanelInfo_t *	,
		int_t *	,
		int_t *	,
		int_t *	,
		double *	bigU,
		int_t *	Lsub_buf,
		double *	Lval_buf,
		int_t *	Usub_buf,
		double *	Uval_buf,
		gridinfo_t *	,
		dLUstruct_t *
	)

◆ dSchurComplementSetupGPU()

int_t dSchurComplementSetupGPU	(	int_t	k,
		msgs_t *	msgs,
		packLUInfo_t *	,
		int_t *	,
		int_t *	,
		int_t *	,
		gEtreeInfo_t *	,
		factNodelists_t *	,
		dscuBufs_t *	,
		dLUValSubBuf_t *	LUvsb,
		gridinfo_t *	,
		dLUstruct_t *	,
		HyP_t *
	)

Here is the caller graph for this function:

◆ dSolveFinalize()

void dSolveFinalize	(	superlu_dist_options_t *	options,
		dSOLVEstruct_t *	SOLVEstruct
	)

Release the resources used for the solution phase.

◆ dSolveInit()

int dSolveInit	(	superlu_dist_options_t *	options,
		SuperMatrix *	A,
		int_t	perm_r[],
		int_t	perm_c[],
		int_t	nrhs,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		dSOLVEstruct_t *	SOLVEstruct
	)

Initialize the data structure for the solution phase.

◆ dsparseTreeFactor()

int_t dsparseTreeFactor	(	int_t	nnodes,
		int_t *	perm_c_supno,
		treeTopoInfo_t *	treeTopoInfo,
		commRequests_t *	comReqs,
		dscuBufs_t *	scuBufs,
		packLUInfo_t *	packLUInfo,
		msgs_t *	msgs,
		dLUValSubBuf_t *	LUvsb,
		ddiagFactBufs_t *	dFBuf,
		factStat_t *	factStat,
		factNodelists_t *	fNlists,
		superlu_dist_options_t *	options,
		int_t *	gIperm_c_supno,
		int_t	ldt,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat,
		double	thresh,
		SCT_t *	SCT,
		int *	info
	)

◆ dsparseTreeFactor_ASYNC()

int_t dsparseTreeFactor_ASYNC	(	sForest_t *	sforest,
		commRequests_t **	comReqss,
		dscuBufs_t *	scuBufs,
		packLUInfo_t *	packLUInfo,
		msgs_t **	msgss,
		dLUValSubBuf_t **	LUvsbs,
		ddiagFactBufs_t **	dFBufs,
		factStat_t *	factStat,
		factNodelists_t *	fNlists,
		gEtreeInfo_t *	gEtreeInfo,
		superlu_dist_options_t *	options,
		int_t *	gIperm_c_supno,
		int_t	ldt,
		HyP_t *	HyP,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat,
		double	thresh,
		SCT_t *	SCT,
		int	tag_ub,
		int *	info
	)

Here is the caller graph for this function:

◆ dstatic_schedule()

int dstatic_schedule	(	superlu_dist_options_t *	options,
		int	m,
		int	n,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		SuperLUStat_t *	stat,
		int_t *	perm_c_supno,
		int_t *	iperm_c_supno,
		int *	info
	)

◆ dTrs2_GatherTrsmScatter()

int_t dTrs2_GatherTrsmScatter	(	int_t	klst,
		int_t	iukp,
		int_t	rukp,
		int_t *	usub,
		double *	uval,
		double *	tempv,
		int_t	knsupc,
		int	nsupr,
		double *	lusup,
		Glu_persist_t *	Glu_persist
	)

◆ dTrs2_GatherU()

int_t dTrs2_GatherU	(	int_t	iukp,
		int_t	rukp,
		int_t	klst,
		int_t	nsupc,
		int_t	ldu,
		int_t *	usub,
		double *	uval,
		double *	tempv
	)

◆ dTrs2_ScatterU()

int_t dTrs2_ScatterU	(	int_t	iukp,
		int_t	rukp,
		int_t	klst,
		int_t	nsupc,
		int_t	ldu,
		int_t *	usub,
		double *	uval,
		double *	tempv
	)

◆ dtrsm_()

int dtrsm_	(	const char *	,
		const char *	,
		const char *	,
		const char *	,
		const int *	,
		const int *	,
		const double *	,
		const double *	,
		const int *	,
		double *	,
		const int *
	)

◆ dtrsv_()

int dtrsv_	(	char *	,
		char *	,
		char *	,
		int *	,
		double *	,
		int *	,
		double *	,
		int *
	)

◆ dUDiagBlockRecvWait()

int_t dUDiagBlockRecvWait	(	int_t	k,
		int_t *	IrecvPlcd_D,
		int_t *	factored_L,
		MPI_Request *	,
		gridinfo_t *	,
		dLUstruct_t *	,
		SCT_t *
	)

◆ dUPanelTrSolve()

int_t dUPanelTrSolve	(	int_t	k,
		double *	BlockLFactor,
		double *	bigV,
		int_t	ldt,
		Ublock_info_t *	,
		gridinfo_t *	,
		dLUstruct_t *	,
		SuperLUStat_t *	,
		SCT_t *
	)

Here is the caller graph for this function:

◆ dUPanelUpdate()

int_t dUPanelUpdate	(	int_t	k,
		int_t *	factored_U,
		MPI_Request *	,
		double *	BlockLFactor,
		double *	bigV,
		int_t	ldt,
		Ublock_info_t *	,
		gridinfo_t *	,
		dLUstruct_t *	,
		SuperLUStat_t *	,
		SCT_t *
	)

Here is the caller graph for this function:

◆ duser_free_dist()

void duser_free_dist	(	int_t	bytes,
		int_t	which_end
	)

◆ duser_malloc_dist()

void * duser_malloc_dist	(	int_t	bytes,
		int_t	which_end
	)

◆ dWait_LRecv()

int_t dWait_LRecv	(	MPI_Request *	,
		int *	msgcnt,
		int *	msgcntsU,
		gridinfo_t *	,
		SCT_t *
	)

◆ dWait_URecv()

int_t dWait_URecv	(	MPI_Request *	,
		int *	msgcnt,
		SCT_t *
	)

◆ dWaitL()

int_t dWaitL	(	int_t	k,
		int *	msgcnt,
		int *	msgcntU,
		MPI_Request *	,
		MPI_Request *	,
		gridinfo_t *	,
		dLUstruct_t *	,
		SCT_t *
	)

Here is the caller graph for this function:

◆ dWaitU()

int_t dWaitU	(	int_t	k,
		int *	msgcnt,
		MPI_Request *	,
		MPI_Request *	,
		gridinfo_t *	,
		dLUstruct_t *	,
		SCT_t *
	)

Here is the caller graph for this function:

◆ dZero_CompRowLoc_Matrix_dist()

void dZero_CompRowLoc_Matrix_dist ( SuperMatrix * A )

Sets all entries of a matrix to zero, A_{i,j}=0, for i,j=1,..,n.

◆ dZeroLblocks()

void dZeroLblocks	(	int	iam,
		int	n,
		gridinfo_t *	grid,
		dLUstruct_t *	LUstruct
	)

Sets all entries of matrix L to zero.

◆ dzeroSetLU()

int_t dzeroSetLU	(	int_t	nnodes,
		int_t *	nodeList,
		dLUstruct_t *	,
		gridinfo3d_t *
	)

◆ dZeroUblocks()

void dZeroUblocks	(	int	iam,
		int	n,
		gridinfo_t *	grid,
		dLUstruct_t *	LUstruct
	)

Sets all entries of matrix U to zero.

◆ dzRecvLPanel()

int_t dzRecvLPanel	(	int_t	k,
		int_t	sender,
		double	alpha,
		double	beta,
		double *	Lval_buf,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

◆ dzRecvUPanel()

int_t dzRecvUPanel	(	int_t	k,
		int_t	sender,
		double	alpha,
		double	beta,
		double *	Uval_buf,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

◆ dzSendLPanel()

int_t dzSendLPanel	(	int_t	k,
		int_t	receiver,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

◆ dzSendUPanel()

int_t dzSendUPanel	(	int_t	k,
		int_t	receiver,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SCT_t *	SCT
	)

◆ file_dPrint_CompRowLoc_Matrix_dist()

int file_dPrint_CompRowLoc_Matrix_dist	(	FILE *	fp,
		SuperMatrix *	A
	)

◆ file_Printdouble5()

int file_Printdouble5	(	FILE *	fp,
		char *	name,
		int_t	len,
		double *	x
	)

◆ Free_HyP()

void Free_HyP ( HyP_t * HyP )

◆ freePackLUInfo()

int freePackLUInfo ( packLUInfo_t * packLUInfo )

Here is the caller graph for this function:

◆ getNsupers()

int getNsupers	(	int	n,
		Glu_persist_t *	Glu_persist
	)

Here is the caller graph for this function:

◆ initPackLUInfo()

int_t initPackLUInfo	(	int_t	nsupers,
		packLUInfo_t *	packLUInfo
	)

Here is the caller graph for this function:

◆ LDiagBlockRecvWait()

int_t LDiagBlockRecvWait	(	int_t	k,
		int_t *	factored_U,
		MPI_Request *	L_diag_blk_recv_req,
		gridinfo_t *	grid
	)

◆ Local_Dgstrf2()

void Local_Dgstrf2	(	superlu_dist_options_t *	options,
		int_t	k,
		double	thresh,
		double *	BlockUFactor,
		Glu_persist_t *	Glu_persist,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		SuperLUStat_t *	stat,
		int *	info,
		SCT_t *	SCT
	)

Here is the call graph for this function:

◆ pdCompRow_loc_to_CompCol_global()

int pdCompRow_loc_to_CompCol_global	(	int_t	need_value,
		SuperMatrix *	A,
		gridinfo_t *	grid,
		SuperMatrix *	GA
	)

Gather A from the distributed compressed row format to global A in compressed column format.

◆ pdCompute_Diag_Inv()

void pdCompute_Diag_Inv	(	int_t	n,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		SuperLUStat_t *	stat,
		int *	info
	)

Purpose
=======
  Compute the inverse of the diagonal blocks of the L and U
  triangular matrices.

◆ pddistribute()

float pddistribute	(	fact_t	fact,
		int_t	n,
		SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		Glu_freeable_t *	Glu_freeable,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pdGetDiagU()

void pdGetDiagU	(	int_t	n,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		double *	diagU
	)

Purpose
=======

GetDiagU extracts the main diagonal of matrix U of the LU factorization.

Arguments
=========

n        (input) int
         Dimension of the matrix.

LUstruct (input) dLUstruct_t*
         The data structures to store the distributed L and U factors.
         see superlu_ddefs.h for its definition.

grid     (input) gridinfo_t*
         The 2D process mesh. It contains the MPI communicator, the number
         of process rows (NPROW), the number of process columns (NPCOL),
         and my process rank. It is an input argument to all the
         parallel routines.

diagU    (output) double*, dimension (n)
         The main diagonal of matrix U.
         On exit, it is available on all processes.


Note
====

The diagonal blocks of the L and U matrices are stored in the L
data structures, and are on the diagonal processes of the
2D process grid.

This routine is modified from gather_diag_to_all() in pdgstrs_Bglobal.c.

◆ pdgsequ()

void pdgsequ	(	SuperMatrix *	A,
		double *	r,
		double *	c,
		double *	rowcnd,
		double *	colcnd,
		double *	amax,
		int_t *	info,
		gridinfo_t *	grid
	)

    Purpose
    =======

    PDGSEQU computes row and column scalings intended to equilibrate an
    M-by-N sparse matrix A and reduce its condition number. R returns the row
    scale factors and C the column scale factors, chosen to try to make
    the largest element in each row and column of the matrix B with
    elements B(i,j)=R(i)*A(i,j)*C(j) have absolute value 1.

    R(i) and C(j) are restricted to be between SMLNUM = smallest safe
    number and BIGNUM = largest safe number.  Use of these scaling
    factors is not guaranteed to reduce the condition number of A but
    works well in practice.

    See supermatrix.h for the definition of 'SuperMatrix' structure.

    Arguments
    =========

    A       (input) SuperMatrix*
            The matrix of dimension (A->nrow, A->ncol) whose equilibration
            factors are to be computed. The type of A can be:
            Stype = SLU_NR_loc; Dtype = SLU_D; Mtype = SLU_GE.

    R       (output) double*, size A->nrow
            If INFO = 0 or INFO > M, R contains the row scale factors
            for A.

    C       (output) double*, size A->ncol
            If INFO = 0,  C contains the column scale factors for A.

    ROWCND  (output) double*
            If INFO = 0 or INFO > M, ROWCND contains the ratio of the
            smallest R(i) to the largest R(i).  If ROWCND >= 0.1 and
            AMAX is neither too large nor too small, it is not worth
            scaling by R.

    COLCND  (output) double*
            If INFO = 0, COLCND contains the ratio of the smallest
            C(i) to the largest C(i).  If COLCND >= 0.1, it is not
            worth scaling by C.

    AMAX    (output) double*
            Absolute value of largest matrix element.  If AMAX is very
            close to overflow or very close to underflow, the matrix
            should be scaled.

    INFO    (output) int*
            = 0:  successful exit
            < 0:  if INFO = -i, the i-th argument had an illegal value
            > 0:  if INFO = i,  and i is
                  <= M:  the i-th row of A is exactly zero
                  >  M:  the (i-M)-th column of A is exactly zero

    GRID    (input) gridinof_t*
            The 2D process mesh.
    =====================================================================

◆ pdgsmv()

void pdgsmv	(	int_t	abs,
		SuperMatrix *	A_internal,
		gridinfo_t *	grid,
		pdgsmv_comm_t *	gsmv_comm,
		double	x[],
		double	ax[]
	)

◆ pdgsmv_AXglobal()

int pdgsmv_AXglobal	(	int_t	m,
		int_t	update[],
		double	val[],
		int_t	bindx[],
		double	X[],
		double	ax[]
	)

Performs sparse matrix-vector multiplication.
val/bindx stores the distributed MSR matrix A
X is global
ax product is distributed the same way as A

◆ pdgsmv_AXglobal_abs()

int pdgsmv_AXglobal_abs	(	int_t	m,
		int_t	update[],
		double	val[],
		int_t	bindx[],
		double	X[],
		double	ax[]
	)

◆ pdgsmv_AXglobal_setup()

int pdgsmv_AXglobal_setup	(	SuperMatrix *	,
		Glu_persist_t *	,
		gridinfo_t *	,
		int_t *	,
		int_t *	[],
		double *	[],
		int_t *	[],
		int_t	[]
	)

◆ pdgsmv_finalize()

void pdgsmv_finalize ( pdgsmv_comm_t * gsmv_comm )

◆ pdgsmv_init()

void pdgsmv_init	(	SuperMatrix *	A,
		int_t *	row_to_proc,
		gridinfo_t *	grid,
		pdgsmv_comm_t *	gsmv_comm
	)

◆ pdgsrfs()

void pdgsrfs	(	int_t	,
		SuperMatrix *	,
		double	,
		dLUstruct_t *	,
		dScalePermstruct_t *	,
		gridinfo_t *	,
		double	[],
		int_t	,
		double	[],
		int_t	,
		int	,
		dSOLVEstruct_t *	,
		double *	,
		SuperLUStat_t *	,
		int *
	)

◆ pdgsrfs_ABXglobal()

void pdgsrfs_ABXglobal	(	int_t	n,
		SuperMatrix *	A,
		double	anorm,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		double *	B,
		int_t	ldb,
		double *	X,
		int_t	ldx,
		int	nrhs,
		double *	berr,
		SuperLUStat_t *	stat,
		int *	info
	)

Purpose
=======

pdgsrfs_ABXglobal improves the computed solution to a system of linear
equations and provides error bounds and backward error estimates
for the solution.

Arguments
=========

n      (input) int (global)
       The order of the system of linear equations.

A      (input) SuperMatrix*
   The original matrix A, or the scaled A if equilibration was done.
       A is also permuted into the form Pc*Pr*A*Pc', where Pr and Pc
       are permutation matrices. The type of A can be:
       Stype = SLU_NCP; Dtype = SLU_D; Mtype = SLU_GE.

       NOTE: Currently, A must reside in all processes when calling
             this routine.

anorm  (input) double
       The norm of the original matrix A, or the scaled A if
       equilibration was done.

LUstruct (input) dLUstruct_t*
       The distributed data structures storing L and U factors.
       The L and U factors are obtained from pdgstrf for
       the possibly scaled and permuted matrix A.
       See superlu_ddefs.h for the definition of 'dLUstruct_t'.

grid   (input) gridinfo_t*
       The 2D process mesh. It contains the MPI communicator, the number
       of process rows (NPROW), the number of process columns (NPCOL),
       and my process rank. It is an input argument to all the
       parallel routines.
       Grid can be initialized by subroutine SUPERLU_GRIDINIT.
       See superlu_ddefs.h for the definition of 'gridinfo_t'.

B      (input) double* (global)
       The N-by-NRHS right-hand side matrix of the possibly equilibrated
       and row permuted system.

       NOTE: Currently, B must reside on all processes when calling
             this routine.

ldb    (input) int (global)
       Leading dimension of matrix B.

X      (input/output) double* (global)
       On entry, the solution matrix X, as computed by PDGSTRS.
       On exit, the improved solution matrix X.
       If DiagScale = COL or BOTH, X should be premultiplied by diag(C)
       in order to obtain the solution to the original system.

       NOTE: Currently, X must reside on all processes when calling
             this routine.

ldx    (input) int (global)
       Leading dimension of matrix X.

nrhs   (input) int
       Number of right-hand sides.

berr   (output) double*, dimension (nrhs)
        The componentwise relative backward error of each solution
        vector X(j) (i.e., the smallest relative change in
        any element of A or B that makes X(j) an exact solution).

stat   (output) SuperLUStat_t*
       Record the statistics about the refinement steps.
       See util.h for the definition of SuperLUStat_t.

info   (output) int*
       = 0: successful exit
       < 0: if info = -i, the i-th argument had an illegal value

Internal Parameters
===================

ITMAX is the maximum number of steps of iterative refinement.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pdgssvx()

void pdgssvx	(	superlu_dist_options_t *	,
		SuperMatrix *	,
		dScalePermstruct_t *	,
		double *	,
		int	,
		int	,
		gridinfo_t *	,
		dLUstruct_t *	,
		dSOLVEstruct_t *	,
		double *	,
		SuperLUStat_t *	,
		int *
	)

◆ pdgssvx3d()

void pdgssvx3d	(	superlu_dist_options_t *	options,
		SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		double	B[],
		int	ldb,
		int	nrhs,
		gridinfo3d_t *	grid3d,
		dLUstruct_t *	LUstruct,
		dSOLVEstruct_t *	SOLVEstruct,
		double *	berr,
		SuperLUStat_t *	stat,
		int *	info
	)

◆ pdgssvx_ABglobal()

void pdgssvx_ABglobal	(	superlu_dist_options_t *	,
		SuperMatrix *	,
		dScalePermstruct_t *	,
		double *	,
		int	,
		int	,
		gridinfo_t *	,
		dLUstruct_t *	,
		double *	,
		SuperLUStat_t *	,
		int *
	)

◆ pdgstrf()

int_t pdgstrf	(	superlu_dist_options_t *	options,
		int	m,
		int	n,
		double	anorm,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		SuperLUStat_t *	stat,
		int *	info
	)

Purpose
=======

PDGSTRF performs the LU factorization in parallel.

Arguments
=========

options (input) superlu_dist_options_t*
        The structure defines the input parameters to control
        how the LU decomposition will be performed.
        The following field should be defined:
        o ReplaceTinyPivot (yes_no_t)
          Specifies whether to replace the tiny diagonals by
          sqrt(epsilon)*norm(A) during LU factorization.

m      (input) int
       Number of rows in the matrix.

n      (input) int
       Number of columns in the matrix.

anorm  (input) double
       The norm of the original matrix A, or the scaled A if
       equilibration was done.

LUstruct (input/output) dLUstruct_t*
        The data structures to store the distributed L and U factors.
        The following fields should be defined:

        o Glu_persist (input) Glu_persist_t*
          Global data structure (xsup, supno) replicated on all processes,
          describing the supernode partition in the factored matrices
          L and U:
        xsup[s] is the leading column of the s-th supernode,
            supno[i] is the supernode number to which column i belongs.

        o Llu (input/output) dLocalLU_t*
          The distributed data structures to store L and U factors.
          See superlu_ddefs.h for the definition of 'dLocalLU_t'.

grid   (input) gridinfo_t*
       The 2D process mesh. It contains the MPI communicator, the number
       of process rows (NPROW), the number of process columns (NPCOL),
       and my process rank. It is an input argument to all the
       parallel routines.
       Grid can be initialized by subroutine SUPERLU_GRIDINIT.
       See superlu_ddefs.h for the definition of 'gridinfo_t'.

stat   (output) SuperLUStat_t*
       Record the statistics on runtime and floating-point operation count.
       See util.h for the definition of 'SuperLUStat_t'.

info   (output) int*
       = 0: successful exit
       < 0: if info = -i, the i-th argument had an illegal value
       > 0: if info = i, U(i,i) is exactly zero. The factorization has
            been completed, but the factor U is exactly singular,
            and division by zero will occur if it is used to solve a
            system of equations.

Purpose
=======

PDGSTRF performs the LU factorization in parallel.

Arguments
=========

options (input) superlu_dist_options_t*
        The structure defines the input parameters to control
        how the LU decomposition will be performed.
        The following field should be defined:
        o ReplaceTinyPivot (yes_no_t)
          = NO:  do not modify pivots
          = YES: replace tiny pivots by sqrt(epsilon)*norm(A) during
                 LU factorization.

m      (input) int
       Number of rows in the matrix.

n      (input) int
       Number of columns in the matrix.

anorm  (input) double
       The norm of the original matrix A, or the scaled A if
       equilibration was done.

LUstruct (input/output) dLUstruct_t*
        The data structures to store the distributed L and U factors.
        The following fields should be defined:

        o Glu_persist (input) Glu_persist_t*
          Global data structure (xsup, supno) replicated on all processes,
          describing the supernode partition in the factored matrices
          L and U:
        xsup[s] is the leading column of the s-th supernode,
            supno[i] is the supernode number to which column i belongs.

        o Llu (input/output) dLocalLU_t*
          The distributed data structures to store L and U factors.
          See superlu_ddefs.h for the definition of 'dLocalLU_t'.

grid   (input) gridinfo_t*
       The 2D process mesh. It contains the MPI communicator, the number
       of process rows (NPROW), the number of process columns (NPCOL),
       and my process rank. It is an input argument to all the
       parallel routines.
       Grid can be initialized by subroutine SUPERLU_GRIDINIT.
       See superlu_ddefs.h for the definition of 'gridinfo_t'.

stat   (output) SuperLUStat_t*
       Record the statistics on runtime and floating-point operation count.
       See util.h for the definition of 'SuperLUStat_t'.

info   (output) int*
       = 0: successful exit
       < 0: if info = -i, the i-th argument had an illegal value
       > 0: if info = i, U(i,i) is exactly zero. The factorization has
            been completed, but the factor U is exactly singular,
            and division by zero will occur if it is used to solve a
            system of equations.

◆ pdgstrf2()

void pdgstrf2	(	superlu_dist_options_t *	,
		int_t	nsupers,
		int_t	k0,
		int_t	k,
		double	thresh,
		Glu_persist_t *	,
		gridinfo_t *	,
		dLocalLU_t *	,
		MPI_Request *	,
		int	,
		SuperLUStat_t *	,
		int *
	)

◆ pdgstrf2_trsm()

void pdgstrf2_trsm	(	superlu_dist_options_t *	options,
		int_t	k0,
		int_t	k,
		double	thresh,
		Glu_persist_t *	Glu_persist,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		MPI_Request *	U_diag_blk_send_req,
		int	tag_ub,
		SuperLUStat_t *	stat,
		int *	info
	)

Purpose
=======
  Panel factorization -- block column k

  Factor diagonal and subdiagonal blocks and test for exact singularity.
  Only the column processes that own block column *k* participate
  in the work.

Arguments
=========
options (input) superlu_dist_options_t* (global)
        The structure defines the input parameters to control
        how the LU decomposition will be performed.

k0     (input) int (global)
       Counter of the next supernode to be factorized.

k      (input) int (global)
       The column number of the block column to be factorized.

thresh (input) double (global)
       The threshold value = s_eps * anorm.

Glu_persist (input) Glu_persist_t*
       Global data structures (xsup, supno) replicated on all processes.

grid   (input) gridinfo_t*
       The 2D process mesh.

Llu    (input/output) dLocalLU_t*
       Local data structures to store distributed L and U matrices.

U_diag_blk_send_req (input/output) MPI_Request*
       List of send requests to send down the diagonal block of U.

tag_ub (input) int
       Upper bound of MPI tag values.

stat   (output) SuperLUStat_t*
       Record the statistics about the factorization.
       See SuperLUStat_t structure defined in util.h.

info   (output) int*
       = 0: successful exit
       < 0: if info = -i, the i-th argument had an illegal value
       > 0: if info = i, U(i,i) is exactly zero. The factorization has
            been completed, but the factor U is exactly singular,
            and division by zero will occur if it is used to solve a
            system of equations.

ALWAYS SEND TO ALL OTHERS - TO FIX

◆ pdgstrf3d()

int_t pdgstrf3d	(	superlu_dist_options_t *	options,
		int	m,
		int	n,
		double	anorm,
		trf3Dpartition_t *	trf3Dpartition,
		SCT_t *	SCT,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat,
		int *	info
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pdgstrs()

void pdgstrs	(	int_t	n,
		dLUstruct_t *	LUstruct,
		dScalePermstruct_t *	ScalePermstruct,
		gridinfo_t *	grid,
		double *	B,
		int_t	m_loc,
		int_t	fst_row,
		int_t	ldb,
		int	nrhs,
		dSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		int *	info
	)

Purpose
=======

PDGSTRS solves a system of distributed linear equations
A*X = B with a general N-by-N matrix A using the LU factorization
computed by PDGSTRF.
If the equilibration, and row and column permutations were performed,
the LU factorization was performed for A1 where
    A1 = Pc*Pr*diag(R)*A*diag(C)*Pc^T = L*U
and the linear system solved is
    A1 * Y = Pc*Pr*B1, where B was overwritten by B1 = diag(R)*B, and
the permutation to B1 by Pc*Pr is applied internally in this routine.

Arguments
=========

n      (input) int (global)
       The order of the system of linear equations.

LUstruct (input) dLUstruct_t*
       The distributed data structures storing L and U factors.
       The L and U factors are obtained from PDGSTRF for
       the possibly scaled and permuted matrix A.
       See superlu_ddefs.h for the definition of 'dLUstruct_t'.
       A may be scaled and permuted into A1, so that
       A1 = Pc*Pr*diag(R)*A*diag(C)*Pc^T = L*U

grid   (input) gridinfo_t*
       The 2D process mesh. It contains the MPI communicator, the number
       of process rows (NPROW), the number of process columns (NPCOL),
       and my process rank. It is an input argument to all the
       parallel routines.
       Grid can be initialized by subroutine SUPERLU_GRIDINIT.
       See superlu_defs.h for the definition of 'gridinfo_t'.

B      (input/output) double*
       On entry, the distributed right-hand side matrix of the possibly
       equilibrated system. That is, B may be overwritten by diag(R)*B.
       On exit, the distributed solution matrix Y of the possibly
       equilibrated system if info = 0, where Y = Pc*diag(C)^(-1)*X,
       and X is the solution of the original system.

m_loc  (input) int (local)
       The local row dimension of matrix B.

fst_row (input) int (global)
       The row number of B's first row in the global matrix.

ldb    (input) int (local)
       The leading dimension of matrix B.

nrhs   (input) int (global)
       Number of right-hand sides.

SOLVEstruct (input) dSOLVEstruct_t* (global)
       Contains the information for the communication during the
       solution phase.

stat   (output) SuperLUStat_t*
       Record the statistics about the triangular solves.
       See util.h for the definition of 'SuperLUStat_t'.

info   (output) int*
       = 0: successful exit
    < 0: if info = -i, the i-th argument had an illegal value

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pdgstrs2()

void pdgstrs2	(	int_t	m,
		int_t	k0,
		int_t	k,
		Glu_persist_t *	Glu_persist,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		SuperLUStat_t *	stat
	)

◆ pdgstrs2_omp()

void pdgstrs2_omp	(	int_t	k0,
		int_t	k,
		Glu_persist_t *	Glu_persist,
		gridinfo_t *	grid,
		dLocalLU_t *	Llu,
		Ublock_info_t *	Ublock_info,
		SuperLUStat_t *	stat
	)

4/19/2019

◆ pdgstrs_Bglobal()

void pdgstrs_Bglobal	(	int_t	n,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		double *	B,
		int_t	ldb,
		int	nrhs,
		SuperLUStat_t *	stat,
		int *	info
	)

Purpose
=======

pdgstrs_Bglobal solves a system of distributed linear equations
A*X = B with a general N-by-N matrix A using the LU factorization
computed by pdgstrf.

Arguments
=========

n      (input) int (global)
       The order of the system of linear equations.

LUstruct (input) dLUstruct_t*
       The distributed data structures storing L and U factors.
       The L and U factors are obtained from pdgstrf for
       the possibly scaled and permuted matrix A.
       See superlu_ddefs.h for the definition of 'dLUstruct_t'.

grid   (input) gridinfo_t*
       The 2D process mesh. It contains the MPI communicator, the number
       of process rows (NPROW), the number of process columns (NPCOL),
       and my process rank. It is an input argument to all the
       parallel routines.
       Grid can be initialized by subroutine SUPERLU_GRIDINIT.
       See superlu_ddefs.h for the definition of 'gridinfo_t'.

B      (input/output) double*
       On entry, the right-hand side matrix of the possibly equilibrated
       and row permuted system.
       On exit, the solution matrix of the possibly equilibrated
       and row permuted system if info = 0;

       NOTE: Currently, the N-by-NRHS  matrix B must reside on all
             processes when calling this routine.

ldb    (input) int (global)
       Leading dimension of matrix B.

nrhs   (input) int (global)
       Number of right-hand sides.

stat   (output) SuperLUStat_t*
       Record the statistics about the triangular solves.
       See util.h for the definition of 'SuperLUStat_t'.

info   (output) int*
       = 0: successful exit
    < 0: if info = -i, the i-th argument had an illegal value

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pdgstrs_init()

int_t pdgstrs_init	(	int_t	n,
		int_t	m_loc,
		int_t	nrhs,
		int_t	fst_row,
		int_t	perm_r[],
		int_t	perm_c[],
		gridinfo_t *	grid,
		Glu_persist_t *	Glu_persist,
		dSOLVEstruct_t *	SOLVEstruct
	)

Purpose
=======
  Set up the communication pattern for redistribution between B and X
  in the triangular solution.

Arguments
=========

n      (input) int (global)
       The dimension of the linear system.

m_loc  (input) int (local)
       The local row dimension of the distributed input matrix.

nrhs   (input) int (global)
       Number of right-hand sides.

fst_row (input) int (global)
       The row number of matrix B's first row in the global matrix.

perm_r (input) int* (global)
       The row permutation vector.

perm_c (input) int* (global)
       The column permutation vector.

grid   (input) gridinfo_t*
       The 2D process mesh.

◆ pdinf_norm_error()

void pdinf_norm_error	(	int	iam,
		int_t	n,
		int_t	nrhs,
		double	x[],
		int_t	ldx,
		double	xtrue[],
		int_t	ldxtrue,
		MPI_Comm	slucomm
	)

Check the inf-norm of the error vector.

◆ pdlangs()

double pdlangs	(	char *	norm,
		SuperMatrix *	A,
		gridinfo_t *	grid
	)

    Purpose
    =======

    PDLANGS returns the value of the one norm, or the Frobenius norm, or
    the infinity norm, or the element of largest absolute value of a
    real matrix A.

    Description
    ===========

    PDLANGE returns the value

       PDLANGE = ( max(abs(A(i,j))), NORM = 'M' or 'm'
                 (
                 ( norm1(A),         NORM = '1', 'O' or 'o'
                 (
                 ( normI(A),         NORM = 'I' or 'i'
                 (
                 ( normF(A),         NORM = 'F', 'f', 'E' or 'e'

    where  norm1  denotes the  one norm of a matrix (maximum column sum),
    normI  denotes the  infinity norm  of a matrix  (maximum row sum) and
    normF  denotes the  Frobenius norm of a matrix (square root of sum of
    squares).  Note that  max(abs(A(i,j)))  is not a  matrix norm.

    Arguments
    =========

    NORM    (input) CHARACTER*1
            Specifies the value to be returned in DLANGE as described above.
    A       (input) SuperMatrix*
            The M by N sparse matrix A.
    GRID    (input) gridinof_t*
            The 2D process mesh.
   =====================================================================

◆ pdlaqgs()

void pdlaqgs	(	SuperMatrix *	A,
		double *	r,
		double *	c,
		double	rowcnd,
		double	colcnd,
		double	amax,
		char *	equed
	)

    Purpose
    =======

    PDLAQGS equilibrates a general sparse M by N matrix A using the row
    and column scaling factors in the vectors R and C.

    See supermatrix.h for the definition of 'SuperMatrix' structure.

    Arguments
    =========

    A       (input/output) SuperMatrix*
            On exit, the equilibrated matrix.  See EQUED for the form of
            the equilibrated matrix. The type of A can be:
        Stype = SLU_NR_loc; Dtype = SLU_D; Mtype = SLU_GE.

    R       (input) double*, dimension (A->nrow)
            The row scale factors for A.

    C       (input) double*, dimension (A->ncol)
            The column scale factors for A.

    ROWCND  (input) double
            Ratio of the smallest R(i) to the largest R(i).

    COLCND  (input) double
            Ratio of the smallest C(i) to the largest C(i).

    AMAX    (input) double
            Absolute value of largest matrix entry.

    EQUED   (output) char*
            Specifies the form of equilibration that was done.
            = 'N':  No equilibration
            = 'R':  Row equilibration, i.e., A has been premultiplied by
                    diag(R).
            = 'C':  Column equilibration, i.e., A has been postmultiplied
                    by diag(C).
            = 'B':  Both row and column equilibration, i.e., A has been
                    replaced by diag(R) * A * diag(C).

    Internal Parameters
    ===================

    THRESH is a threshold value used to decide if row or column scaling
    should be done based on the ratio of the row or column scaling
    factors.  If ROWCND < THRESH, row scaling is done, and if
    COLCND < THRESH, column scaling is done.

    LARGE and SMALL are threshold values used to decide if row scaling
    should be done based on the absolute size of the largest matrix
    element.  If AMAX > LARGE or AMAX < SMALL, row scaling is done.

    =====================================================================

◆ pdPermute_Dense_Matrix()

int pdPermute_Dense_Matrix	(	int_t	fst_row,
		int_t	m_loc,
		int_t	row_to_proc[],
		int_t	perm[],
		double	X[],
		int	ldx,
		double	B[],
		int	ldb,
		int	nrhs,
		gridinfo_t *	grid
	)

Permute the distributed dense matrix: B <= perm(X). perm[i] = j means the i-th row of X is in the j-th row of B.

◆ pdReDistribute_B_to_X()

int_t pdReDistribute_B_to_X	(	double *	B,
		int_t	m_loc,
		int	nrhs,
		int_t	ldb,
		int_t	fst_row,
		int_t *	ilsum,
		double *	x,
		dScalePermstruct_t *	ScalePermstruct,
		Glu_persist_t *	Glu_persist,
		gridinfo_t *	grid,
		dSOLVEstruct_t *	SOLVEstruct
	)

Purpose
=======
  Re-distribute B on the diagonal processes of the 2D process mesh.

Note
====
  This routine can only be called after the routine pdgstrs_init(),
  in which the structures of the send and receive buffers are set up.

Arguments
=========

B      (input) double*
       The distributed right-hand side matrix of the possibly
       equilibrated system.

m_loc  (input) int (local)
       The local row dimension of matrix B.

nrhs   (input) int (global)
       Number of right-hand sides.

ldb    (input) int (local)
       Leading dimension of matrix B.

fst_row (input) int (global)
       The row number of B's first row in the global matrix.

ilsum  (input) int* (global)
       Starting position of each supernode in a full array.

x      (output) double*
       The solution vector. It is valid only on the diagonal processes.

ScalePermstruct (input) dScalePermstruct_t*
       The data structure to store the scaling and permutation vectors
       describing the transformations performed to the original matrix A.

grid   (input) gridinfo_t*
       The 2D process mesh.

SOLVEstruct (input) dSOLVEstruct_t*
       Contains the information for the communication during the
       solution phase.

Return value
============

◆ Printdouble5()

void Printdouble5	(	char *	name,
		int_t	len,
		double *	x
	)

◆ pxgstrs_finalize()

void pxgstrs_finalize ( pxgstrs_comm_t * gstrs_comm )

Here is the caller graph for this function:

◆ scuStatUpdate()

int_t scuStatUpdate	(	int_t	knsupc,
		HyP_t *	HyP,
		SCT_t *	SCT,
		SuperLUStat_t *	stat
	)

◆ sp_dgemm_dist()

int sp_dgemm_dist	(	char *	transa,
		int	n,
		double	alpha,
		SuperMatrix *	A,
		double *	b,
		int	ldb,
		double	beta,
		double *	c,
		int	ldc
	)

  Purpose
    =======

    sp_d performs one of the matrix-matrix operations

       C := alpha*op( A )*op( B ) + beta*C,

    where  op( X ) is one of

       op( X ) = X   or   op( X ) = X'   or   op( X ) = conjg( X' ),

    alpha and beta are scalars, and A, B and C are matrices, with op( A )
    an m by k matrix,  op( B )  a  k by n matrix and  C an m by n matrix.


    Parameters
    ==========

    TRANSA - (input) char*
             On entry, TRANSA specifies the form of op( A ) to be used in
             the matrix multiplication as follows:
                TRANSA = 'N' or 'n',  op( A ) = A.
                TRANSA = 'T' or 't',  op( A ) = A'.
                TRANSA = 'C' or 'c',  op( A ) = conjg( A' ).
             Unchanged on exit.

    TRANSB - (input) char*
             On entry, TRANSB specifies the form of op( B ) to be used in
             the matrix multiplication as follows:
                TRANSB = 'N' or 'n',  op( B ) = B.
                TRANSB = 'T' or 't',  op( B ) = B'.
                TRANSB = 'C' or 'c',  op( B ) = conjg( B' ).
             Unchanged on exit.

    M      - (input) int
             On entry,  M  specifies  the number of rows of the matrix
         op( A ) and of the matrix C.  M must be at least zero.
         Unchanged on exit.

    N      - (input) int
             On entry,  N specifies the number of columns of the matrix
         op( B ) and the number of columns of the matrix C. N must be
         at least zero.
         Unchanged on exit.

    K      - (input) int
             On entry, K specifies the number of columns of the matrix
         op( A ) and the number of rows of the matrix op( B ). K must
         be at least  zero.
             Unchanged on exit.

    ALPHA  - (input) double
             On entry, ALPHA specifies the scalar alpha.

    A      - (input) SuperMatrix*
             Matrix A with a sparse format, of dimension (A->nrow, A->ncol).
             Currently, the type of A can be:
                 Stype = SLU_NC or SLU_NCP; Dtype = SLU_D; Mtype = SLU_GE.
             In the future, more general A can be handled.

    B      - DOUBLE PRECISION array of DIMENSION ( LDB, kb ), where kb is
             n when TRANSB = 'N' or 'n',  and is  k otherwise.
             Before entry with  TRANSB = 'N' or 'n',  the leading k by n
             part of the array B must contain the matrix B, otherwise
             the leading n by k part of the array B must contain the
             matrix B.
             Unchanged on exit.

    LDB    - (input) int
             On entry, LDB specifies the first dimension of B as declared
             in the calling (sub) program. LDB must be at least max( 1, n ).
             Unchanged on exit.

    BETA   - (input) double
             On entry, BETA specifies the scalar beta. When BETA is
             supplied as zero then C need not be set on input.

    C      - DOUBLE PRECISION array of DIMENSION ( LDC, n ).
             Before entry, the leading m by n part of the array C must
             contain the matrix C,  except when beta is zero, in which
             case C need not be set on entry.
             On exit, the array C is overwritten by the m by n matrix
         ( alpha*op( A )*B + beta*C ).

    LDC    - (input) int
             On entry, LDC specifies the first dimension of C as declared
             in the calling (sub)program. LDC must be at least max(1,m).
             Unchanged on exit.

    ==== Sparse Level 3 Blas routine.

◆ sp_dgemv_dist()

int sp_dgemv_dist	(	char *	trans,
		double	alpha,
		SuperMatrix *	A,
		double *	x,
		int	incx,
		double	beta,
		double *	y,
		int	incy
	)

SpGEMV.

     Purpose
     =======

     sp_dtrsv_dist() solves one of the systems of equations
         A*x = b,   or   A'*x = b,
     where b and x are n element vectors and A is a sparse unit , or
     non-unit, upper or lower triangular matrix.
     No test for singularity or near-singularity is included in this
     routine. Such tests must be performed before calling this routine.

     Parameters
     ==========

     uplo   - (input) char*
              On entry, uplo specifies whether the matrix is an upper or
               lower triangular matrix as follows:
                  uplo = 'U' or 'u'   A is an upper triangular matrix.
                  uplo = 'L' or 'l'   A is a lower triangular matrix.

     trans  - (input) char*
               On entry, trans specifies the equations to be solved as
               follows:
                  trans = 'N' or 'n'   A*x = b.
                  trans = 'T' or 't'   A'*x = b.
                  trans = 'C' or 'c'   A'*x = b.

     diag   - (input) char*
               On entry, diag specifies whether or not A is unit
               triangular as follows:
                  diag = 'U' or 'u'   A is assumed to be unit triangular.
                  diag = 'N' or 'n'   A is not assumed to be unit
                                      triangular.

     L       - (input) SuperMatrix*
           The factor L from the factorization Pr*A*Pc=L*U. Use
               compressed row subscripts storage for supernodes, i.e.,
               L has types: Stype = SLU_SC, Dtype = SLU_D, Mtype = SLU_TRLU.

     U       - (input) SuperMatrix*
            The factor U from the factorization Pr*A*Pc=L*U.
            U has types: Stype = SLU_NC, Dtype = SLU_D, Mtype = SLU_TRU.

     x       - (input/output) double*
               Before entry, the incremented array X must contain the n
               element right-hand side vector b. On exit, X is overwritten
               with the solution vector x.

     info    - (output) int*
               If *info = -i, the i-th argument had an illegal value.
    */
int
sp_dtrsv_dist(char *uplo, char *trans, char *diag, SuperMatrix *L,
          SuperMatrix *U, double *x, int *info)
{




    SCformat *Lstore;
    NCformat *Ustore;
    double   *Lval, *Uval;
    int incx = 1, incy = 1;
    double alpha = 1.0, beta = 1.0;
    int nrow;
    int fsupc, nsupr, nsupc, luptr, istart, irow;
    int i, k, iptr, jcol;
    double *work;
    flops_t solve_ops;
    /*extern SuperLUStat_t SuperLUStat;*/

    /* Test the input parameters */
    *info = 0;
    if ( strncmp(uplo,"L",1) != 0 && strncmp(uplo, "U",1) !=0 ) *info = -1;
    else if ( strncmp(trans, "N",1) !=0 && strncmp(trans, "T", 1) !=0 )
    *info = -2;
    else if ( strncmp(diag, "U", 1) !=0 && strncmp(diag, "N", 1) != 0 )
    *info = -3;
    else if ( L->nrow != L->ncol || L->nrow < 0 ) *info = -4;
    else if ( U->nrow != U->ncol || U->nrow < 0 ) *info = -5;
    if ( *info ) {
    i = -(*info);
    xerr_dist("sp_dtrsv_dist", &i);
    return 0;
    }

    Lstore = (SCformat *) L->Store;
    Lval = (double *) Lstore->nzval;
    Ustore = (NCformat *) U->Store;
    Uval = (double *) Ustore->nzval;
    solve_ops = 0;

    if ( !(work = doubleCalloc_dist(L->nrow)) )
    ABORT("Malloc fails for work in sp_dtrsv_dist().");

    if ( strncmp(trans, "N", 1)==0 ) {  /* Form x := inv(A)*x. */

    if ( strncmp(uplo, "L", 1)==0 ) {
        /* Form x := inv(L)*x */
            if ( L->nrow == 0 ) return 0; /* Quick return */

        for (k = 0; k <= Lstore->nsuper; k++) {
        fsupc = SuperLU_L_FST_SUPC(k);
        istart = SuperLU_L_SUB_START(fsupc);
        nsupr = SuperLU_L_SUB_START(fsupc+1) - istart;
        nsupc = SuperLU_L_FST_SUPC(k+1) - fsupc;
        luptr = SuperLU_L_NZ_START(fsupc);
        nrow = nsupr - nsupc;
            solve_ops += nsupc * (nsupc - 1);
            solve_ops += 2 * nrow * nsupc;
        if ( nsupc == 1 ) {
            for (iptr=istart+1; iptr < SuperLU_L_SUB_START(fsupc+1); ++iptr) {
            irow = SuperLU_L_SUB(iptr);
            ++luptr;
            x[irow] -= x[fsupc] * Lval[luptr];
            }
        } else {


















            dlsolve (nsupr, nsupc, &Lval[luptr], &x[fsupc]);

            dmatvec (nsupr, nsupr-nsupc, nsupc, &Lval[luptr+nsupc],
            &x[fsupc], &work[0] );


            iptr = istart + nsupc;
            for (i = 0; i < nrow; ++i, ++iptr) {
            irow = SuperLU_L_SUB(iptr);
            x[irow] -= work[i]; /* Scatter */
            work[i] = 0.0;
            }
        }
        } /* for k ... */

    } else {
        /* Form x := inv(U)*x */

        if ( U->nrow == 0 ) return 0; /* Quick return */

        for (k = Lstore->nsuper; k >= 0; k--) {
            fsupc = SuperLU_L_FST_SUPC(k);
            nsupr = SuperLU_L_SUB_START(fsupc+1) - SuperLU_L_SUB_START(fsupc);
            nsupc = SuperLU_L_FST_SUPC(k+1) - fsupc;
            luptr = SuperLU_L_NZ_START(fsupc);
                solve_ops += nsupc * (nsupc + 1);

        if ( nsupc == 1 ) {
            x[fsupc] /= Lval[luptr];
            for (i = SuperLU_U_NZ_START(fsupc); i < SuperLU_U_NZ_START(fsupc+1); ++i) {
            irow = SuperLU_U_SUB(i);
            x[irow] -= x[fsupc] * Uval[i];
            }

        } else {











            dusolve ( nsupr, nsupc, &Lval[luptr], &x[fsupc] );


            for (jcol = fsupc; jcol < SuperLU_L_FST_SUPC(k+1); jcol++) {
                solve_ops += 2*(SuperLU_U_NZ_START(jcol+1) - SuperLU_U_NZ_START(jcol));
                for (i = SuperLU_U_NZ_START(jcol); i < SuperLU_U_NZ_START(jcol+1);
                i++) {
                irow = SuperLU_U_SUB(i);
                x[irow] -= x[jcol] * Uval[i];
                }
                    }
        }
        } /* for k ... */

    }
    } else { /* Form x := inv(A')*x */

    if ( strncmp(uplo, "L", 1)==0 ) {
        /* Form x := inv(L')*x */
            if ( L->nrow == 0 ) return 0; /* Quick return */

        for (k = Lstore->nsuper; k >= 0; --k) {
            fsupc = SuperLU_L_FST_SUPC(k);
            istart = SuperLU_L_SUB_START(fsupc);
            nsupr = SuperLU_L_SUB_START(fsupc+1) - istart;
            nsupc = SuperLU_L_FST_SUPC(k+1) - fsupc;
            luptr = SuperLU_L_NZ_START(fsupc);

        solve_ops += 2 * (nsupr - nsupc) * nsupc;
        for (jcol = fsupc; jcol < SuperLU_L_FST_SUPC(k+1); jcol++) {
            iptr = istart + nsupc;
            for (i = SuperLU_L_NZ_START(jcol) + nsupc;
                i < SuperLU_L_NZ_START(jcol+1); i++) {
            irow = SuperLU_L_SUB(iptr);
            x[jcol] -= x[irow] * Lval[i];
            iptr++;
            }
        }

        if ( nsupc > 1 ) {
            solve_ops += nsupc * (nsupc - 1);













            dtrsv_("L", "T", "U", &nsupc, &Lval[luptr], &nsupr,
            &x[fsupc], &incx);

        }
        }
    } else {
        /* Form x := inv(U')*x */
        if ( U->nrow == 0 ) return 0; /* Quick return */

        for (k = 0; k <= Lstore->nsuper; k++) {
            fsupc = SuperLU_L_FST_SUPC(k);
            nsupr = SuperLU_L_SUB_START(fsupc+1) - SuperLU_L_SUB_START(fsupc);
            nsupc = SuperLU_L_FST_SUPC(k+1) - fsupc;
            luptr = SuperLU_L_NZ_START(fsupc);

        for (jcol = fsupc; jcol < SuperLU_L_FST_SUPC(k+1); jcol++) {
            solve_ops += 2*(SuperLU_U_NZ_START(jcol+1) - SuperLU_U_NZ_START(jcol));
            for (i = SuperLU_U_NZ_START(jcol); i < SuperLU_U_NZ_START(jcol+1); i++) {
            irow = SuperLU_U_SUB(i);
            x[jcol] -= x[irow] * Uval[i];
            }
        }

        solve_ops += nsupc * (nsupc + 1);
        if ( nsupc == 1 ) {
            x[fsupc] /= Lval[luptr];
        } else {












            dtrsv_("U", "T", "N", &nsupc, &Lval[luptr], &nsupr,
                &x[fsupc], &incx);

        }
        } /* for k ... */
    }
    }

    /*SuperLUStat.ops[SOLVE] += solve_ops;*/
    SUPERLU_FREE(work);
    return 0;
} /* sp_dtrsv_dist */


/*!  Purpose
    =======

    sp_dgemv_dist()  performs one of the matrix-vector operations
       y := alpha*A*x + beta*y,   or   y := alpha*A'*x + beta*y,
    where alpha and beta are scalars, x and y are vectors and A is a
    sparse A->nrow by A->ncol matrix.

    Parameters
    ==========

    TRANS  - (input) char*
             On entry, TRANS specifies the operation to be performed as
             follows:
                TRANS = 'N' or 'n'   y := alpha*A*x + beta*y.
                TRANS = 'T' or 't'   y := alpha*A'*x + beta*y.
                TRANS = 'C' or 'c'   y := alpha*A'*x + beta*y.

    ALPHA  - (input) double
             On entry, ALPHA specifies the scalar alpha.

    A      - (input) SuperMatrix*
             Matrix A with a sparse format, of dimension (A->nrow, A->ncol).
             Currently, the type of A can be:
                 Stype = SLU_NC or SLU_NCP; Dtype = SLU_D; Mtype = SLU_GE.
             In the future, more general A can be handled.

    X      - (input) double*, array of DIMENSION at least
             ( 1 + ( n - 1 )*abs( INCX ) ) when TRANS = 'N' or 'n'
             and at least
             ( 1 + ( m - 1 )*abs( INCX ) ) otherwise.
             Before entry, the incremented array X must contain the
             vector x.

    INCX   - (input) int
             On entry, INCX specifies the increment for the elements of
             X. INCX must not be zero.

    BETA   - (input) double
             On entry, BETA specifies the scalar beta. When BETA is
             supplied as zero then Y need not be set on input.

    Y      - (output) double*,  array of DIMENSION at least
             ( 1 + ( m - 1 )*abs( INCY ) ) when TRANS = 'N' or 'n'
             and at least
             ( 1 + ( n - 1 )*abs( INCY ) ) otherwise.
             Before entry with BETA non-zero, the incremented array Y
             must contain the vector y. On exit, Y is overwritten by the
             updated vector y.

    INCY   - (input) int
             On entry, INCY specifies the increment for the elements of
             Y. INCY must not be zero.

    ==== Sparse Level 2 Blas routine.

  Purpose
    =======

    sp_dgemv_dist()  performs one of the matrix-vector operations
       y := alpha*A*x + beta*y,   or   y := alpha*A'*x + beta*y,
    where alpha and beta are scalars, x and y are vectors and A is a
    sparse A->nrow by A->ncol matrix.

    Parameters
    ==========

    TRANS  - (input) char*
             On entry, TRANS specifies the operation to be performed as
             follows:
                TRANS = 'N' or 'n'   y := alpha*A*x + beta*y.
                TRANS = 'T' or 't'   y := alpha*A'*x + beta*y.
                TRANS = 'C' or 'c'   y := alpha*A'*x + beta*y.

    ALPHA  - (input) double
             On entry, ALPHA specifies the scalar alpha.

    A      - (input) SuperMatrix*
             Matrix A with a sparse format, of dimension (A->nrow, A->ncol).
             Currently, the type of A can be:
                 Stype = SLU_NC or SLU_NCP; Dtype = SLU_D; Mtype = SLU_GE.
             In the future, more general A can be handled.

    X      - (input) double*, array of DIMENSION at least
             ( 1 + ( n - 1 )*abs( INCX ) ) when TRANS = 'N' or 'n'
             and at least
             ( 1 + ( m - 1 )*abs( INCX ) ) otherwise.
             Before entry, the incremented array X must contain the
             vector x.

    INCX   - (input) int
             On entry, INCX specifies the increment for the elements of
             X. INCX must not be zero.

    BETA   - (input) double
             On entry, BETA specifies the scalar beta. When BETA is
             supplied as zero then Y need not be set on input.

    Y      - (output) double*,  array of DIMENSION at least
             ( 1 + ( m - 1 )*abs( INCY ) ) when TRANS = 'N' or 'n'
             and at least
             ( 1 + ( n - 1 )*abs( INCY ) ) otherwise.
             Before entry with BETA non-zero, the incremented array Y
             must contain the vector y. On exit, Y is overwritten by the
             updated vector y.

    INCY   - (input) int
             On entry, INCY specifies the increment for the elements of
             Y. INCY must not be zero.

    ==== Sparse Level 2 Blas routine.

◆ sp_dtrsv_dist()

int sp_dtrsv_dist	(	char *	uplo,
		char *	trans,
		char *	diag,
		SuperMatrix *	L,
		SuperMatrix *	U,
		double *	x,
		int *	info
	)

  Purpose
  =======

  sp_dtrsv_dist() solves one of the systems of equations
      A*x = b,   or   A'*x = b,
  where b and x are n element vectors and A is a sparse unit , or
  non-unit, upper or lower triangular matrix.
  No test for singularity or near-singularity is included in this
  routine. Such tests must be performed before calling this routine.

  Parameters
  ==========

  uplo   - (input) char*
           On entry, uplo specifies whether the matrix is an upper or
            lower triangular matrix as follows:
               uplo = 'U' or 'u'   A is an upper triangular matrix.
               uplo = 'L' or 'l'   A is a lower triangular matrix.

  trans  - (input) char*
            On entry, trans specifies the equations to be solved as
            follows:
               trans = 'N' or 'n'   A*x = b.
               trans = 'T' or 't'   A'*x = b.
               trans = 'C' or 'c'   A'*x = b.

  diag   - (input) char*
            On entry, diag specifies whether or not A is unit
            triangular as follows:
               diag = 'U' or 'u'   A is assumed to be unit triangular.
               diag = 'N' or 'n'   A is not assumed to be unit
                                   triangular.

  L       - (input) SuperMatrix*
        The factor L from the factorization Pr*A*Pc=L*U. Use
            compressed row subscripts storage for supernodes, i.e.,
            L has types: Stype = SLU_SC, Dtype = SLU_D, Mtype = SLU_TRLU.

  U       - (input) SuperMatrix*
         The factor U from the factorization Pr*A*Pc=L*U.
         U has types: Stype = SLU_NC, Dtype = SLU_D, Mtype = SLU_TRU.

  x       - (input/output) double*
            Before entry, the incremented array X must contain the n
            element right-hand side vector b. On exit, X is overwritten
            with the solution vector x.

  info    - (output) int*
            If *info = -i, the i-th argument had an illegal value.

Here is the call graph for this function:

◆ superlu_daxpy()

int superlu_daxpy	(	const int	n,
		const double	alpha,
		const double *	x,
		const int	incx,
		double *	y,
		const int	incy
	)

◆ superlu_dgemm()

int superlu_dgemm	(	const char *	transa,
		const char *	transb,
		int	m,
		int	n,
		int	k,
		double	alpha,
		double *	a,
		int	lda,
		double *	b,
		int	ldb,
		double	beta,
		double *	c,
		int	ldc
	)

◆ superlu_dgemv()

int superlu_dgemv	(	const char *	trans,
		const int	m,
		const int	n,
		const double	alpha,
		const double *	a,
		const int	lda,
		const double *	x,
		const int	incx,
		const double	beta,
		double *	y,
		const int	incy
	)

◆ superlu_dger()

int superlu_dger	(	const int	m,
		const int	n,
		const double	alpha,
		const double *	x,
		const int	incx,
		const double *	y,
		const int	incy,
		double *	a,
		const int	lda
	)

Here is the caller graph for this function:

◆ superlu_dscal()

int superlu_dscal	(	const int	n,
		const double	alpha,
		double *	x,
		const int	incx
	)

◆ superlu_dtrsm()

int superlu_dtrsm	(	const char *	sideRL,
		const char *	uplo,
		const char *	transa,
		const char *	diag,
		const int	m,
		const int	n,
		const double	alpha,
		const double *	a,
		const int	lda,
		double *	b,
		const int	ldb
	)

Here is the caller graph for this function:

◆ superlu_dtrsv()

int superlu_dtrsv	(	char *	uplo,
		char *	trans,
		char *	diag,
		int	n,
		double *	a,
		int	lda,
		double *	x,
		int	incx
	)

◆ treeFactor()

int_t treeFactor	(	int_t	nnnodes,
		int_t *	perm_c_supno,
		commRequests_t *	comReqs,
		dscuBufs_t *	scuBufs,
		packLUInfo_t *	packLUInfo,
		msgs_t *	msgs,
		dLUValSubBuf_t *	LUvsb,
		ddiagFactBufs_t *	dFBuf,
		factStat_t *	factStat,
		factNodelists_t *	fNlists,
		superlu_dist_options_t *	options,
		int_t *	gIperm_c_supno,
		int_t	ldt,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat,
		double	thresh,
		SCT_t *	SCT,
		int *	info
	)

◆ updateDirtyBit()

int updateDirtyBit	(	int_t	k0,
		HyP_t *	HyP,
		gridinfo_t *	grid
	)

Classes

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ MAX_LOOKAHEADS

Function Documentation

◆ ancestorFactor()

◆ checkRecvLDiag()

◆ checkRecvUDiag()

◆ d3D_printMemUse()

◆ d_c2cpp_GetHWPM()

◆ dallocateA_dist()

◆ dAllocGlu_3d()

◆ dAllocLlu_3d()

◆ daxpy_()

◆ dBcast_LPanel()

◆ dBcast_UPanel()

◆ dblock_gemm_scatter()

◆ dblock_gemm_scatterBottomLeft()

◆ dblock_gemm_scatterBottomRight()

◆ dblock_gemm_scatterTopLeft()

◆ dblock_gemm_scatterTopRight()

◆ dClone_CompRowLoc_Matrix_dist()

◆ dcollect3dLpanels()

◆ dcollect3dUpanels()

◆ dCompRow_to_CompCol_dist()

◆ dComputeLevelsets()

◆ dCopy_CompCol_Matrix_dist()

◆ dCopy_CompRowLoc_Matrix_dist()

◆ dCopy_Dense_Matrix_dist()

◆ dCreate_CompCol_Matrix_dist()

◆ dCreate_CompRowLoc_Matrix_dist()

◆ dCreate_Dense_Matrix_dist()

◆ dcreate_matrix()

◆ dcreate_matrix3d()

◆ dcreate_matrix_dat()

◆ dcreate_matrix_postfix()

◆ dcreate_matrix_postfix3d()

◆ dcreate_matrix_rb()

◆ dCreate_SuperNode_Matrix_dist()

◆ dDeAllocGlu_3d()

◆ dDeAllocLlu_3d()

◆ ddenseTreeFactor()

◆ dDestroy_A3d_gathered_on_2d()

◆ dDestroy_LU()

◆ dDestroy_Tree()

◆ dDestroy_trf3Dpartition()

◆ dDiagFactIBCast()

◆ ddist_psymbtonum()

◆ ddistribute()

◆ dfill_dist()

◆ dFillRHS_dist()

◆ dfreeDiagFactBufsArr()

◆ dfreeScuBufs()

◆ dgather_l()

◆ dgather_u()

◆ dgatherAllFactoredLU()

◆ dgatherAllFactoredLUFr()

◆ dgatherFactoredLU()

◆ dGatherNRformat_loc3d()

◆ dgemm_()

◆ dgemv_()

◆ dGenCOOLblocks()

◆ dGenCSCLblocks()

◆ dGenCSRLblocks()

◆ dGenXtrue_dist()

◆ dger_()

◆ dgetBigU()

◆ dgetBigV()

◆ dgsequ_dist()

◆ dIBcast_LPanel()

◆ dIBcast_UPanel()

◆ dIBcastRecvLPanel()

◆ dIBcastRecvUPanel()

◆ dinf_norm_error_dist()

◆ dinit3DLUstruct()

◆ dinit3DLUstructForest()

◆ dInit_HyP()

◆ dinitDiagFactBufs()
