pddistribute.c File Reference

Re-distribute A on the 2D process mesh. More...

#include "superlu_ddefs.h"

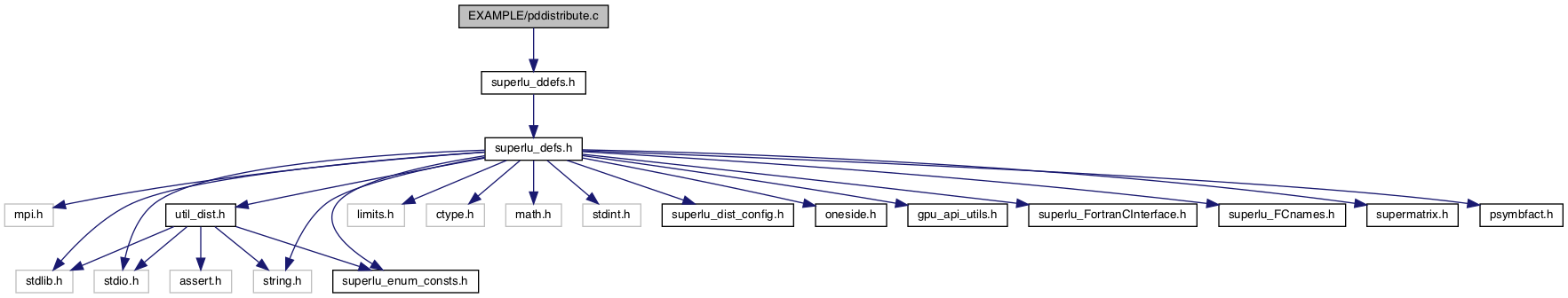

Include dependency graph for pddistribute.c:

Functions
int_t	dReDistribute_A (SuperMatrix *A, dScalePermstruct_t *ScalePermstruct, Glu_freeable_t *Glu_freeable, int_t *xsup, int_t *supno, gridinfo_t *grid, int_t *colptr[], int_t *rowind[], double *a[])
float	pddistribute (fact_t fact, int_t n, SuperMatrix *A, dScalePermstruct_t *ScalePermstruct, Glu_freeable_t *Glu_freeable, dLUstruct_t *LUstruct, gridinfo_t *grid)

Detailed Description

Re-distribute A on the 2D process mesh.

Copyright (c) 2003, The Regents of the University of California, through Lawrence Berkeley National Laboratory (subject to receipt of any required approvals from U.S. Dept. of Energy)

All rights reserved.

The source code is distributed under BSD license, see the file License.txt at the top-level directory.

-- Distributed SuperLU routine (version 2.3) --
Lawrence Berkeley National Lab, Univ. of California Berkeley.
October 15, 2008

Function Documentation

dReDistribute_A()

int_t dReDistribute_A	(	SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		Glu_freeable_t *	Glu_freeable,
		int_t *	xsup,
		int_t *	supno,
		gridinfo_t *	grid,
		int_t *	colptr[],
		int_t *	rowind[],
		double *	a[]
	)

Purpose
=======
  Re-distribute A on the 2D process mesh.

Arguments
=========

A      (input) SuperMatrix*
   The distributed input matrix A of dimension (A->nrow, A->ncol).
       A may be overwritten by diag(R)*A*diag(C)*Pc^T.
       The type of A can be: Stype = SLU_NR_loc; Dtype = SLU_D; Mtype = SLU_GE.

ScalePermstruct (input) dScalePermstruct_t*
       The data structure to store the scaling and permutation vectors
       describing the transformations performed to the original matrix A.

Glu_freeable (input) *Glu_freeable_t
       The global structure describing the graph of L and U.

grid   (input) gridinfo_t*
       The 2D process mesh.

colptr (output) int*

rowind (output) int*

a      (output) double*

Return value
============
  > 0, working storage (in bytes) required to perform redistribution.
       (excluding LU factor size)

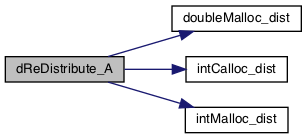

Here is the call graph for this function:

pddistribute()

float pddistribute	(	fact_t	fact,
		int_t	n,
		SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		Glu_freeable_t *	Glu_freeable,
		dLUstruct_t *	LUstruct,
		gridinfo_t *	grid
	)

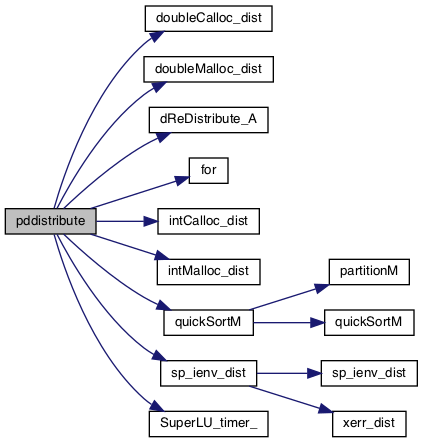

Here is the call graph for this function:
