zreadhb.c File Reference

Read a DOUBLE COMPLEX PRECISION matrix stored in Harwell-Boeing format. More...

#include "dcomplex.h"
#include <stdio.h>
#include <stdlib.h>
#include "superlu_zdefs.h"

Include dependency graph for zreadhb.c:

Functions
static void	ReadVector (FILE *, int_t, int_t *, int_t, int_t)
static void	zReadValues (FILE *, int_t, doublecomplex *, int_t, int_t)
static int	DumpLine (FILE *)
static int	ParseIntFormat (char *, int_t *, int_t *)
static int	ParseFloatFormat (char *, int_t *, int_t *)
void	zreadhb_dist (int iam, FILE *fp, int_t *nrow, int_t *ncol, int_t *nonz, doublecomplex **nzval, int_t **rowind, int_t **colptr)

Detailed Description

Read a DOUBLE COMPLEX PRECISION matrix stored in Harwell-Boeing format.

Copyright (c) 2003, The Regents of the University of California, through Lawrence Berkeley National Laboratory (subject to receipt of any required approvals from U.S. Dept. of Energy)

All rights reserved.

The source code is distributed under BSD license, see the file License.txt at the top-level directory.

-- Distributed SuperLU routine (version 1.0) --
Lawrence Berkeley National Lab, Univ. of California Berkeley.
September 1, 1999

Function Documentation

DumpLine()

static int DumpLine ( FILE *  fp )

static

Here is the caller graph for this function:

ParseFloatFormat()

static int ParseFloatFormat ( char *  buf, int_t *  num, int_t *  size  )

static

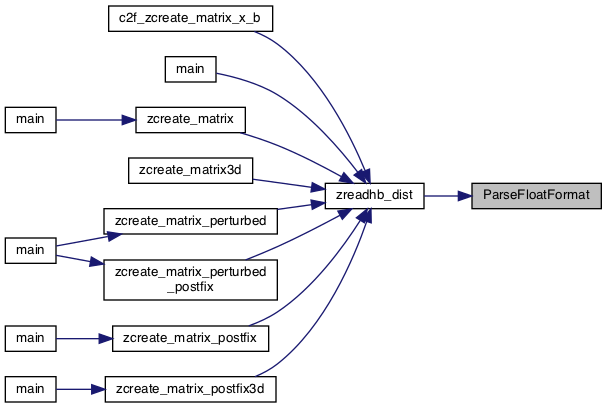

Here is the caller graph for this function:

ParseIntFormat()

static int ParseIntFormat ( char *  buf, int_t *  num, int_t *  size  )

static

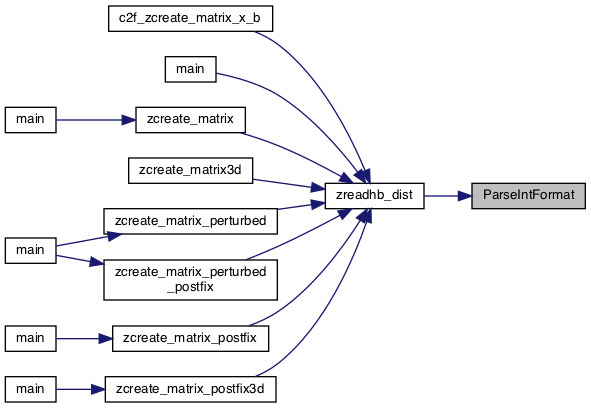

Here is the caller graph for this function:

ReadVector()

static void ReadVector ( FILE *  fp, int_t  n, int_t *  where, int_t  perline, int_t  persize  )

static

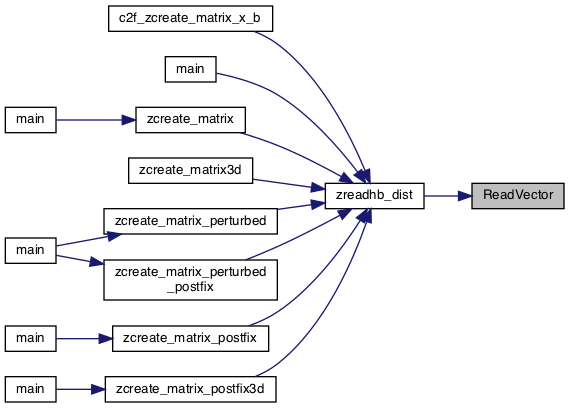

Here is the caller graph for this function:

zreadhb_dist()

void zreadhb_dist	(	int	iam,
		FILE *	fp,
		int_t *	nrow,
		int_t *	ncol,
		int_t *	nonz,
		doublecomplex **	nzval,
		int_t **	rowind,
		int_t **	colptr
	)

Purpose
=======

Read a DOUBLE COMPLEX PRECISION matrix stored in Harwell-Boeing format
as described below.

Line 1 (A72,A8)
    Col. 1 - 72   Title (TITLE)
 Col. 73 - 80  Key (KEY)

Line 2 (5I14)
    Col. 1 - 14   Total number of lines excluding header (TOTCRD)
    Col. 15 - 28  Number of lines for pointers (PTRCRD)
    Col. 29 - 42  Number of lines for row (or variable) indices (INDCRD)
    Col. 43 - 56  Number of lines for numerical values (VALCRD)
 Col. 57 - 70  Number of lines for right-hand sides (RHSCRD)
                   (including starting guesses and solution vectors
           if present)
                  (zero indicates no right-hand side data is present)

Line 3 (A3, 11X, 4I14)
    Col. 1 - 3    Matrix type (see below) (MXTYPE)
    Col. 15 - 28  Number of rows (or variables) (NROW)
    Col. 29 - 42  Number of columns (or elements) (NCOL)
 Col. 43 - 56  Number of row (or variable) indices (NNZERO)
               (equal to number of entries for assembled matrices)
    Col. 57 - 70  Number of elemental matrix entries (NELTVL)
               (zero in the case of assembled matrices)
Line 4 (2A16, 2A20)
    Col. 1 - 16   Format for pointers (PTRFMT)
 Col. 17 - 32  Format for row (or variable) indices (INDFMT)
 Col. 33 - 52  Format for numerical values of coefficient matrix (VALFMT)
    Col. 53 - 72 Format for numerical values of right-hand sides (RHSFMT)

Line 5 (A3, 11X, 2I14) Only present if there are right-hand sides present
    Col. 1        Right-hand side type:
              F for full storage or M for same format as matrix
    Col. 2        G if a starting vector(s) (Guess) is supplied. (RHSTYP)
    Col. 3        X if an exact solution vector(s) is supplied.
 Col. 15 - 28  Number of right-hand sides (NRHS)
 Col. 29 - 42  Number of row indices (NRHSIX)
                  (ignored in case of unassembled matrices)

The three character type field on line 3 describes the matrix type.
The following table lists the permitted values for each of the three
characters. As an example of the type field, RSA denotes that the matrix
is real, symmetric, and assembled.

First Character:
 R Real matrix
 C Complex matrix
 P Pattern only (no numerical values supplied)

Second Character:
 S Symmetric
 U Unsymmetric
 H Hermitian
 Z Skew symmetric
 R Rectangular

Third Character:
 A Assembled
 E Elemental matrices (unassembled)

zReadValues()

void zReadValues ( FILE *  fp, int_t  n, doublecomplex *  destination, int_t  perline, int_t  persize  )

static

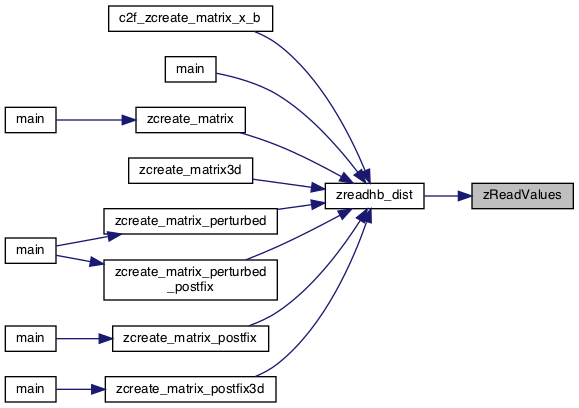

Here is the caller graph for this function:
