pddistribute3d.h File Reference

#include "superlu_ddefs.h"

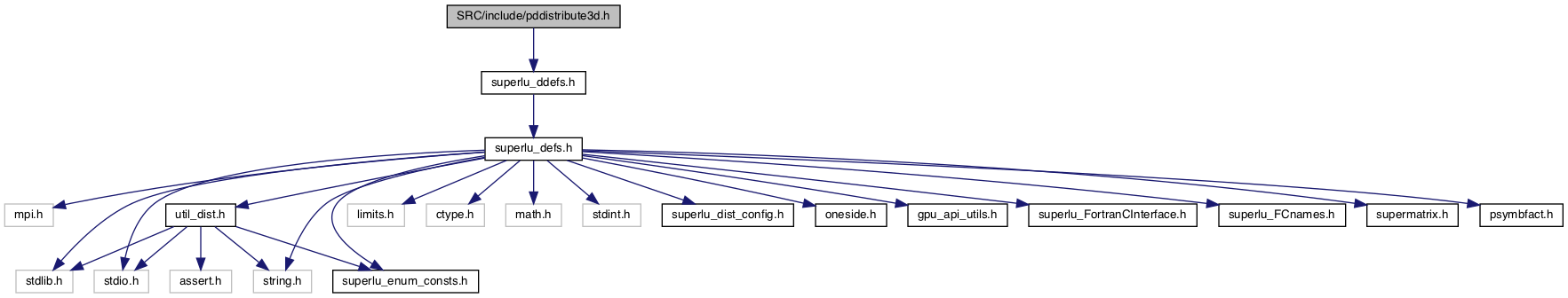

Include dependency graph for pddistribute3d.h:

Go to the source code of this file.

Functions
float	pddistribute3d (superlu_dist_options_t *options, int_t n, SuperMatrix *A, dScalePermstruct_t *ScalePermstruct, Glu_freeable_t *Glu_freeable, dLUstruct_t *LUstruct, gridinfo3d_t *grid3d)
int_t	dReDistribute_A3d (SuperMatrix *A, dScalePermstruct_t *ScalePermstruct, Glu_freeable_t *Glu_freeable, int_t *xsup, int_t *supno, gridinfo3d_t *grid3d, int_t *colptr[], int_t *rowind[], double *a[])
void	dpropagate_A_to_LU3d (dLUstruct_t *LUstruct, int_t *xa, int_t *asub, double *a, superlu_dist_options_t *options, gridinfo3d_t *grid3d, int_t nsupers, float *mem_use)
int_t	ComputeLDAspa_Ilsum (int_t nsupers, int_t *ilsum, gridinfo3d_t *grid3d)
void	propagateDataThroughMatrixBlocks (int_t nsupers, Glu_freeable_t *Glu_freeable, dLUstruct_t *LUstruct, gridinfo3d_t *grid3d, int_t *Urb_length, int_t *rb_marker, int_t *Urb_fstnz, int_t *Ucbs, int **ToSendR, int *ToSendD, int *ToRecv)
int_t	checkDist3DLUStruct (dLUstruct_t *LUstruct, gridinfo3d_t *grid3d)
void	dbcastPermutedSparseA (SuperMatrix *A, dScalePermstruct_t *ScalePermstruct, Glu_freeable_t *Glu_freeable, dLUstruct_t *LUstruct, gridinfo3d_t *grid3d)
void	dnewTrfPartitionInit (int_t nsupers, dLUstruct_t *LUstruct, gridinfo3d_t *grid3d)
int	compareInt_t (void *a, void *b)
	Compares two integers for equality. More...
int	compareInt (void *a, void *b)
	Compares two integers for equality. More...
int	compareDouble (void *a, void *b)
	Compares two doubles for equality. More...
int	dist_checkArrayEq (void *arr, int length, MPI_Datatype datatype, int src_rank, int dest_rank, MPI_Comm communicator, int(*compare)(void *, void *))
	Checks whether arrays at two MPI ranks are identical. More...

Function Documentation

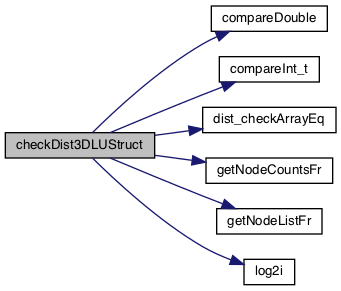

checkDist3DLUStruct()

int_t checkDist3DLUStruct	(	dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

Here is the call graph for this function:

compareDouble()

int compareDouble	(	void *	a,
		void *	b
	)

Compares two doubles for equality.

Parameters

a	Void pointer to the first double
b	Void pointer to the second double

Returns

int Returns 0 if the doubles are equal, 1 otherwise

Here is the caller graph for this function:

compareInt()

int compareInt	(	void *	a,
		void *	b
	)

Compares two integers for equality.

Parameters

a	Void pointer to the first integer
b	Void pointer to the second integer

Returns

int Returns 0 if the integers are equal, 1 otherwise

compareInt_t()

int compareInt_t	(	void *	a,
		void *	b
	)

Compares two integers for equality.

Parameters

a	Void pointer to the first integer
b	Void pointer to the second integer

Returns

int Returns 0 if the integers are equal, 1 otherwise

Here is the caller graph for this function:

ComputeLDAspa_Ilsum()

int_t ComputeLDAspa_Ilsum	(	int_t	nsupers,
		int_t *	ilsum,
		gridinfo3d_t *	grid3d
	)

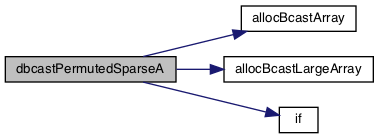

dbcastPermutedSparseA()

void dbcastPermutedSparseA	(	SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		Glu_freeable_t *	Glu_freeable,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

Here is the call graph for this function:

Here is the caller graph for this function:

dist_checkArrayEq()

int dist_checkArrayEq	(	void *	arr,
		int	length,
		MPI_Datatype	datatype,
		int	src_rank,
		int	dest_rank,
		MPI_Comm	communicator,
		int(*)(void *, void *)	compare
	)

Checks whether arrays at two MPI ranks are identical.

This function is used to check if a copy of an array at two different MPI ranks are the same. It uses MPI_Send and MPI_Recv to transfer data between ranks, then compares the arrays.

Parameters

arr	Void pointer to the array to be compared
length	The length of the array
datatype	MPI_Datatype of the array elements
src_rank	The source rank that has the original array
dest_rank	The destination rank that has the copied array
communicator	The MPI_Comm communicator that includes both ranks
compare	A function pointer to the function used to compare elements. Should take two void pointers and return 0 if they are equal and a non-zero value otherwise.

Returns

int Returns 0 if arrays are identical, 1 otherwise.

Here is the caller graph for this function:

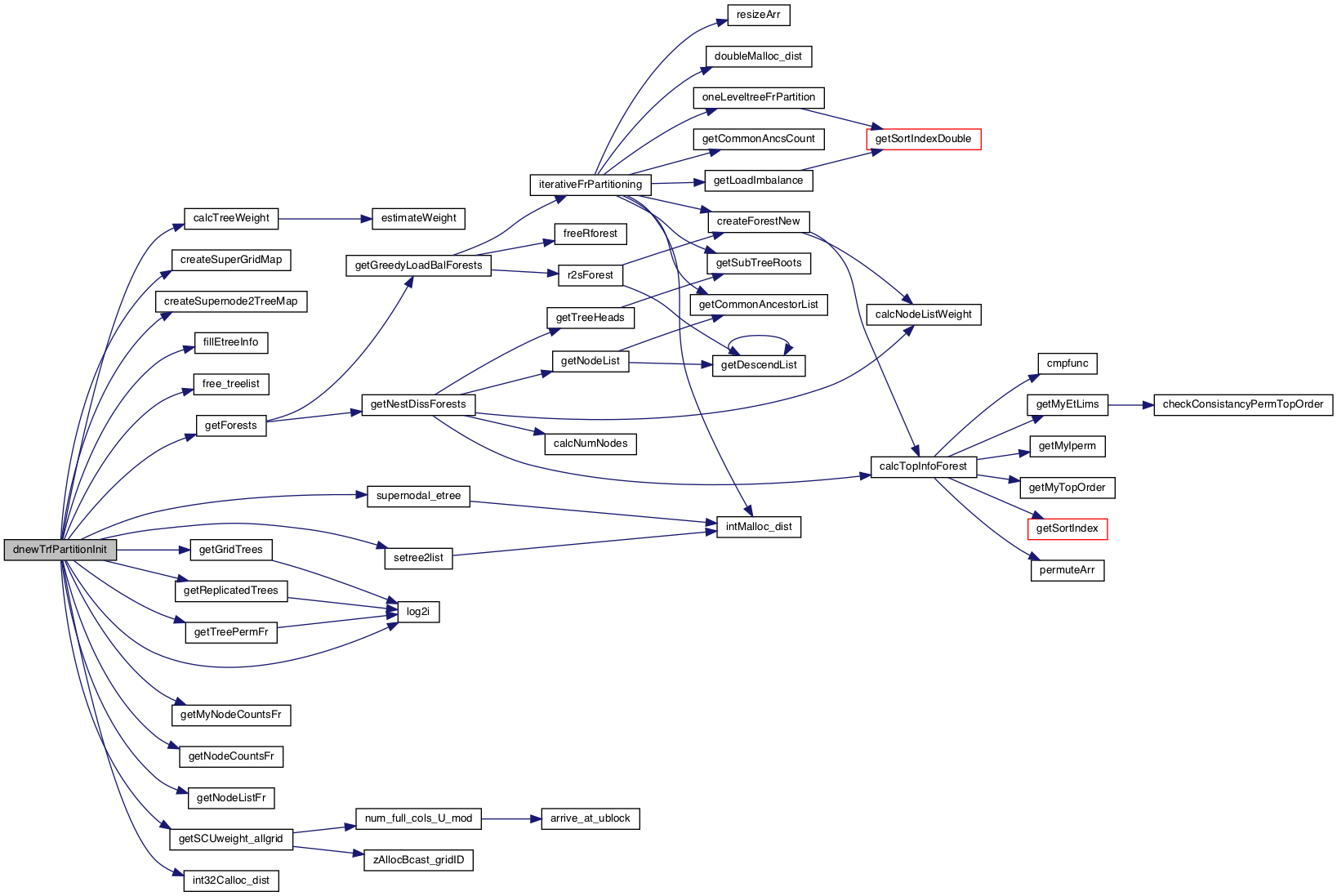

dnewTrfPartitionInit()

void dnewTrfPartitionInit	(	int_t	nsupers,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

Here is the call graph for this function:

Here is the caller graph for this function:

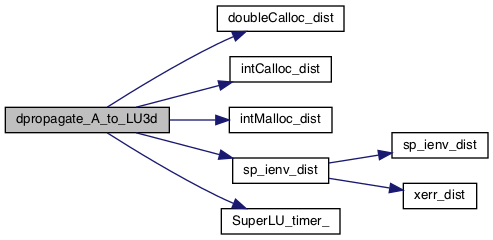

dpropagate_A_to_LU3d()

void dpropagate_A_to_LU3d	(	dLUstruct_t *	LUstruct,
		int_t *	xa,
		int_t *	asub,
		double *	a,
		superlu_dist_options_t *	options,
		gridinfo3d_t *	grid3d,
		int_t	nsupers,
		float *	mem_use
	)

Propagates the new values of A into the existing L and U data structures.

Parameters

Llu	The local L and U data structures.
xa	The index array of A.
asub	The row subscripts of A.
a	The numerical values of A.
options	The options array.
grid	The process grid.
mem_use	The memory usage.

Returns

void

Here is the call graph for this function:

dReDistribute_A3d()

int_t dReDistribute_A3d	(	SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		Glu_freeable_t *	Glu_freeable,
		int_t *	xsup,
		int_t *	supno,
		gridinfo3d_t *	grid3d,
		int_t *	colptr[],
		int_t *	rowind[],
		double *	a[]
	)

pddistribute3d()

float pddistribute3d	(	superlu_dist_options_t *	options,
		int_t	n,
		SuperMatrix *	A,
		dScalePermstruct_t *	ScalePermstruct,
		Glu_freeable_t *	Glu_freeable,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

propagateDataThroughMatrixBlocks()

void propagateDataThroughMatrixBlocks	(	int_t	nsupers,
		Glu_freeable_t *	Glu_freeable,
		dLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		int_t *	Urb_length,
		int_t *	rb_marker,
		int_t *	Urb_fstnz,
		int_t *	Ucbs,
		int **	ToSendR,
		int *	ToSendD,
		int *	ToRecv
	)

The function propagate_blocks performs data propagation in the form of values through blocks of a supernodal sparse matrix. It sends values to particular blocks and marks blocks to receive new values depending on certain conditions. It also counts the number of non-zeros in each block row and keeps track of the number of column blocks in each block row.

Input: nsupers: Total number of supernodes, i.e., the number of block columns in the original matrix. grid: The process grid. This grid contains the mapping of the matrix blocks to the process grid. xusub: An array of indices, each pointing to the start of each column in the usub array. usub: An array containing the row indices of non-zero elements of the supernodal matrix. ToSendR: A 2D flag array indicating which blocks need to be sent to other processes, organized by column. ToSendD: A flag array indicating which blocks are to be sent to other processes. Urb_length: An array containing the number of non-zero elements in each block row of the matrix. rb_marker: A marker array to track the last block column visited in each block row. Urb_fstnz: An array containing the number of first non-zero elements in each block row of the matrix. Ucbs: An array counting the number of column blocks in each block row. ToRecv: A flag array indicating which blocks are to be received from other processes.

Output: ToSendR, ToSendD, Urb_length, rb_marker, Urb_fstnz, Ucbs, ToRecv are modified in place. Their new values depend on the conditions checked during the loops.

Returns

void
