Driver program for PSGSSVX3D example. More...

#include "superlu_sdefs.h"

Include dependency graph for psdrive3d2.c:

Functions
static void	matCheck (int n, int m, float A, int LDA, float B, int LDB)

static void	checkNRFMT (NRformat_loc A, NRformat_loc B)

int	main (int argc, char *argv[])

int	cpp_defs ()

Detailed Description

Driver program for PSGSSVX3D example.

The source code is distributed under BSD license, see the file License.txt at the top-level directory.

   -- Distributed SuperLU routine (version 7.0) --
   Lawrence Berkeley National Lab, Georgia Institute of Technology,
   Oak Ridge National Lab
   September 10, 2021

 */


/*!


      Purpose
   =======

   The driver program PSDRIVE3D2.

   This example illustrates how to use PSGSSVX3D to sovle
   the systems with the same sparsity pattern of matrix A.
   In this case, the column permutation vector ScalePermstruct->perm_c is
   computed once. The following data structures will be reused in the
   subsequent call to PSGSSVX3D:
          ScalePermstruct : perm_c
          LUstruct        : etree
          SOLVEstruct     : communication metadata for SpTRSV, SpMV, and
                            3D<->2D gather/scatter of {A,B} stored in A3d.

   The program may be run by typing:
      mpiexec -np

 psdrive3d2 -r <proc rows> -c <proc columns> \
                                      -d <proc Z-dimension> <input_file>
   NOTE: total number of processes p = r * c * d
         (d must be a power-of-two, e.g., 1, 2, 4, ...)

Function Documentation

◆ checkNRFMT()

static void checkNRFMT	(	NRformat_loc *	A,
		NRformat_loc *	B
	)

static

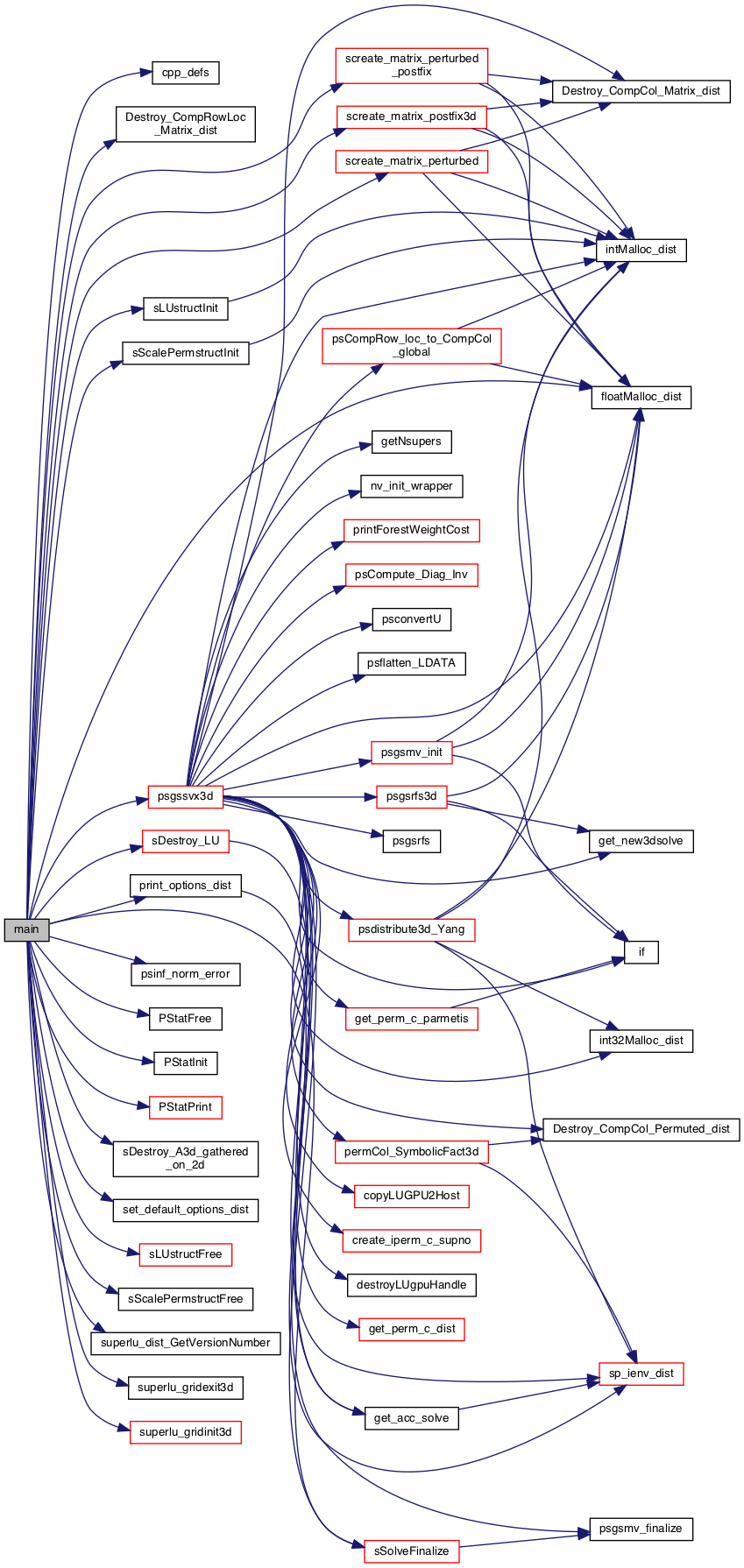

Here is the call graph for this function:

◆ cpp_defs()

int cpp_defs ( )

Here is the caller graph for this function:

◆ main()

int main	(	int	argc,
		char *	argv[]
	)
