pzgstrs3d.c File Reference

Solves a system of distributed linear equations A*X = B with a general N-by-N matrix A using the LU factors computed previously. More...

#include <math.h>
#include "superlu_zdefs.h"

Include dependency graph for pzgstrs3d.c:

Macros
#define	ISEND_IRECV

Functions
int_t	ztrs_B_init3d (int_t nsupers, doublecomplex *x, int nrhs, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d)
int_t	ztrs_B_init3d_newsolve (int_t nsupers, doublecomplex *x, int nrhs, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, ztrf3Dpartition_t *trf3Dpartition)
int	ztrs_compute_communication_structure (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, int *supernodeMask, gridinfo_t *grid, SuperLUStat_t *stat)
int_t	ztrs_x_reduction_newsolve (int_t nsupers, doublecomplex *x, int nrhs, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, ztrf3Dpartition_t *trf3Dpartition, doublecomplex *recvbuf, xtrsTimer_t *xtrsTimer)
int_t	ztrs_x_broadcast_newsolve (int_t nsupers, doublecomplex *x, int nrhs, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, ztrf3Dpartition_t *trf3Dpartition, doublecomplex *recvbuf, xtrsTimer_t *xtrsTimer)
int_t	zreduceSolvedX_newsolve (int_t treeId, int_t sender, int_t receiver, doublecomplex *x, int nrhs, ztrf3Dpartition_t *trf3Dpartition, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, doublecomplex *recvbuf, xtrsTimer_t *xtrsTimer)
int_t	ztrs_X_gather3d (doublecomplex *x, int nrhs, ztrf3Dpartition_t *trf3Dpartition, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, xtrsTimer_t *xtrsTimer)
int_t	zp2pSolvedX3d (int_t treeId, int_t sender, int_t receiver, doublecomplex *x, int nrhs, ztrf3Dpartition_t *trf3Dpartition, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, xtrsTimer_t *xtrsTimer)
int_t	zfsolveReduceLsum3d (int_t treeId, int_t sender, int_t receiver, doublecomplex *lsum, doublecomplex *recvbuf, int nrhs, ztrf3Dpartition_t *trf3Dpartition, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, xtrsTimer_t *xtrsTimer)
int_t	zbsolve_Xt_bcast (int_t ilvl, zxT_struct *xT_s, int nrhs, ztrf3Dpartition_t *trf3Dpartition, zLUstruct_t *LUstruct, gridinfo3d_t *grid3d, xtrsTimer_t *xtrsTimer)
int_t	zlsumForestFsolve (int_t k, doublecomplex *lsum, doublecomplex *x, doublecomplex *rtemp, zxT_struct *xT_s, int nrhs, zLUstruct_t *LUstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, SuperLUStat_t *stat)
int_t	znonLeafForestForwardSolve3d (int_t treeId, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, zxT_struct *xT_s, doublecomplex *recvbuf, doublecomplex *rtemp, MPI_Request *send_req, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	zleafForestForwardSolve3d (superlu_dist_options_t *options, int_t treeId, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, doublecomplex *recvbuf, doublecomplex *rtemp, MPI_Request *send_req, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
void	zlsum_fmod_leaf (int_t treeId, ztrf3Dpartition_t *trf3Dpartition, doublecomplex *lsum, doublecomplex *x, doublecomplex *xk, doublecomplex *rtemp, int nrhs, int knsupc, int_t k, int *fmod, int_t nlb, int_t lptr, int_t luptr, int_t *xsup, gridinfo_t *grid, zLocalLU_t *Llu, MPI_Request send_req[], SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	zleafForestForwardSolve3d_newsolve (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, doublecomplex *recvbuf, doublecomplex *rtemp, MPI_Request *send_req, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
void	zForwardSolve3d_newsolve_reusepdgstrs (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, int *supernodeMask, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
void	zlsum_fmod_leaf_newsolve (ztrf3Dpartition_t *trf3Dpartition, doublecomplex *lsum, doublecomplex *x, doublecomplex *xk, doublecomplex *rtemp, int nrhs, int knsupc, int_t k, int *fmod, int_t nlb, int_t lptr, int_t luptr, int_t *xsup, gridinfo_t *grid, zLocalLU_t *Llu, MPI_Request send_req[], SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	zlasum_bmod_Tree (int_t pTree, int_t cTree, doublecomplex *lsum, doublecomplex *x, zxT_struct *xT_s, int nrhs, zlsumBmod_buff_t *lbmod_buf, zLUstruct_t *LUstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, SuperLUStat_t *stat)
int_t	zinitLsumBmod_buff (int_t ns, int nrhs, zlsumBmod_buff_t *lbmod_buf)
int_t	zfreeLsumBmod_buff (zlsumBmod_buff_t *lbmod_buf)
int	zpackUblock (int ldu, int_t *indCols, int_t knsupc, int_t iklrow, int_t *usub, doublecomplex *tempu, doublecomplex *uval)
int_t	zpackXbmod (int_t knsupc, int_t ncols, int_t nrhs, int_t *indCols, doublecomplex *xk, doublecomplex *tempx)
int_t	zlsumBmod (int_t gik, int_t gjk, int nrhs, zlsumBmod_buff_t *lbmod_buf, int_t *usub, doublecomplex *uval, doublecomplex *xk, doublecomplex *lsum, int_t *xsup, SuperLUStat_t *stat)
int_t	zlsumForestBsolve (int_t k, int_t treeId, doublecomplex *lsum, doublecomplex *x, zxT_struct *xT_s, int nrhs, zlsumBmod_buff_t *lbmod_buf, zLUstruct_t *LUstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, SuperLUStat_t *stat)
int_t	zbCastXk2Pck (int_t k, zxT_struct *xT_s, int nrhs, zLUstruct_t *LUstruct, gridinfo_t *grid, xtrsTimer_t *xtrsTimer)
int_t	zlsumReducePrK (int_t k, doublecomplex *x, doublecomplex *lsum, doublecomplex *recvbuf, int nrhs, zLUstruct_t *LUstruct, gridinfo_t *grid, xtrsTimer_t *xtrsTimer)
int_t	znonLeafForestBackSolve3d (int_t treeId, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, zxT_struct *xT_s, doublecomplex *recvbuf, MPI_Request *send_req, int nrhs, zlsumBmod_buff_t *lbmod_buf, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	zleafForestBackSolve3d (superlu_dist_options_t *options, int_t treeId, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, doublecomplex *recvbuf, MPI_Request *send_req, int nrhs, zlsumBmod_buff_t *lbmod_buf, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	zleafForestBackSolve3d_newsolve (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, doublecomplex *recvbuf, MPI_Request *send_req, int nrhs, zlsumBmod_buff_t *lbmod_buf, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
void	zBackSolve3d_newsolve_reusepdgstrs (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, int *supernodeMask, gridinfo3d_t *grid3d, doublecomplex *x, doublecomplex *lsum, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
void	zlsum_bmod_GG (doublecomplex *lsum, doublecomplex *x, doublecomplex *xk, int nrhs, zlsumBmod_buff_t *lbmod_buf, int_t k, int *bmod, int_t *Urbs, Ucb_indptr_t **Ucb_indptr, int_t **Ucb_valptr, int_t *xsup, gridinfo_t *grid, zLocalLU_t *Llu, MPI_Request send_req[], SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
void	zlsum_bmod_GG_newsolve (ztrf3Dpartition_t *trf3Dpartition, doublecomplex *lsum, doublecomplex *x, doublecomplex *xk, int nrhs, zlsumBmod_buff_t *lbmod_buf, int_t k, int *bmod, int_t *Urbs, Ucb_indptr_t **Ucb_indptr, int_t **Ucb_valptr, int_t *xsup, gridinfo_t *grid, zLocalLU_t *Llu, MPI_Request send_req[], SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	zlocalSolveXkYk (trtype_t trtype, int_t k, doublecomplex *x, int nrhs, zLUstruct_t *LUstruct, gridinfo_t *grid, SuperLUStat_t *stat)
int_t	ziBcastXk2Pck (int_t k, doublecomplex *x, int nrhs, int **sendList, MPI_Request *send_req, zLUstruct_t *LUstruct, gridinfo_t *grid, xtrsTimer_t *xtrsTimer)
int_t	pzReDistribute3d_B_to_X (doublecomplex *B, int_t m_loc, int nrhs, int_t ldb, int_t fst_row, int_t *ilsum, doublecomplex *x, zScalePermstruct_t *ScalePermstruct, Glu_persist_t *Glu_persist, gridinfo3d_t *grid3d, zSOLVEstruct_t *SOLVEstruct)
int_t	pzReDistribute3d_X_to_B (int_t n, doublecomplex *B, int_t m_loc, int_t ldb, int_t fst_row, int nrhs, doublecomplex *x, int_t *ilsum, zScalePermstruct_t *ScalePermstruct, Glu_persist_t *Glu_persist, gridinfo3d_t *grid3d, zSOLVEstruct_t *SOLVEstruct)
void	pzgstrs3d (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *B, int_t m_loc, int_t fst_row, int_t ldb, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, int *info)
void	pzgstrs3d_newsolve (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *B, int_t m_loc, int_t fst_row, int_t ldb, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, int *info)
int_t	pzgsTrForwardSolve3d (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x3d, doublecomplex *lsum3d, zxT_struct *xT_s, doublecomplex *recvbuf, MPI_Request *send_req, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	pzgsTrForwardSolve3d_newsolve (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x3d, doublecomplex *lsum3d, doublecomplex *recvbuf, MPI_Request *send_req, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	pzgsTrBackSolve3d (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, zScalePermstruct_t *ScalePermstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x3d, doublecomplex *lsum3d, zxT_struct *xT_s, doublecomplex *recvbuf, MPI_Request *send_req, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)
int_t	pzgsTrBackSolve3d_newsolve (superlu_dist_options_t *options, int_t n, zLUstruct_t *LUstruct, ztrf3Dpartition_t *trf3Dpartition, gridinfo3d_t *grid3d, doublecomplex *x3d, doublecomplex *lsum3d, doublecomplex *recvbuf, MPI_Request *send_req, int nrhs, zSOLVEstruct_t *SOLVEstruct, SuperLUStat_t *stat, xtrsTimer_t *xtrsTimer)

Variables
doublecomplex *	zready_x
doublecomplex *	zready_lsum

Detailed Description

Solves a system of distributed linear equations A*X = B with a general N-by-N matrix A using the LU factors computed previously.

Copyright (c) 2003, The Regents of the University of California, through Lawrence Berkeley National Laboratory (subject to receipt of any required approvals from U.S. Dept. of Energy)

All rights reserved.

The source code is distributed under BSD license, see the file License.txt at the top-level directory.

-- Distributed SuperLU routine (version 9.0) --
Lawrence Berkeley National Lab, Univ. of California Berkeley.
October 15, 2008
September 18, 2018  version 6.0
February 8, 2019  version 6.1.1

Macro Definition Documentation

ISEND_IRECV

#define ISEND_IRECV

Function Documentation

pzgsTrBackSolve3d()

int_t pzgsTrBackSolve3d	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x3d,
		doublecomplex *	lsum3d,
		zxT_struct *	xT_s,
		doublecomplex *	recvbuf,
		MPI_Request *	send_req,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Loop over all the levels from root to leaf

Adding dlsumBmod_buff_t* lbmod_buf

Here is the call graph for this function:

Here is the caller graph for this function:

pzgsTrBackSolve3d_newsolve()

int_t pzgsTrBackSolve3d_newsolve	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x3d,
		doublecomplex *	lsum3d,
		doublecomplex *	recvbuf,
		MPI_Request *	send_req,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Adding dlsumBmod_buff_t* lbmod_buf

Here is the call graph for this function:

Here is the caller graph for this function:

pzgsTrForwardSolve3d()

int_t pzgsTrForwardSolve3d	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x3d,
		doublecomplex *	lsum3d,
		zxT_struct *	xT_s,
		doublecomplex *	recvbuf,
		MPI_Request *	send_req,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Loop over all the levels from root to leaf

Here is the call graph for this function:

Here is the caller graph for this function:

pzgsTrForwardSolve3d_newsolve()

int_t pzgsTrForwardSolve3d_newsolve	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x3d,
		doublecomplex *	lsum3d,
		doublecomplex *	recvbuf,
		MPI_Request *	send_req,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

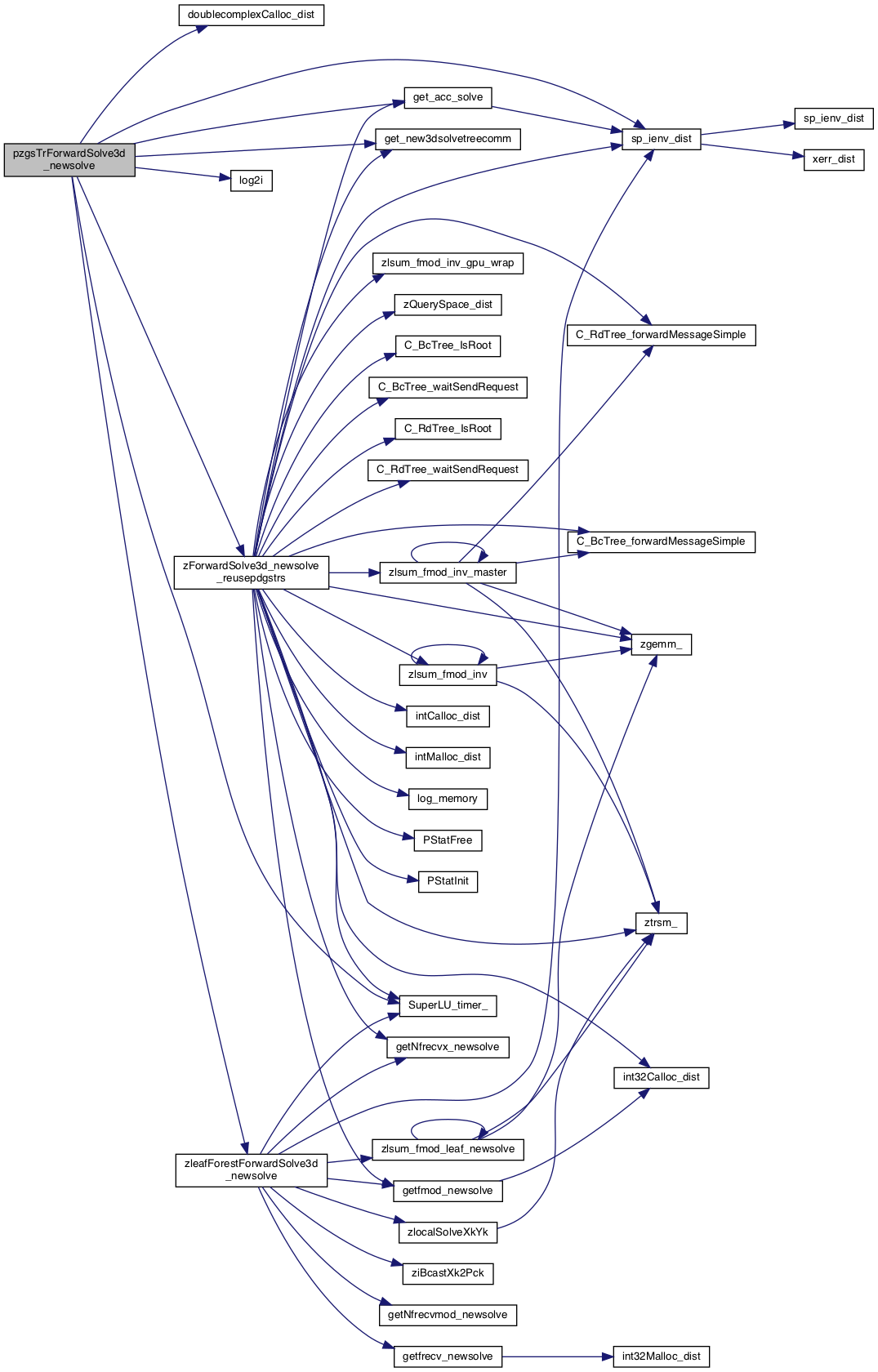

Here is the call graph for this function:

Here is the caller graph for this function:

pzgstrs3d()

void pzgstrs3d	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	B,
		int_t	m_loc,
		int_t	fst_row,
		int_t	ldb,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		int *	info
	)

Purpose


PZGSTRS solves a system of distributed linear equations
A*X = B with a general N-by-N matrix A using the LU factorization
computed by PZGSTRF.
If the equilibration, and row and column permutations were performed,
the LU factorization was performed for A1 where
    A1 = Pc*Pr*diag(R)*A*diag(C)*Pc^T = L*U
and the linear system solved is
    A1 * Y = Pc*Pr*B1, where B was overwritten by B1 = diag(R)*B, and
the permutation to B1 by Pc*Pr is applied internally in this routine.

Arguments


n      (input) int (global)
       The order of the system of linear equations.

LUstruct (input) zLUstruct_t*
       The distributed data structures storing L and U factors.
       The L and U factors are obtained from PZGSTRF for
       the possibly scaled and permuted matrix A.
       See superlu_ddefs.h for the definition of 'zLUstruct_t'.
       A may be scaled and permuted into A1, so that
       A1 = Pc*Pr*diag(R)*A*diag(C)*Pc^T = L*U

grid   (input) gridinfo_t*
       The 2D process mesh. It contains the MPI communicator, the number
       of process rows (NPROW), the number of process columns (NPCOL),
       and my process rank. It is an input argument to all the
       parallel routines.
       Grid can be initialized by subroutine SUPERLU_GRIDINIT.
       See superlu_defs.h for the definition of 'gridinfo_t'.

B      (input/output) doublecomplex*
       On entry, the distributed right-hand side matrix of the possibly
       equilibrated system. That is, B may be overwritten by diag(R)*B.
       On exit, the distributed solution matrix Y of the possibly
       equilibrated system if info = 0, where Y = Pc*diag(C)^(-1)*X,
       and X is the solution of the original system.

m_loc  (input) int (local)
       The local row dimension of matrix B.

fst_row (input) int (global)
       The row number of B's first row in the global matrix.

ldb    (input) int (local)
       The leading dimension of matrix B.

nrhs   (input) int (global)
       Number of right-hand sides.

SOLVEstruct (input) zSOLVEstruct_t* (global)
       Contains the information for the communication during the
       solution phase.

stat   (output) SuperLUStat_t*
       Record the statistics about the triangular solves.
       See util.h for the definition of 'SuperLUStat_t'.

info   (output) int*
    = 0: successful exit
    < 0: if info = -i, the i-th argument had an illegal value

Initializing xT

Setup the headers for xT

Reduce the Solve flops from all the grids to grid zero

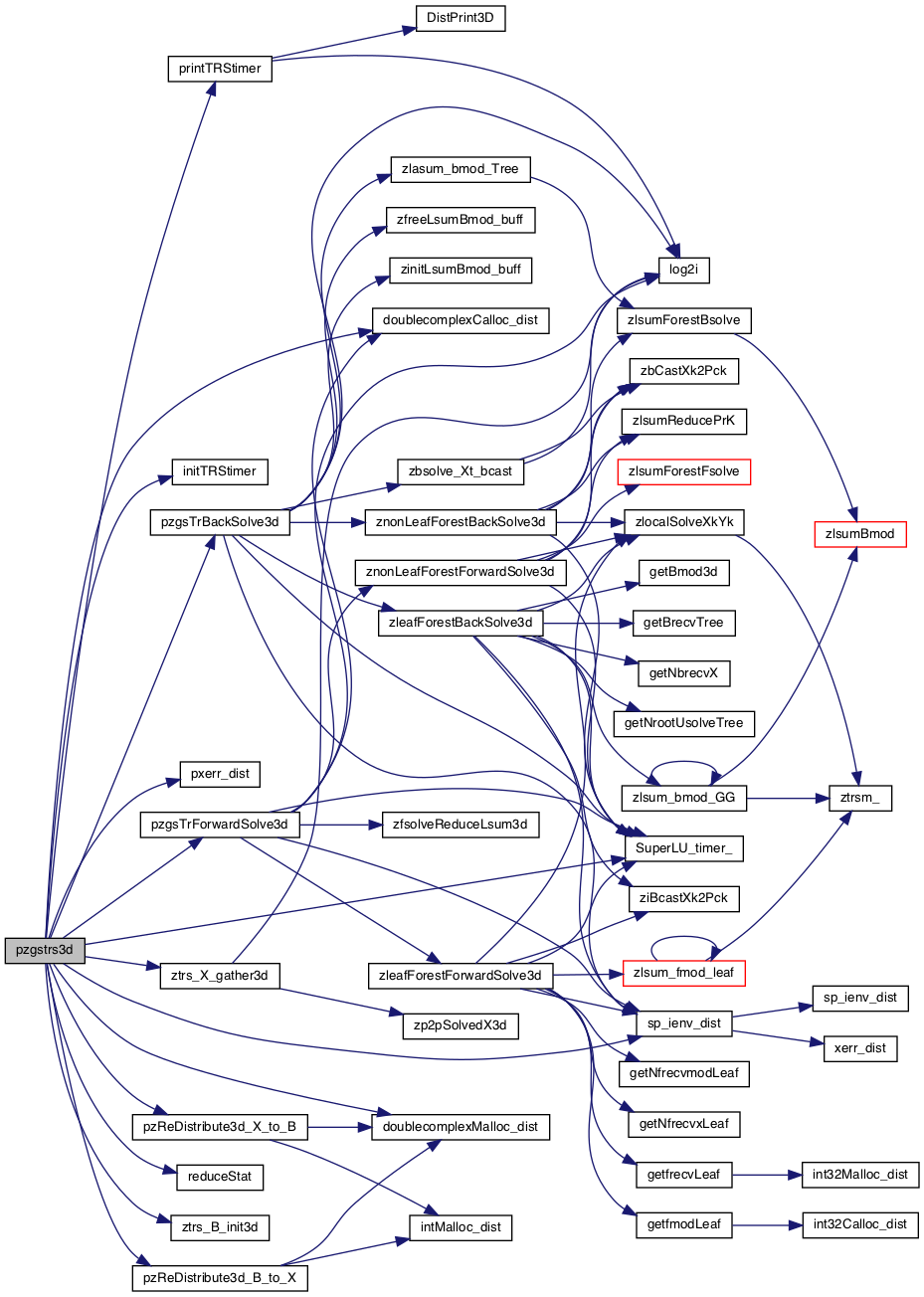

Here is the call graph for this function:

Here is the caller graph for this function:

pzgstrs3d_newsolve()

void pzgstrs3d_newsolve	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	B,
		int_t	m_loc,
		int_t	fst_row,
		int_t	ldb,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		int *	info
	)

Reduce the Solve flops from all the grids to grid zero

Here is the call graph for this function:

Here is the caller graph for this function:

pzReDistribute3d_B_to_X()

int_t pzReDistribute3d_B_to_X	(	doublecomplex *	B,
		int_t	m_loc,
		int	nrhs,
		int_t	ldb,
		int_t	fst_row,
		int_t *	ilsum,
		doublecomplex *	x,
		zScalePermstruct_t *	ScalePermstruct,
		Glu_persist_t *	Glu_persist,
		gridinfo3d_t *	grid3d,
		zSOLVEstruct_t *	SOLVEstruct
	)

Purpose

  Re-distribute B on the diagonal processes of the 2D process mesh (only on grid 0).

Note

  This routine can only be called after the routine pxgstrs_init(),
  in which the structures of the send and receive buffers are set up.

Arguments


B      (input) doublecomplex*
       The distributed right-hand side matrix of the possibly
       equilibrated system.

m_loc  (input) int (local)
       The local row dimension of matrix B.

nrhs   (input) int (global)
       Number of right-hand sides.

ldb    (input) int (local)
       Leading dimension of matrix B.

fst_row (input) int (global)
       The row number of B's first row in the global matrix.

ilsum  (input) int* (global)
       Starting position of each supernode in a full array.

x      (output) doublecomplex*
       The solution vector. It is valid only on the diagonal processes.

ScalePermstruct (input) dScalePermstruct_t*
       The data structure to store the scaling and permutation vectors
       describing the transformations performed to the original matrix A.

grid   (input) gridinfo_t*
       The 2D process mesh.

SOLVEstruct (input) dSOLVEstruct_t*
       Contains the information for the communication during the
       solution phase.

Return value

Here is the call graph for this function:

Here is the caller graph for this function:

pzReDistribute3d_X_to_B()

int_t pzReDistribute3d_X_to_B	(	int_t	n,
		doublecomplex *	B,
		int_t	m_loc,
		int_t	ldb,
		int_t	fst_row,
		int	nrhs,
		doublecomplex *	x,
		int_t *	ilsum,
		zScalePermstruct_t *	ScalePermstruct,
		Glu_persist_t *	Glu_persist,
		gridinfo3d_t *	grid3d,
		zSOLVEstruct_t *	SOLVEstruct
	)

Purpose

  Re-distribute X on the diagonal processes to B distributed on all
  the processes (only on grid 0)

Note

  This routine can only be called after the routine pxgstrs_init(),
  in which the structures of the send and receive buffers are set up.

Here is the call graph for this function:

Here is the caller graph for this function:

zBackSolve3d_newsolve_reusepdgstrs()

void zBackSolve3d_newsolve_reusepdgstrs	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		int *	supernodeMask,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zbCastXk2Pck()

int_t zbCastXk2Pck	(	int_t	k,
		zxT_struct *	xT_s,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		xtrsTimer_t *	xtrsTimer
	)

Here is the caller graph for this function:

zbsolve_Xt_bcast()

int_t zbsolve_Xt_bcast	(	int_t	ilvl,
		zxT_struct *	xT_s,
		int	nrhs,
		ztrf3Dpartition_t *	trf3Dpartition,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

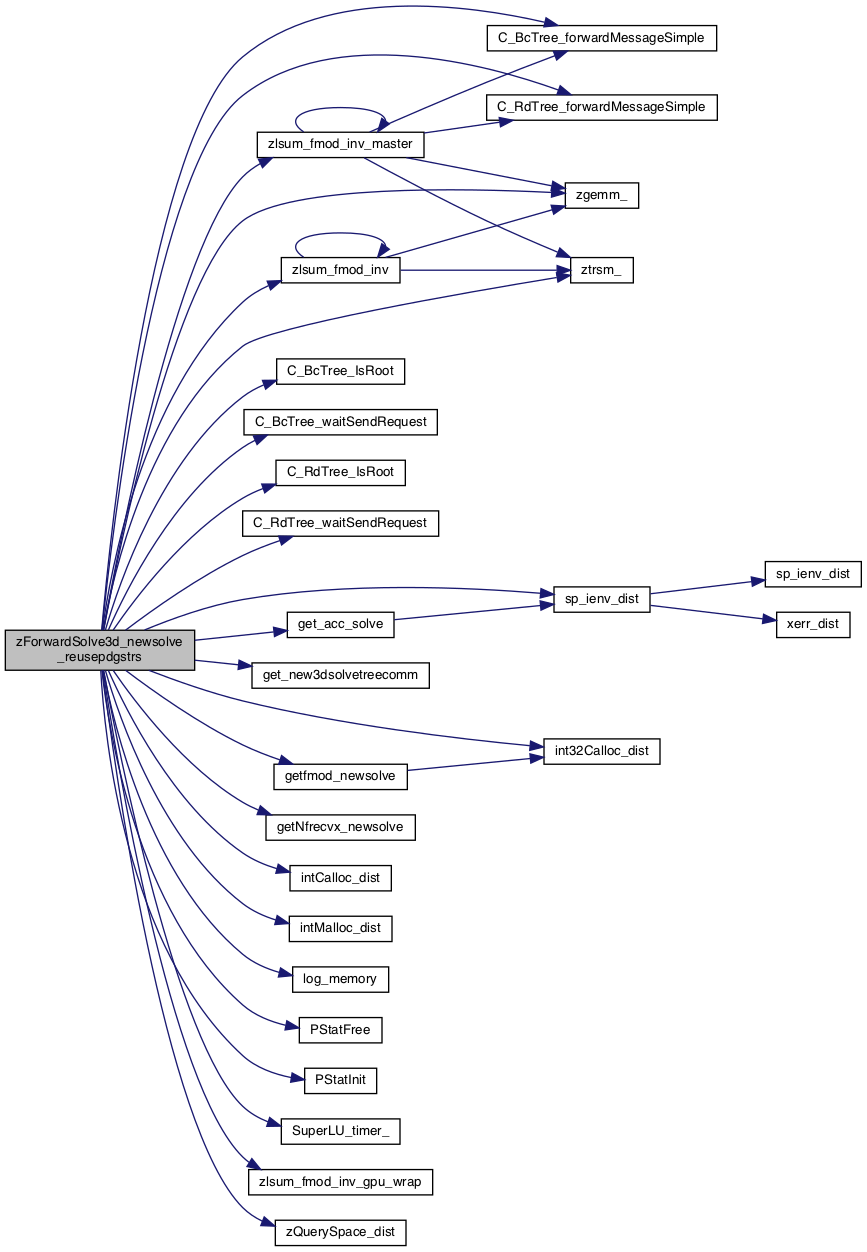

zForwardSolve3d_newsolve_reusepdgstrs()

void zForwardSolve3d_newsolve_reusepdgstrs	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		int *	supernodeMask,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zfreeLsumBmod_buff()

int_t zfreeLsumBmod_buff

(

zlsumBmod_buff_t *

lbmod_buf

)

Here is the caller graph for this function:

zfsolveReduceLsum3d()

int_t zfsolveReduceLsum3d	(	int_t	treeId,
		int_t	sender,
		int_t	receiver,
		doublecomplex *	lsum,
		doublecomplex *	recvbuf,
		int	nrhs,
		ztrf3Dpartition_t *	trf3Dpartition,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		xtrsTimer_t *	xtrsTimer
	)

Here is the caller graph for this function:

ziBcastXk2Pck()

int_t ziBcastXk2Pck	(	int_t	k,
		doublecomplex *	x,
		int	nrhs,
		int **	sendList,
		MPI_Request *	send_req,
		zLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		xtrsTimer_t *	xtrsTimer
	)

Here is the caller graph for this function:

zinitLsumBmod_buff()

int_t zinitLsumBmod_buff	(	int_t	ns,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf
	)

Here is the caller graph for this function:

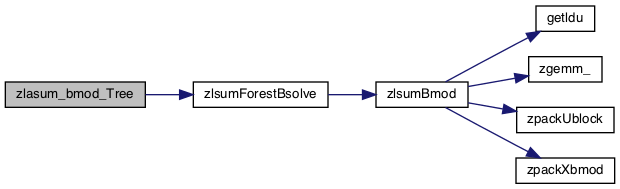

zlasum_bmod_Tree()

int_t zlasum_bmod_Tree	(	int_t	pTree,
		int_t	cTree,
		doublecomplex *	lsum,
		doublecomplex *	x,
		zxT_struct *	xT_s,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		zLUstruct_t *	LUstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat
	)

Here is the call graph for this function:

Here is the caller graph for this function:

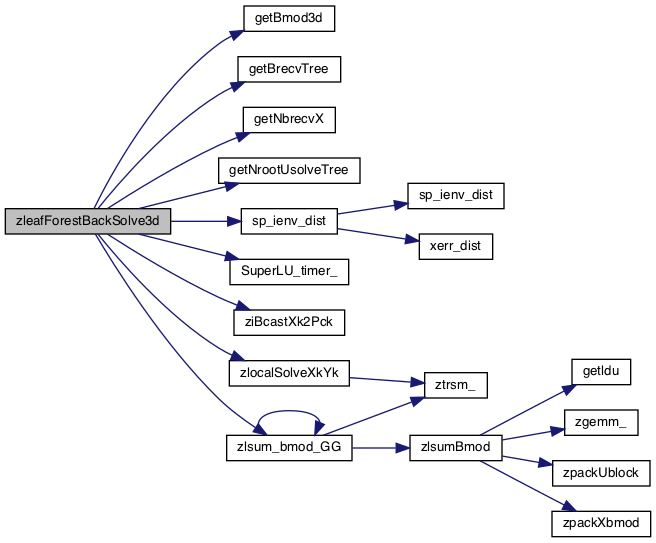

zleafForestBackSolve3d()

int_t zleafForestBackSolve3d	(	superlu_dist_options_t *	options,
		int_t	treeId,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		doublecomplex *	recvbuf,
		MPI_Request *	send_req,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zleafForestBackSolve3d_newsolve()

int_t zleafForestBackSolve3d_newsolve	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		doublecomplex *	recvbuf,
		MPI_Request *	send_req,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zleafForestForwardSolve3d()

int_t zleafForestForwardSolve3d	(	superlu_dist_options_t *	options,
		int_t	treeId,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		doublecomplex *	recvbuf,
		doublecomplex *	rtemp,
		MPI_Request *	send_req,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

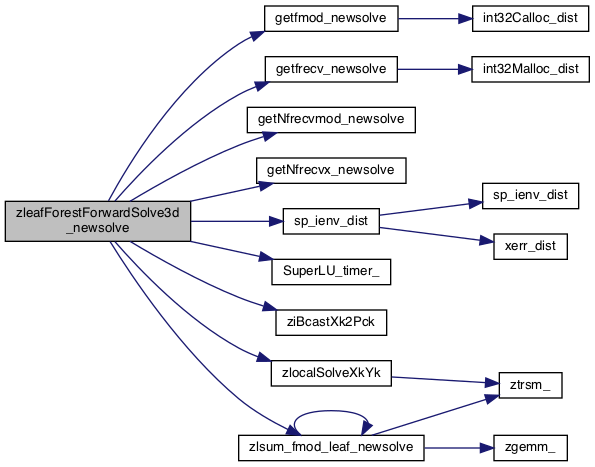

zleafForestForwardSolve3d_newsolve()

int_t zleafForestForwardSolve3d_newsolve	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		doublecomplex *	recvbuf,
		doublecomplex *	rtemp,
		MPI_Request *	send_req,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zlocalSolveXkYk()

int_t zlocalSolveXkYk	(	trtype_t	trtype,
		int_t	k,
		doublecomplex *	x,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		SuperLUStat_t *	stat
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zlsum_bmod_GG()

void zlsum_bmod_GG	(	doublecomplex *	lsum,
		doublecomplex *	x,
		doublecomplex *	xk,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		int_t	k,
		int *	bmod,
		int_t *	Urbs,
		Ucb_indptr_t **	Ucb_indptr,
		int_t **	Ucb_valptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		zLocalLU_t *	Llu,
		MPI_Request	send_req[],
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

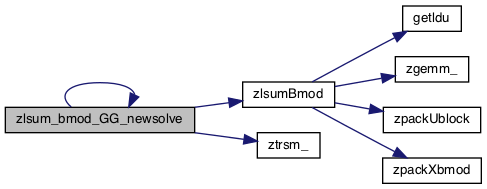

zlsum_bmod_GG_newsolve()

void zlsum_bmod_GG_newsolve	(	ztrf3Dpartition_t *	trf3Dpartition,
		doublecomplex *	lsum,
		doublecomplex *	x,
		doublecomplex *	xk,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		int_t	k,
		int *	bmod,
		int_t *	Urbs,
		Ucb_indptr_t **	Ucb_indptr,
		int_t **	Ucb_valptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		zLocalLU_t *	Llu,
		MPI_Request	send_req[],
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zlsum_fmod_leaf()

void zlsum_fmod_leaf	(	int_t	treeId,
		ztrf3Dpartition_t *	trf3Dpartition,
		doublecomplex *	lsum,
		doublecomplex *	x,
		doublecomplex *	xk,
		doublecomplex *	rtemp,
		int	nrhs,
		int	knsupc,
		int_t	k,
		int *	fmod,
		int_t	nlb,
		int_t	lptr,
		int_t	luptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		zLocalLU_t *	Llu,
		MPI_Request	send_req[],
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zlsum_fmod_leaf_newsolve()

void zlsum_fmod_leaf_newsolve	(	ztrf3Dpartition_t *	trf3Dpartition,
		doublecomplex *	lsum,
		doublecomplex *	x,
		doublecomplex *	xk,
		doublecomplex *	rtemp,
		int	nrhs,
		int	knsupc,
		int_t	k,
		int *	fmod,
		int_t	nlb,
		int_t	lptr,
		int_t	luptr,
		int_t *	xsup,
		gridinfo_t *	grid,
		zLocalLU_t *	Llu,
		MPI_Request	send_req[],
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zlsumBmod()

int_t zlsumBmod	(	int_t	gik,
		int_t	gjk,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		int_t *	usub,
		doublecomplex *	uval,
		doublecomplex *	xk,
		doublecomplex *	lsum,
		int_t *	xsup,
		SuperLUStat_t *	stat
	)

Here is the call graph for this function:

Here is the caller graph for this function:

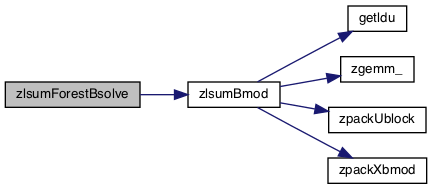

zlsumForestBsolve()

int_t zlsumForestBsolve	(	int_t	k,
		int_t	treeId,
		doublecomplex *	lsum,
		doublecomplex *	x,
		zxT_struct *	xT_s,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		zLUstruct_t *	LUstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zlsumForestFsolve()

int_t zlsumForestFsolve	(	int_t	k,
		doublecomplex *	lsum,
		doublecomplex *	x,
		doublecomplex *	rtemp,
		zxT_struct *	xT_s,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		SuperLUStat_t *	stat
	)

Here is the call graph for this function:

Here is the caller graph for this function:

zlsumReducePrK()

int_t zlsumReducePrK	(	int_t	k,
		doublecomplex *	x,
		doublecomplex *	lsum,
		doublecomplex *	recvbuf,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		gridinfo_t *	grid,
		xtrsTimer_t *	xtrsTimer
	)

Here is the caller graph for this function:

znonLeafForestBackSolve3d()

int_t znonLeafForestBackSolve3d	(	int_t	treeId,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		zxT_struct *	xT_s,
		doublecomplex *	recvbuf,
		MPI_Request *	send_req,
		int	nrhs,
		zlsumBmod_buff_t *	lbmod_buf,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Pkk(Yk) = sumOver_PrK (Yk)

Here is the call graph for this function:

Here is the caller graph for this function:

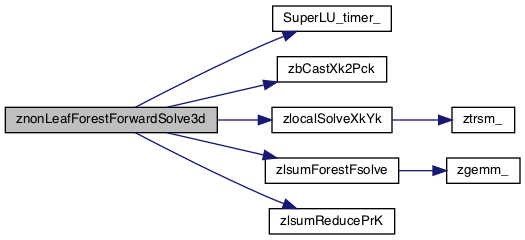

znonLeafForestForwardSolve3d()

int_t znonLeafForestForwardSolve3d	(	int_t	treeId,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		ztrf3Dpartition_t *	trf3Dpartition,
		gridinfo3d_t *	grid3d,
		doublecomplex *	x,
		doublecomplex *	lsum,
		zxT_struct *	xT_s,
		doublecomplex *	recvbuf,
		doublecomplex *	rtemp,
		MPI_Request *	send_req,
		int	nrhs,
		zSOLVEstruct_t *	SOLVEstruct,
		SuperLUStat_t *	stat,
		xtrsTimer_t *	xtrsTimer
	)

Pkk(Yk) = sumOver_PrK (Yk)

Here is the call graph for this function:

Here is the caller graph for this function:

zp2pSolvedX3d()

int_t zp2pSolvedX3d	(	int_t	treeId,
		int_t	sender,
		int_t	receiver,
		doublecomplex *	x,
		int	nrhs,
		ztrf3Dpartition_t *	trf3Dpartition,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		xtrsTimer_t *	xtrsTimer
	)

Here is the caller graph for this function:

zpackUblock()

int zpackUblock	(	int	ldu,
		int_t *	indCols,
		int_t	knsupc,
		int_t	iklrow,
		int_t *	usub,
		doublecomplex *	tempu,
		doublecomplex *	uval
	)

Here is the caller graph for this function:

zpackXbmod()

int_t zpackXbmod	(	int_t	knsupc,
		int_t	ncols,
		int_t	nrhs,
		int_t *	indCols,
		doublecomplex *	xk,
		doublecomplex *	tempx
	)

Here is the caller graph for this function:

zreduceSolvedX_newsolve()

int_t zreduceSolvedX_newsolve	(	int_t	treeId,
		int_t	sender,
		int_t	receiver,
		doublecomplex *	x,
		int	nrhs,
		ztrf3Dpartition_t *	trf3Dpartition,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		doublecomplex *	recvbuf,
		xtrsTimer_t *	xtrsTimer
	)

Here is the caller graph for this function:

ztrs_B_init3d()

int_t ztrs_B_init3d	(	int_t	nsupers,
		doublecomplex *	x,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d
	)

Here is the caller graph for this function:

ztrs_B_init3d_newsolve()

int_t ztrs_B_init3d_newsolve	(	int_t	nsupers,
		doublecomplex *	x,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		ztrf3Dpartition_t *	trf3Dpartition
	)

Here is the call graph for this function:

Here is the caller graph for this function:

ztrs_compute_communication_structure()

int ztrs_compute_communication_structure	(	superlu_dist_options_t *	options,
		int_t	n,
		zLUstruct_t *	LUstruct,
		zScalePermstruct_t *	ScalePermstruct,
		int *	supernodeMask,
		gridinfo_t *	grid,
		SuperLUStat_t *	stat
	)

Here is the call graph for this function:

Here is the caller graph for this function:

ztrs_x_broadcast_newsolve()

int_t ztrs_x_broadcast_newsolve	(	int_t	nsupers,
		doublecomplex *	x,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		ztrf3Dpartition_t *	trf3Dpartition,
		doublecomplex *	recvbuf,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

ztrs_X_gather3d()

int_t ztrs_X_gather3d	(	doublecomplex *	x,
		int	nrhs,
		ztrf3Dpartition_t *	trf3Dpartition,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

ztrs_x_reduction_newsolve()

int_t ztrs_x_reduction_newsolve	(	int_t	nsupers,
		doublecomplex *	x,
		int	nrhs,
		zLUstruct_t *	LUstruct,
		gridinfo3d_t *	grid3d,
		ztrf3Dpartition_t *	trf3Dpartition,
		doublecomplex *	recvbuf,
		xtrsTimer_t *	xtrsTimer
	)

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

zready_lsum

doublecomplex * zready_lsum

zready_x

doublecomplex* zready_x
